My Part Number:
Part Number: 750-469
Manufacturer Code: 750-469
Multiples of: 1 | Minimum Order: 1
2-channel analog input - Thermocouple K, Diagnostics, light gray

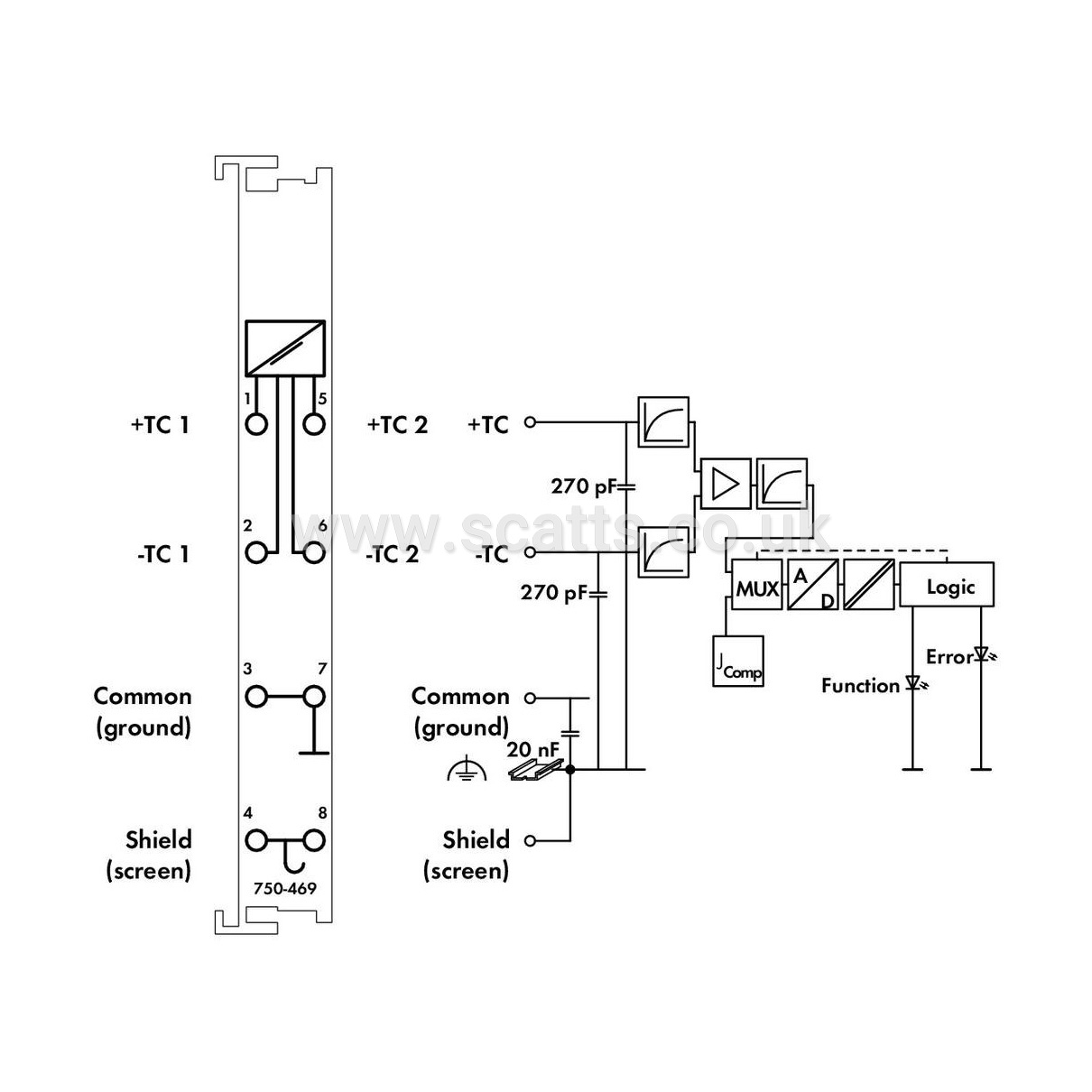

This analog input module directly connects to two thermocouples. Internal electrical isolation allows operation of grounded sensors. The module automatically linearizes the entire temperature range.
Cold junction compensation mitigates the clamping unit offset voltage over the 0–55°C operating range. A line break is indicated by a red LED. A green LED indicates readiness for operation and error-free communication with the coupler. The shield directly connects to the DIN-rail.
Number of analog inputs: 2
Total number of channels (module): 2
Signal type: Thermocouple

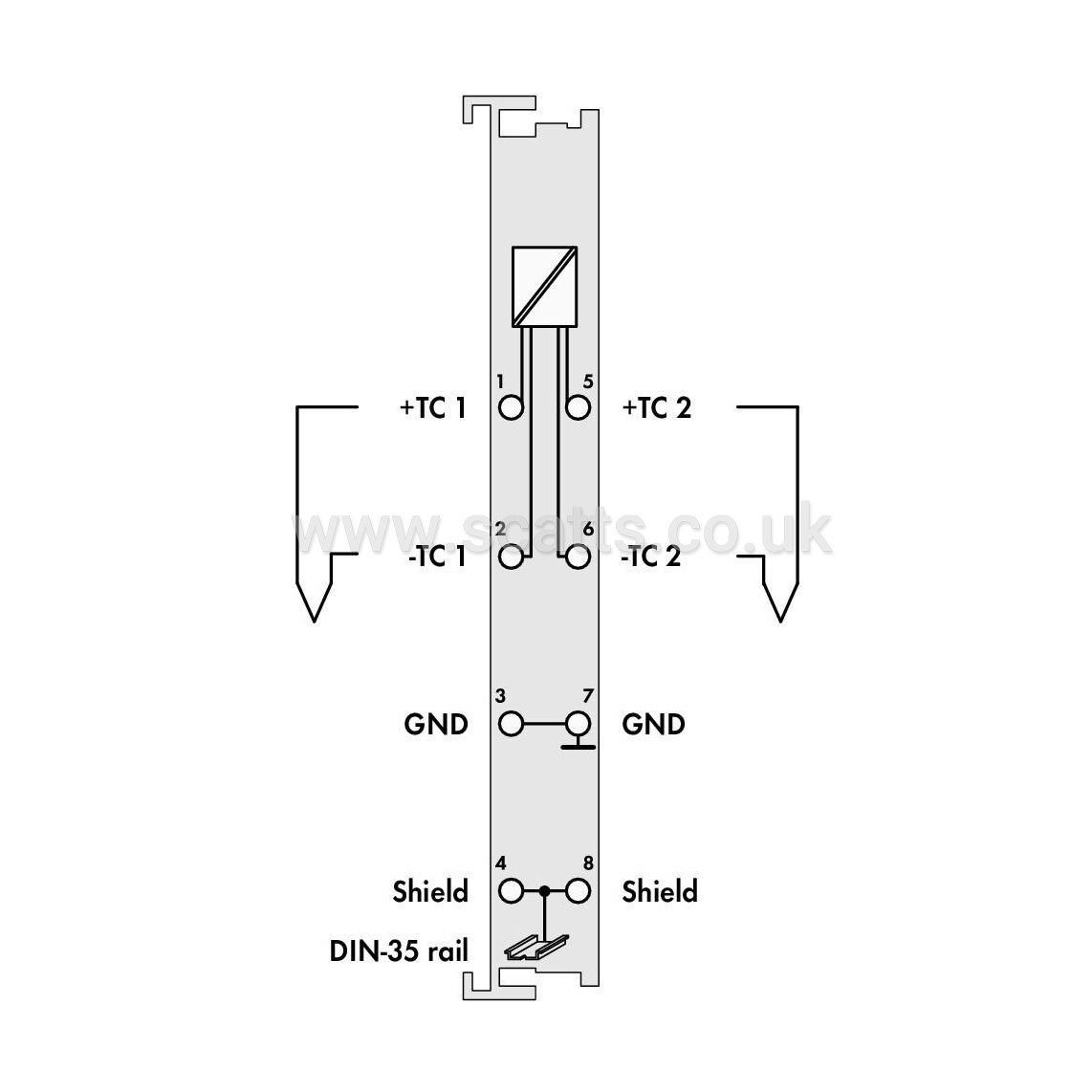

Sensor connection: 2 x (2-wire)
Data width: 2 x 16-bit data; 2 x 8-bit control/status (optional)
Internal resistance: 1000kΩ
Resolution: 0.1 °C
Conversion time (typ.): 320ms
Measurement error (25 °C): < ±6 K (voltage input < ±2 K; cold junction compensation < ±4 K)
Temperature coefficient: < ±0.2 K/K
Sensor types: Thermocouple K
Temperature range: 100 … +1370 °C
Cold junction compensation: at each pair of terminal blocks
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 65mA
Isolation: 500 V system/field

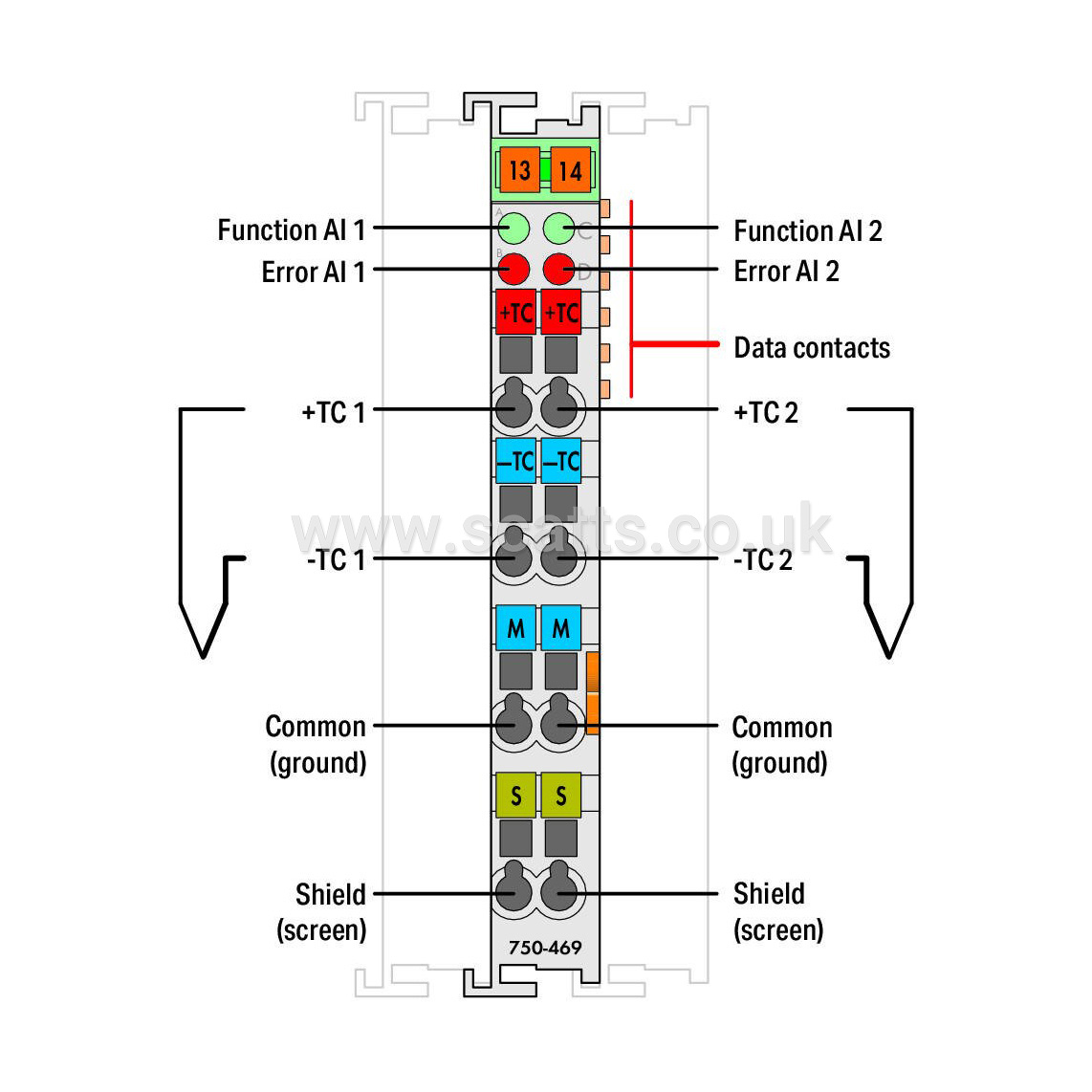

Indicators: LED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2
Brand |
WAGO |
|
£293.87
per 1 (ex. VAT)£352.64
per 1 (inc. VAT)
