My Part Number:
Part Number: 750-473/005-000
Manufacturer Code: 750-473/005-000
Multiples of: 1 | Minimum Order: 1
2-channel analog input; 4 … 20 mA; Single-ended; 60 Hz

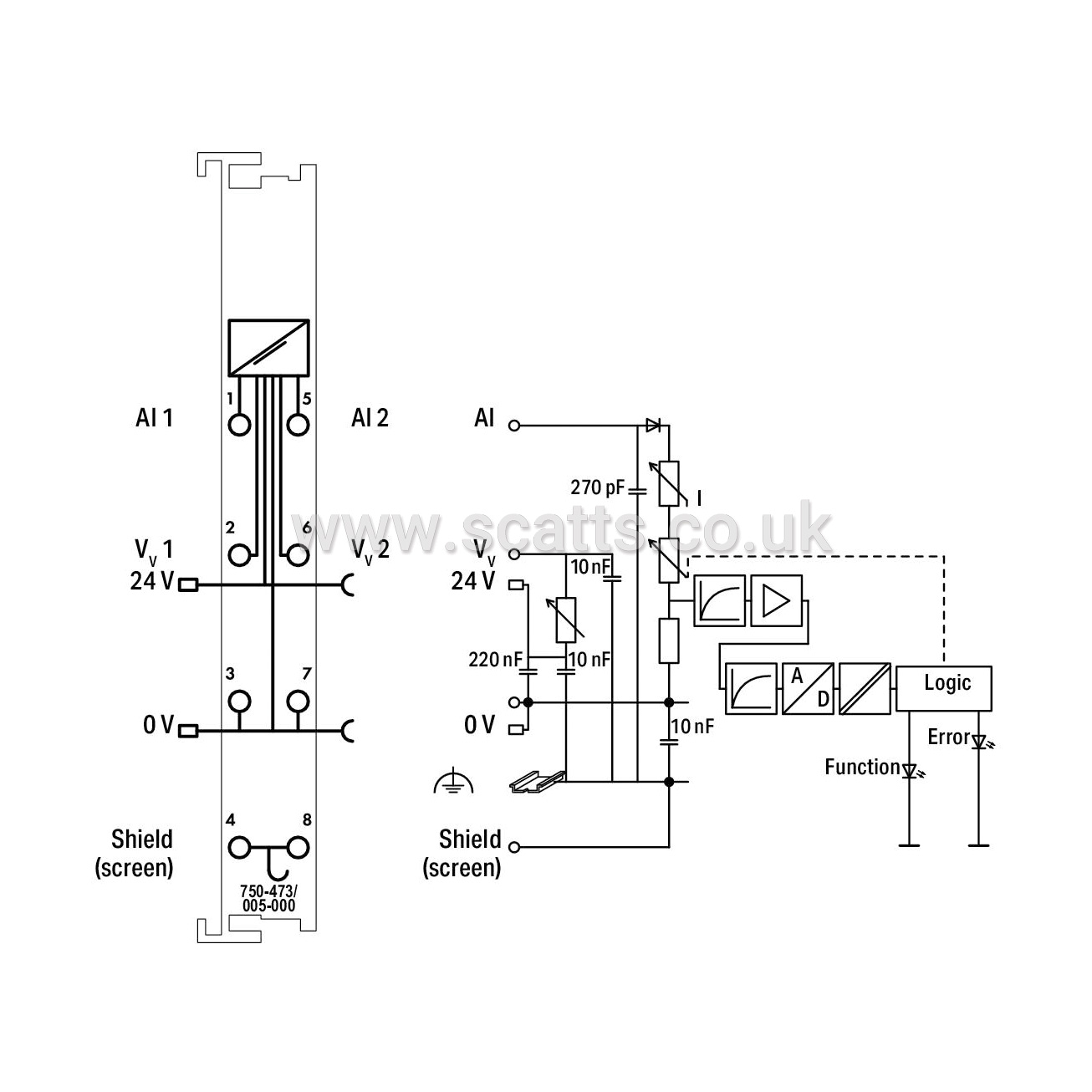

This analog input module processes standard 4–20 mA signals. The input signal is electrically isolated and is transmitted with a resolution of 12 bits. The 24 V field supply is derived from the module's power jumper contacts. The shield directly connects to the DIN-rail. This module supplies the short circuit-proof voltage for 2-wire signal conditioners. A short circuit to power is indicated as an error/fieldbus failure and a message is sent to the supervisory control.
Number of analog inputs: 2
Total number of channels (module): 2
Signal type: Current
Signal type: 4 … 20 mADC

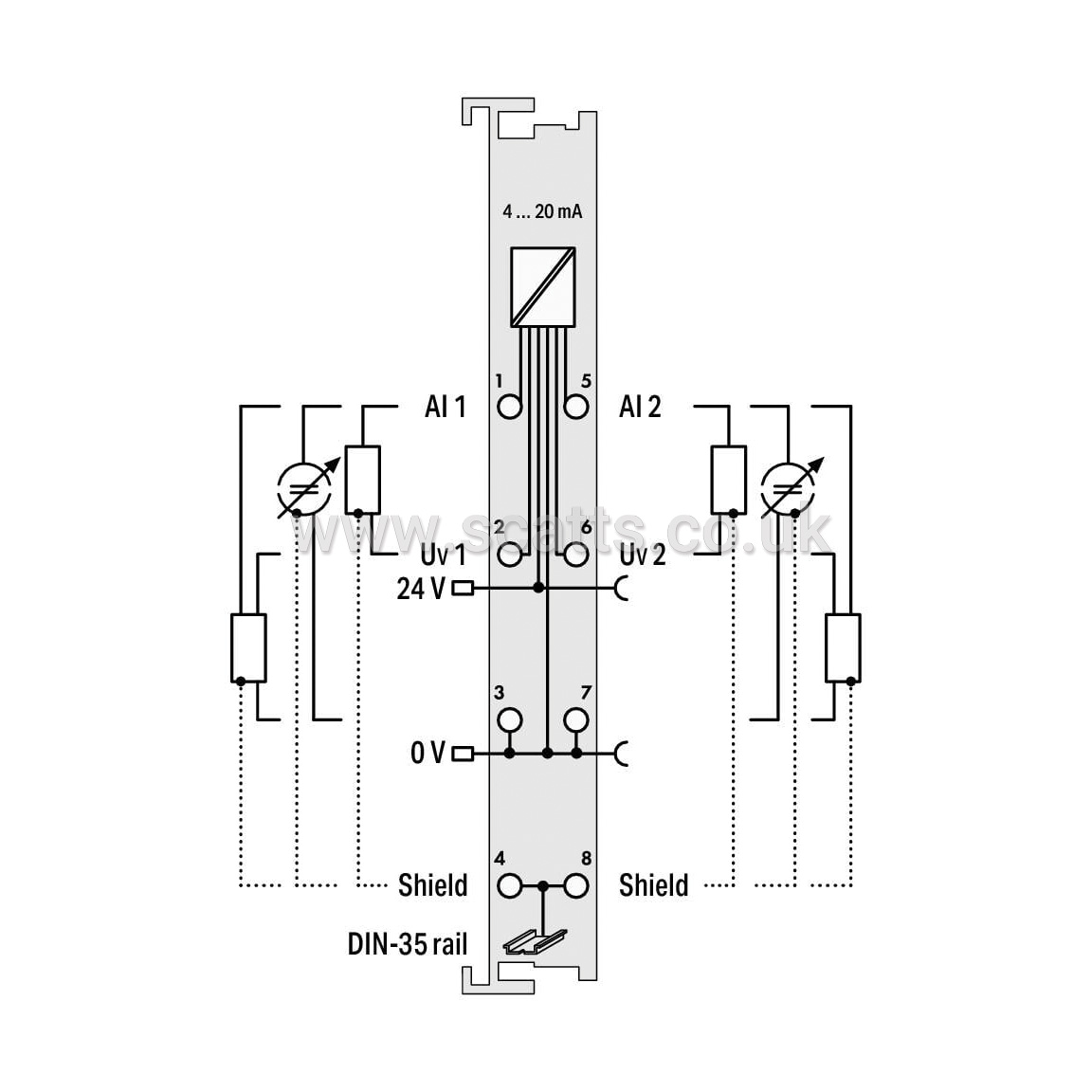

Sensor connection: 2 x (2-wire, 3-wire)
Input filter: 60Hz
Input voltage (note): Non-linear, overload protected U = 1.2 V + 100 Ω x I meas
Signal characteristics: Single-ended
Resolution [bit]: 12Bit
Input resistance (max.): 160Ω
Data width: 2 x 16-bit data; 2 x 8-bit control/status (optional)
Noise rejection at sampling frequency: -100dB
Noise rejection above sampling frequency: -40dB
Conversion time (typ.): 80ms
Measurement error (reference temperature): 25°C
Measurement error, deviation (max.) from the upper-range value: 0.1%
Temperature error (max.) of the upper-range value: 0.01%/K
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 100mA
Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
Isolation: 500 V system/field

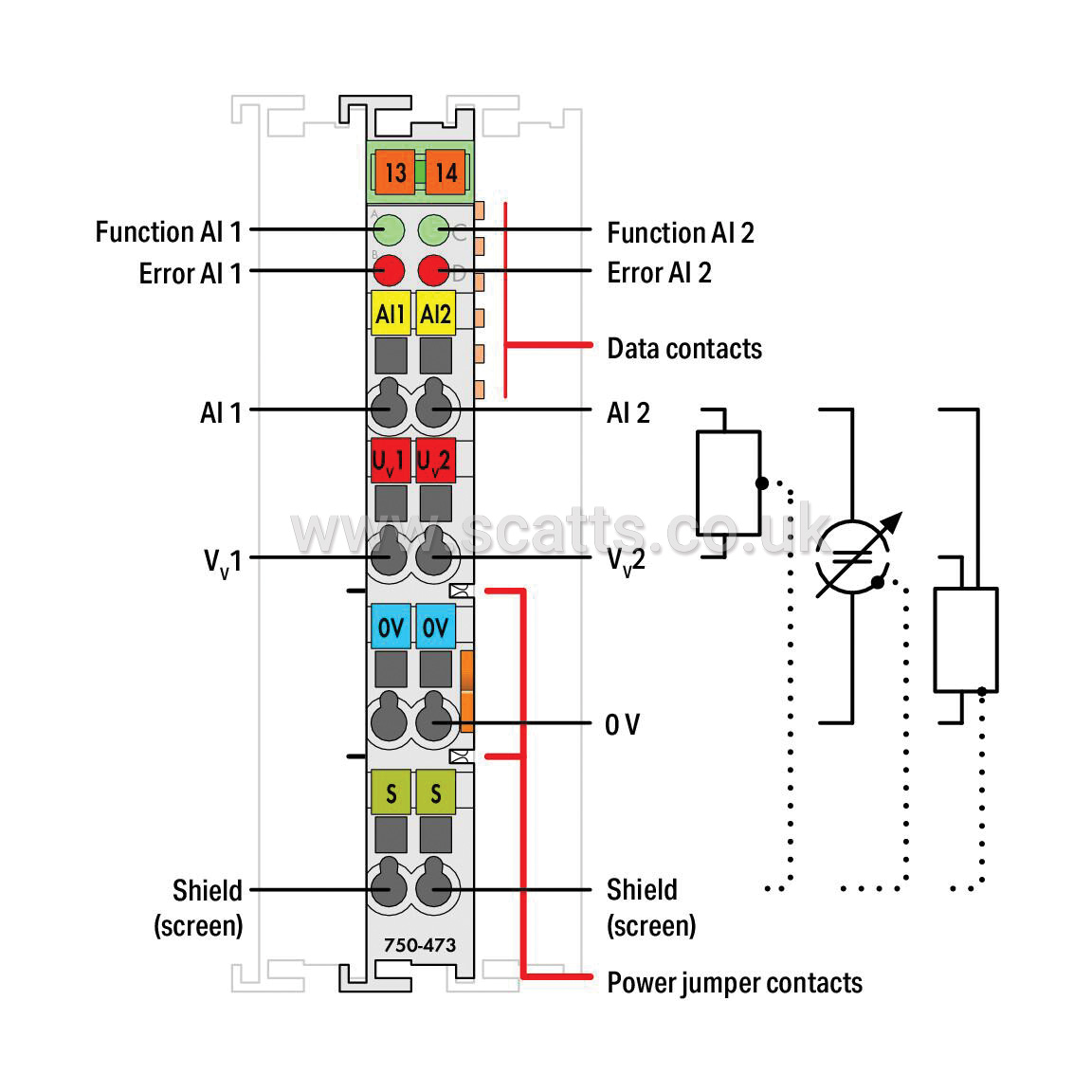

Indicators: LED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
Connection technology: inputs/outputs: 8 x CAGE CLAMP®
Connection type 1: Inputs/Outputs
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Strip length: 8 … 9 mm / 0.31 … 0.35 inches
Width: 12 mm / 0.472 inches
Height: 100 mm / 3.937 inches
Depth: 69.8 mm / 2.748 inches
Mounting type: DIN-35 rail
Colour: light gray
Housing material: Polycarbonate; polyamide 6.6
Brand |
WAGO |
|
£289.18
per 1 (ex. VAT)£347.02
per 1 (inc. VAT)
