My Part Number:
Part Number: 750-475
Manufacturer Code: 750-475
Multiples of: 1 | Minimum Order: 1
2-channel analog input - 0 … 1 A AC/DC, Differential input
The analog input module processes AC and DC currents within a range of 0 to 1A (rms). The module measures the rms value of the current and displays it with a resolution of 100µA. The maximum current must not exceed 2A.

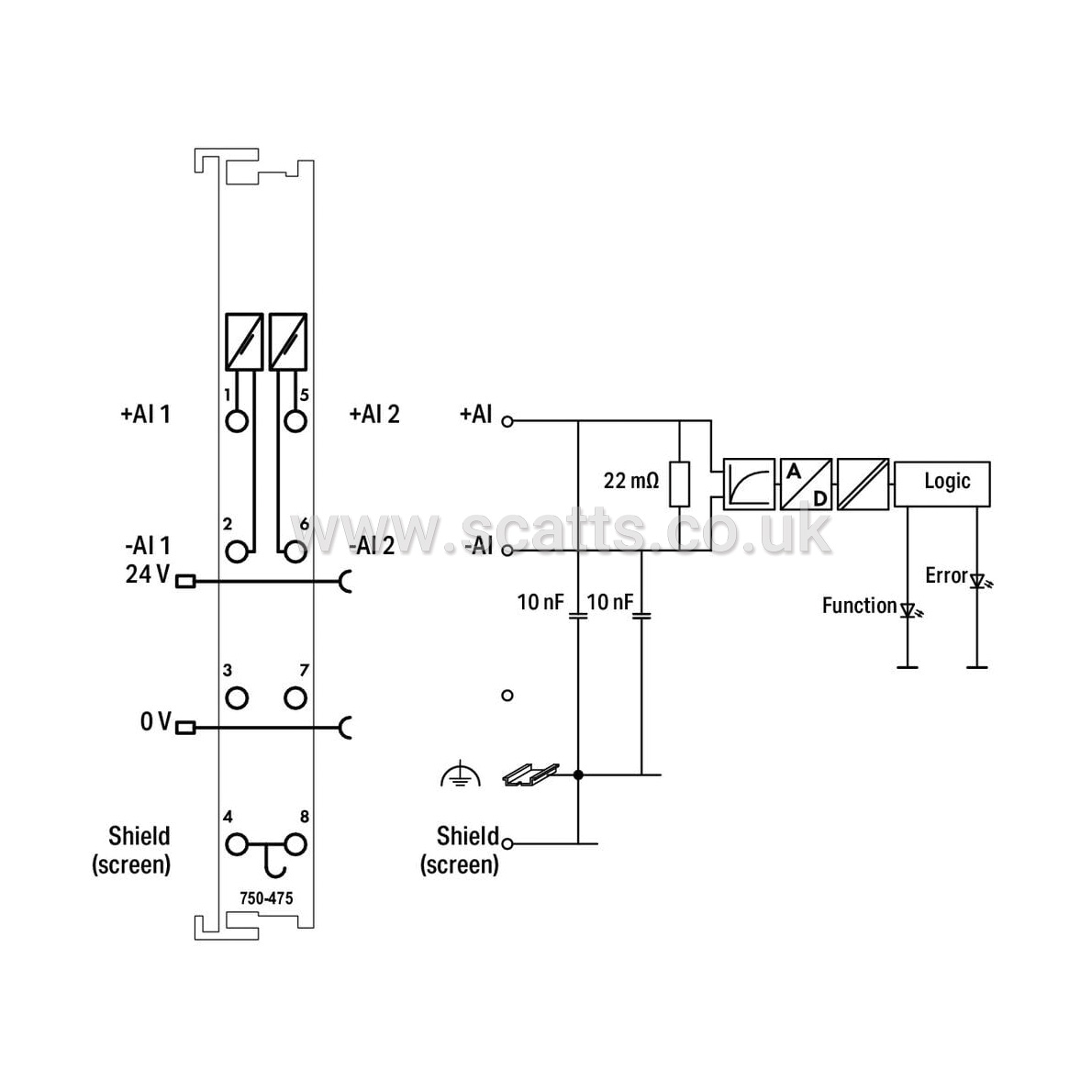

The differential inputs are electrically isolated. The fieldside and internal system are electrically isolated. System voltage is used for voltage supply. The input channels are differential inputs. The shield (screen) is directly connected to the DIN rail.
Number of analog inputs: 2
Total number of channels (module): 2
Signal type: Current
Signal type: 0 … 1 AAC/DC

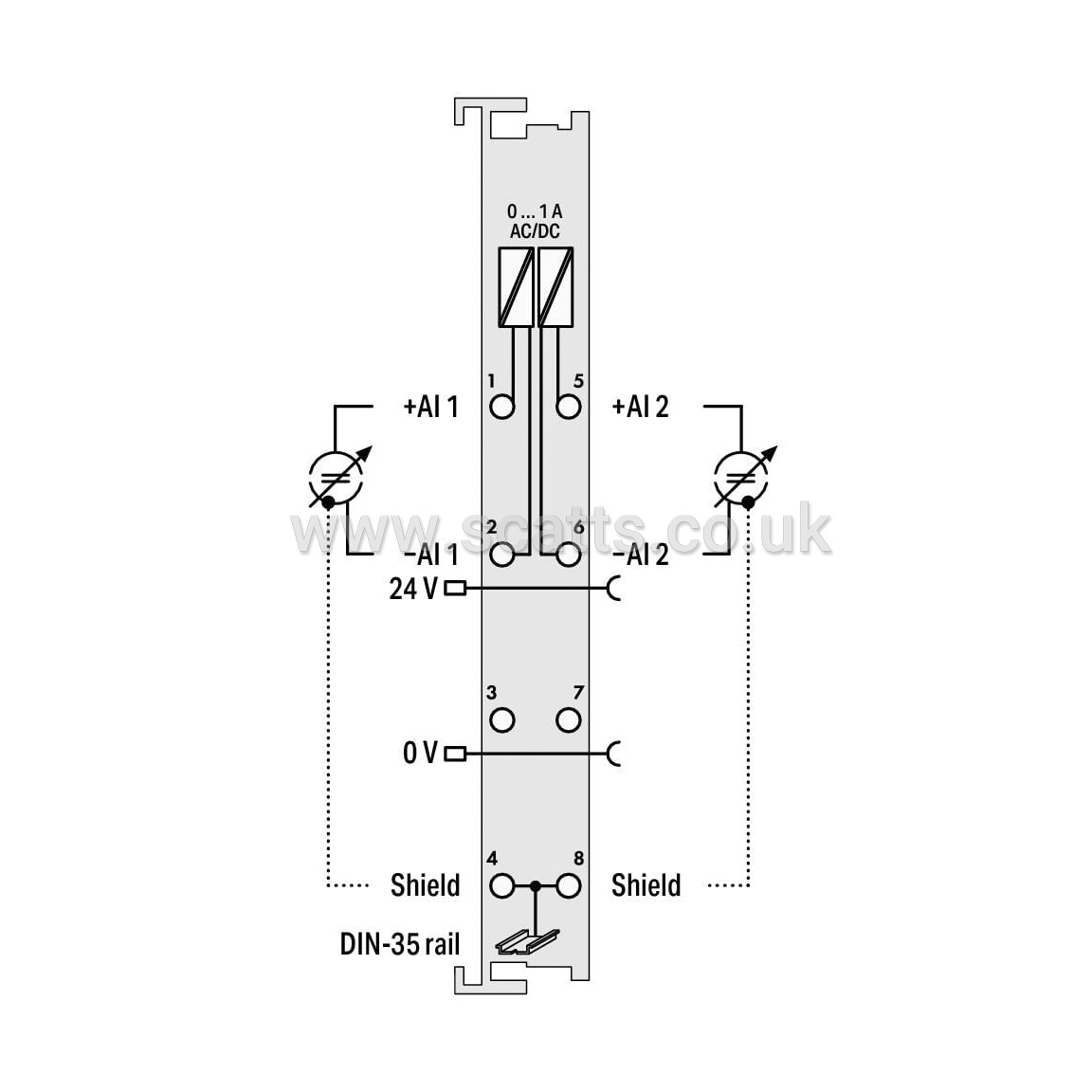

Sensor connection: 2 x (2-wire)
Input voltage (max.): 24 VAC/DC (-20 … +20 %)
Signal characteristics: Differential
Resolution [bit]: 15Bit
Input resistance (max.): 0.022Ω
Data width: 2 x 16-bit data; 2 x 8-bit control/status (optional)
Conversion time (typ.): 200ms
Measurement error (reference temperature): 25°C
Measurement error, deviation (max.) from the upper-range value: 0.1%
Measurement error over entire temperature range: ≤ ± 0.6 % of the full scale value
Temperature coefficient: < ± 110 ppm / K of the full scale value
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 80mA
Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
Process data: 0.0 A is 0x0000; 2.0 A DC is 0x4E20
Isolation: 500 V system/field or channel/channel

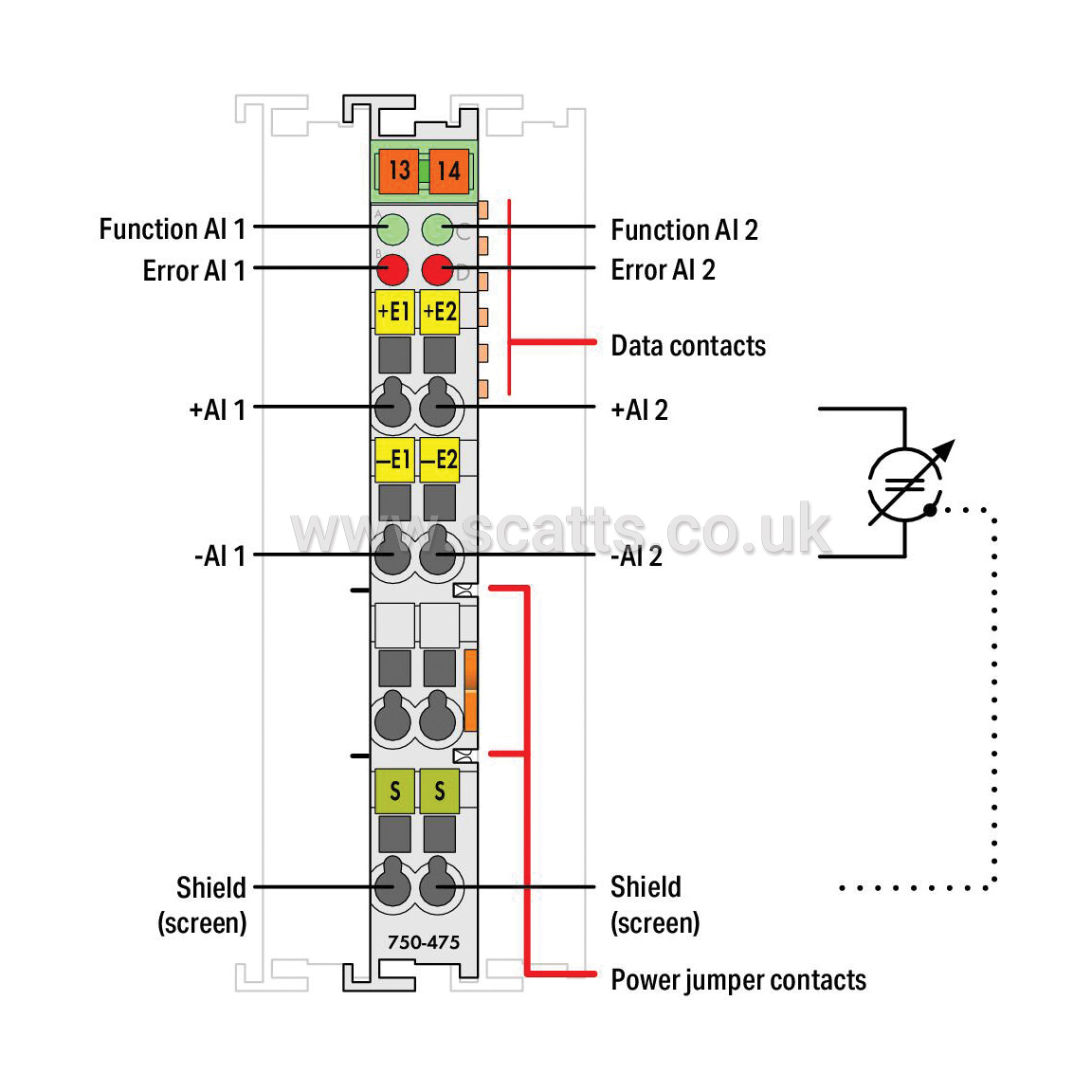

Indicators: LED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
Brand |
WAGO |
|
£235.91
per 1 (ex. VAT)£283.09
per 1 (inc. VAT)
