2-CHANNEL ANALOG INPUT; ±10 VDC; SINGLE-ENDED; 16 BITS; S5 PLC DATA FORMAT

2-channel analog input; ±10 VDC; Single-ended; 16 bits; S5 PLC data format

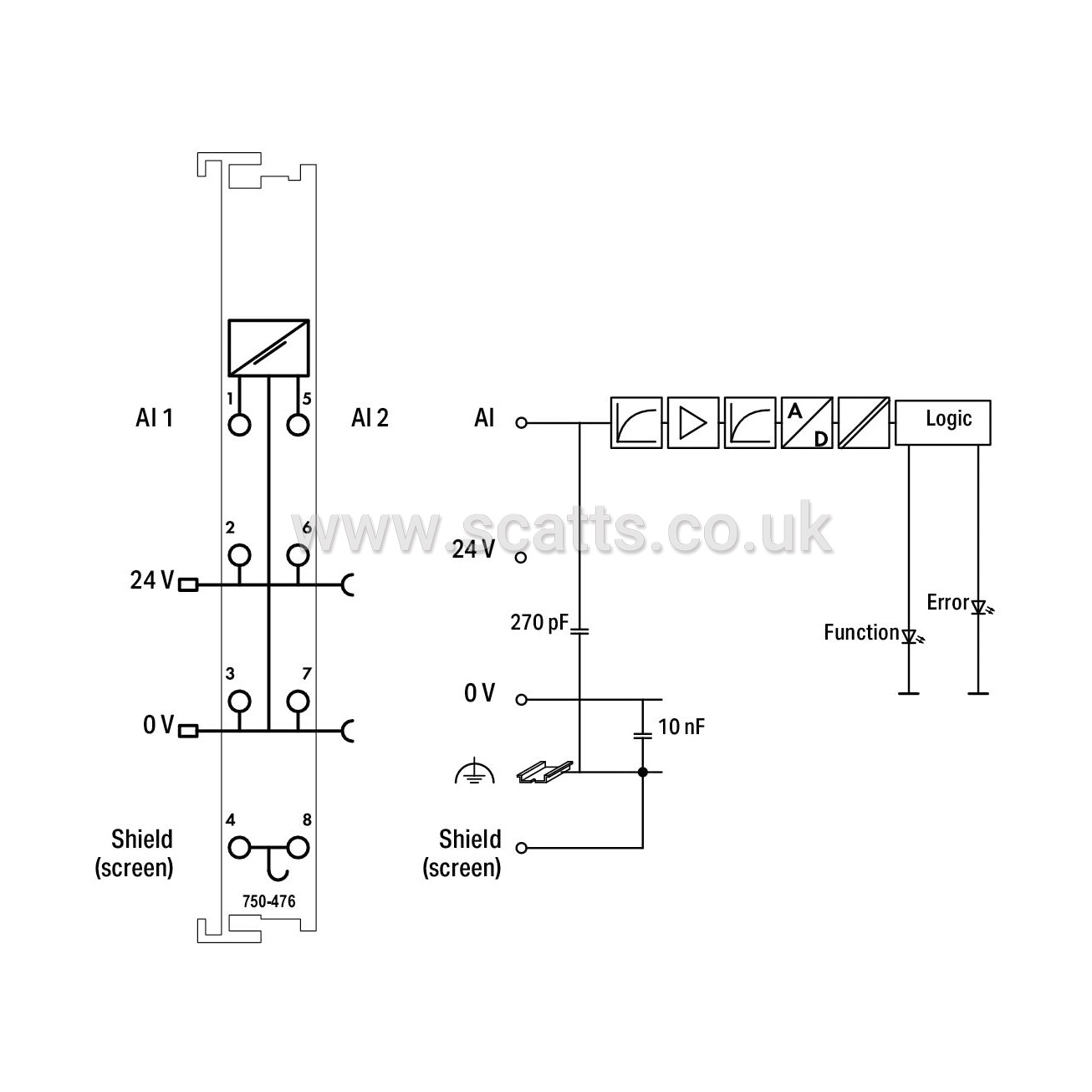

This analog input module processes standard ±10 V signals. The input signal is electrically isolated and is transmitted with a resolution of 16 bits. The internal system supply powers the module. The input channels of the module have a common ground potential. The 24 V supply is derived from the power jumper contacts. The shield directly connects to the DIN-rail.


Number of analog inputs: 2
Total number of channels (module): 2
Signal type: Voltage
Signal type: -10 … +10 VDC

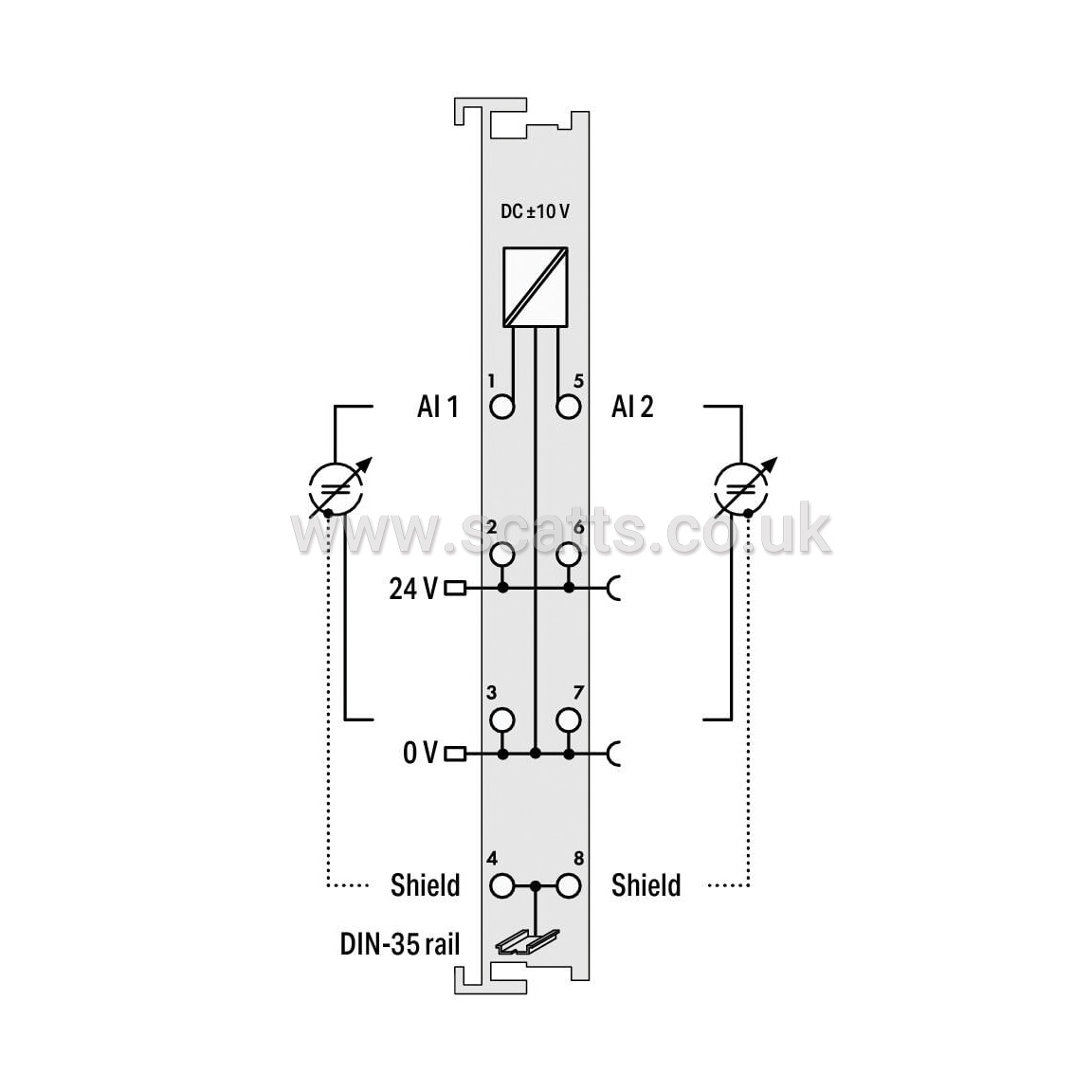

Sensor connection: 2 x (2-wire)
Input filter: 60Hz
Input voltage (max.): 24 V
Signal characteristics: Single-ended
Resolution [bit]: 16Bit
Data width: 2 x 16-bit data; 2 x 8-bit control/status (optional)
Internal resistance: 130kΩ
Conversion time (typ.): 80ms
Measurement error (reference temperature): 25°C
Measurement error, deviation (max.) from the upper-range value: 0.1%
Temperature error (max.) of the upper-range value: 0.01%/K
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 75mA
Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
Isolation: 500 V system/field

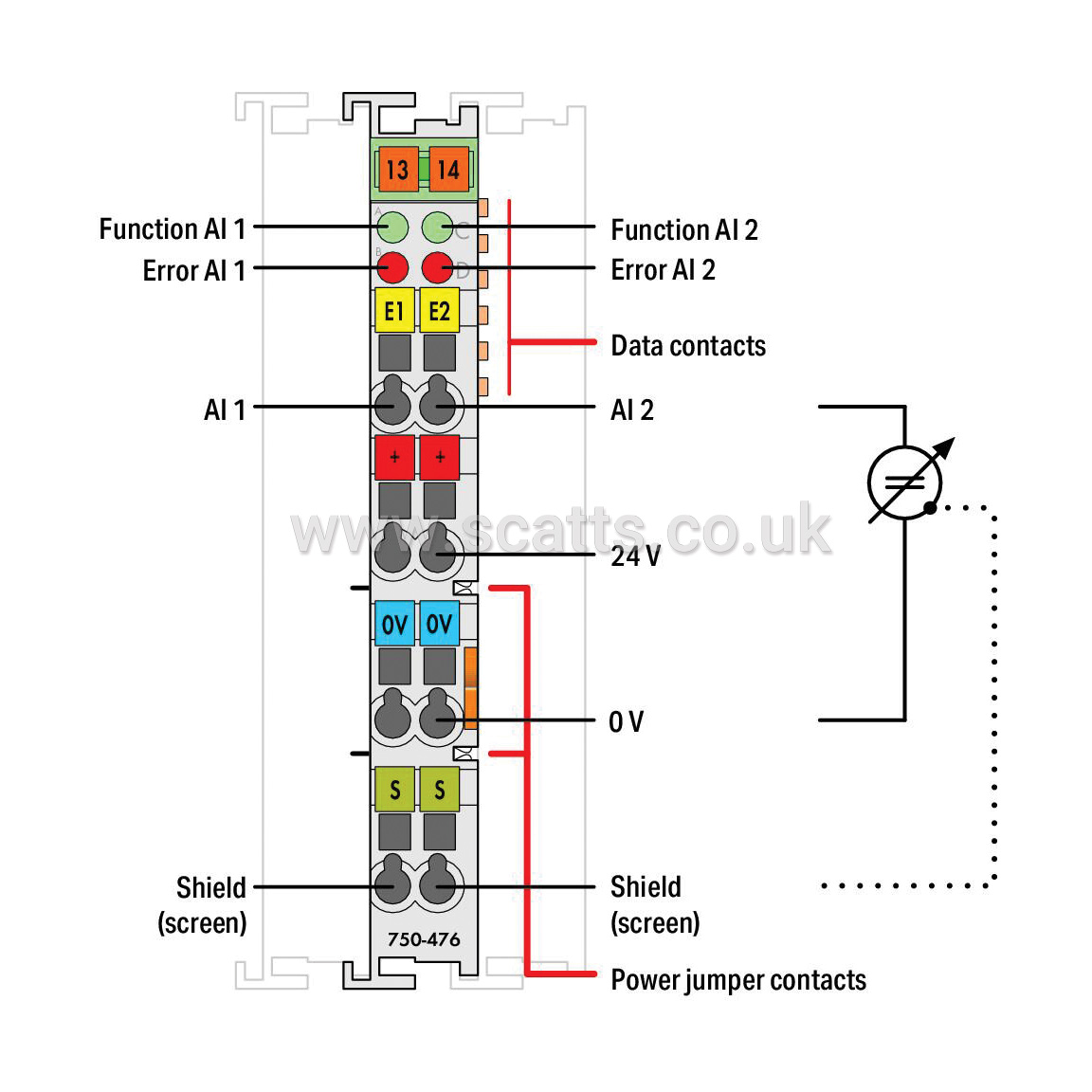

Indicators: LED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
Connection technology: inputs/outputs: 8 x CAGE CLAMP®
Connection type 1: Inputs/Outputs
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Strip length: 8 … 9 mm / 0.31 … 0.35 inches
Width: 12 mm / 0.472 inches
Height: 100 mm / 3.937 inches
Depth: 69.8 mm / 2.748 inches
Mounting type: DIN-35 rail
Housing material: Polycarbonate; polyamide 6.6
