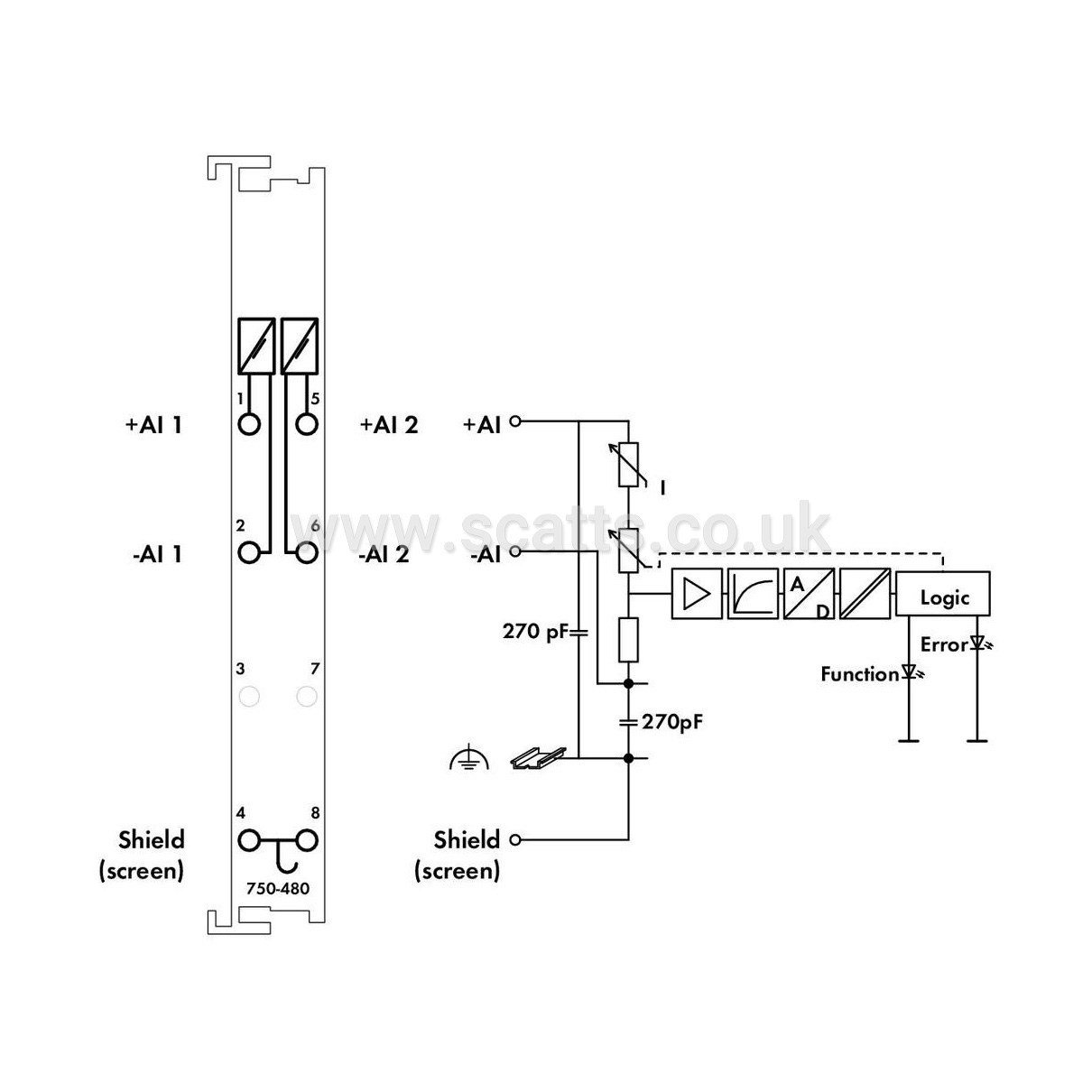

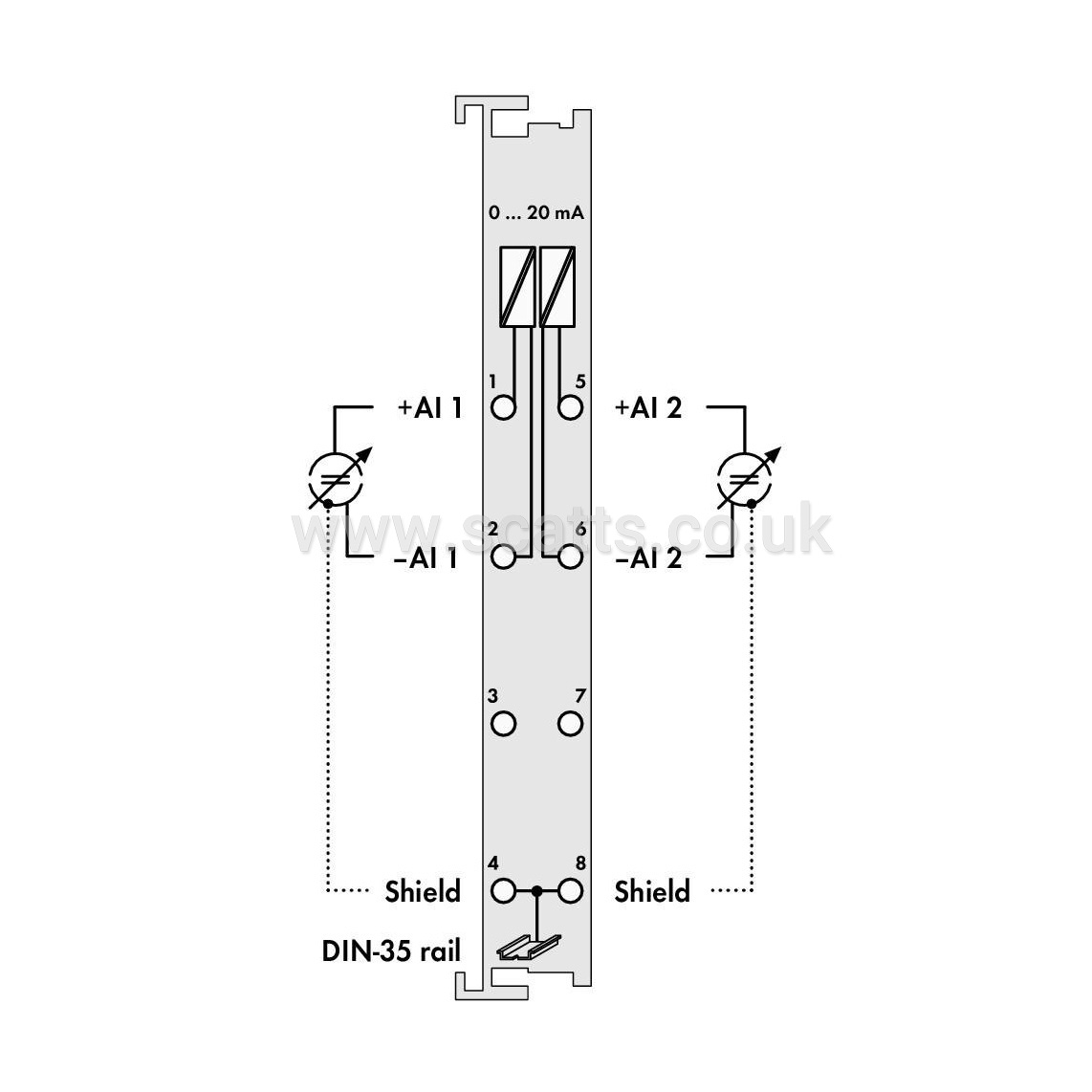

2 CH AI/P 0-20MA DIFF.I/P

2-channel analog input 0-20 mA Differential input light gray


This 2-channel analog input module processes differential signals ranging from 0 to 20 mA. The input signal of each channel is electrically isolated and is transmitted with a resolution of 13 bits. The system supply powers the module. The shield directly connects to the DIN-rail.

• Measured value acquisition: Time synchronous within the module
• Measurement range overflow/underflow: Status byte and LED
• Conversion method: SAR (Successive Approximation Register)
• Operating mode: Continuously sampling (default)
• Protection: Non-linear limiting

Number of analog inputs: 2
Total number of channels (module): 2
Signal type: Current
Signal type: 0 … 20 mADC
Sensor connection: 2 x (2-wire)
Input filter: Low pass (1st order), fG = 5 kHz
Signal characteristics: Differential
Resolution [bit]: 13Bit
Operating mode: Continuously sampling (default)
Input resistance (max.): 270Ω
Data width: 2 x 16-bit data; 2 x 8-bit control/status (optional)
Protection: Non-linear limiting
Admissible continuous overload: 30V
Crosstalk attenuation: 80dB
Monotonicity without error code: yes
Measurement error (reference temperature): 25°C
Measurement error, deviation (max.) from the upper-range value: 0.05%
Measurement error over entire temperature range: ≤ 0.4 %
Temperature error (max.) of the upper-range value: 0.01%/K
Sampling duration: 5µs
Sampling delay (channel/channel): 1µs
Sampling delay (module): 1ms
Sampling repetition time: 1ms
Measurement range: Status byte and LED
Measured value acquisition: Time synchronous within the module
Value of the least significant bit (LSB): 2.4 µA
Conversion method: SAR (Successive Approximation Register)
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 80mA
Isolation: 500 V system/field or channel/channel

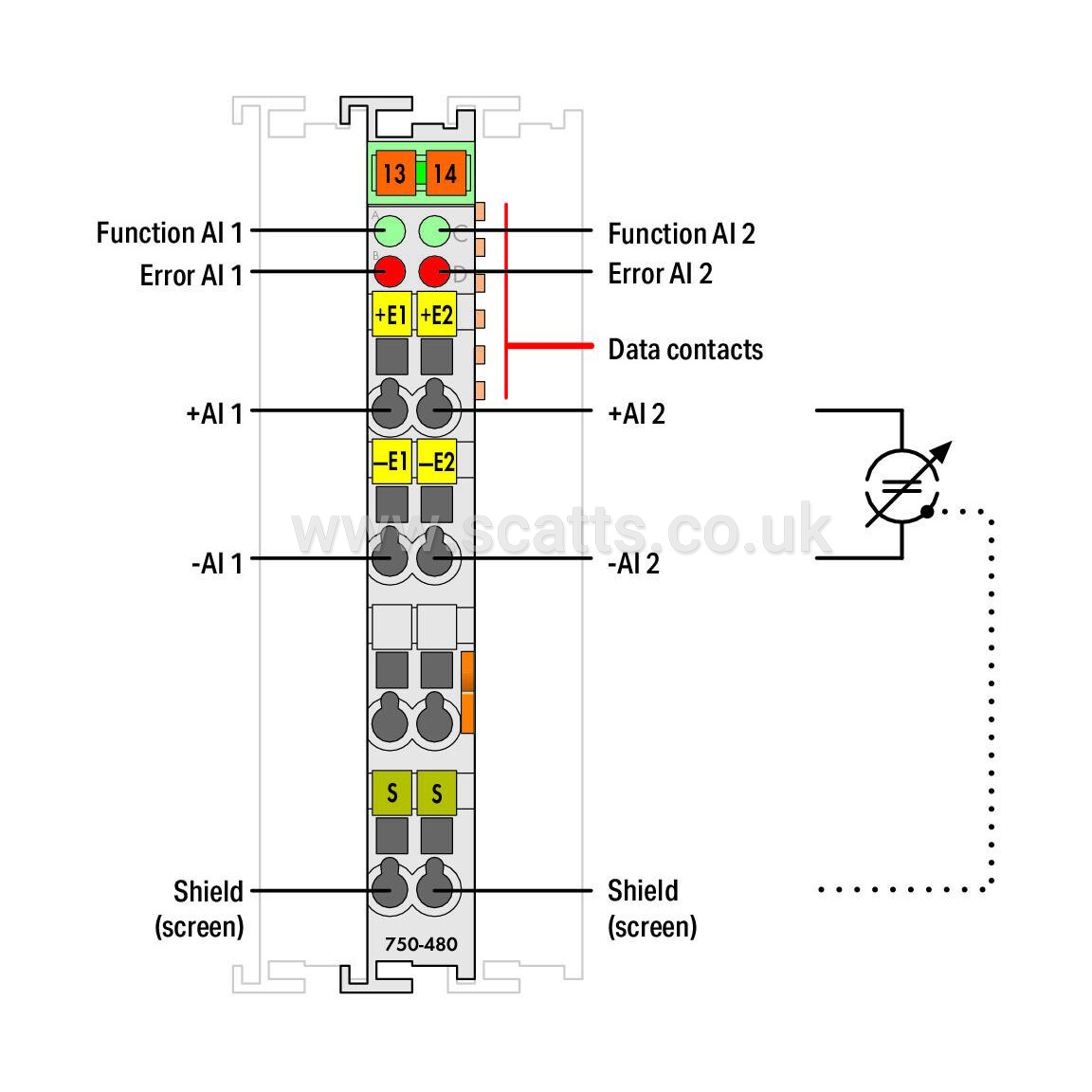

Indicators: LED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2
