2 CH A/I 0-30VDC DIFFERENTIAL

2-channel analog input - 0 ... 30 VDC; Differential input

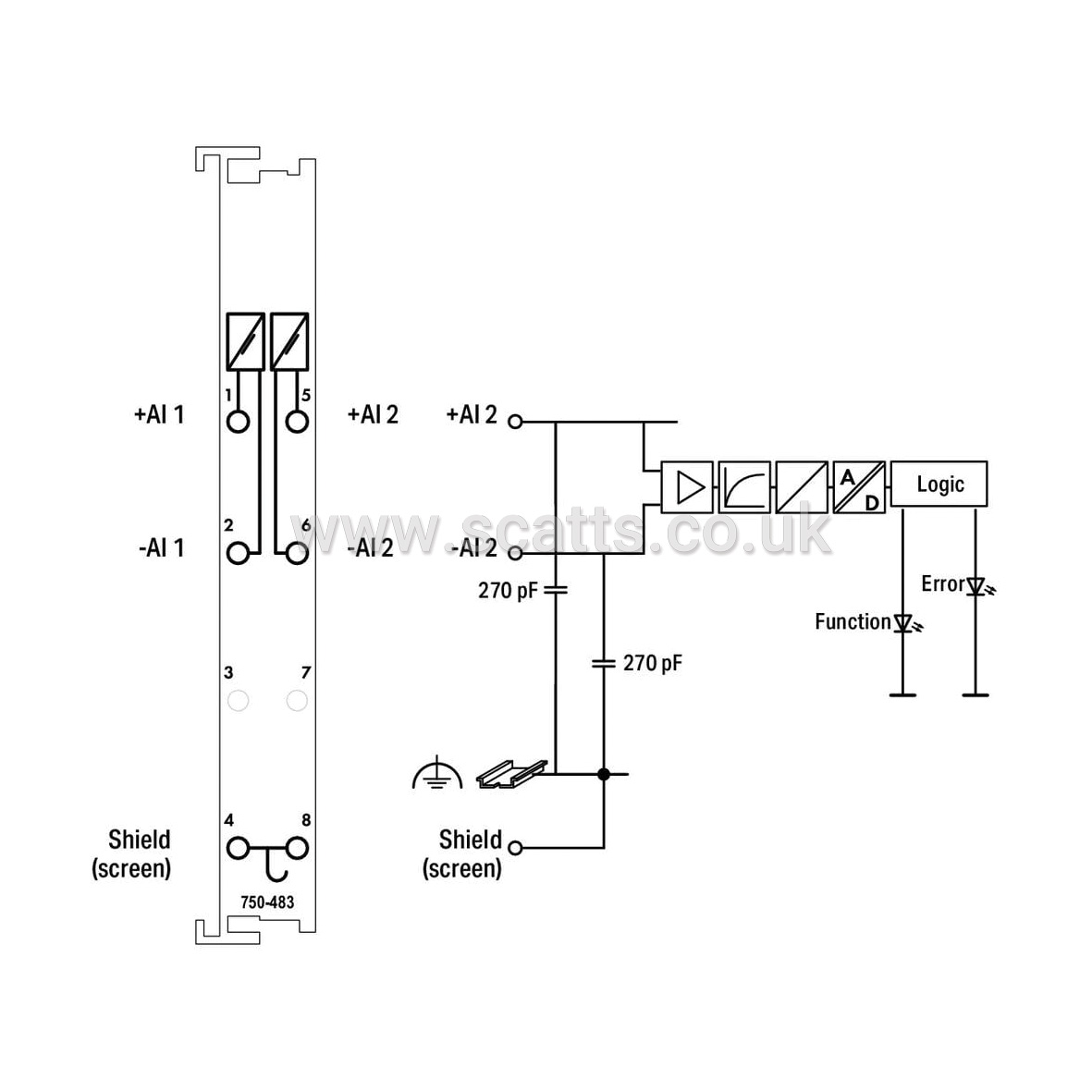

This analog input module processes differential signals ranging from 0 to 30 VDC. The input signal of each channel is electrically isolated and is transmitted with a resolution of 14 bits.

The system supply powers the module. The shield directly connects to the DIN-rail.

• Measured value acquisition: Time synchronous within the module
• Measurement range overflow/underflow: Status byte and LED
• Conversion method: SAR (Successive Approximation Register)
• Operating mode: Continuously sampling (default)
• Protection: RC circuit

Number of analog inputs: 2
Total number of channels (module): 2
Signal type: Voltage
Signal type: 0 … 30 VDC

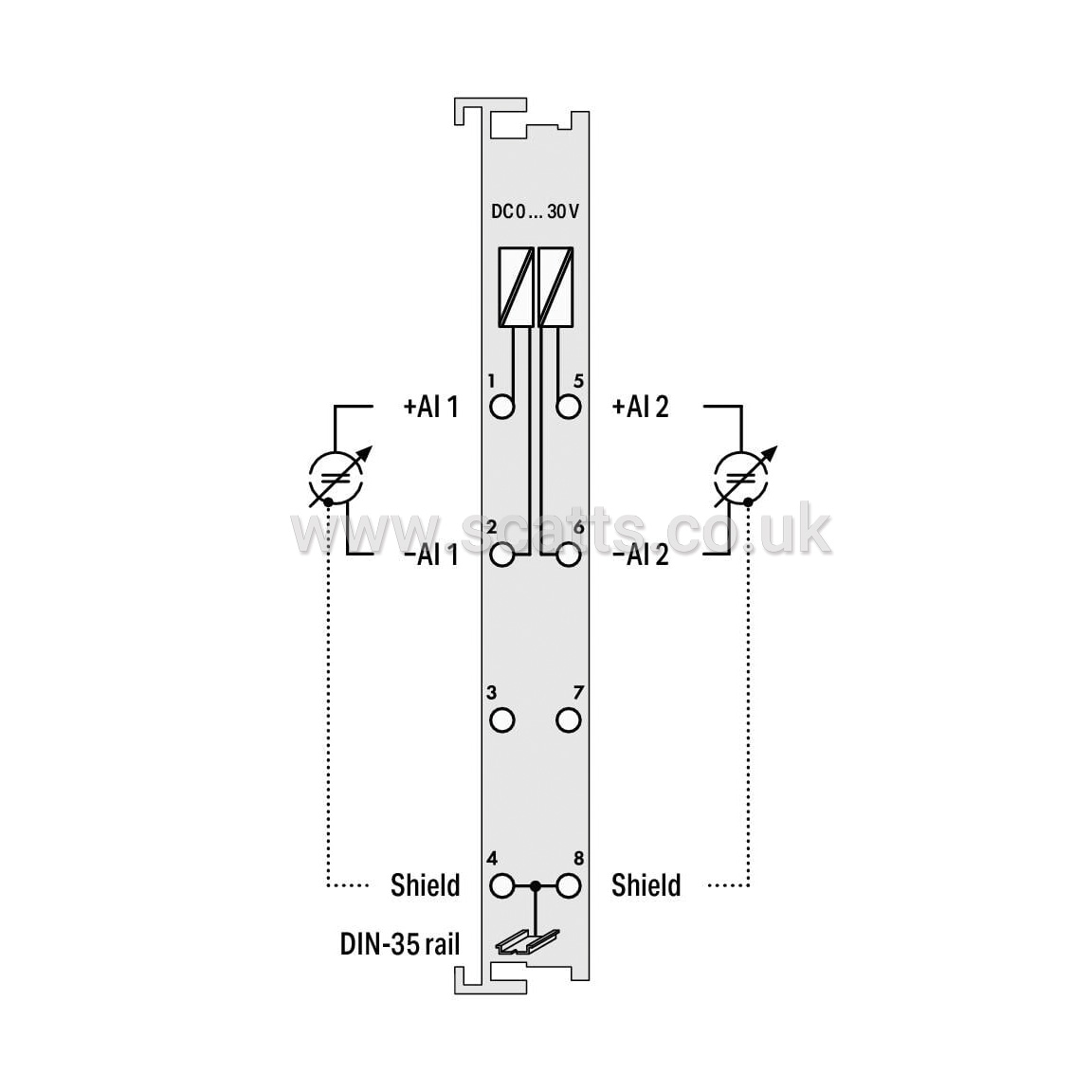

Sensor connection: 2 x (2-wire)
Input filter: Low pass (1st order), fG = 5 kHz
Signal characteristics: Differential
Resolution [bit]: 14Bit
Data width: x 16-bit data; 2 x 8-bit control/status (optional)
Admissible continuous overload: 60V
Crosstalk attenuation: 80dB
Monotonicity without error code: yes
Internal resistance: 1000kΩ
Measurement error (reference temperature): 25°C
Measurement error, deviation (max.) from the upper-range value: 0.05%
Measurement error over entire temperature range: ≤ 0.4 %
Temperature error (max.) of the upper-range value: 0.01%/K
Sampling duration: 5µs
Sampling delay (channel/channel): 1µs
Sampling delay (module): 1ms
Sampling repetition time: 1ms
Value of the least significant bit (LSB): 1.8 mV
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 80mA
Isolation: 500 V system/field or channel/channel

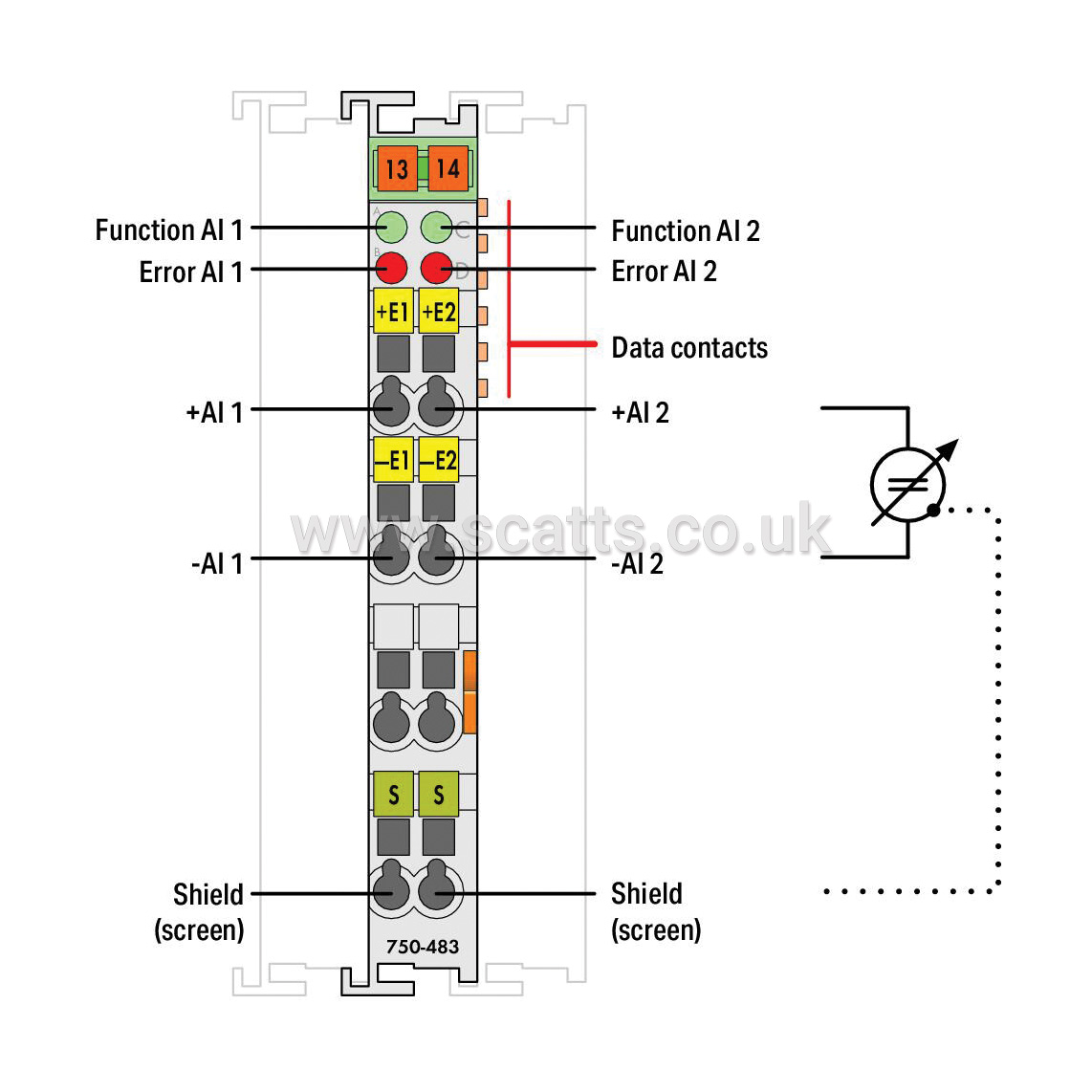

Indicators: LED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2
