My Part Number:
Part Number: 750-486/040-000
Manufacturer Code: 750-486/040-000
Multiples of: 1 | Minimum Order: 1
4-channel analog input; 0/4 … 20 mA; Intrinsically safe; Extreme
This analog input module powers the intrinsically safe signal conditioners located in the hazardous areas of Zone 0+1 and processes their analog signals. The WAGO I/O System 750 XTR must be installed either in Zone 2 or in a non-hazardous area. The 24 V supply is derived from the module's power jumper contacts. The transmitter supply is non-inherently electronically short-circuit-protected. The shield directly connects to the DIN-rail.

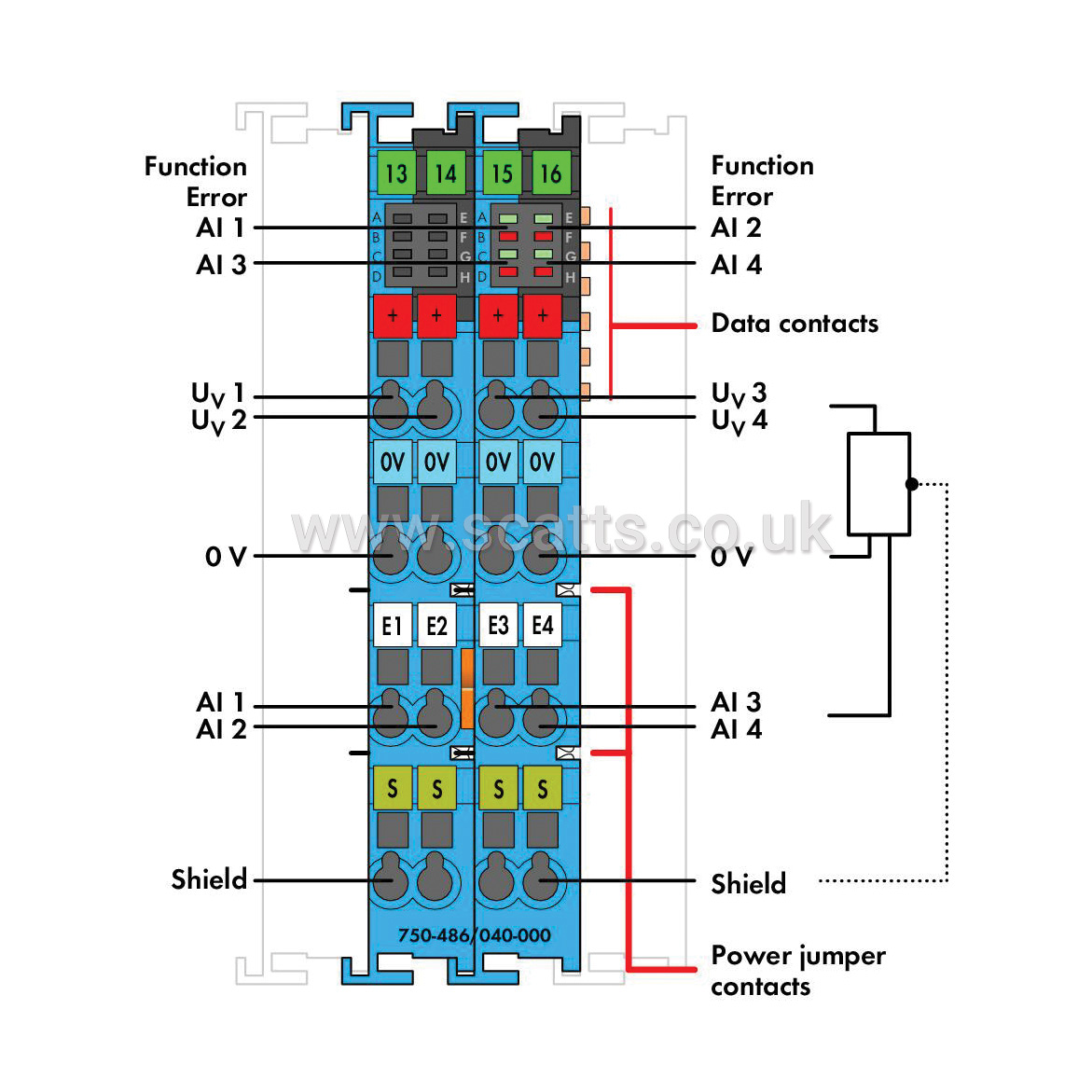

Indicators:
• Green LED (availability ON/OFF)
• Red LED (measurement range overflow/underflow, wire breakage, short circuit)
Field and system levels are electrically isolated.
The device is ideal for operation in extreme environments thanks to:
• An extended temperature range
• Greater immunity to impulse voltages and electromagnetic interference
• Higher vibration and shock resistance
Brand |
WAGO |
|
£896.85
per 1 (ex. VAT)£1,076.22
per 1 (inc. VAT)
4-channel analog input; 0/4 … 20 mA; Intrinsically safe; Extreme
This analog input module powers the intrinsically safe signal conditioners located in the hazardous areas of Zone 0+1 and processes their analog signals. The WAGO I/O System 750 XTR must be installed either in Zone 2 or in a non-hazardous area. The 24 V supply is derived from the module's power jumper contacts. The transmitter supply is non-inherently electronically short-circuit-protected. The shield directly connects to the DIN-rail.
Indicators:
• Green LED (availability ON/OFF)
• Red LED (measurement range overflow/underflow, wire breakage, short circuit)
Field and system levels are electrically isolated.
The device is ideal for operation in extreme environments thanks to:
• An extended temperature range
• Greater immunity to impulse voltages and electromagnetic interference
• Higher vibration and shock resistance
Brand |
WAGO |
|
