Part Number: 750-486
Manufacturer Code: 750-486
Multiples of: 1 | Minimum Order: 1

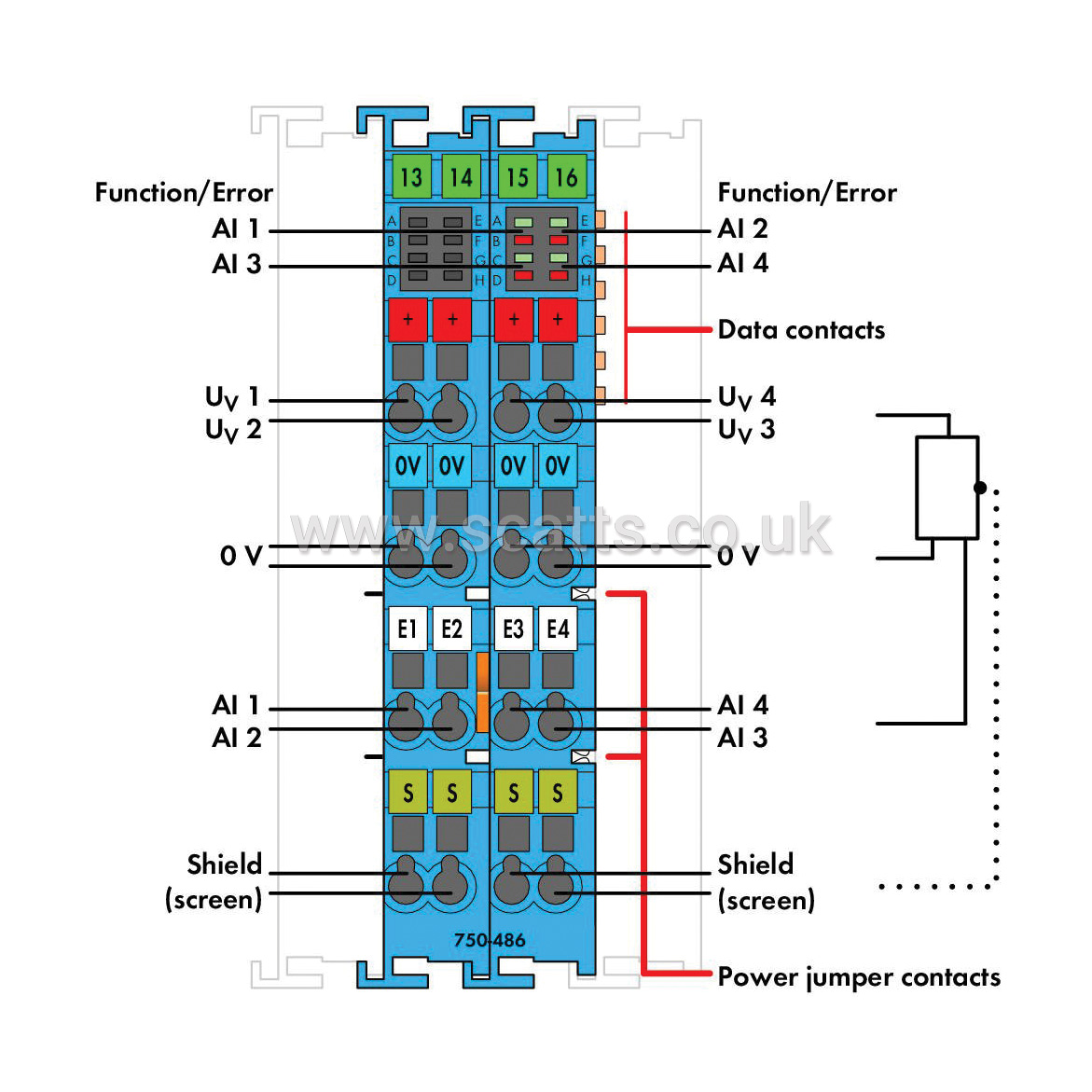

4-channel analog input - 0/4 - 20 mA, Single-ended, NAMUR NE 43, Intrinsically safe
This analog input module powers the intrinsically safe signal conditioners located in the hazardous areas of Zone 0+1 and processes their analog signals. The WAGO I/O System 750 must be installed either in Zone 2 or in a non-hazardous area.
The 24 V supply is derived from the module's power jumper contacts. The transmitter supply is non-inherently electronically short-circuit-protected. The shield directly connects to the DIN-rail.
Indicators:
• Green LED (availability ON/OFF)
• Red LED (measurement range overflow/underflow, wire breakage, short circuit)
Field and system levels are electrically isolated.
Number of analog inputs: 4
Total number of channels (module): 4
Signal type: Current
Signal type: 0 … 20 mADC; 4 … 20 mADC

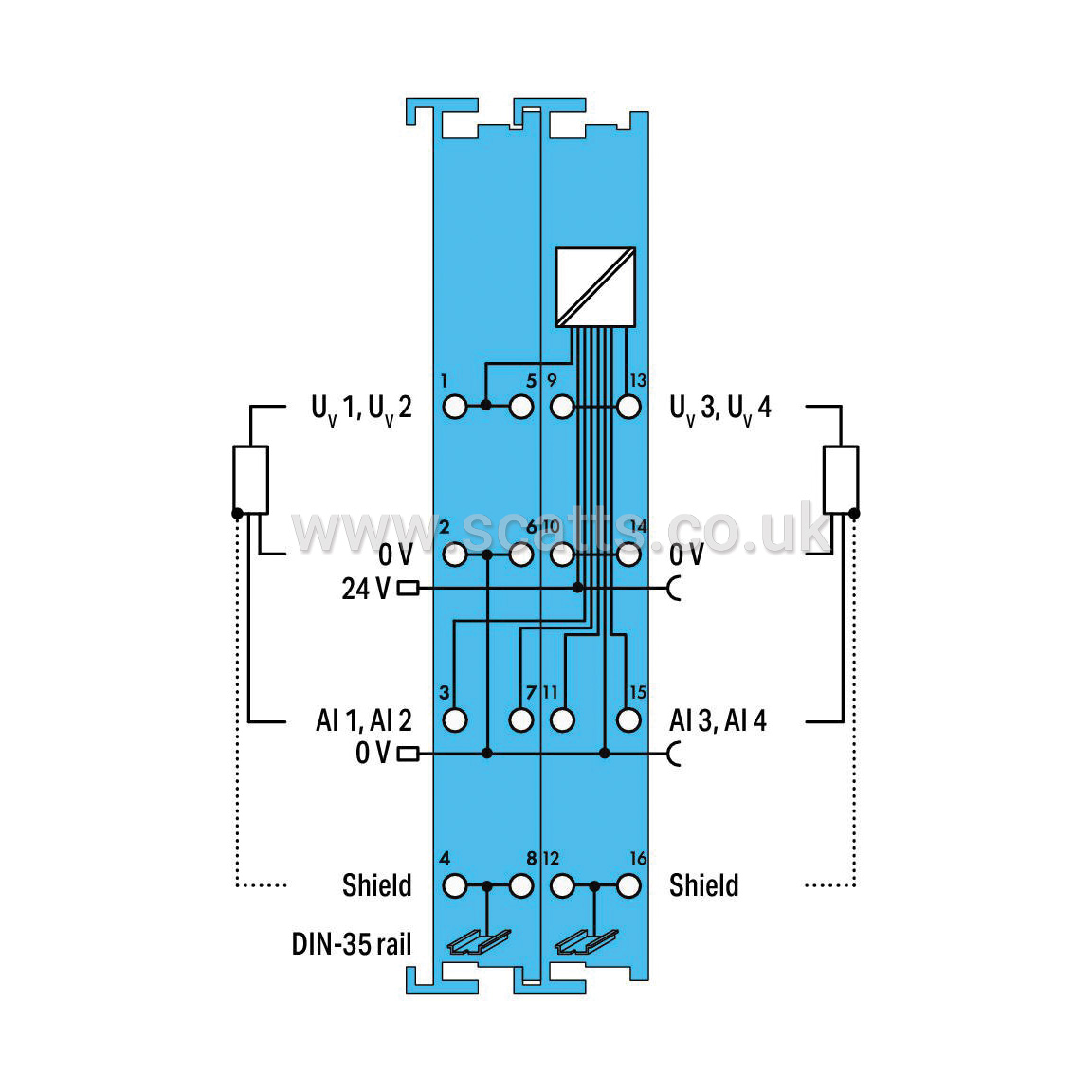

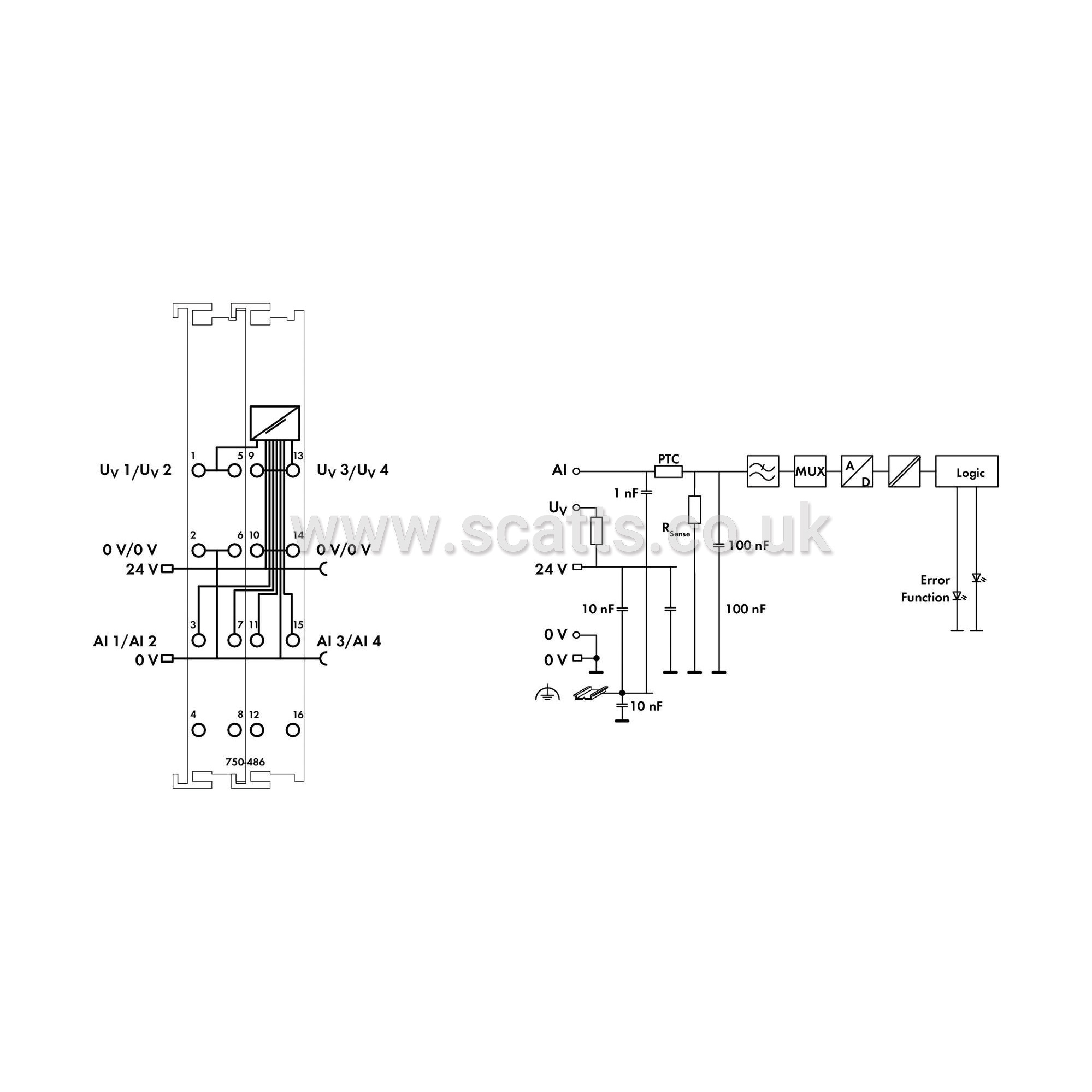

Sensor connection: 2 x (3-wire)
Signal characteristics: Single-ended
Resolution [bit]: 12Bit
Conversion time (typ.): 10ms
Measurement error (reference temperature): 25°C
Measurement error, deviation (max.) from the upper-range value: 0.1%
Temperature error (max.) of the upper-range value: 0.01%/K
Input resistance (max.): 200Ω
Intrinsic safety Ex i: Yes
Data width: 4 x 16-bit data; 4 x 8-bit control/status (optional)
Configuration options: WAGO-I/O-CHECK, e!COCKPIT
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 45mA
Supply voltage (field): 24 VDC; (Ex i power supply: UO = max. 27.3 V); via power jumper contacts (power supply via blade contact; transmission via spring contact)
Current consumption, field supply (module with no external load): 19mA
Power consumption Pmax.: 2.7 W
Power loss Pl: 1.5 W
Isolation: 300 VAC system/supply
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
Current carrying capacity (power jumper contacts): 1A
Indicators: LED (A, E, C, G) green: Function AI 1 … AI 4; LED (B, F, D, H) red: Error AI 1 … AI 4
Marking: ATEX/IECEx: II 3 (1) G Ex ec [ia Ga] IIC T4 Gc; II (1) D [Ex ia Da] IIIC; I (M1) [Ex ia Ma] I
