Part Number: 750-491/000-001
Manufacturer Code: 750-491/000-001
Multiples of: 1 | Minimum Order: 1

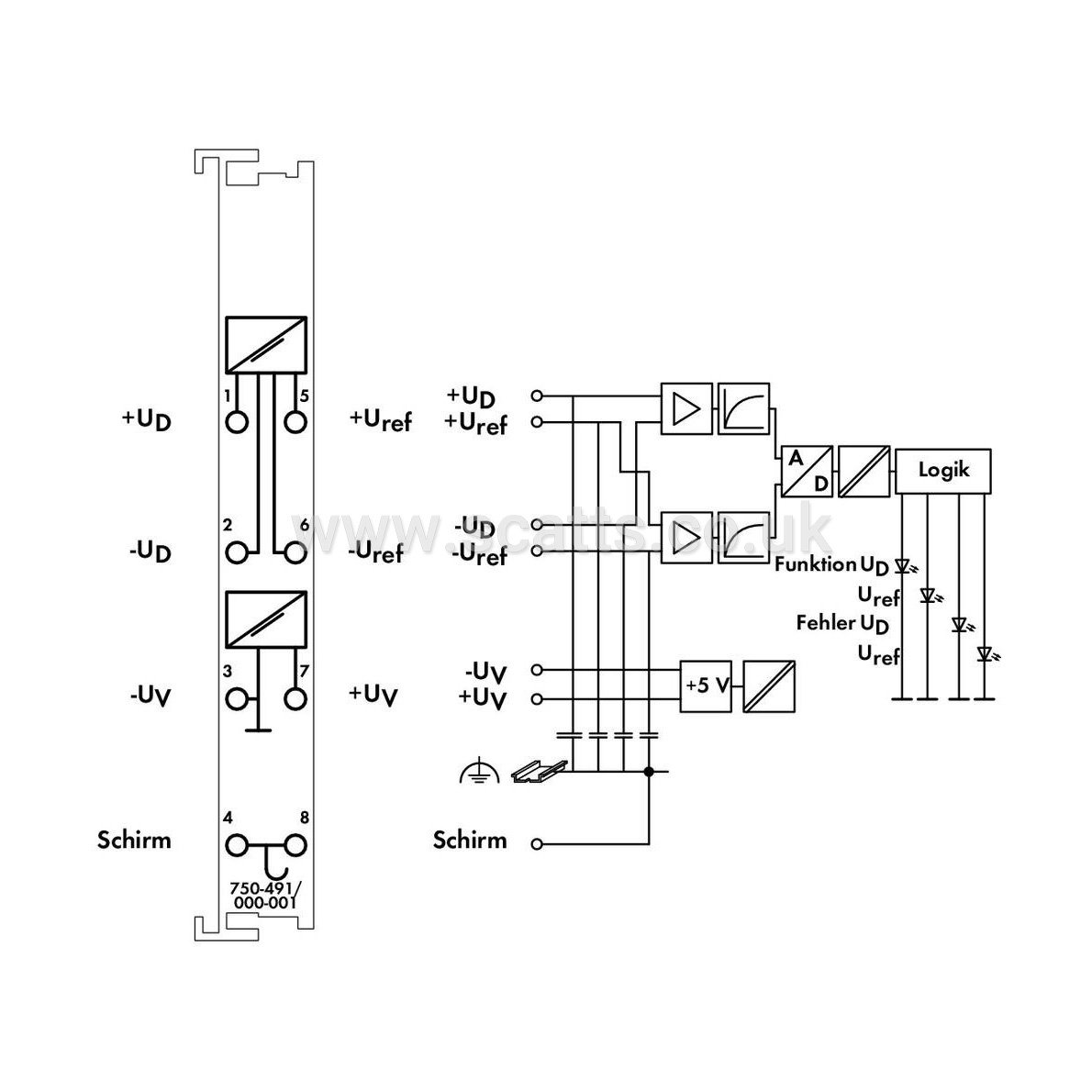

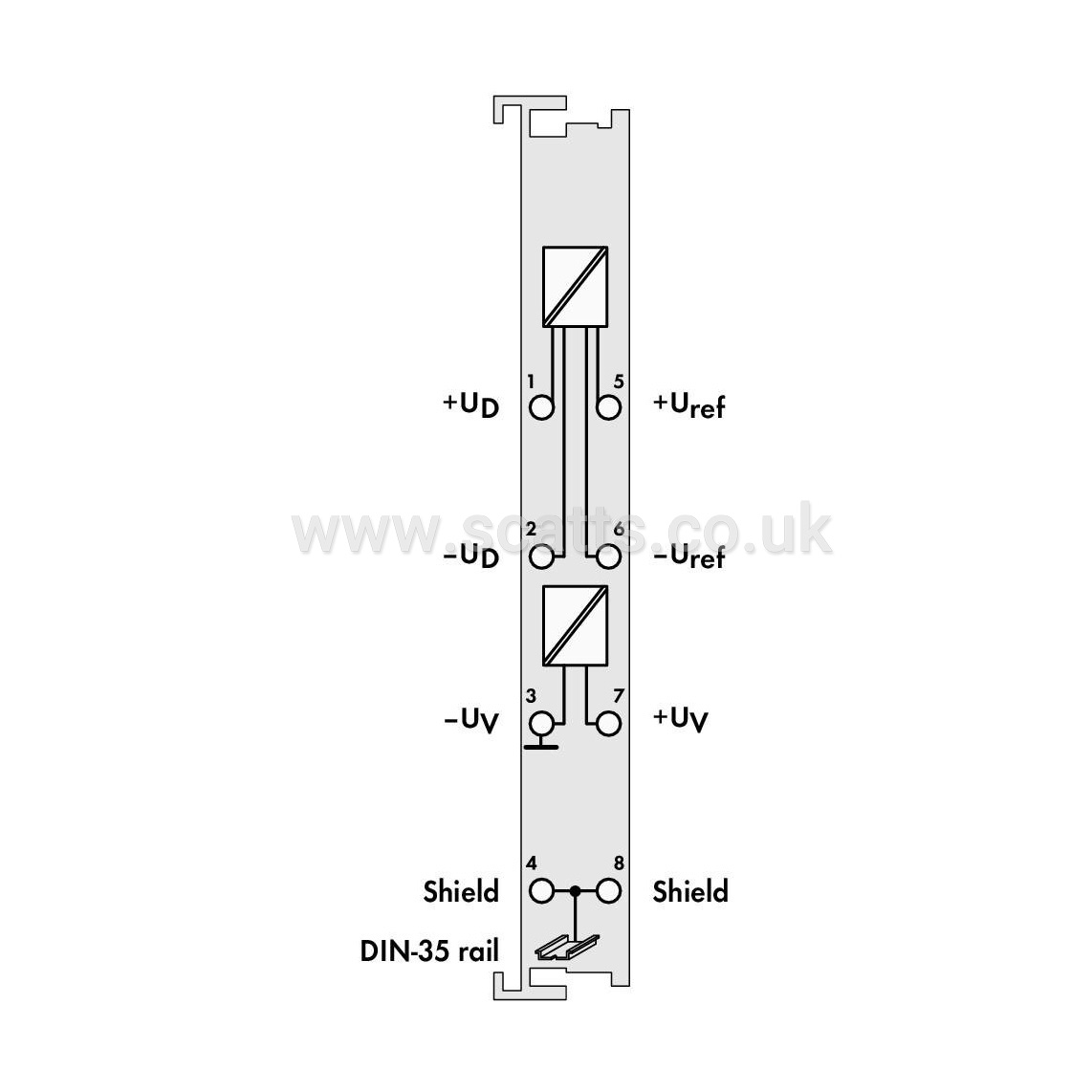

1-channel analog input - Resistor bridges (strain gauge), 125 ms conversion time, light gray
This module enables the direct connection of a resistor measurement bridge. The bridge voltage UD and supply voltage Uref of the bridge are digitized with a resolution of 16 bits. The two input channels for the resistor bridge are available as two 16-bit values for additional processing. The result of measurement can be calculated by the formula: Measured value = UD / Uref.
Field and system levels are electrically isolated.
Number of analog inputs: 1
Total number of channels (module): 1
Signal type: Resistor bridge (strain gauge)
Signal voltage UD: −15 … +15 mV
Signal voltage Uref: 2 … 6 V
Resolution [bit]: 16Bit
Data width: 2 x 16-bit data; 2 x 8-bit control/status (optional)
Internal resistance: > 200 kΩ (Uref), > 1 MΩ (UD)
Conversion time (typ.): 125ms
Measurement error: UD: ±30 µV; Uref: ±10 mV
Filter: 200Hz
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 65mA
Isolation: 500 V system/field
Indicators: LED (A, C) green: Function UD, Uref; LED (B, D) red: Error UD, Uref
