3-Phase Power Measurement - 480 VAC, 1 A

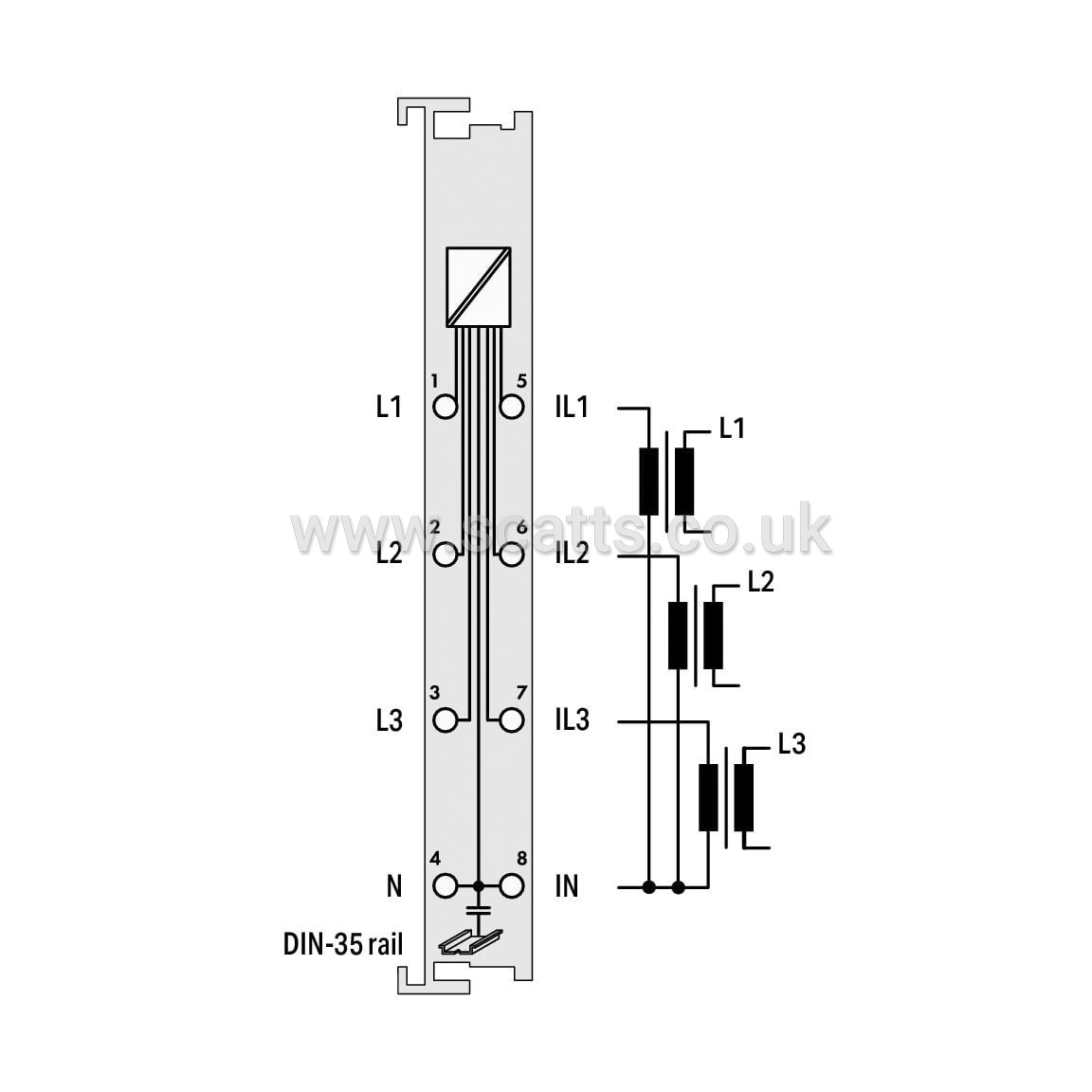

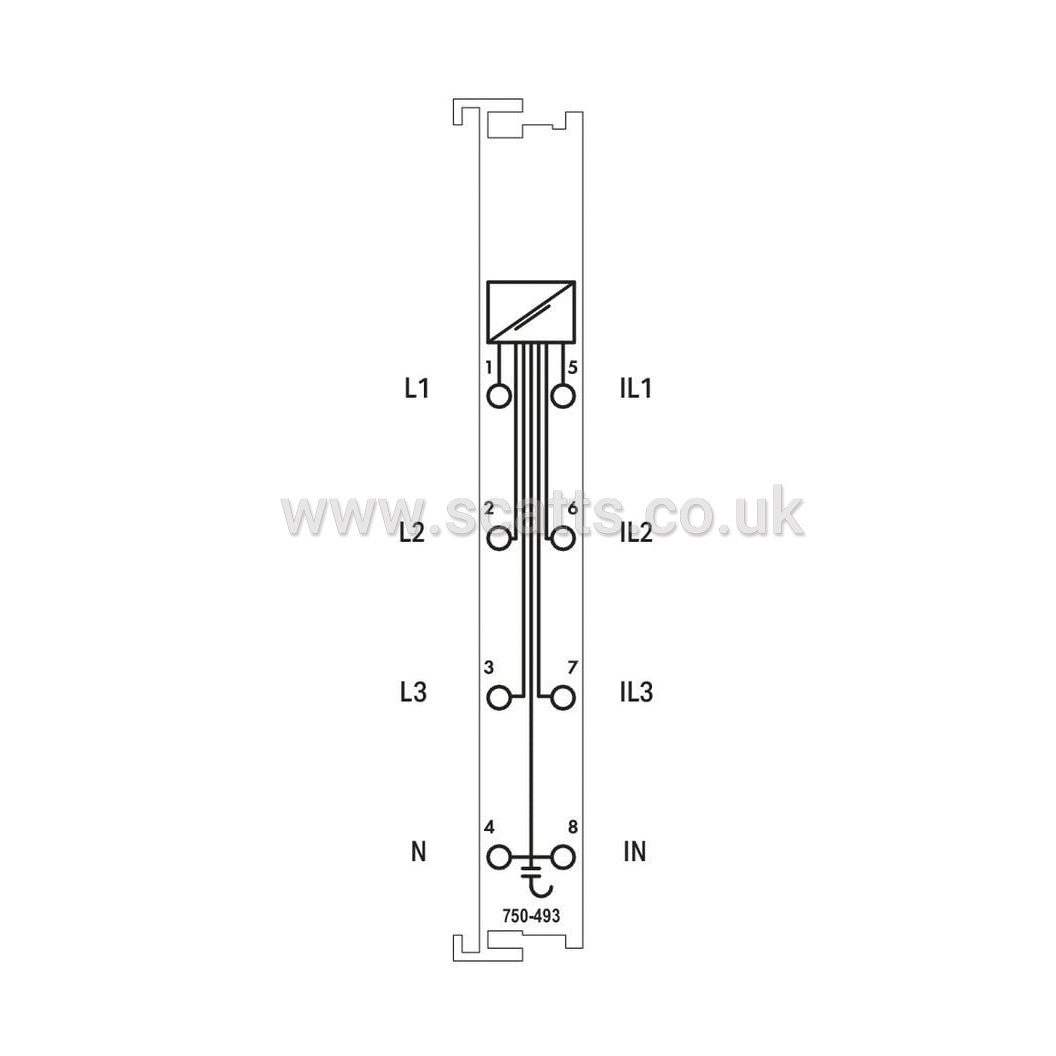

The 750-493 3-Phase Power Measurement Module measures the electrical data in a three-phase supply network. The voltage is measured via network connection to L1, L2, L3 and N. The current of the three phases is fed to IL1, IL2, IL3 and IN via current transformers.
The 750-493 Module transmits the root mean square values into the process image without requiring high computing power from the controller. For each phase, the effective power (P) and the energy consumption (W) are calculated by the module using the root mean square values for all measured voltages (V) and currents (I). For example, both the apparent power (S) and phase shift angle (φ) can be easily derived from these values.
Therefore, the 750-493 Module provides comprehensive network analysis via fieldbus. Metrics, such as effective and apparent power consumption or load condition, enable the operator to optimize supply to a drive or machine. This can protect the installation from damage and failure.
Number of measurement inputs: 6 (3 voltage measurement inputs, 3 current measurement inputs)
Signal type: Power measurement
Signal form: Any periodic signals (considering the threshold frequencies)
Resolution [bit]: 16Bit
Data width: 2 x 48-bit data; 2 x 24-bit control/status (optional)
Voltage path input resistance (typ.): 1071kΩ
Current path input resistance (typ.): 22 mΩ
Reference for measurement error: AC current/voltage
Measurement error (reference temperature): 25°C
Measurement error, deviation (max.) from the upper-range value: 0.5%
Measurement current (max.): 1 A
Measurement voltage (max.): 500 VAC, 3 phases
Measurement cycle time: Adjustable measuring cycle time for Min_Max_Values
Frequency range with activated DC filter: 10 … 2000 Hz
Frequency range with deactivated DC filter: 0 … 2000 Hz
Frequency range (mains frequency): 45 … 65 Hz
Limit frequency: 7.2kHz
Rated voltage: ULN = 277 V AC/DC; ULL = 480 VAC
Calculated values: Active power, active energy, grid frequency, cos ϕ
Measurement components: Evaluating
Measurement method: True RMS measurement
Configuration options: WAGO-I/O-CHECK, CODESYS Library, e!COCKPIT
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 100mA
Isolation: 4 kV system/field
Rated surge voltage: 4 kV
Indicators: LED (A) green: Communication; LED (B-G) red: Error L1, Override in Current Measurement Path (display), Undervoltage in Voltage Measurement Path (display), Error L2, Error L3, Override in Voltage Measurement Path (display); LED (H) yellow: Interchange in Phase Sequence L1-L2-L3
Brand |
WAGO |
|
