2 CH 24V DC OUTPUT 0.5A 3W TRANS

2-channel digital output - 24 VDC, 0.5 A, light gray


This digital output module transmits control signals from the automation device to the connected actuators.
All outputs are short-circuit-protected.
Field and system levels are electrically isolated.

Number of digital outputs: 2
Total number of channels (module): 2
Signal type: Digital
Signal type: 24 VDC

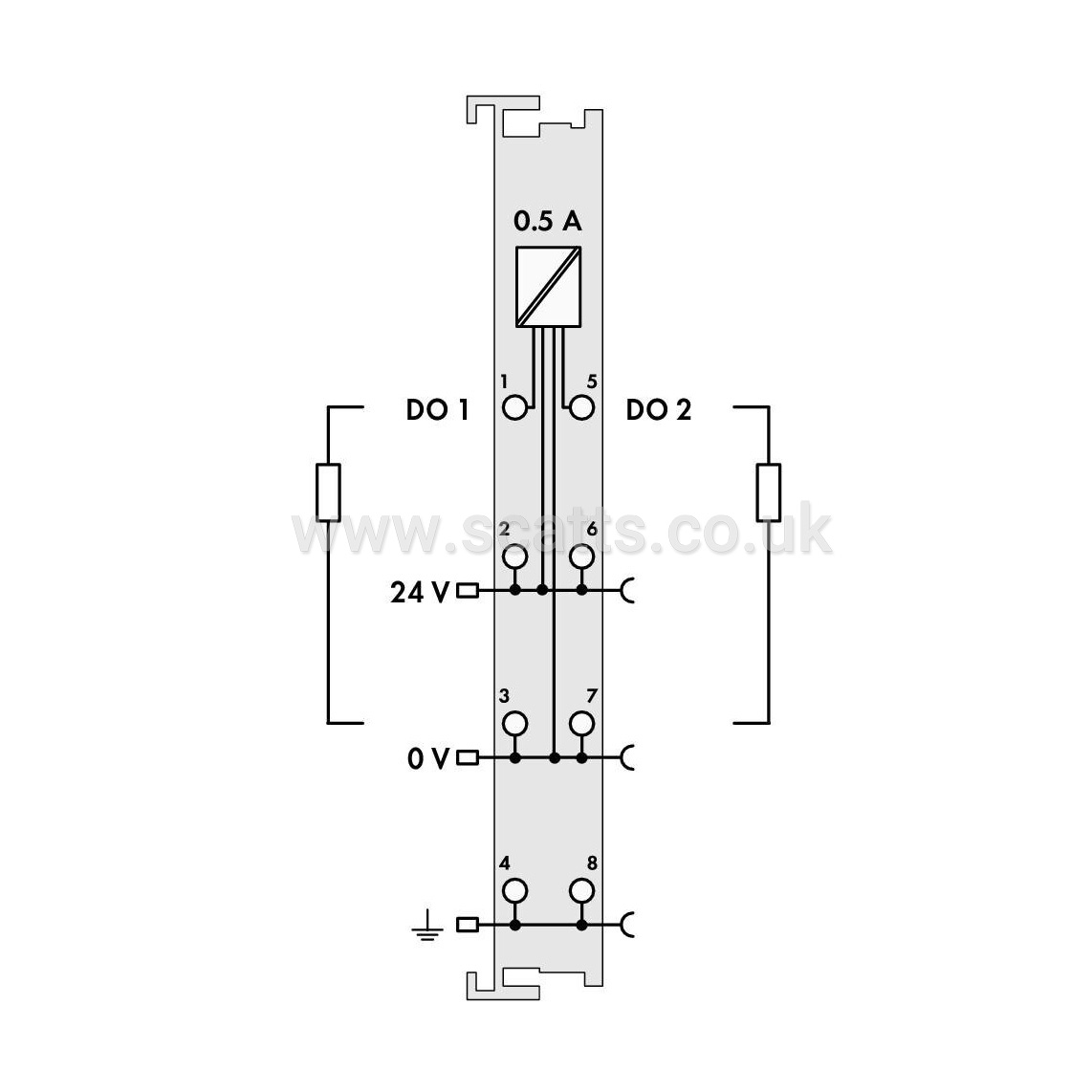

Actuator connection: 2 x (2-wire, 3-wire, 4-wire)
Output characteristic: high-side switching
Output current per channel: 0.5A
Output current: short-circuit-protected
Switching frequency (max.): 5 kHz
Load type: Resistive, inductive, lamp load
Inductive load switch-off energy dissipation (max.): 0.5J
Output data width (internal) max.: 2Bit
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 3.5mA
Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
Current consumption, field supply (module with no external load): 15mA
Isolation: 500 V system/field

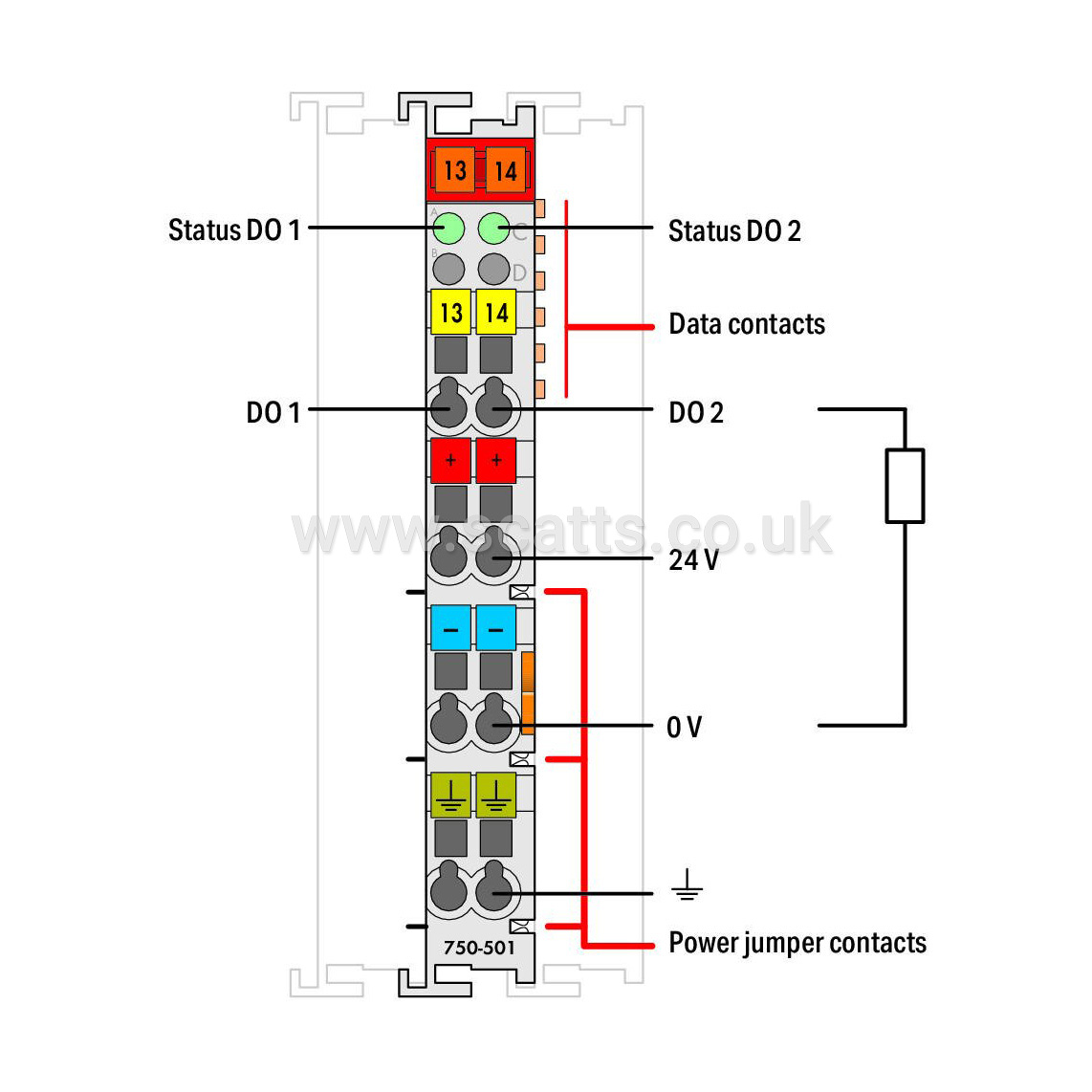

Indicators: LED (A, C) green: Status DO 1, DO 2
Number of incoming power jumper contacts: 3
Number of outgoing power jumper contacts: 3
Current carrying capacity (power jumper contacts): 10A
