4 CH 24VDC O/P XTR SERIES

4-channel digital output - 24 VDC, 0.5 A, Ext. Temperature

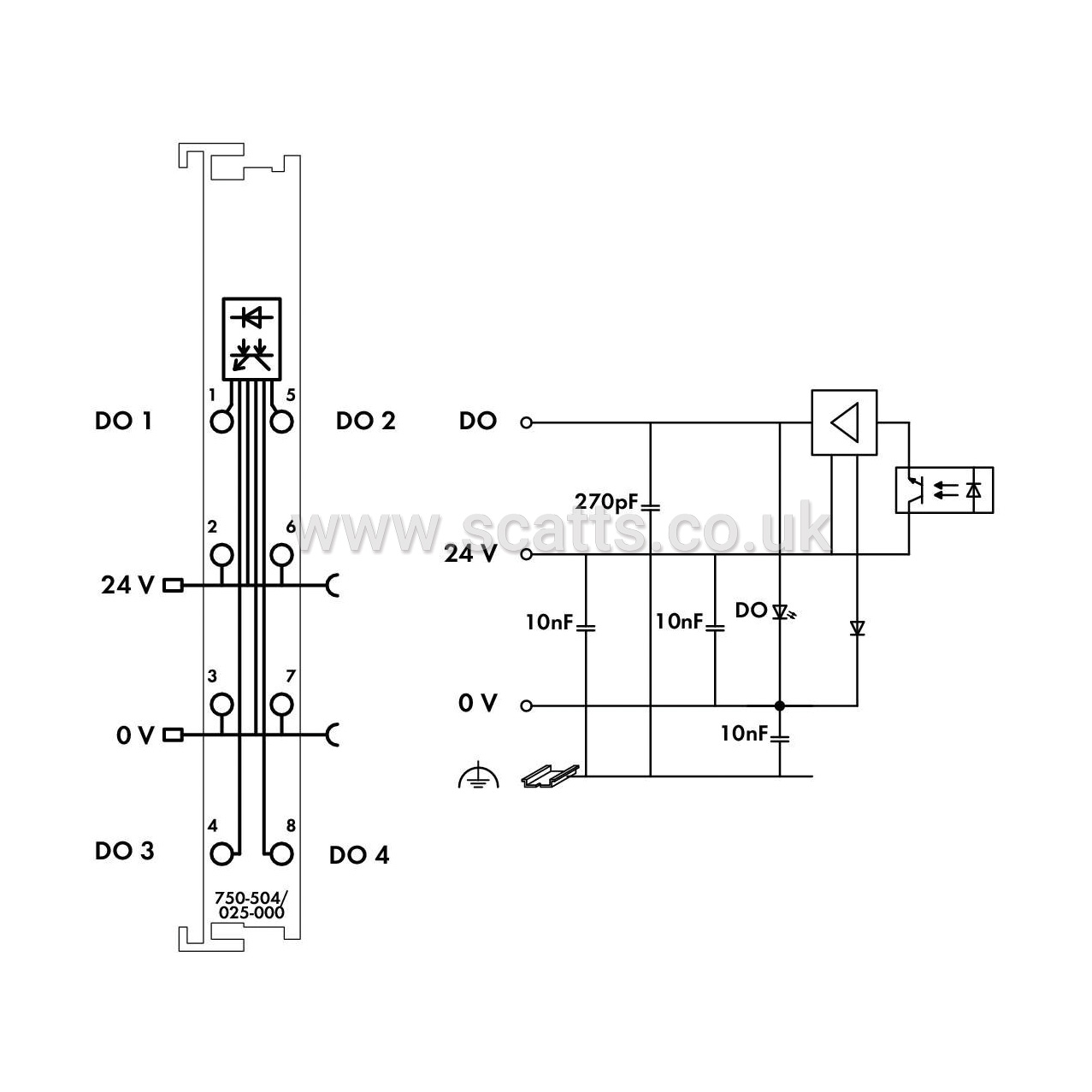

This digital output module transmits control signals from the automation device to the connected actuators. All outputs are short-circuit-protected. Field and system levels are electrically isolated.

Number of digital outputs: 4
Total number of channels (module): 4
Signal type: Digital
Signal type: 24 VDC

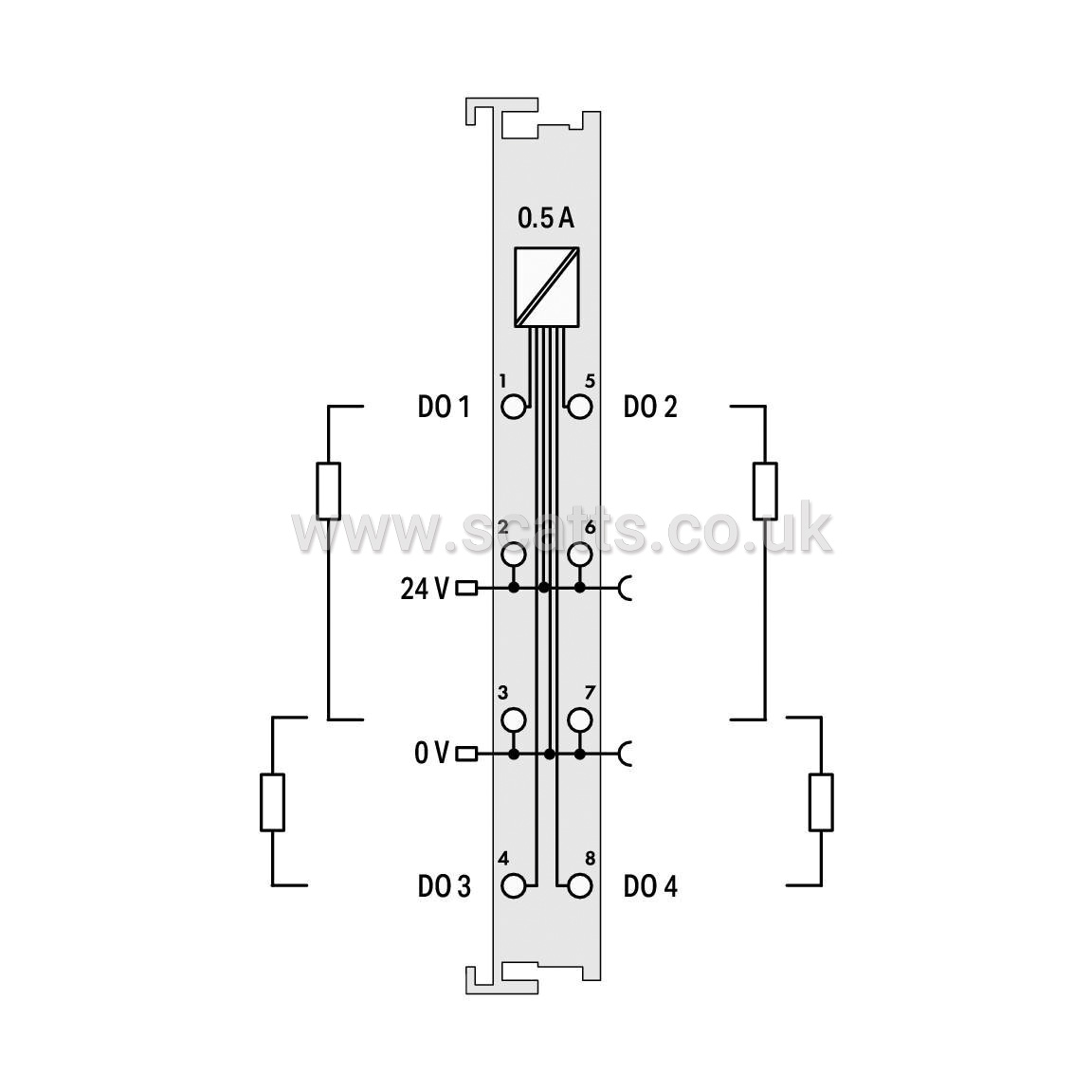

Actuator connection: 2 x (2-wire, 3-wire); A suitable field side connection module (e.g., 750-614) must also be used to connect other actuators.
Output characteristic: high-side switching
Output current per channel: 0.5A
Output current: short-circuit-protected
Switching frequency (max.): 1 kHz
Load type: Resistive, inductive, lamp load
Inductive load switch-off energy dissipation (max.): 0.3J
Output data width (internal) max.: 4Bit
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 10mA
Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
Current consumption, field supply (module with no external load): 30mA
Isolation: 500 V system/field

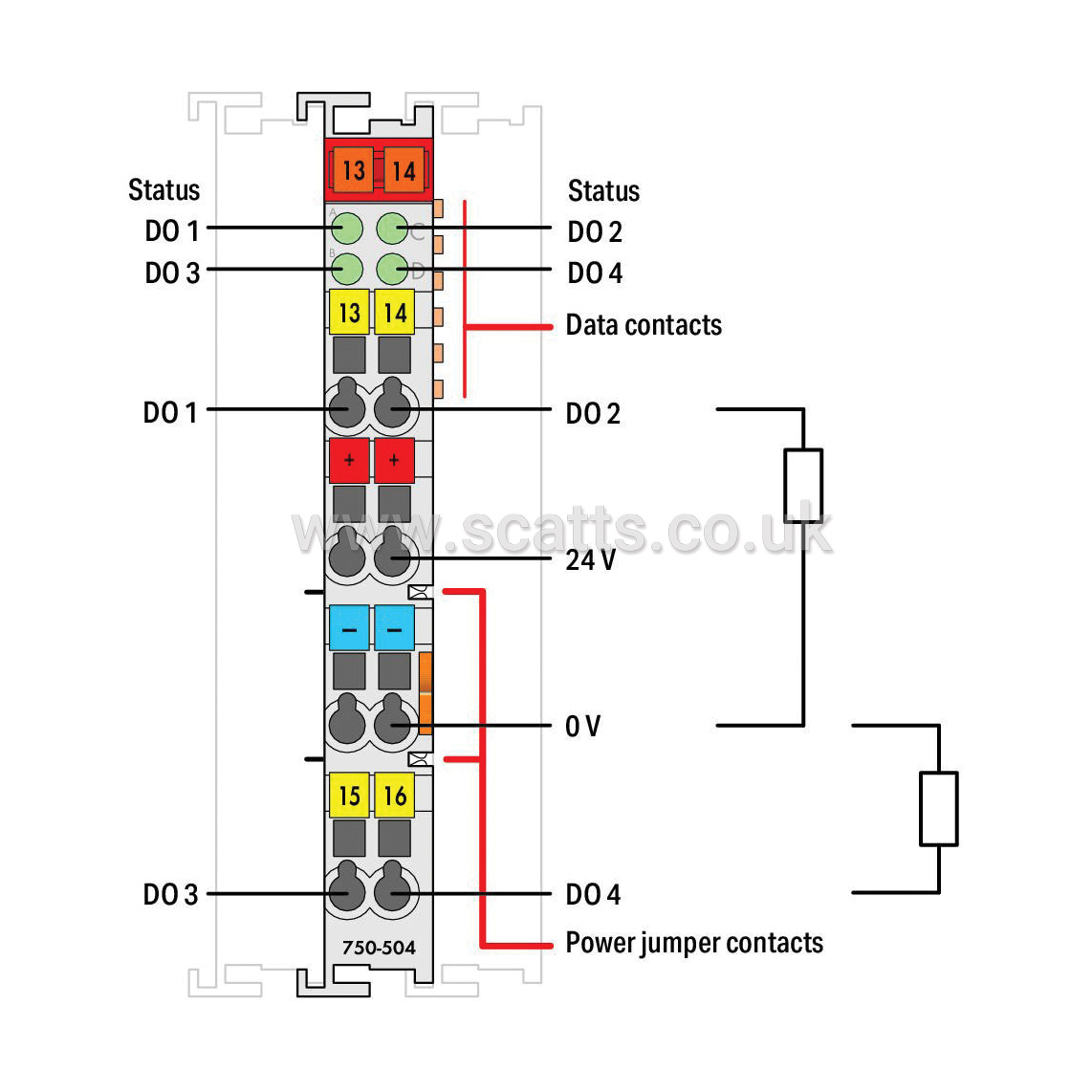

Indicators: LED (A-D) green: Status DO 1 … DO 4
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
Current carrying capacity (power jumper contacts) 10A
