2 CH RELAY O/P 2A

2-channel relay output - AC 250 V, 2.0 A, 2 make contact, light gray

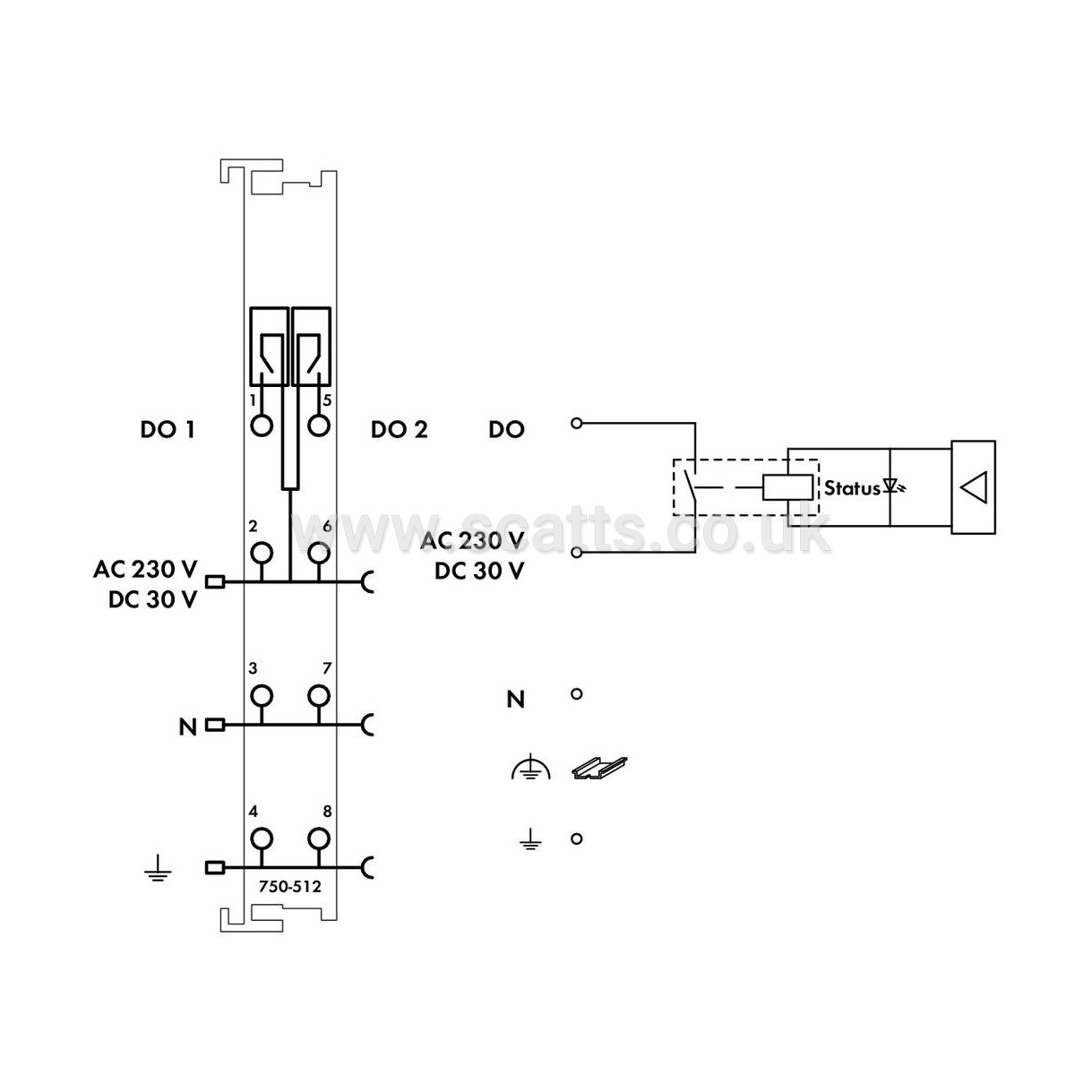

This digital output module transmits control signals from the automation device to the connected actuators. The internal system voltage triggers the relay. Note that the power jumper contacts supply both “N” (common point) and switched output voltages (this may be DC or AC). The state of the relay is indicated by a LED.

Notice:
An additional supply module must be added for 250 VAC/30 VDC supply!

Number of digital outputs: 2
Total number of channels (module): 2
Signal type: Digital

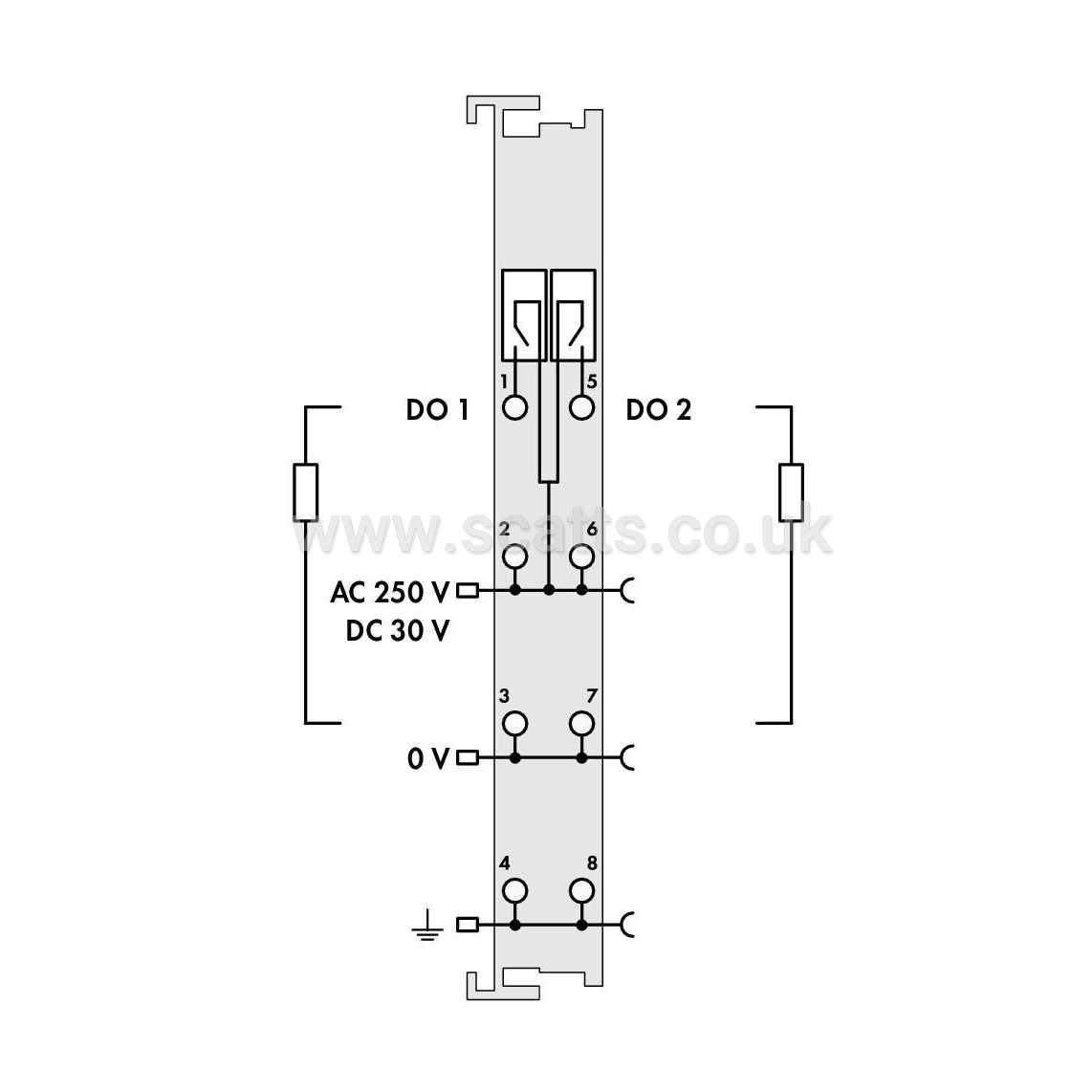

Actuator connection: 2 x (2-wire, 3-wire)
Output circuit design: 2 make contacts, Relay
Output characteristic: non-floating
Switching frequency (max.): 0.5 Hz; Nominal load
Switching voltage (max.): 250 VAC, 30 VDC
Switching current (max.): 2A
Switching voltage (min.): 5V
Switching current (min.): 10mA
Switching power: 500 VA / 60 W (purely resistive load); cos ϕ max. = 0.4; L/R max. = 7 ms
Pull-in time (max.): 10ms
Drop-out time (max.): 10ms
Bounce time (typ.): 1.2ms
Electrical switching operations (min.) (at max. resistive load): 300 x 10³ switching operations
Mechanical switching operations (min.) (at max. resistive load): 20 x 10⁶ switching operations
Output data width (internal) max.: 2Bit
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 100mA
Supply voltage (field): 250 VAC; via power jumper contacts (power supply via blade contact; transmission via spring contact)
Isolation: 1500 V (system/field)

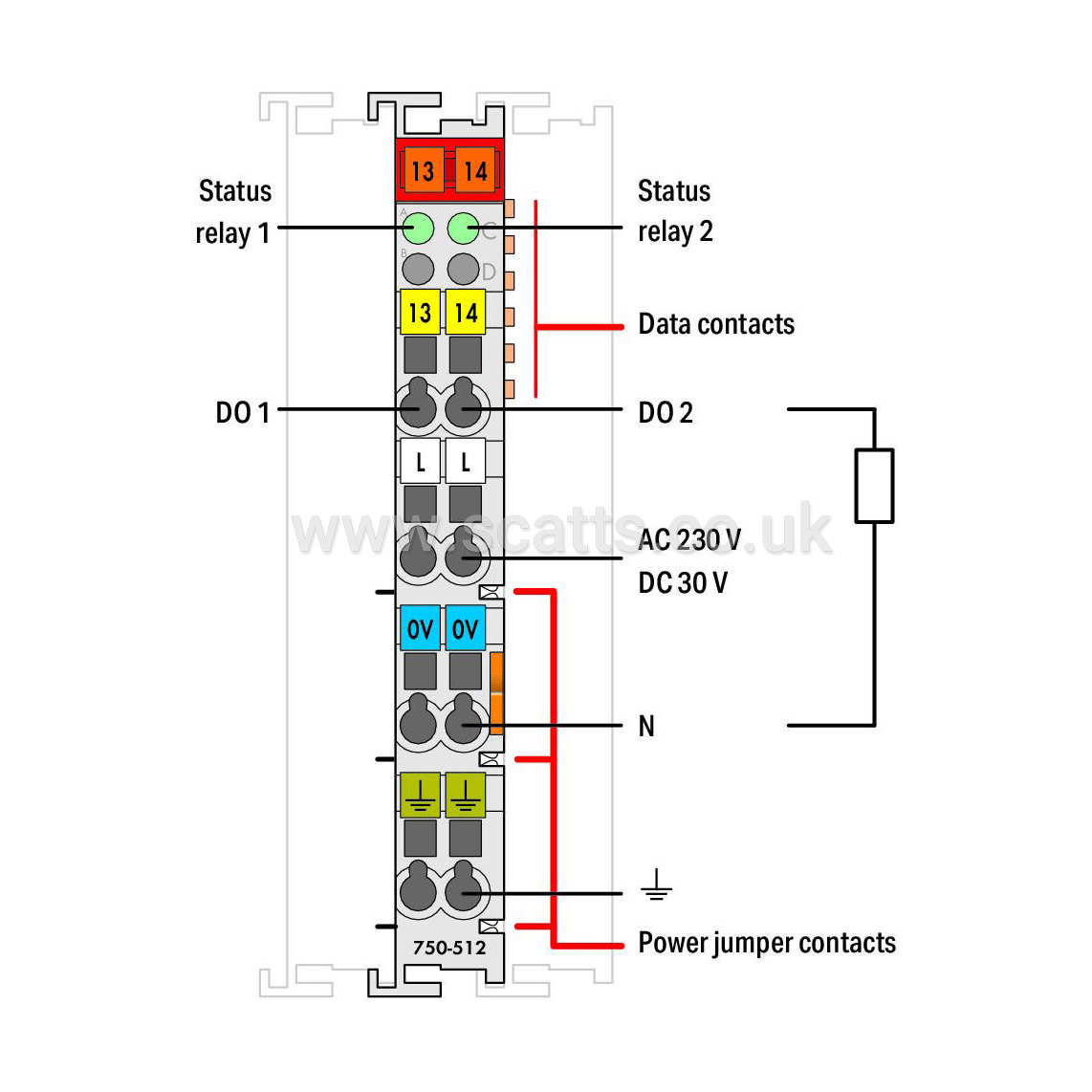

Indicators: LED (A, C) green: Status relay 1, relay 2
Number of incoming power jumper contacts: 3
Number of outgoing power jumper contacts: 3
Current carrying capacity (power jumper contacts): 10A
