2CH 125VAC 0.5A CHANGEOVER

2-channel relay output - 125 VAC; 0.5 A; Potential-free; 2 changeover contacts; light grey.

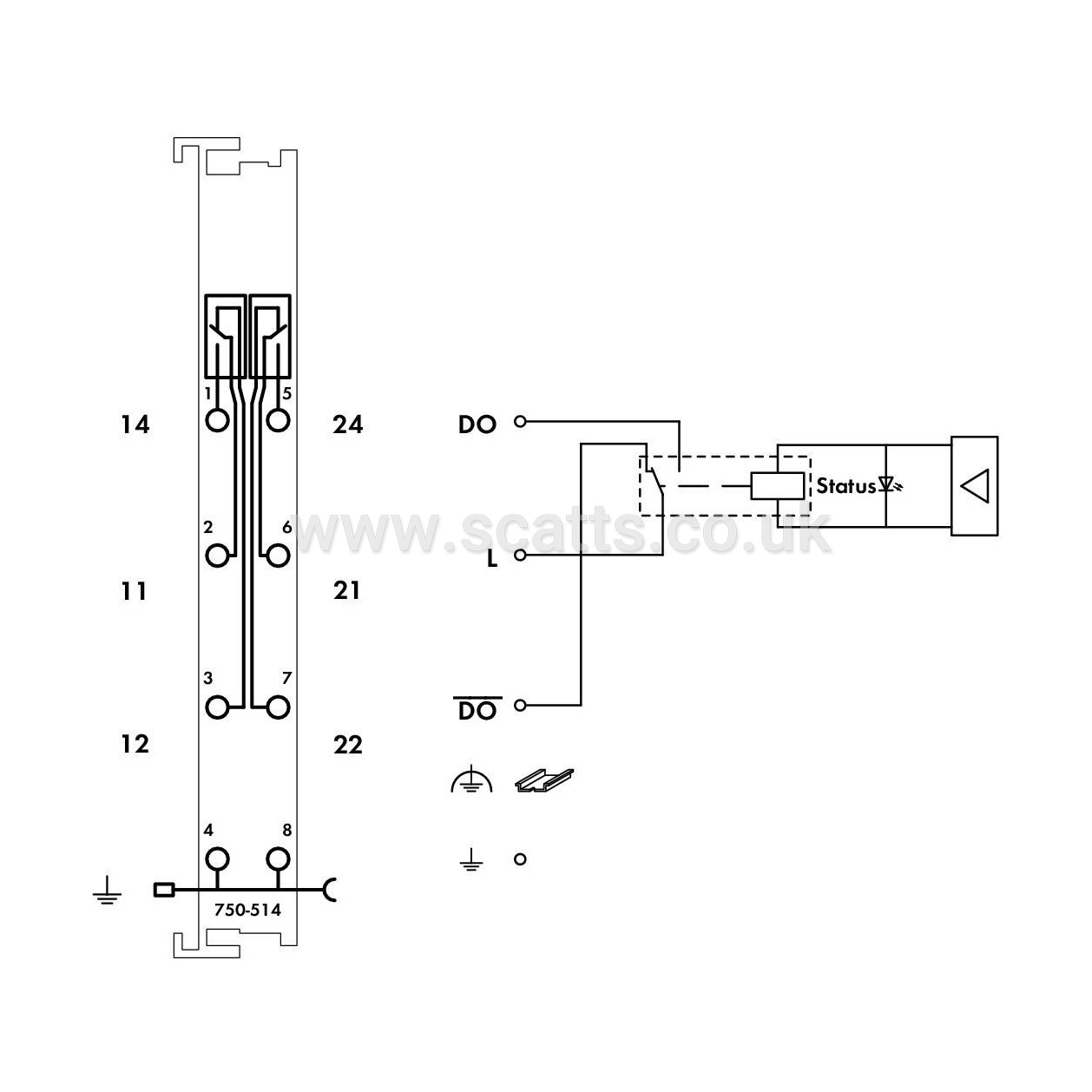

This digital output module transmits control signals from the automation device to the connected actuators. The internal system voltage triggers the relay. The NO contacts are electrically isolated. The state of the relay is indicated by a LED.

Number of digital outputs: 2
Total number of channels (module): 2
Signal type: Digital
Actuator connection: 2 x (1-wire)

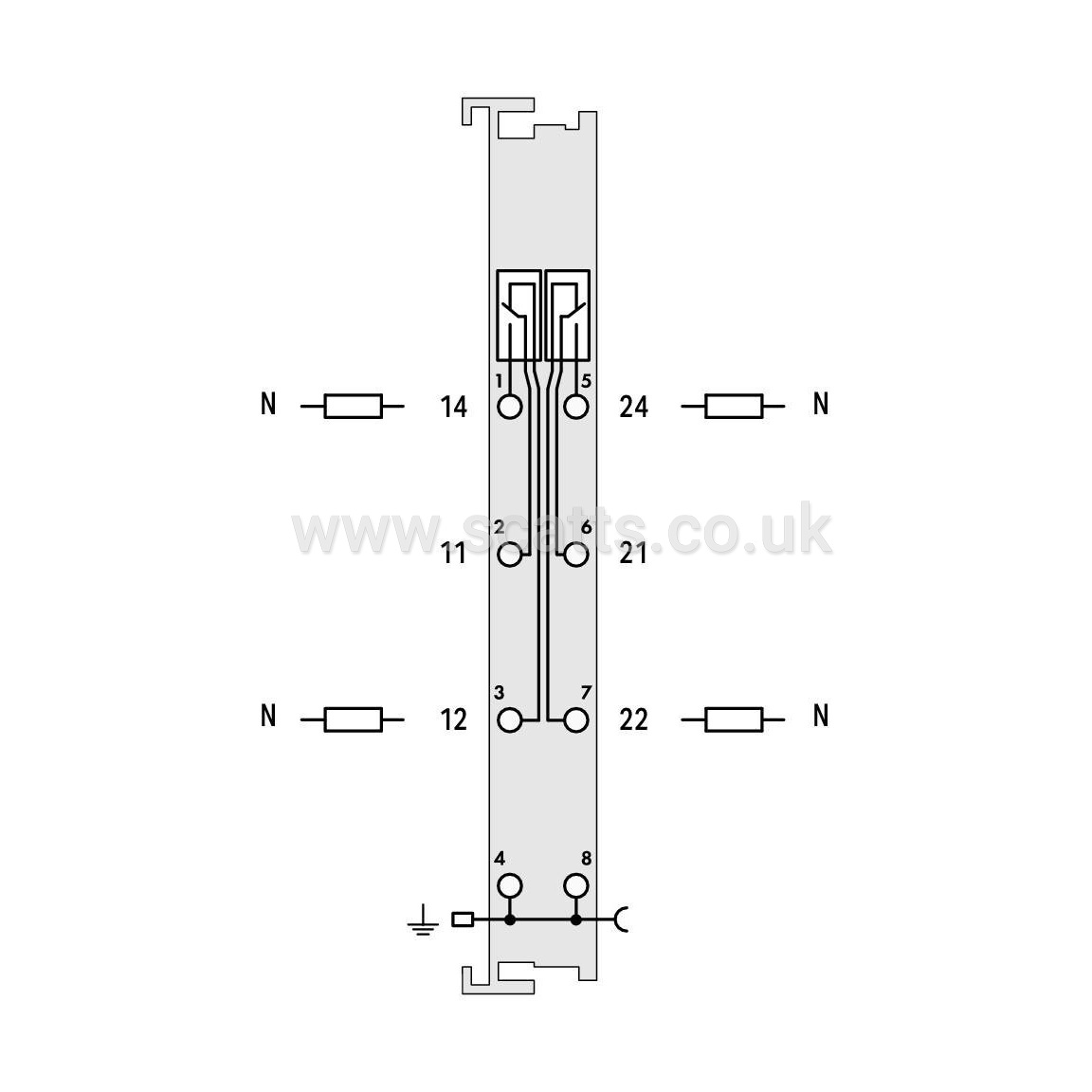

Output circuit design: 2 changeover contacts, Relay
Output characteristic: potential-free
Switching frequency (max.): 0.33 Hz
Switching voltage (max.): 125 VAC, 30 VDC
Switching current (max.): 0.5A
Switching current (note): 0.5 A at 125 VAC; 1 A at 30 VDC
Switching voltage (min.): 0.01V
Switching current (min.): 0.01mA
Switching power: 62.5 VA / 30 W
Pull-in time (max.): 4ms
Drop-out time (max.): 4ms
Electrical switching operations (min.) (at max. resistive load): 100 x 10³ switching operations
Mechanical switching operations (min.) (at max. resistive load): 100 x 10⁶ switching operations
Output data width (internal) max.: 2Bit
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 70mA
Supply voltage (field): Transmission of ground potential via power jumper contact
Isolation: 1500 V (system/field)

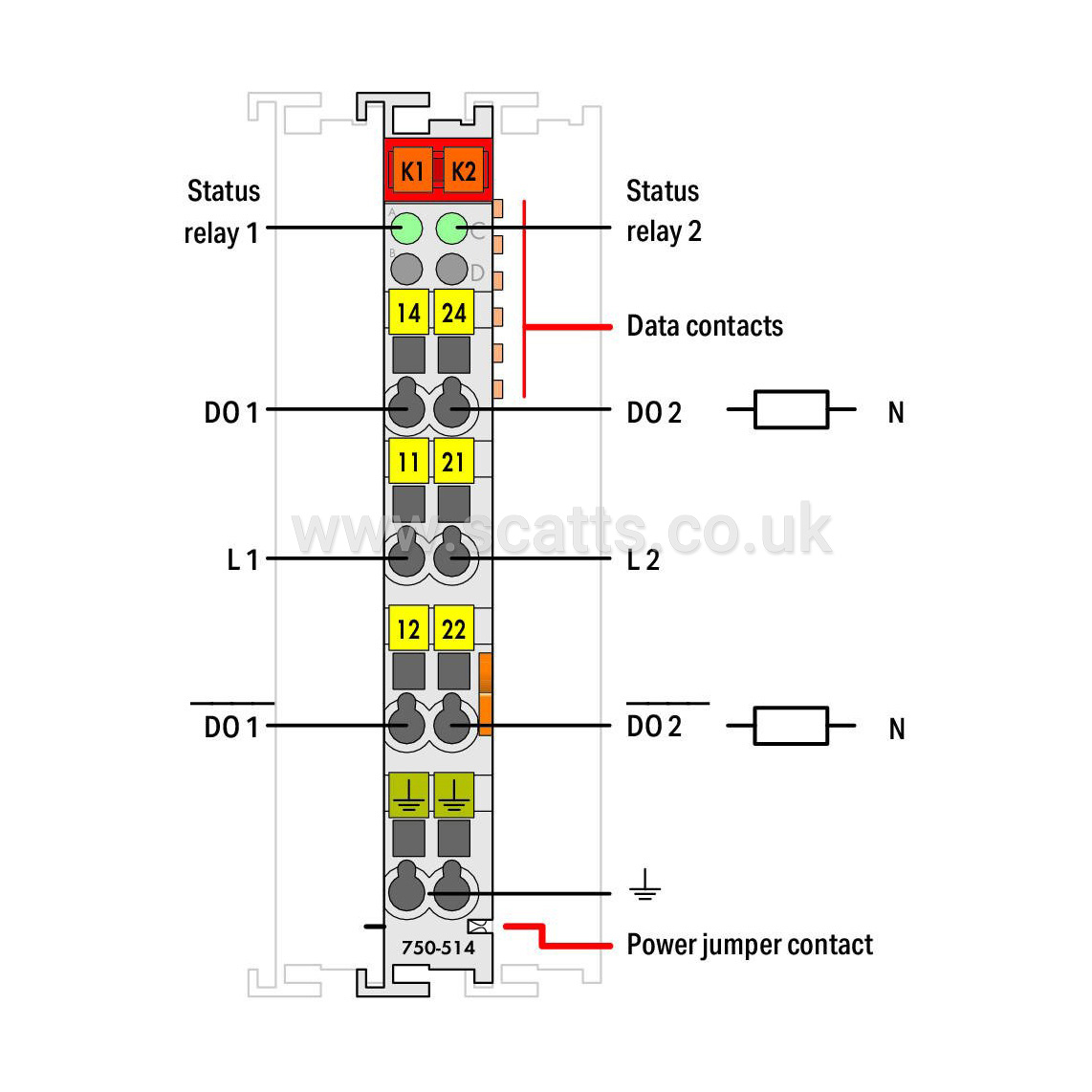

Indicators: LED (A, C) green: Status relay 1, relay 2
Number of incoming power jumper contacts: 1
Number of outgoing power jumper contacts: 1
Current carrying capacity (power jumper contacts): 10A
