Part Number: 750-516
Manufacturer Code: 750-516
Multiples of: 1 | Minimum Order: 1
4-channel digital output; 24 VDC; 0.5 A; Low-side switching
This digital output module transmits control signals from the automation device to the connected actuators. All outputs are short-circuit-protected. Field and system levels are electrically isolated.
Number of digital outputs: 4
Total number of channels (module): 4
Signal type: Digital
Signal type: 24 VDC

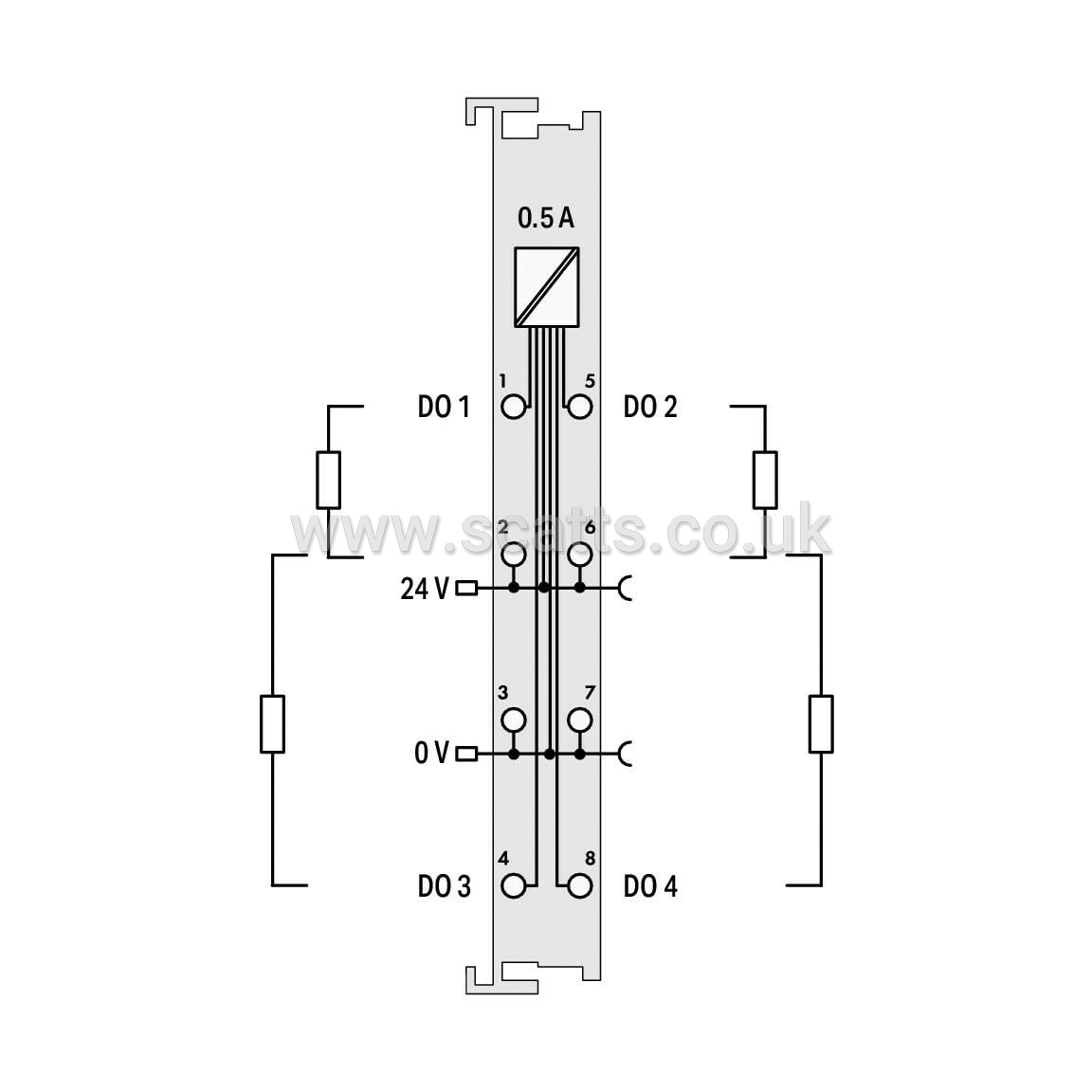

Actuator connection: 2 x (2-wire); A suitable field side connection module (e.g., 750-614) must also be used to connect other actuators.
Output characteristic: Low-side switching
Output current per channel: 0.5A
Output current: short-circuit-protected
Switching frequency (max.): 5 kHz
Load type: Resistive, inductive, lamp load
Inductive load switch-off energy dissipation (max.): 0.55J
Output data width (internal) max.: 4Bit
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 7mA
Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
Current consumption, field supply (module with no external load): 30mA
Isolation: 500 V system/field
Indicators: LED (A-D) green: Status DO 1 … DO 4
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
Current carrying capacity (power jumper contacts): 10A
Connection technology: inputs/outputs: 8 x CAGE CLAMP®
Connection type 1: Inputs/Outputs
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Strip length: 8 … 9 mm / 0.31 … 0.35 inches
Width: 12 mm / 0.472 inches
Height: 100 mm / 3.937 inches
Depth: 69.8 mm / 2.748 inches
Mounting type: DIN-35 rail
Pluggable connector: Fixed
Colour: light gray
Housing material: Polycarbonate; polyamide 6.6
