8 CH 24VDC O/P XTR SERIES

8-channel digital output - 24 VDC, 0.5 A, Ext. Temperature


This digital output module features eight channels in a width of just 12 mm (0.47 inch). The module transmits control signals from an automation device to connected actuators. All outputs are short-circuit-protected. Field and system levels are electrically isolated.

Number of digital outputs: 8
Total number of channels (module): 8
Signal type: Digital
Signal type: 24 VDC

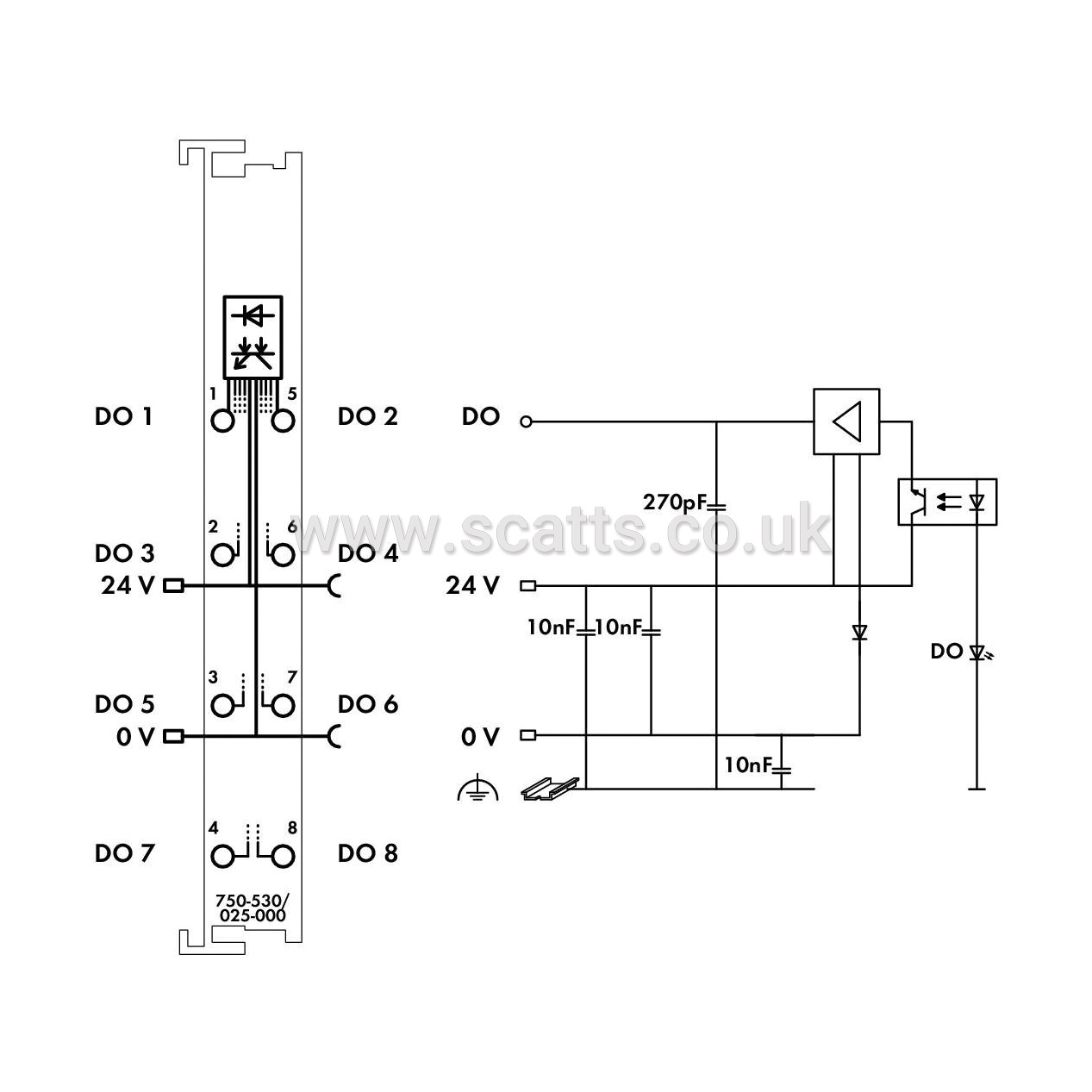

Actuator connection: 8 x (1-wire)
Output characteristic: high-side switching
Output current per channel: 0.5A
Output current: short-circuit-protected
Switching frequency (max.): 2 kHz
Load type: Resistive, inductive, lamp load
Inductive load switch-off energy dissipation (max.): 0.9J
Output data width (internal) max.: 8Bit
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 25mA
Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
Current consumption, field supply (module with no external load): 15mA
Isolation: 500 V system/field
Indicators: LED (A-H) green: Status DO 1 … DO 8
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
Current carrying capacity (power jumper contacts): 10A
