2 CH 24VDC O/P (IS)

2-channel digital output - 24 VDC, Intrinsically safe


This digital output module controls actuators operating in Zone 0+1 hazardous areas. Intrinsically safe magnetic valves can be directly controlled. The WAGO I/O System 750 must be installed either in Zone 2 or in a non-hazardous area. All outputs are electronically short-circuit-protected.

Indicators:

• Green LED (output status)
• Field and system levels are electrically isolated.

Number of digital outputs: 2
Total number of channels (module): 2
Signal type: Digital
Signal type: 24 VDC

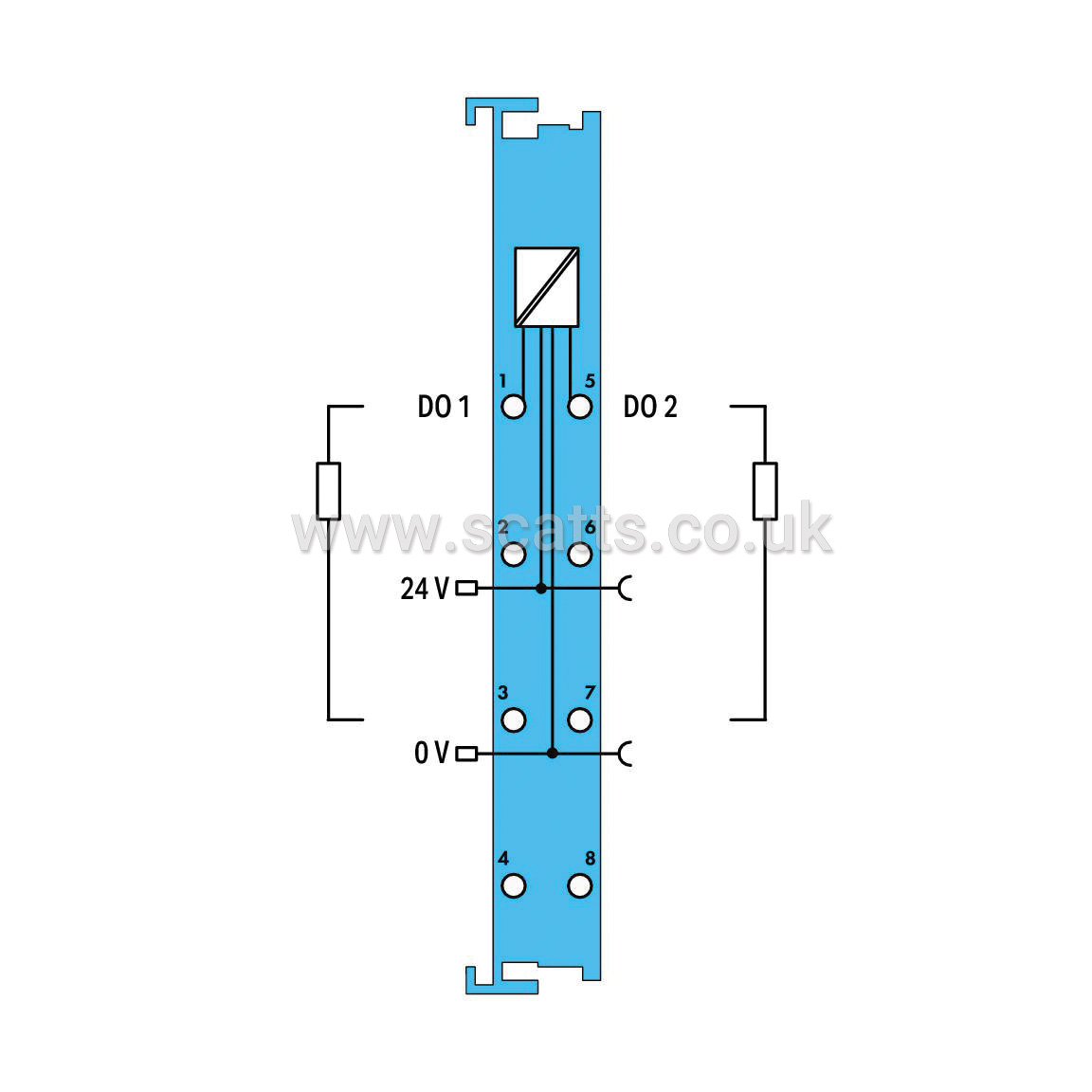

Actuator connection: 2 x (2-wire)
Output characteristic: high-side switching
Switching frequency (max.): 1 kHz
Load type: Resistive, inductive, lamp load

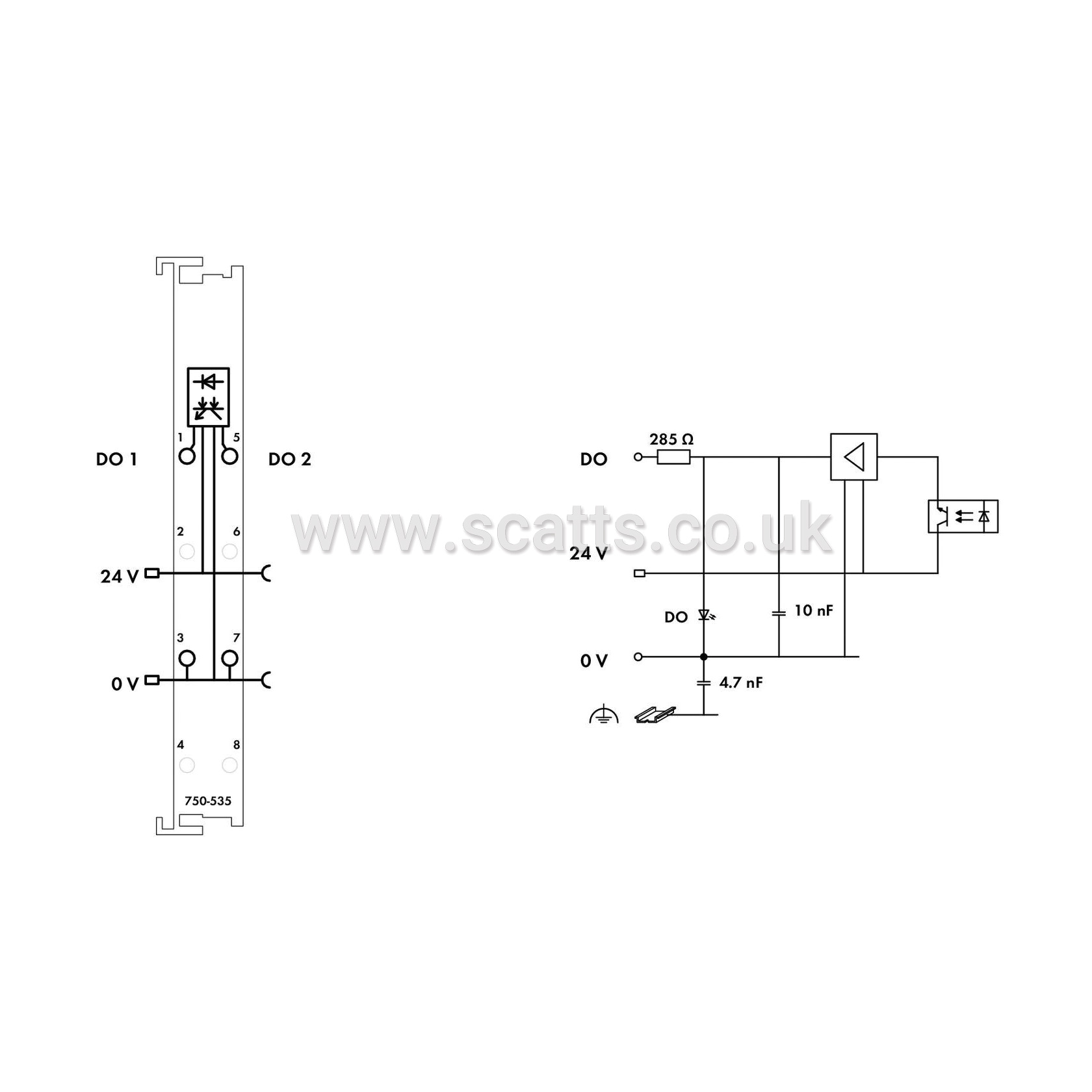

Internal resistance Ri: 285Ω
Power consumption Pmax.: 2.1 W (at 40 mA output current)
Output data width (internal) max.: 2Bit
Safety: yes
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply: 7mA
Supply voltage (field): 24 VDC; (Ex i power supply: UO = max. 27.3 V); via power jumper contacts (power supply via blade contact; transmission via spring contact)
Current consumption, field supply (module with no external load): 8.5mA
Power loss Pl: 1.1 W (at 40 mA output current)
Isolation: 300 VAC system/supply

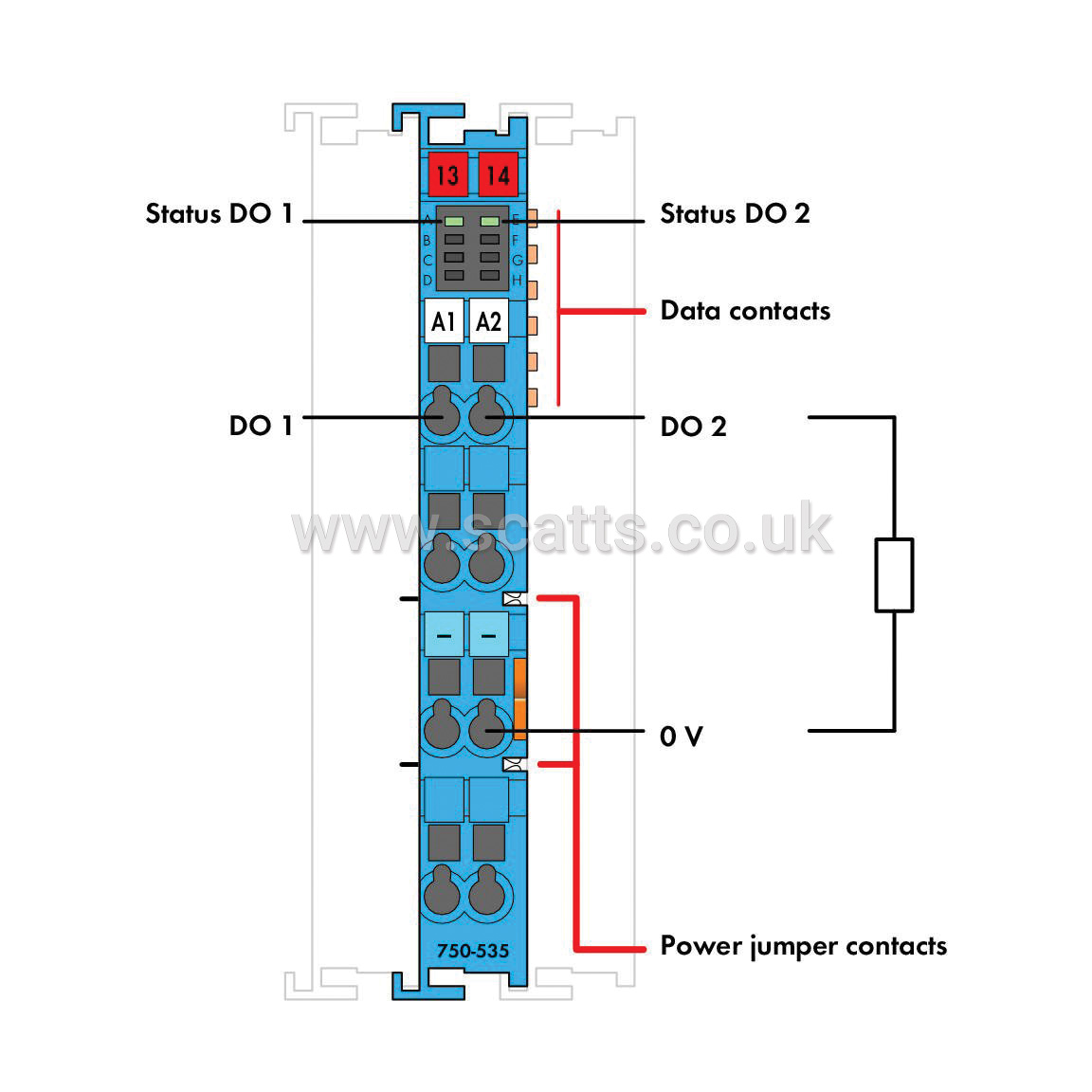

Indicators: LED (A, E) green: Status DO 1, DO 2
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
Current carrying capacity (power jumper contacts): 1A
Marking: ATEX/IECEx: II 3 (1) G Ex ec [ia Ga] IIC T4 Gc; II (1) D [Ex ia Da] IIIC; I (M1) [Ex ia Ma] I
