2CH A/O +/-10VDC S5 FORMAT

2-channel analog output; ±10 VDC; S5 PLC data format


This analog output module generates standard ±10 V signals.
The output signal is electrically isolated and transmitted with a resolution of 12 bits.
The outputs are short-circuit-protected.
The internal system supply powers the module.
The output channels have one common ground potential.

Number of analog outputs: 2
Total number of channels (module): 2
Signal type: Voltage
Signal type (voltage): -10 … +10 VDC

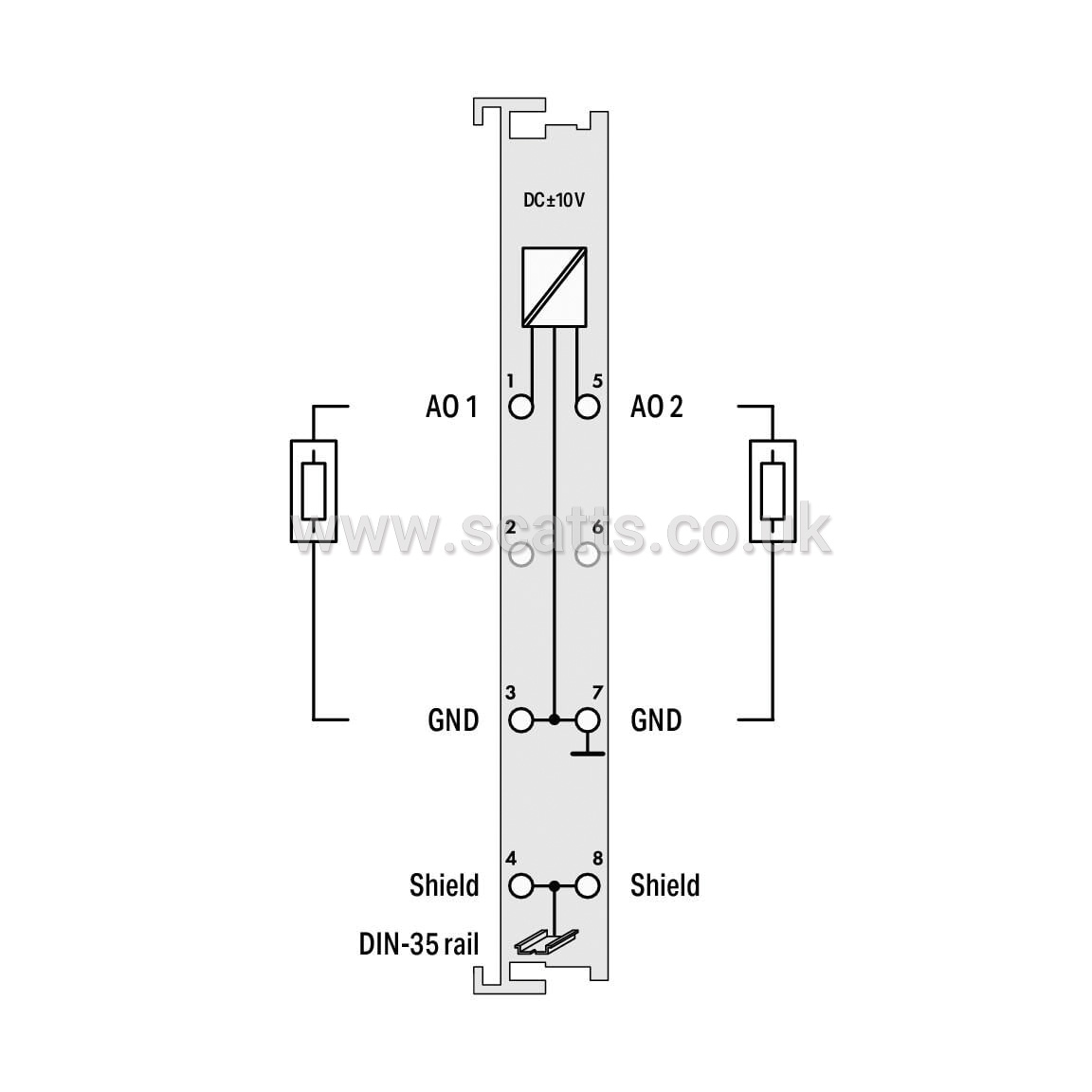

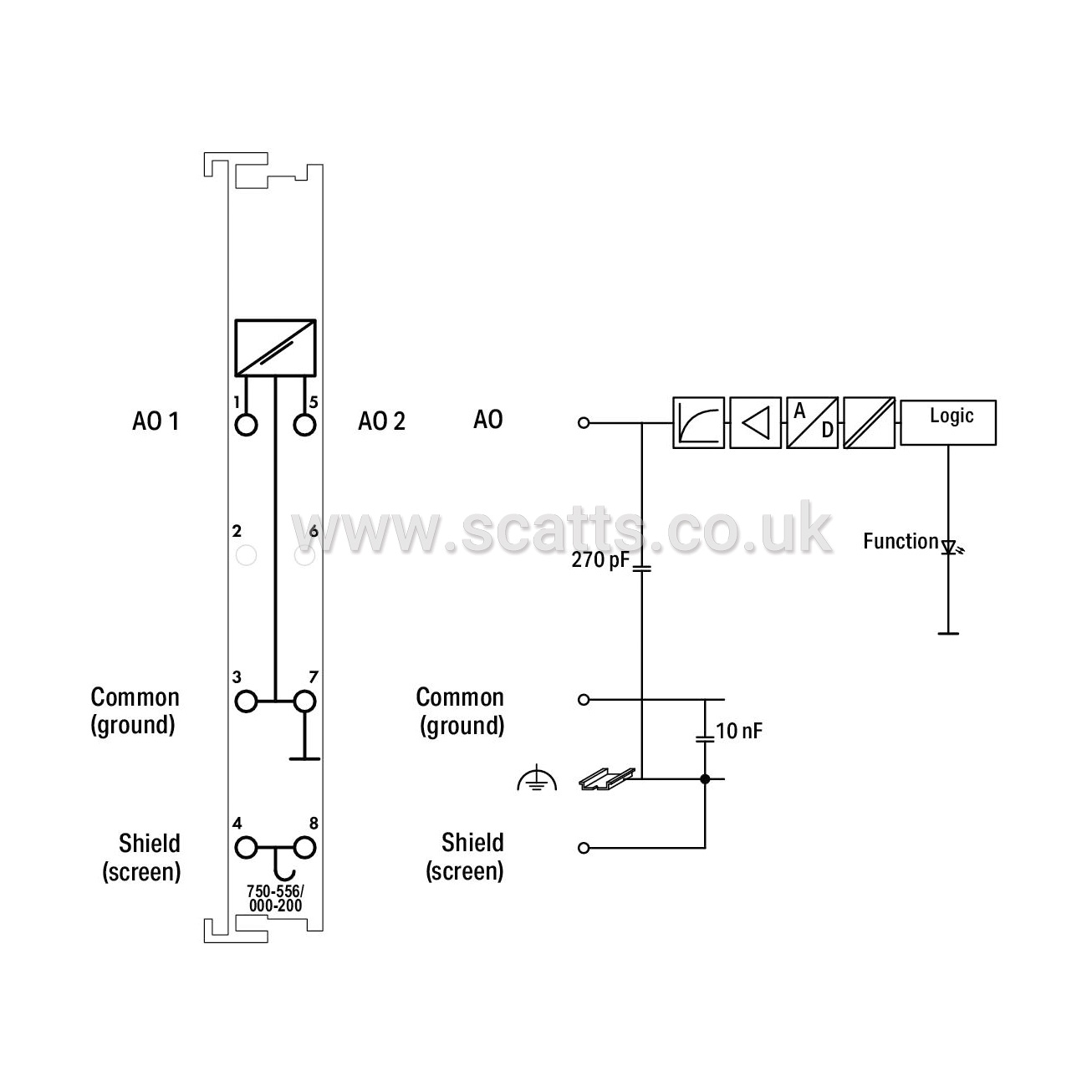

Actuator connection: 2 x (2-wire)
Resolution [bit]: 12Bit
Data width: 2 x 16-bit data; 2 x 8-bit control/status (optional)
Load impedance (voltage output): ≥ 5 kΩ
Conversion time (typ.): 2ms
Measurement error (reference temperature): 25°C
Measurement error, deviation (max.) from the upper-range value: 0.1%
Temperature error (max.) of the upper-range value: 0.01%/K
Output error, deviation (max.) of the upper-range value: 0.1%
Temperature error (max.) of the output range value: 0.01%/K
Recovery time (typ.): 0.3ms
Linearity: ±10 mV
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 65mA
Isolation: 500 V system/field

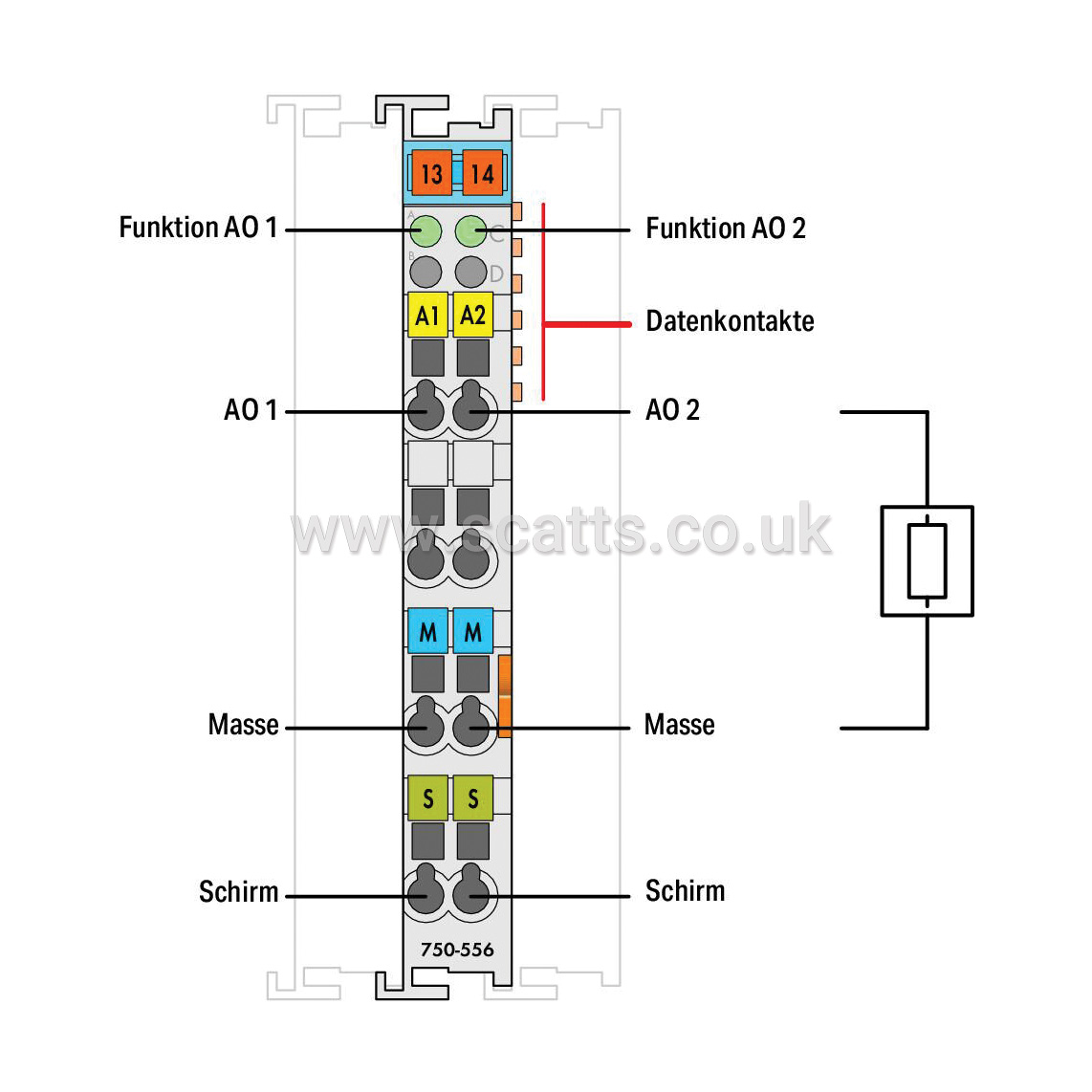

Indicators: LED (A, C) green: Function AO 1, AO 2
