Part Number: 750-560
Manufacturer Code: 750-560
Multiples of: 1 | Minimum Order: 1
2-channel analog output - 0 ... 10 VDC, 10 bits, 100 mW/24 V
This analog output module generates standard 0–10 V signals. The output signal is electrically isolated from the system level and transmitted with a resolution of 10 bits. The outputs are short-circuit-protected. Each channel is equipped with an LED to indicate short circuits or overloads ≥ 15 mA. The shield directly connects to the DIN-rail. Both the internal system and field side supply power the module. The output channels have one common ground potential. The analog outputs and the 24 V supply have one common ground potential so that actuators such as servo drives can be connected using a 3-conductor cable.
Number of analog outputs: 2
Total number of channels (module): 2
Signal type: Voltage
Signal type: 0 … 10 VDC

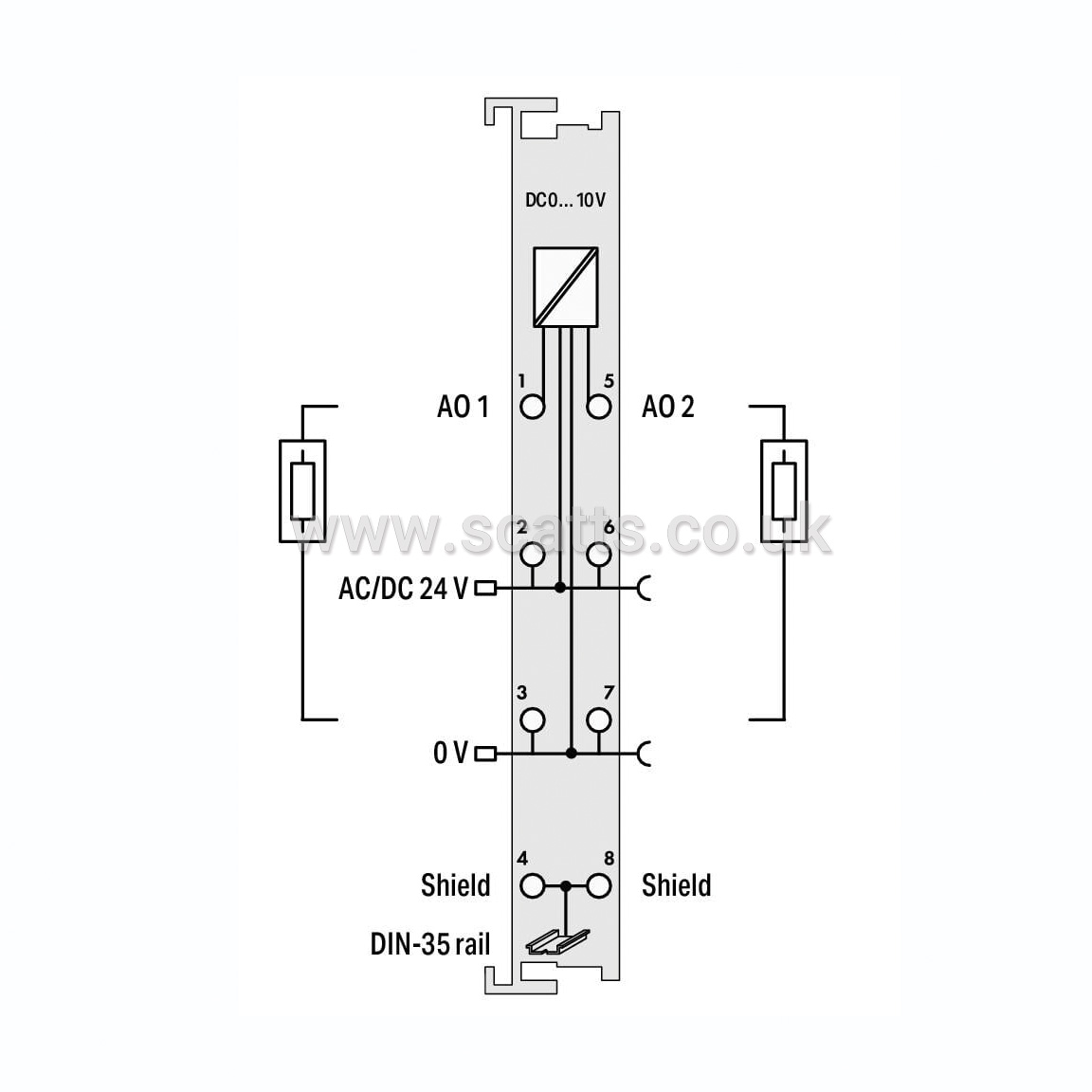

Actuator connection: 2 x (2-wire)
Resolution [bit]: 10Bit
Data width: 2 x 16-bit data; 2 x 8-bit control/status (optional)
Load impedance (voltage output): ≥ 1 kΩ
Conversion time (typ.): 10ms
Measurement error (reference temperature): 25°C
Measurement error, deviation (max.) from the upper-range value: 0.2%
Temperature error (max.) of the upper-range value: 0.02%/K
Output error, deviation (max.) of the upper-range value: 0.2%
Temperature error (max.) of the output range value: 0.02%/K
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 16mA
Supply voltage (field): 24 VAC/DC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
Isolation: 500 V system/field

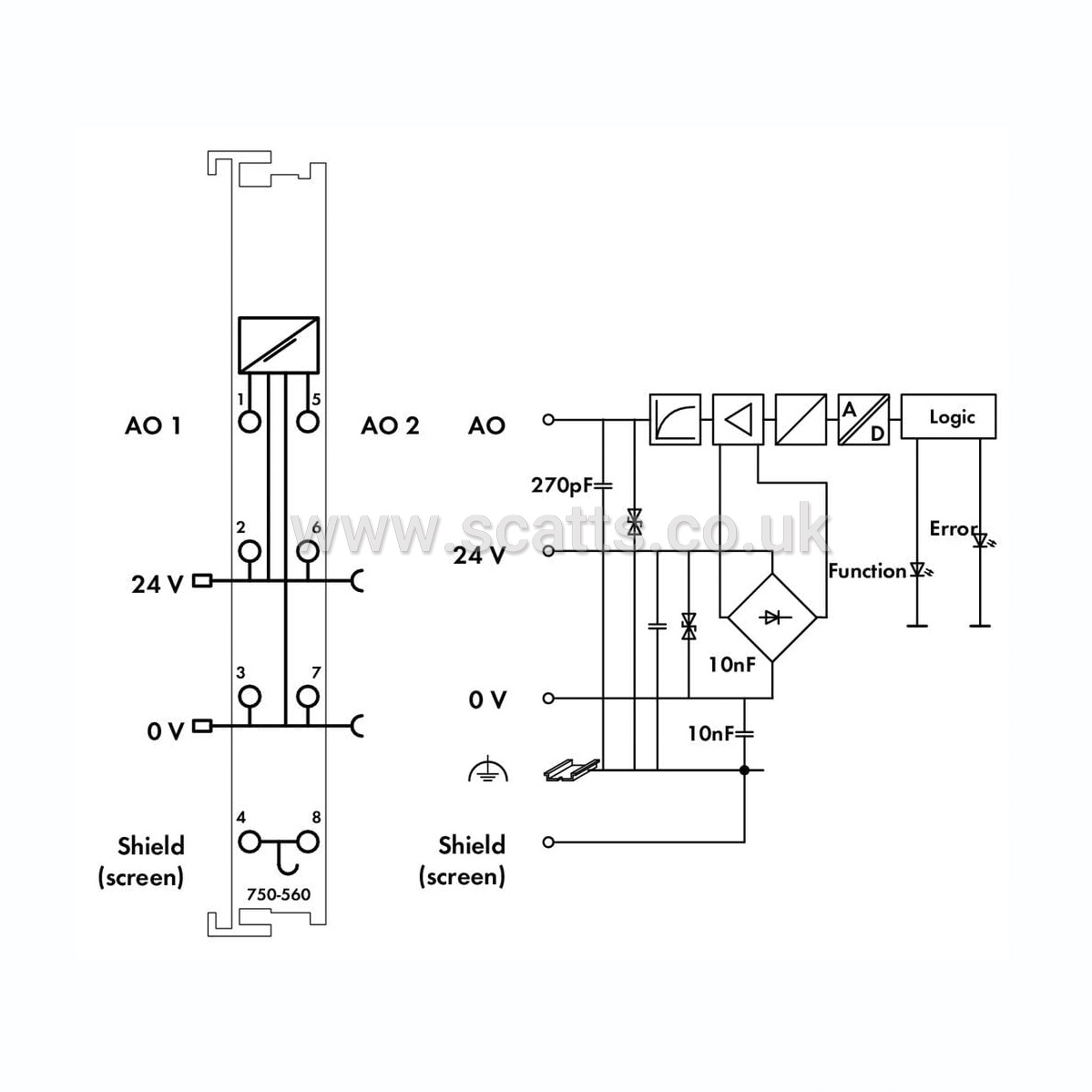

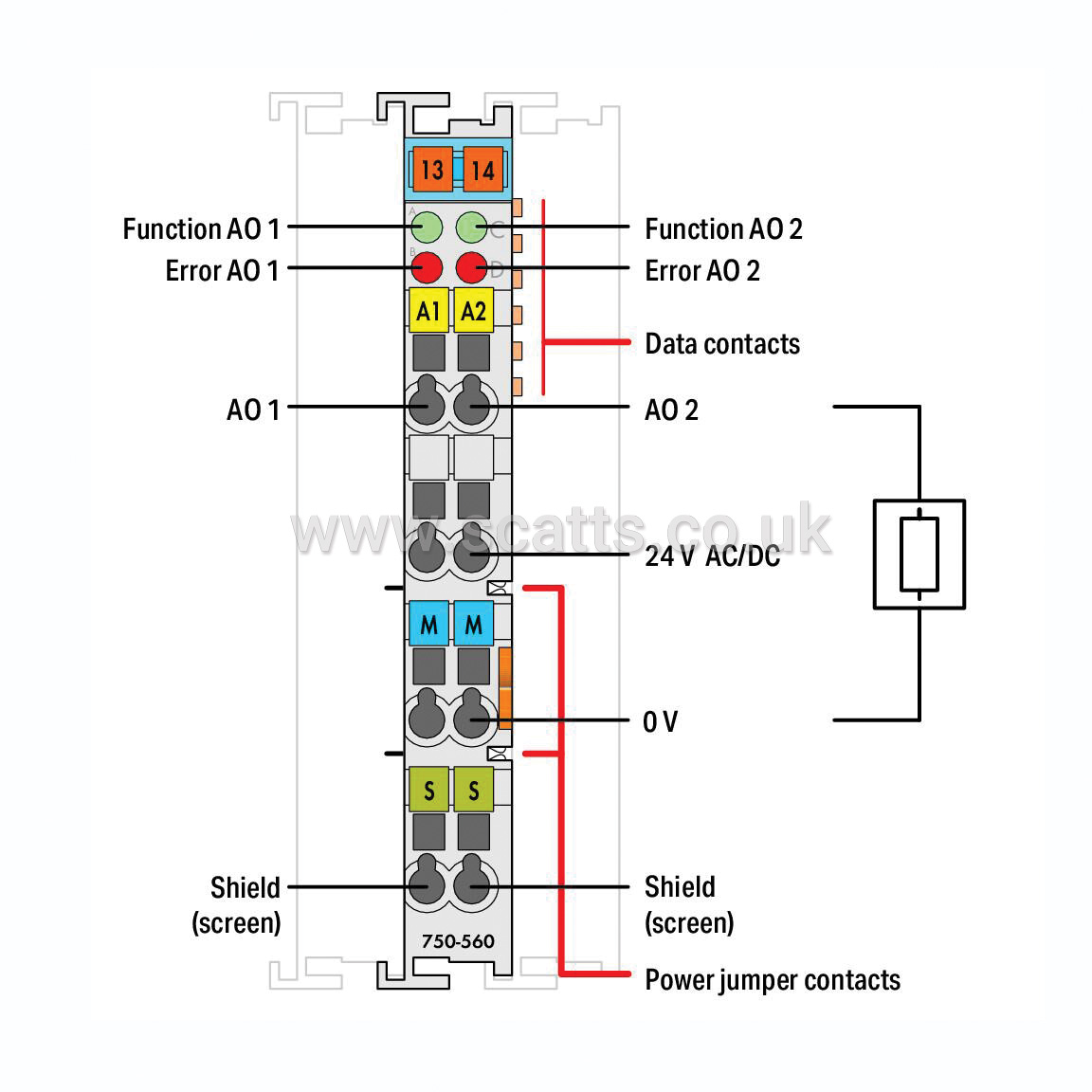

Indicators: LED (A, C) green: Function AO 1, AO 2; LED (B, D) red: Error AO 1, AO 2
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
