2 CH 0-10V/+-10VDC 16 BIT

2-channel analog output - 0 … 10 V/±10 VDC, 16 bits


This analog output module generates output voltages ranging from 0 to 10 V or ±10 V for the field. Output ranges can be configured via WAGO‐I/O‐CHECK or GSD files.

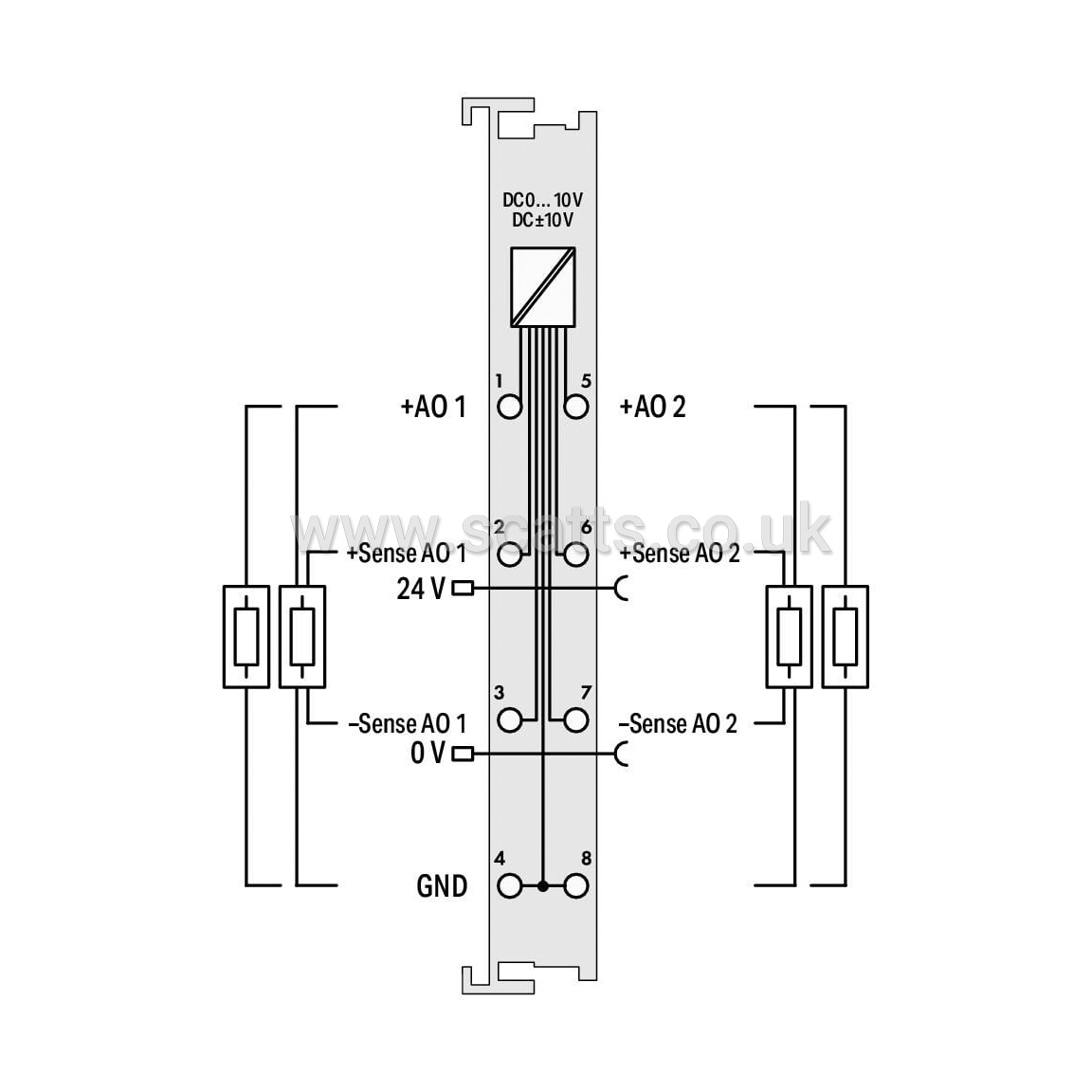

The module has two short circuit-proof output channels and enables direct connection of two 2-wire actuators to AO 1 and ground or AO2 and ground. Signals are output via AO 1 or AO 2. In addition, the sense lines from 4-wire actuators can be connected to -Sense AO1 and +Sense AO1 or -Sense AO2 and +Sense AO2.

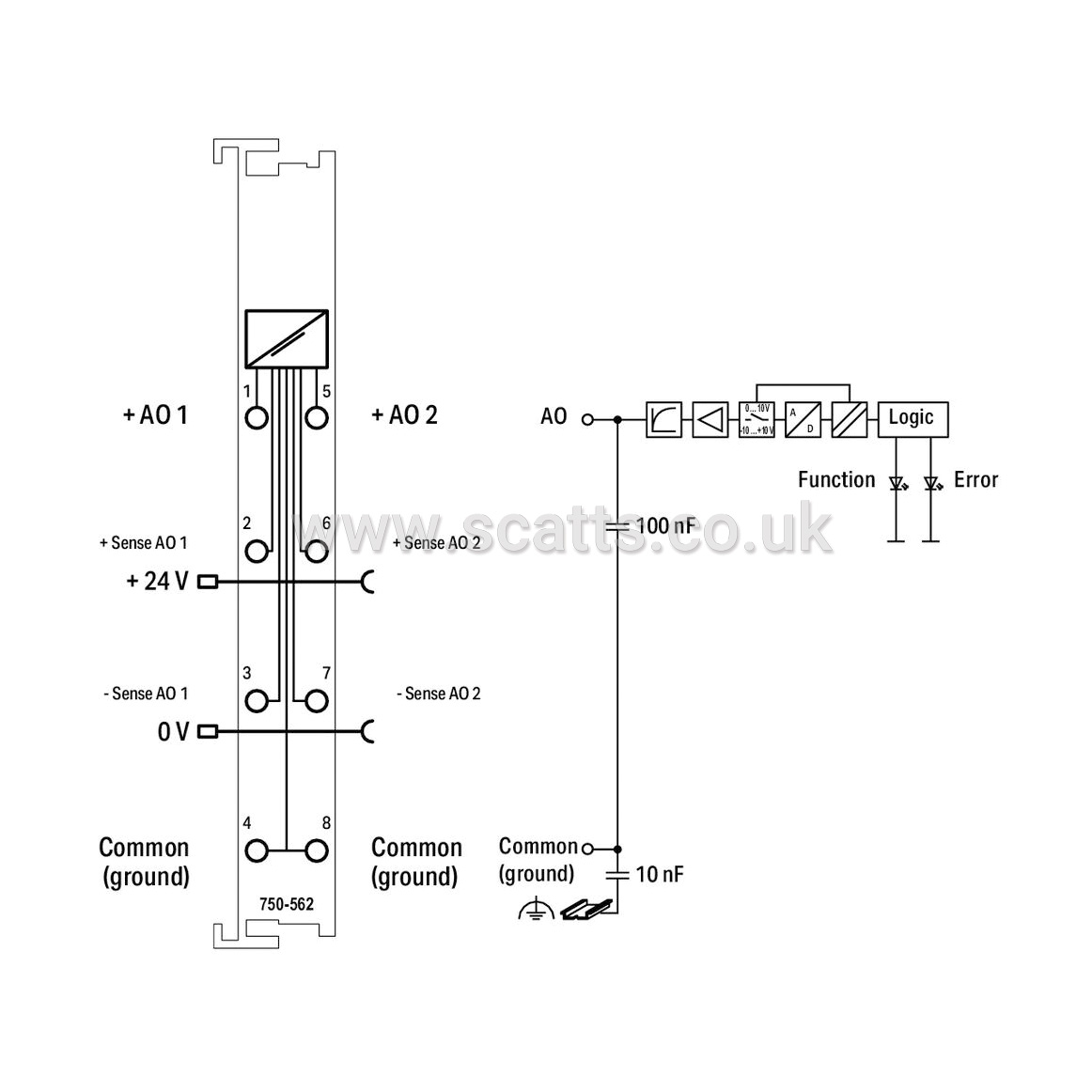

Both output channels have a common ground potential. The output signal is electrically isolated and transmitted with a resolution of 16 bits.

The internal system supply powers the module. The field power supply is only forwarded to the downstream modules.

Number of analog outputs: 2
Total number of channels (module): 2
Signal type: Voltage
Signal type: 0 … 10 VDC; -10 … +10 VDC
Signal type: yes
Actuator connection: 2 x (2-wire, 4-wire)
Resolution [bit]: 16Bit
Data width: 2 x 16-bit data; 2 x 8-bit control/status (optional)
Load impedance (voltage output): ≥ 5 kΩ
Conversion time (typ.): 5ms
Measurement error (reference temperature): 25°C
Measurement error, deviation (max.) from the upper-range value: 0.05%
Output error, deviation (max.) of the upper-range value: 0.05%
Temperature coefficient: < ±100 ppm
Recovery time (typ.): 0.3ms
Configuration options: WAGO-I/O-CHECK, e!COCKPIT
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 125mA
Supply voltage (field): 24 VDC (-15 … +20 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
Isolation: 500 V system/field

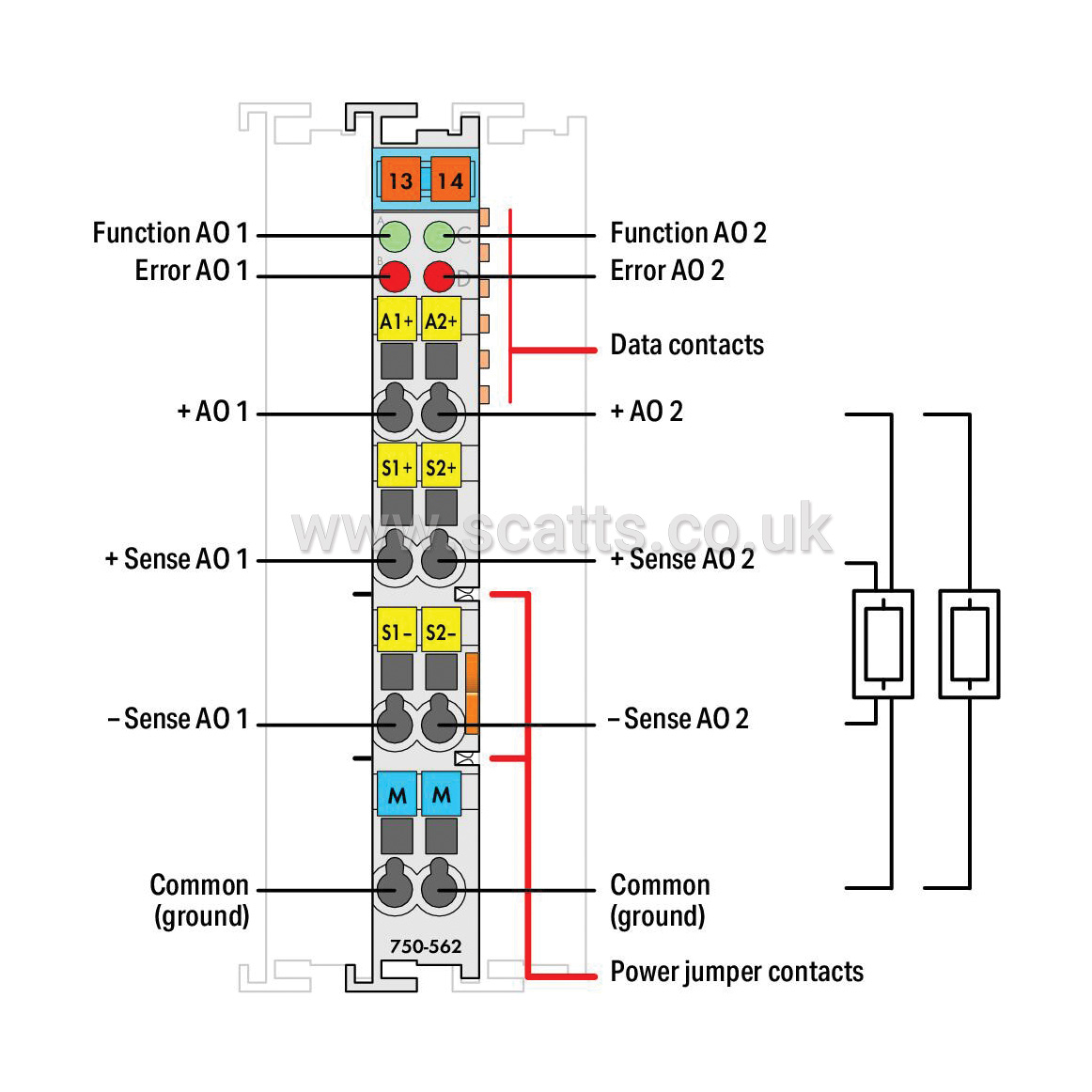

Indicators: LED (A, C) green: Function AO 1, AO 2; LED (B, D) red: Error AO 1, AO 2
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
