SUPPLY TERM BLOCK 24V 10A + FUSE

Power Supply - 24 VDC, fuse holder, light gray


This supply module provides the I/O modules with the corresponding supply potential. The maximum current provided by the supply module is 6.3 A. When configuring the system, the total current must not be exceeded. Should higher currents be necessary, an intermediate supply module must be added to the assembly.

This module is fuse-protected (5 x 20 mm). The fuse can be changed quickly, with ease, from the retractable fuse carrier. A blown fuse is indicated by a LED.

Signal type: Voltage
Signal type: 24 VDC
Fuse: 5 x 20; T 6.3 A (not included)
Supply voltage (system): 5 VDC; via data contacts
Supply voltage (field): 24 VDC (-25 … +30 %); Via power jumper contacts (power supply via CAGE CLAMP® connection; transmission via spring contact)

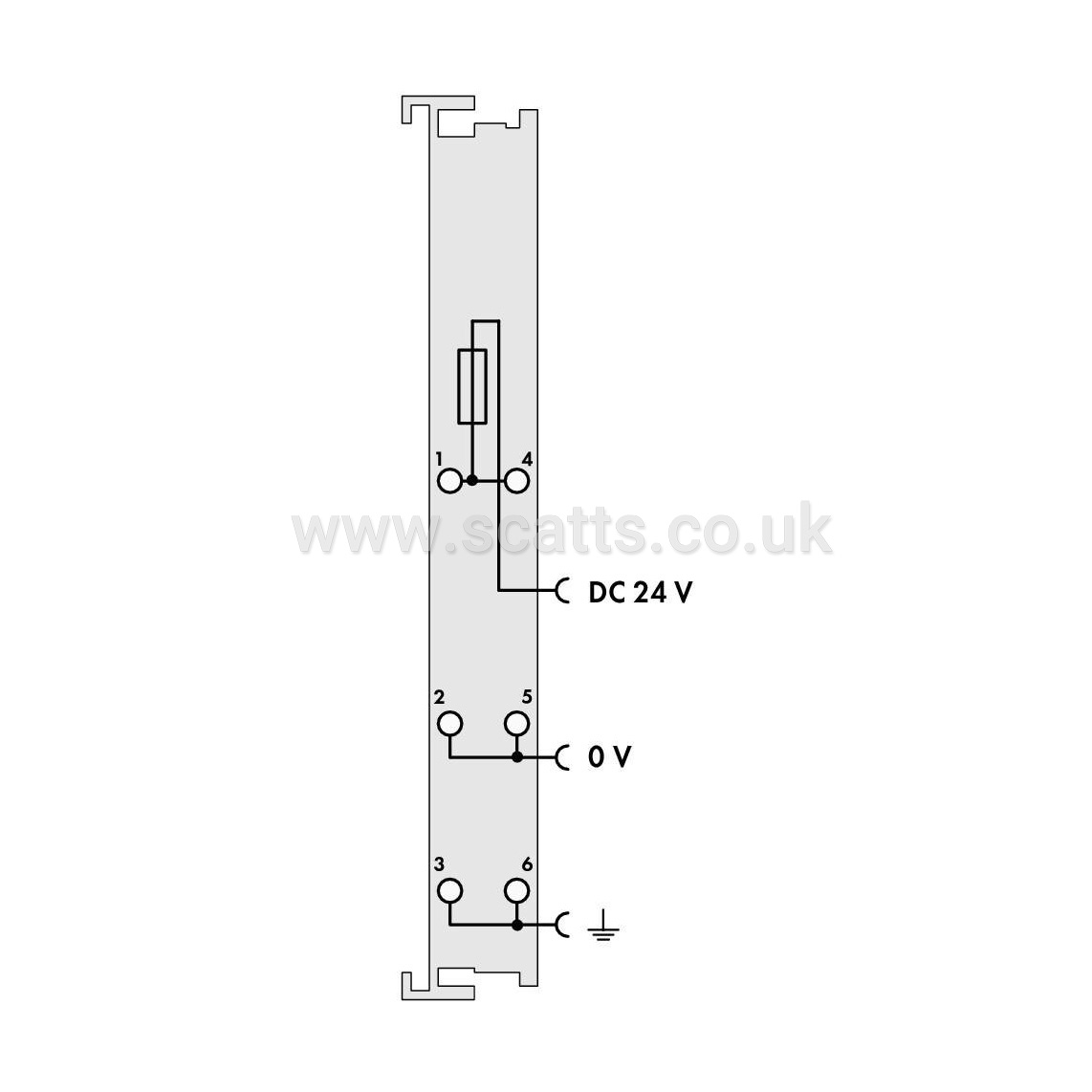

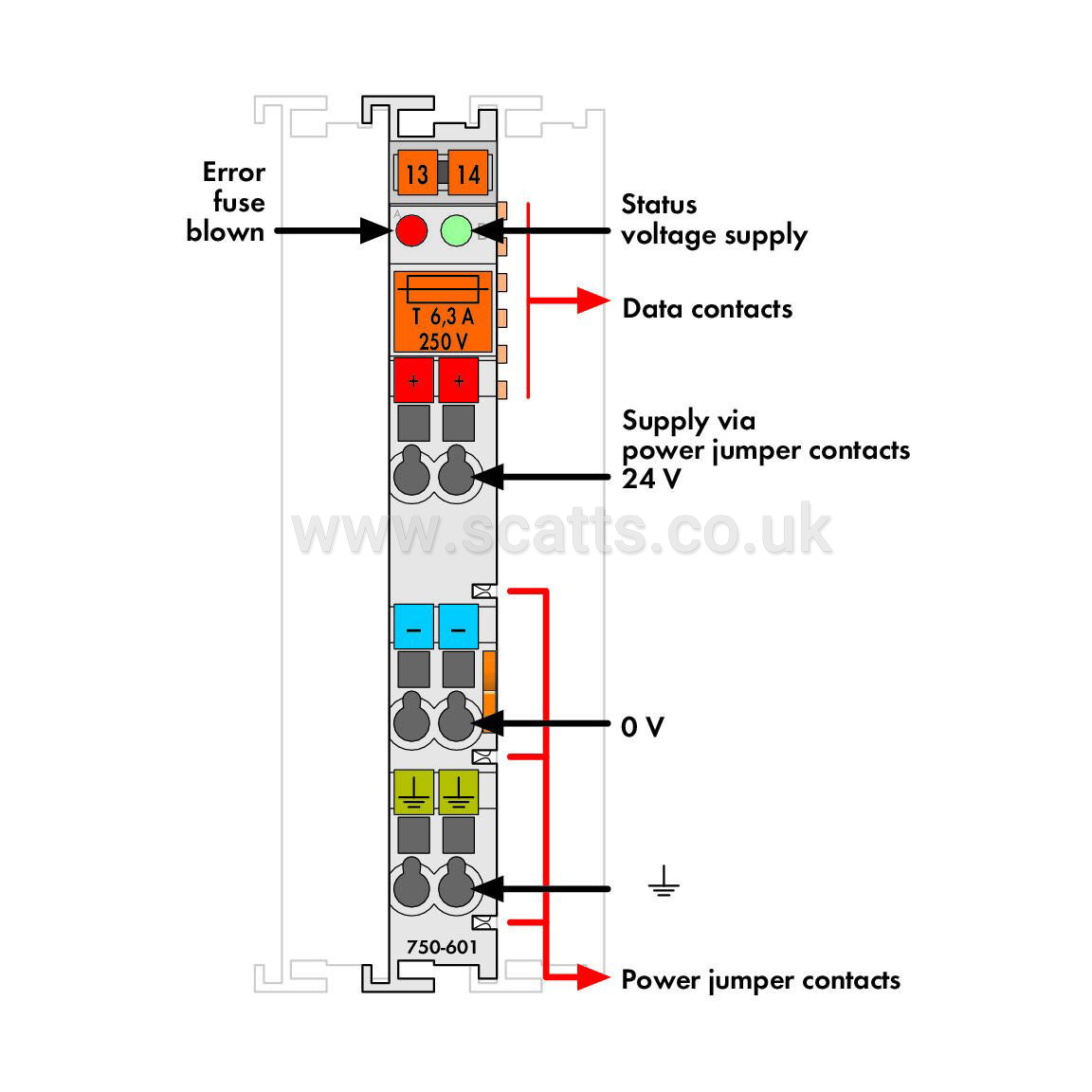

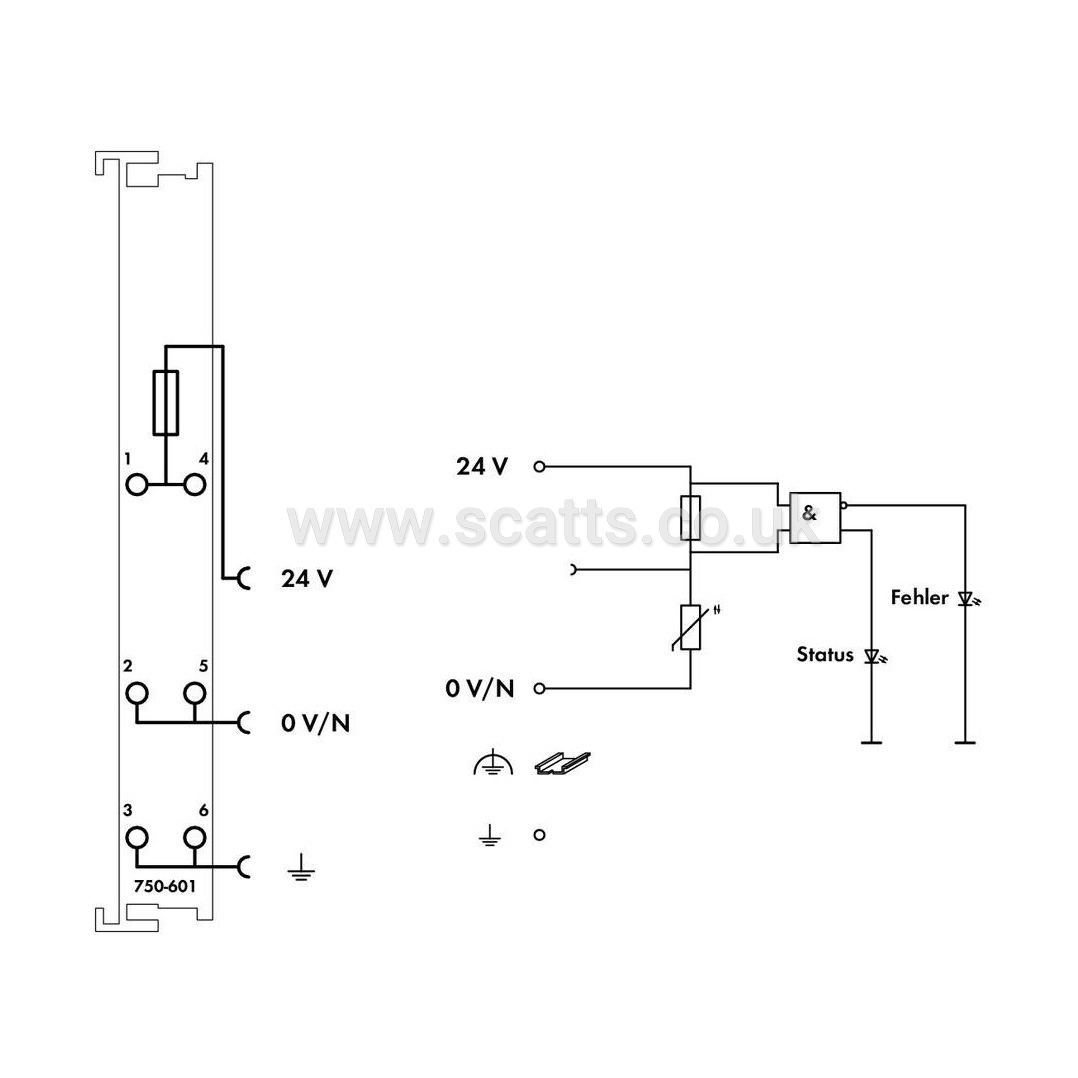

Indicators: LED (A) red: Error fuse blown; LED (B) green: Status voltage supply
Number of outgoing power jumper contacts: 3
Current carrying capacity (power jumper contacts): 6.3A
