Part Number: 750-602
Manufacturer Code: 750-602
Multiples of: 1 | Minimum Order: 1
Power Supply - 24 VDC, light gray
This supply module provides the I/O modules with the corresponding supply potential. The maximum current provided by the supply module is 10 A. When configuring the system, the total current must not be exceeded. Should higher currents be necessary, an intermediate supply module must be added to the assembly.
Signal type: Voltage
Signal type: 24 VDC
Supply voltage (system): 5 VDC; via data contacts
Supply voltage (field): 24 VDC (-25 … +30 %); Via power jumper contacts (power supply via CAGE CLAMP® connection; transmission via spring contact)

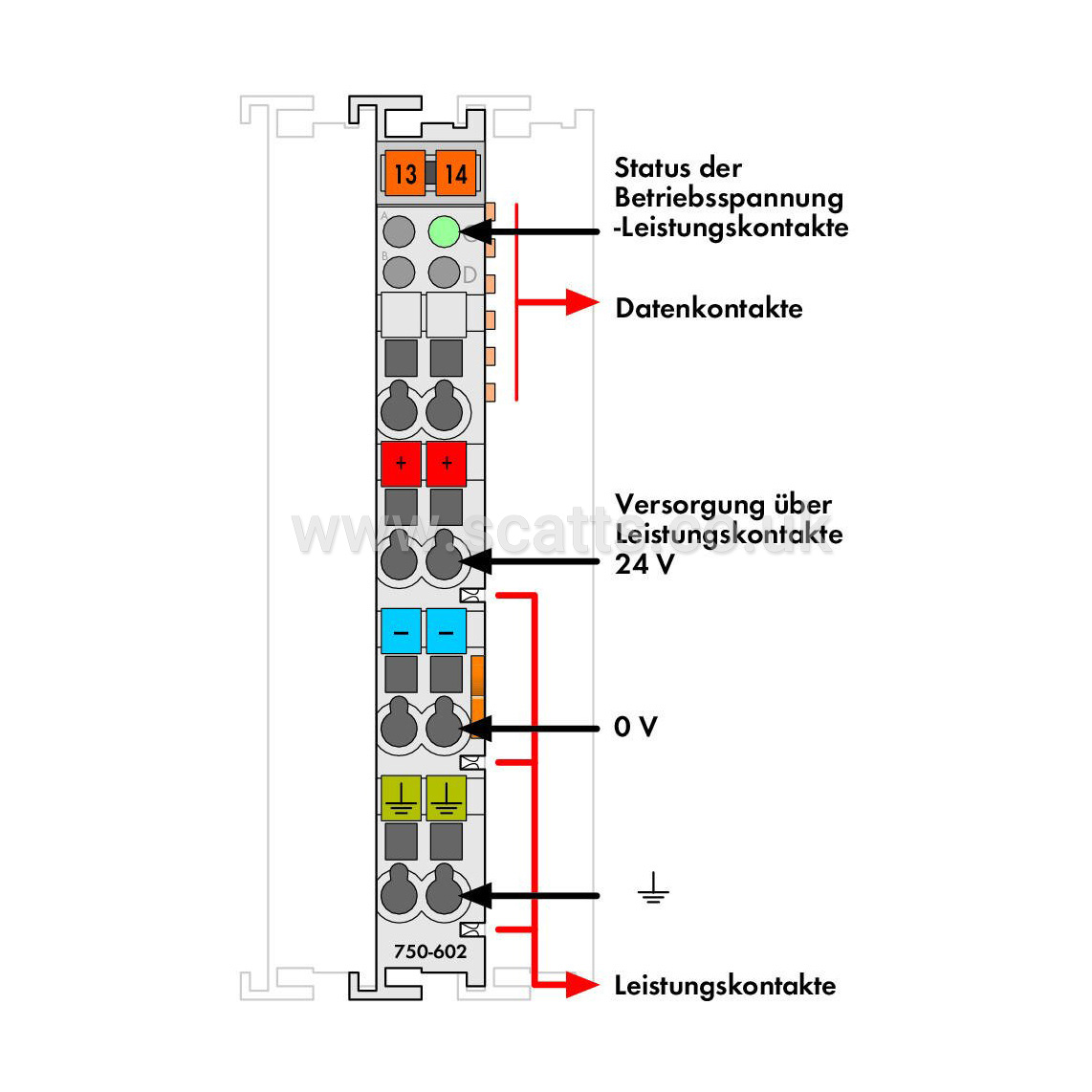

Indicators: LED (C) green: Status voltage supply: Power jumper contacts
Number of outgoing power jumper contacts: 3
Current carrying capacity (power jumper contacts): 10A
Brand |
WAGO |
|
£20.86
per 1 (ex. VAT)£25.03
per 1 (inc. VAT)
