DIST MODULE OV 10A 8 CONDUCT

Potential Distribution - 8-way 0 V, light gray


The field side connection module provides 0 V potential for the outputs of the 8-channel output module (750-530). This module eliminates the need for additional rail-mount terminal blocks.

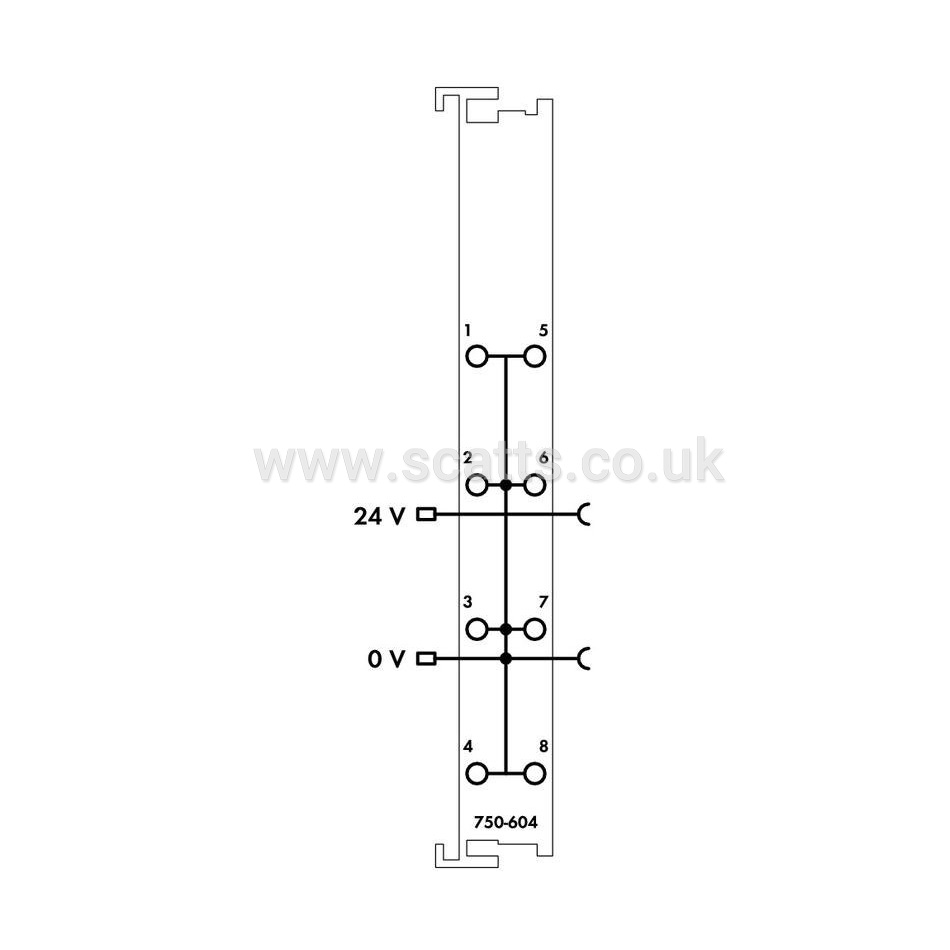

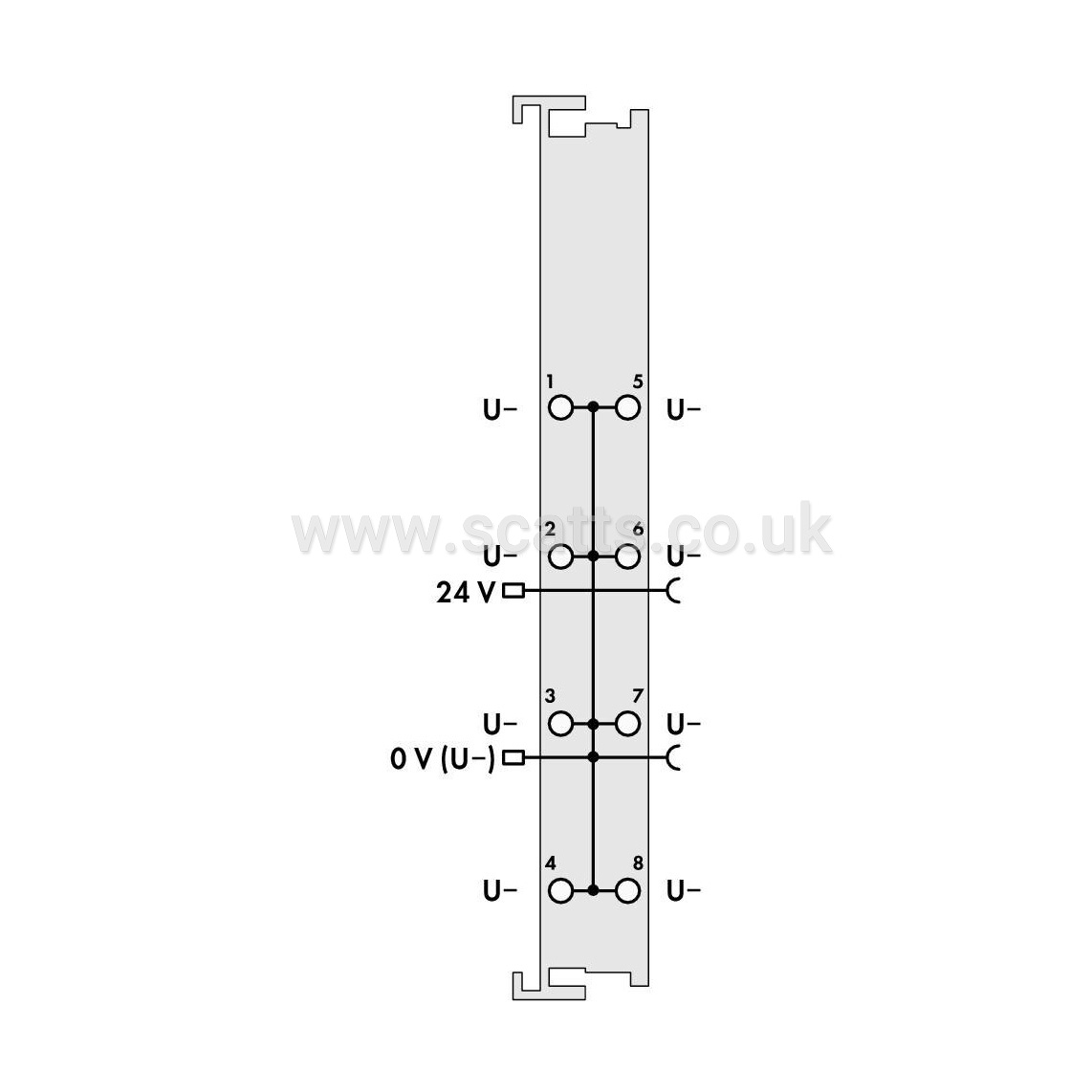

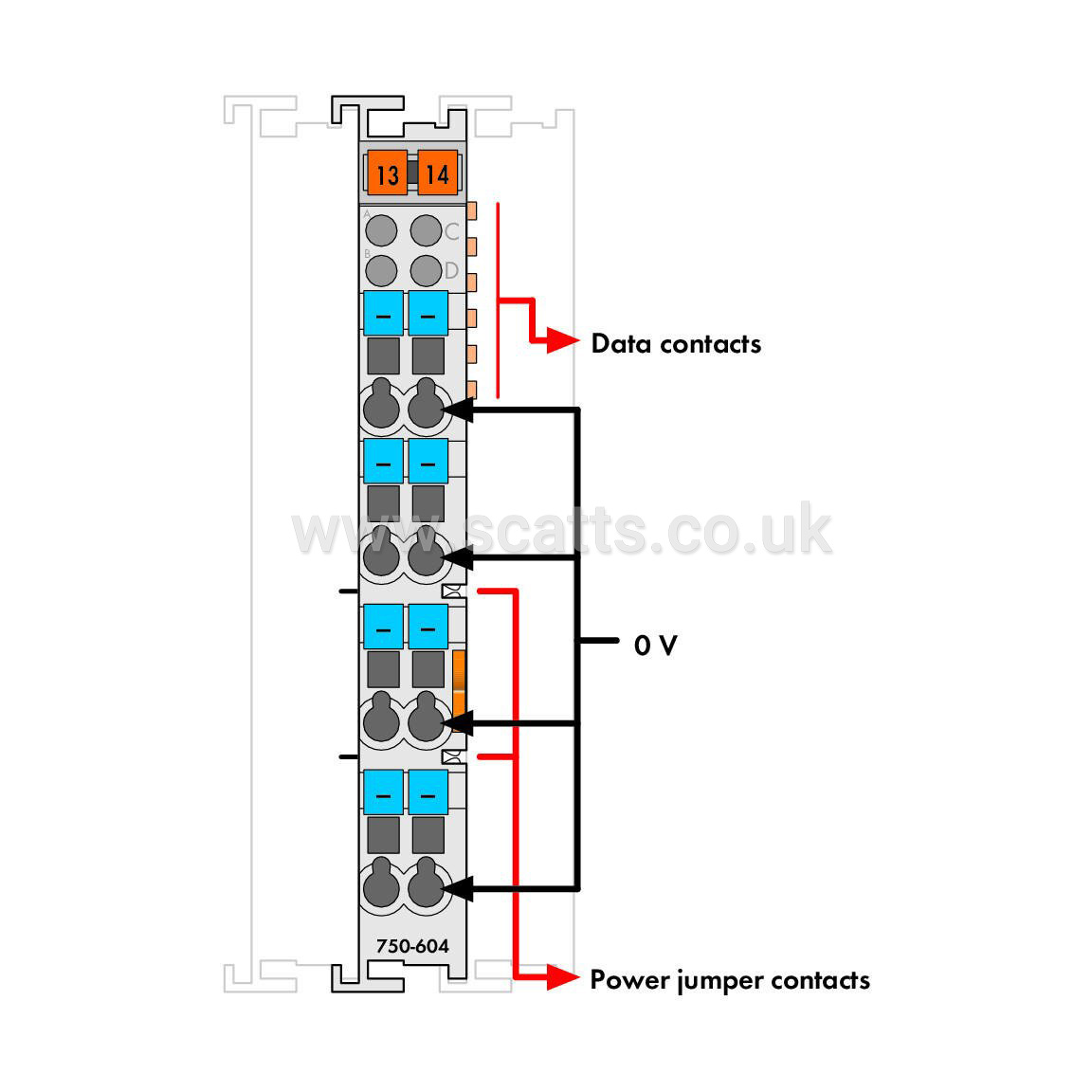

The 24 V supply and 0 V potential are derived from the internal power jumper contacts of an adjacent upstream I/O module. A connection of the potentials to the downstream I/O modules is made automatically via the power jumper contacts when snapping the I/O modules together. The 0 V power is provided to all eight field side CAGE CLAMP® connections and the 24 V potential passed through without being used by the module.

Signal type: Voltage
Signal type: 0 VDC
Supply voltage (system): 5 VDC; via data contacts
Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
Current carrying capacity (power jumper contacts): 10A
