INTERNAL SYSTEMS SUPPLY 24V DC

System Power Supply - 24 VDC, light gray


This internal system supply module increases the capacity of the system supply by 2 A for fieldbus nodes with high current requirements (sum of the internal current consumption of the I/O modules).

If required, additional system supply modules with bus power supply can be used. The module also supplies field-side power to the adjacent modules via the power jumper contacts.

Signal type: Voltage
Signal type: 24 VDC

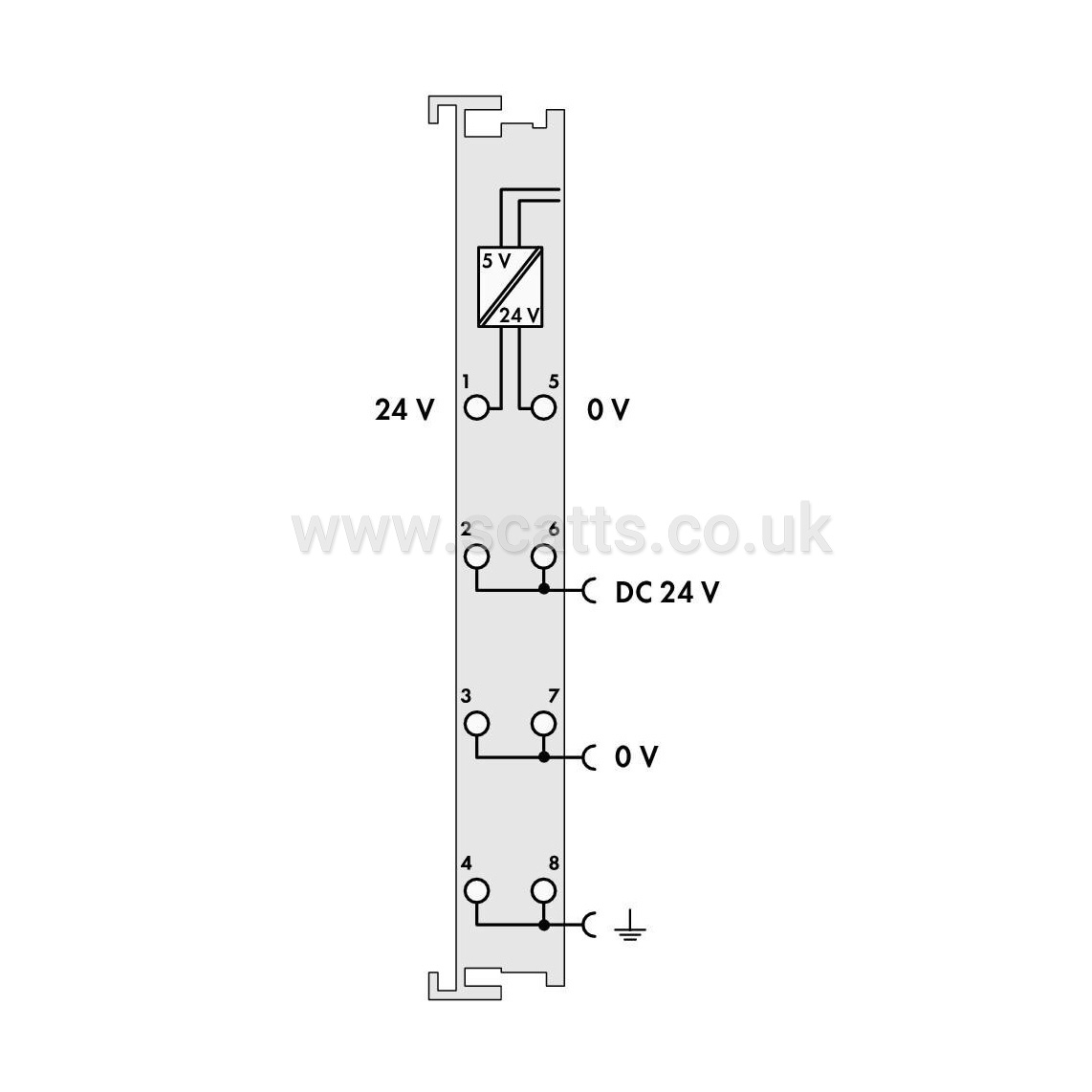

Supply voltage (system): 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP® connection)
Total current (system supply): 2,000mA

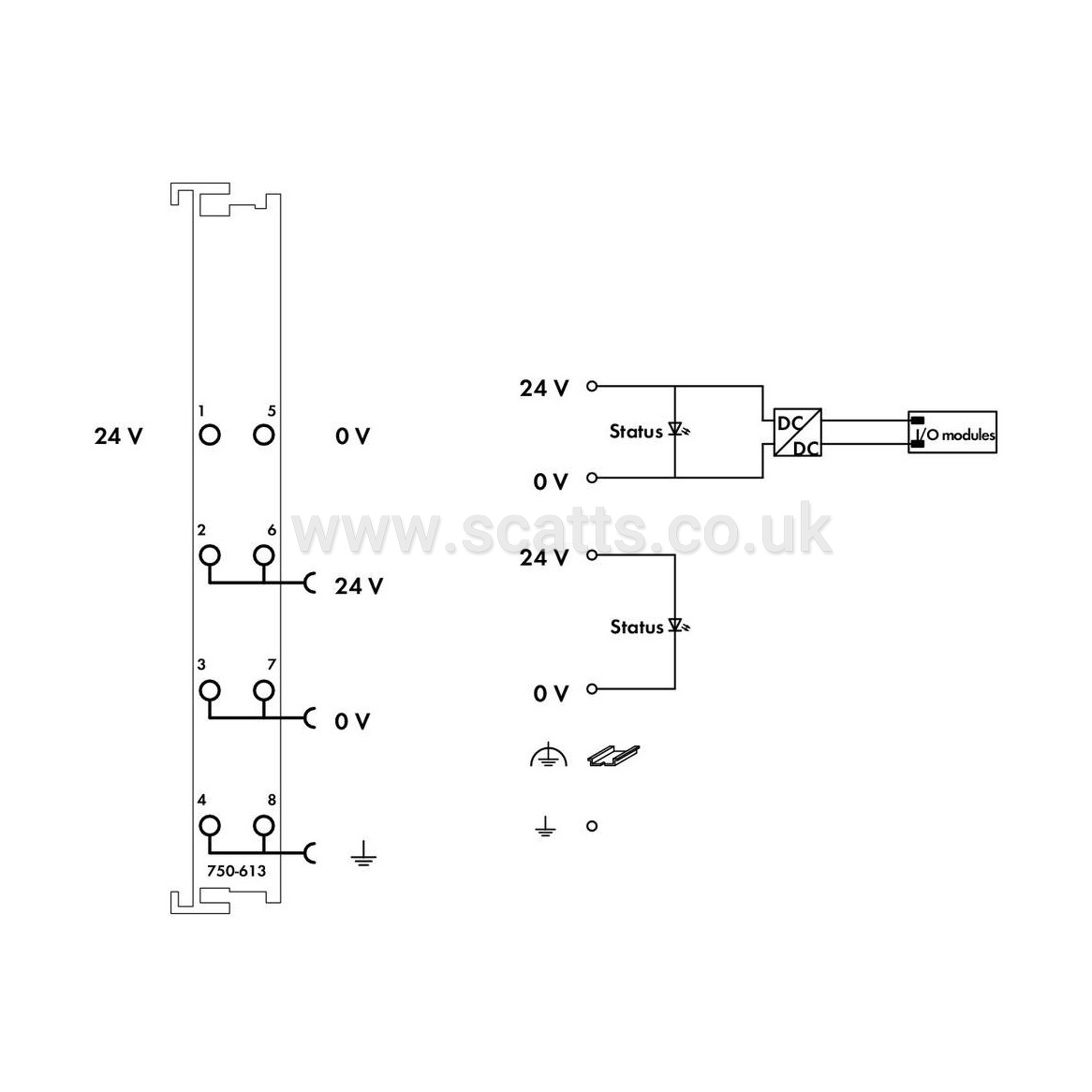

Supply voltage (field): 24 VDC (-25 … +30 %); Via power jumper contacts (power supply via CAGE CLAMP® connection; transmission via spring contact)
Input current (typ.): 500mA
Power supply efficiency (typ.) at nominal load (24 V): 90%
Isolation: 500 V system/field

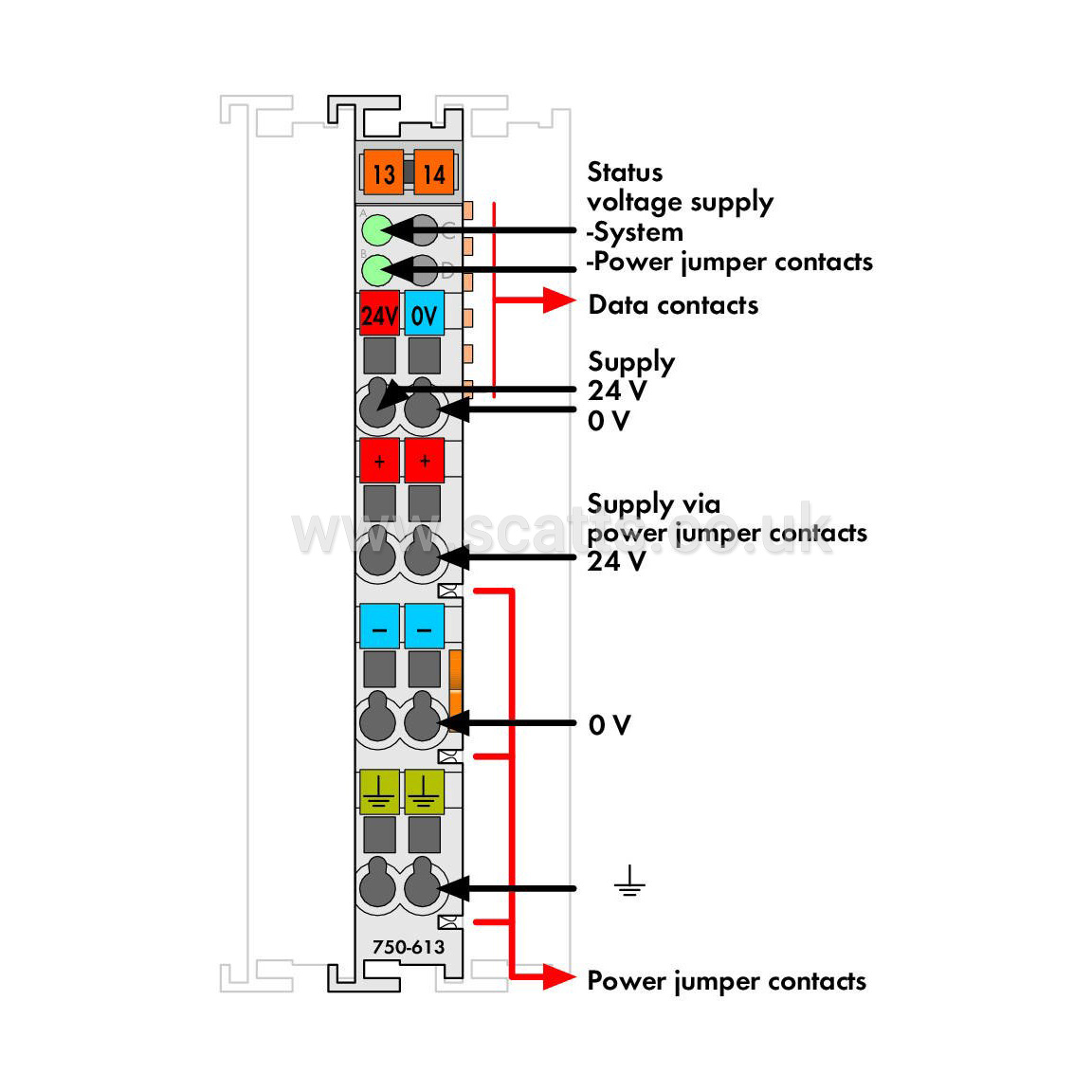

Indicators: LED (A, B) green: Status voltage supply: System, Power jumper contacts
Number of outgoing power jumper contacts: 3
Current carrying capacity (power jumper contacts): 10A
