My Part Number:
Part Number: 750-614
Manufacturer Code: 750-614
Multiples of: 1 | Minimum Order: 1
Potential Distribution - light gray

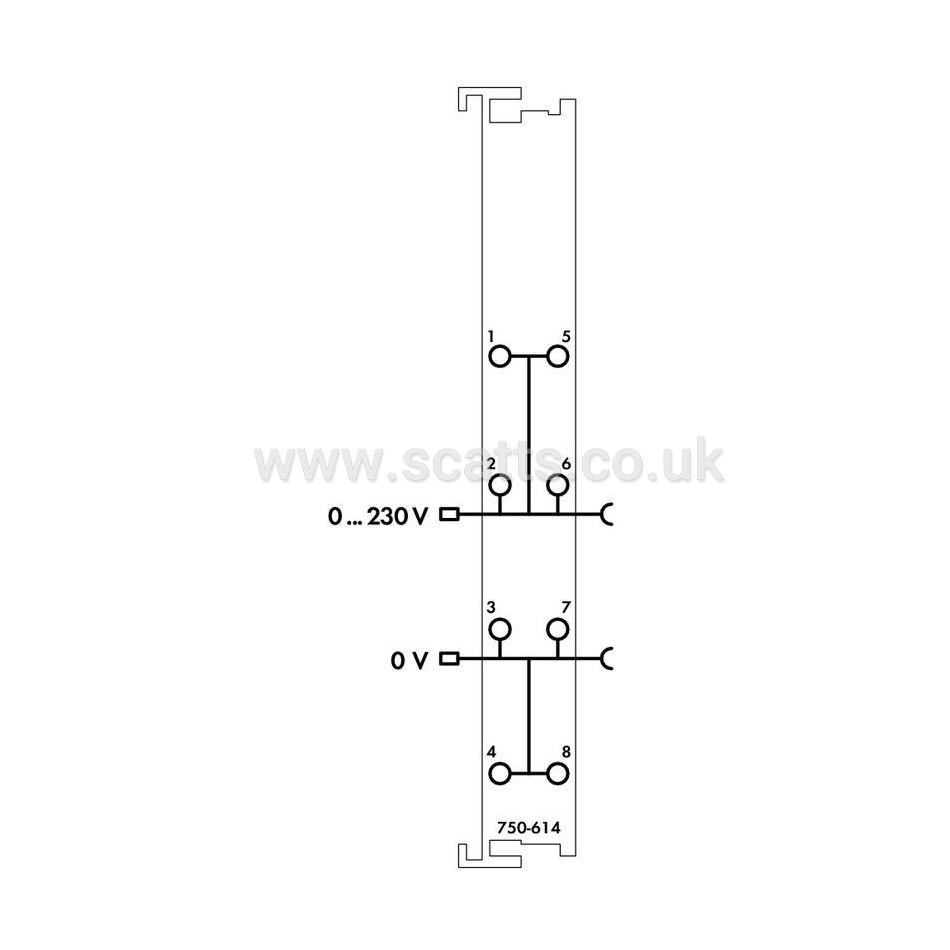

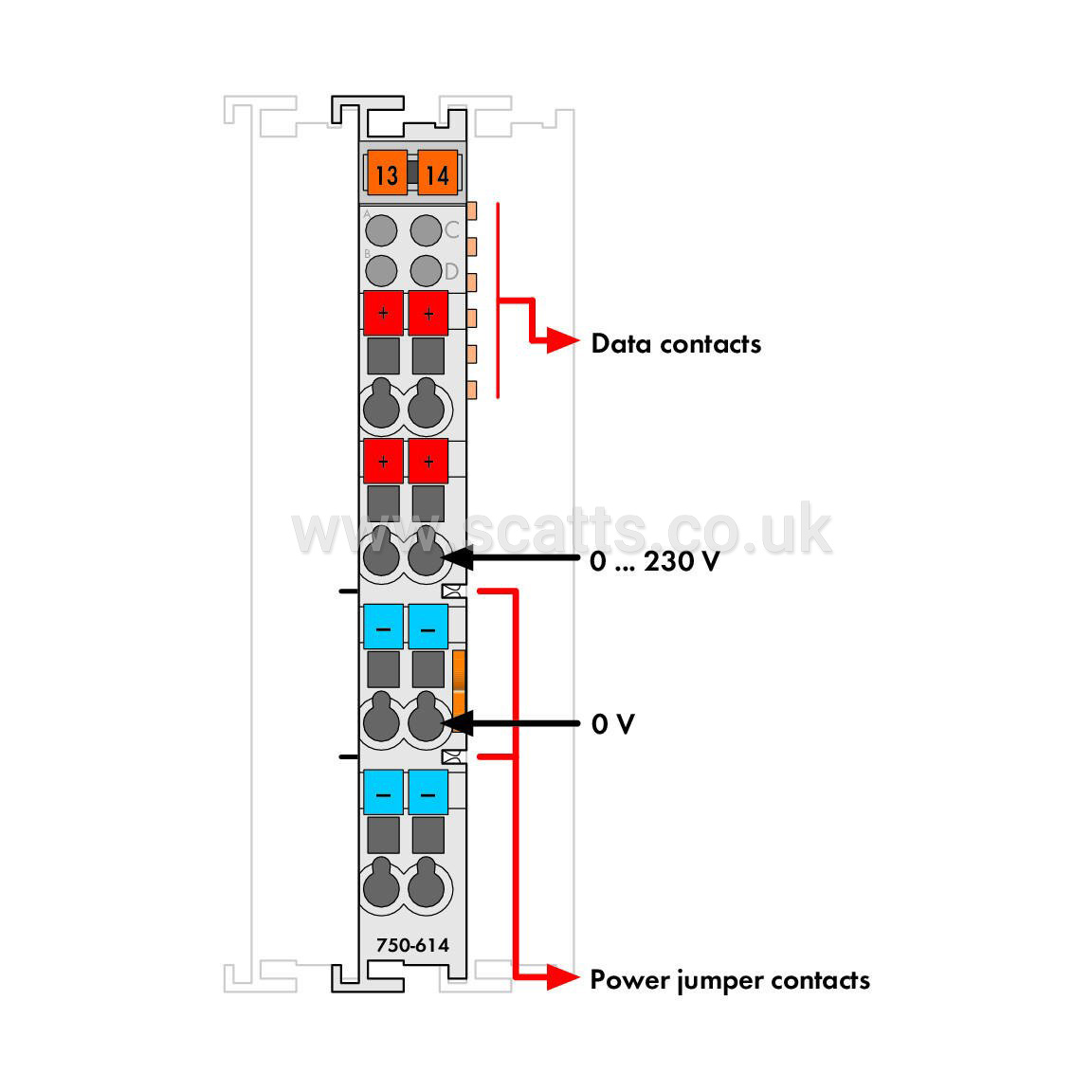

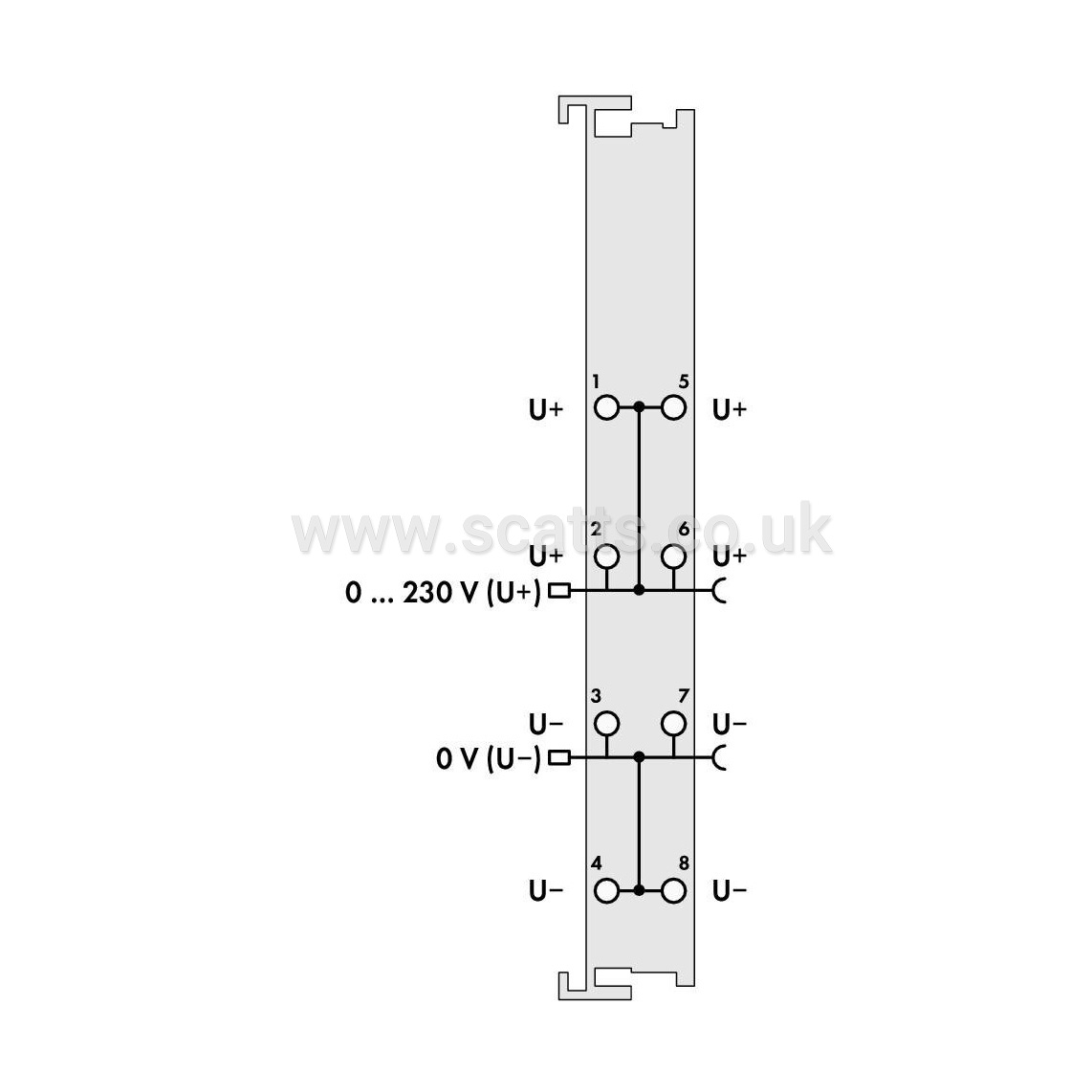

The field-side connection module provides multiple tapping of the supply voltage.
This module eliminates the need for additional rail-mount terminal blocks.
Signal type: Voltage
Signal type: 0 … 230 VAC/DC
Supply voltage (system): 5 VDC; via data contacts
Supply voltage (field): 230 VAC/DC; via power jumper contacts (power supply via blade contact; transmission via spring contact)
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
Current carrying capacity (power jumper contacts): 10A
Brand |
WAGO |
|
£20.86
per 1 (ex. VAT)£25.03
per 1 (inc. VAT)
Potential Distribution - light gray
The field-side connection module provides multiple tapping of the supply voltage.
This module eliminates the need for additional rail-mount terminal blocks.
Signal type: Voltage
Signal type: 0 … 230 VAC/DC
Supply voltage (system): 5 VDC; via data contacts
Supply voltage (field): 230 VAC/DC; via power jumper contacts (power supply via blade contact; transmission via spring contact)
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
Current carrying capacity (power jumper contacts): 10A
Brand |
WAGO |
|
