My Part Number:
Part Number: 750-624
Manufacturer Code: 750-624
Multiples of: 1 | Minimum Order: 1

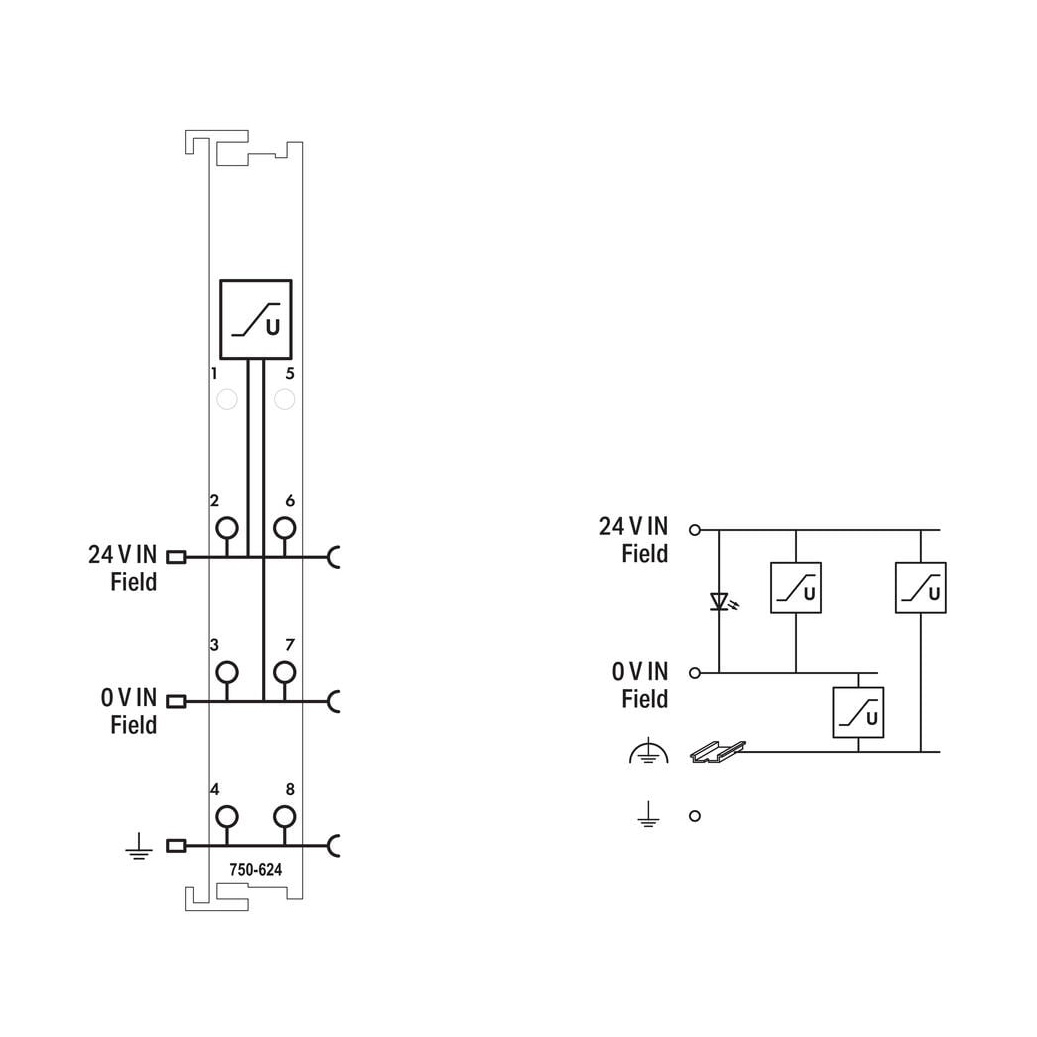

Filter module for field-side power supply (surge); 24 VDC
Signal type: Voltage
Signal type (voltage): 24 VDC
Supply voltage (system): 5 VDC; via data contacts

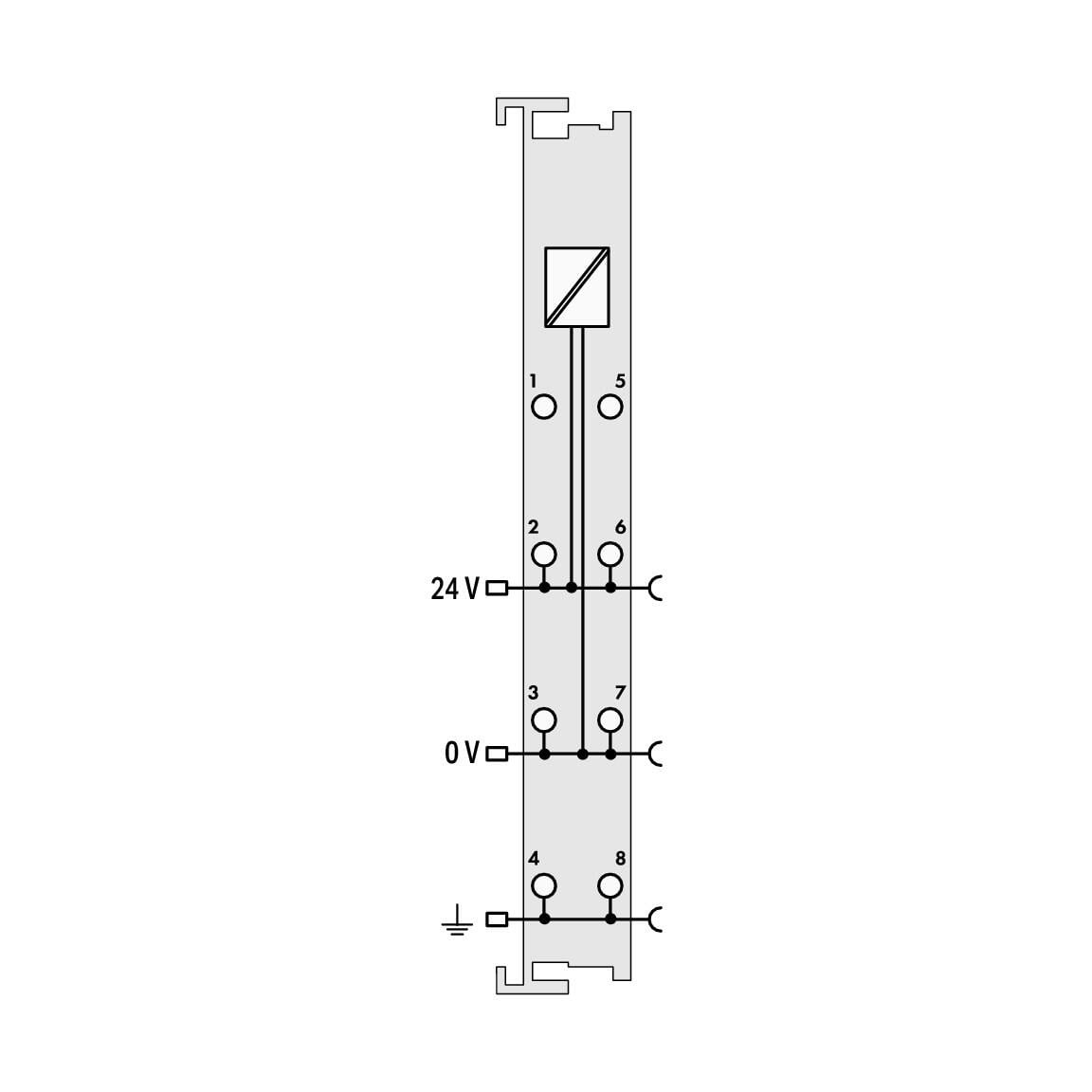

Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (supply voltage field side only) via spring contact)

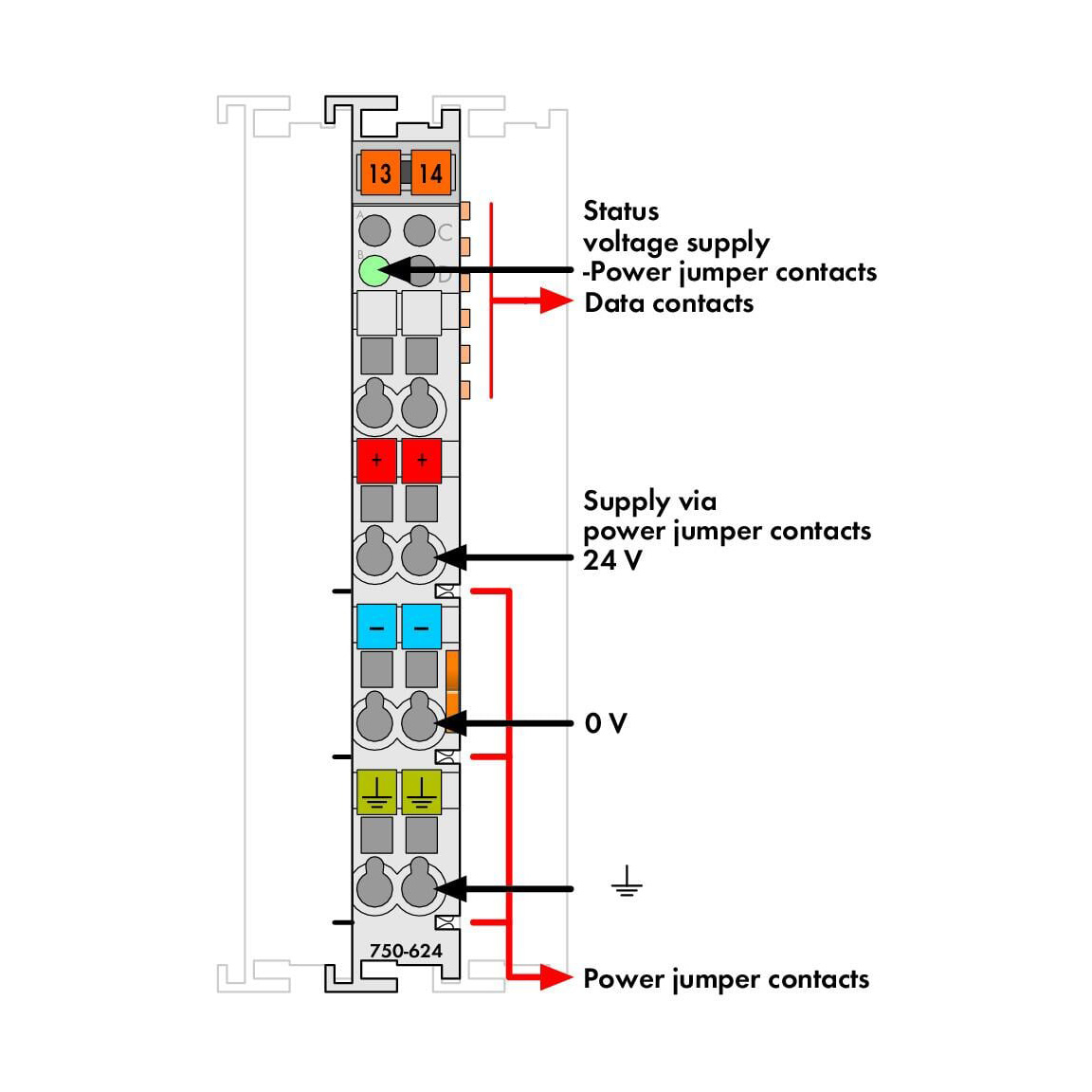

Indicators: LED (C) green: operating voltage status: power jumper contacts
Number of incoming power jumper contacts: 3
Number of outgoing power jumper contacts: 3
Current carrying capacity (power jumper contacts): 10A
Connection technology: field supply: 6 x CAGE CLAMP®
Connection type 1: Field supply
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Strip length: 8 … 9 mm / 0.31 … 0.35 inches
Mounting type: DIN-35 rail
Colour: light gray
Housing material: Polycarbonate; polyamide 6.6
Fire load: 1.009MJ
Weight: 46.7g
Conformity marking: CE
Brand |
WAGO |
|
£63.84
per 1 (ex. VAT)£76.61
per 1 (inc. VAT)
