SUPPLY FILTER 24VDC+GND FAULT

Supply Filter - 24 VDC, light gray


The WAGO I/O System 750 can also be used in marine applications and onshore/offshore installations (e.g., platforms, loading facilities). This is possible via certification under the standards of leading agencies such as Germanischer Lloyd and Lloyd's Register.

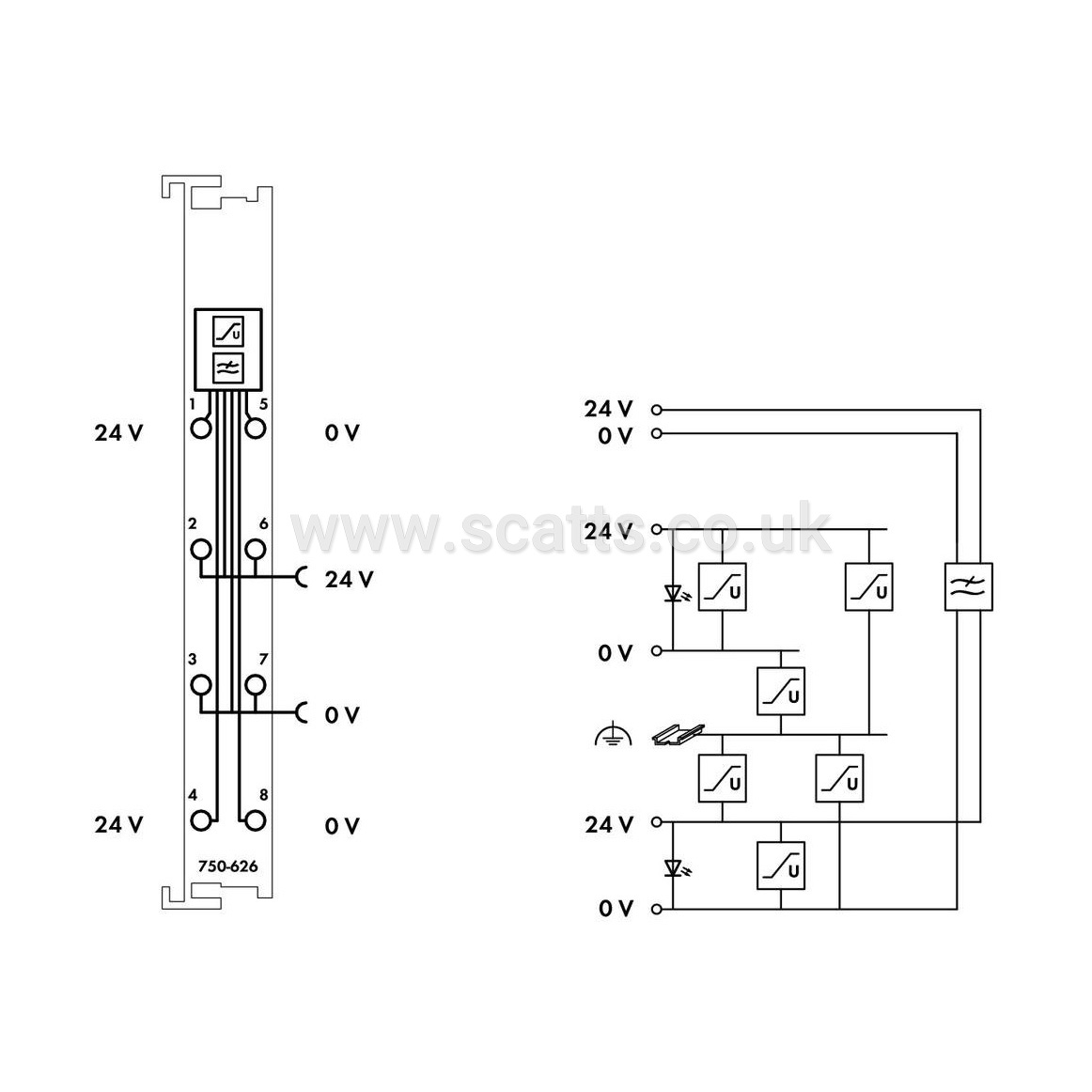

This filter module ensures proper (certified) system operation. The module filters the 24 V system power supply and is equipped with surge suppression. High-insulation versions are streamlined for use in systems with insulation monitoring.

Signal type: Voltage
Signal type: 24 VDC
Supply voltage (system): 24 VDC (-25 … +30 %); Via pluggable connector (CAGE CLAMP® connection); External backup fuse required: 2 A (time delay)
Supply voltage (field): 24 VDC (-25 … +30 %); Via power jumper contacts (power supply via CAGE CLAMP® connection; transmission via spring contact); External backup fuse required: 2 A (time delay)

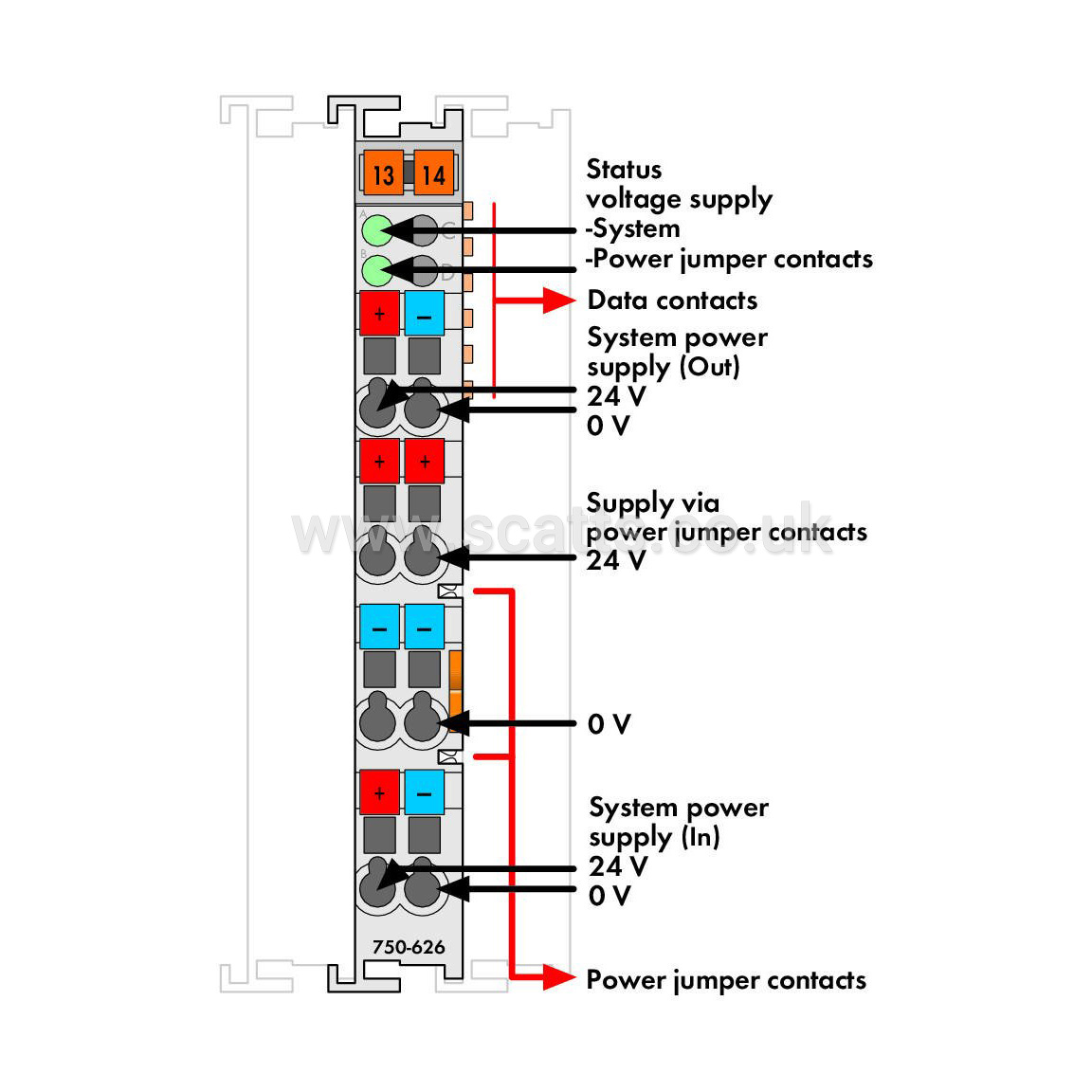

Indicators: LED (A, B) green: Status voltage supply: System, Power jumper contacts
Number of outgoing power jumper contacts: 2
Current carrying capacity (power jumper contacts): 10A
Current via system voltage (max.): 1.5 A (1 A up to hardware version 04)
