My Part Number:
Part Number: 750-631/000-010
Manufacturer Code: 750-631/000-010
Multiples of: 1 | Minimum Order: 1
Incremental encoder interface - 5 … 24 VDC
This module is an interface for the connection of any incremental encoder.
A 16 bit counter with quadrature encoder interface as well as a 16 bit latch for the zero impulse can be read, set, or enabled. The count of the counter will be transmitted fast and interference-free over the fieldbus to the PC, PLC, or NC. A counter lock-out is possible using the “Gate” input.
The power supply for the transmitter is derived internally from the power jumper contacts Ue/U0.
The shield directly connects to the DIN-rail.
Counter depth: 16Bit

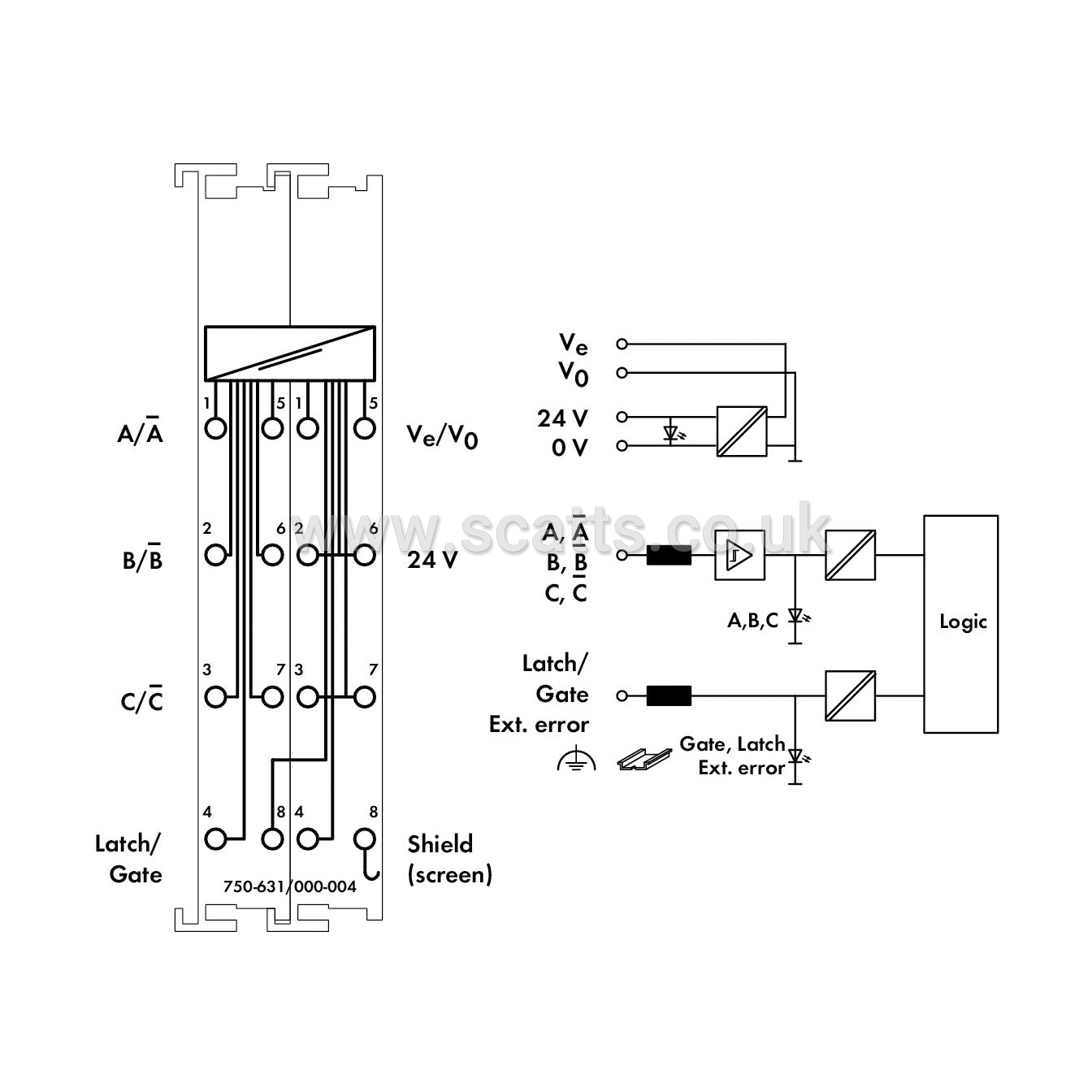

Encoder connection: A, A/, B, B/, C, C/ (RS-422 inputs)
Supply current (encoder) max.: 200mA
Zero impulse (latch): 16Bit
Quadrature decoder: 4x evaluation
Voltage range for signal (0): UABC = 0 V, UABC/ = 5 V; Latch, gate ≤ 5.0 V; External error U ≥ 5.0 V or open input
Voltage range for signal (1): UABC = 5 V, UABC/ = 0 V; Latch, gate ≥ 15.0 V; External error U < 0.5 V
Data width: 1 x 32-bit data, 1 x 8-bit control/status, 1 x 8 bits reserved
Limit frequency: 1000kHz
Commands: Reading, setting, activating
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 50mA
Current consumption, field supply (module with no external load): 10mA
Isolation: 500 V system/field
Brand |
WAGO |
|
£333.90
per 1 (ex. VAT)£400.68
per 1 (inc. VAT)
