My Part Number:
Part Number: 750-636
Manufacturer Code: 750-636
Multiples of: 1 | Minimum Order: 1
DC Drive Controller - 24 VDC, 5 A
This module is a single‐channel, intelligent positioning controller for 24 VDC motors up to 5 A with incremental position feedback. Three 24 V inputs record the limit switches and a preset signal. An incremental encoder interface evaluates signals from the position sensor and determines the actual value.

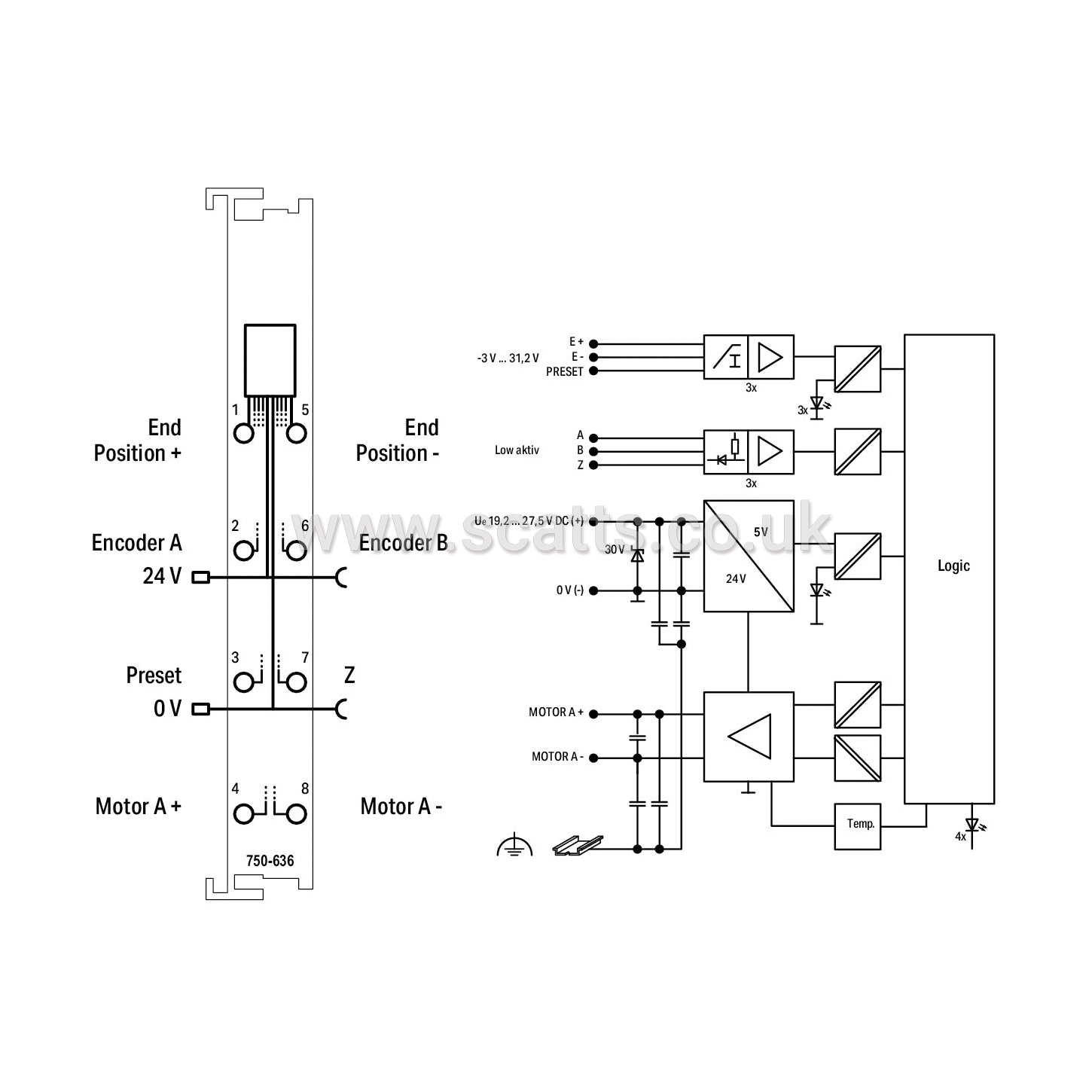

Where required, positioning optimizes the initial switching position as a function of direction, taking into account compensation for gearing backlash. Bidirectional control of the DC motor is implemented via a short-circuit-proof, temperature-monitored H-bridge. Both switched operation and soft start/stop or current reduction are possible via PWM control. The field-side 24 V supply voltage from the power contacts, which is monitored for undervoltage/overvoltage events, is looped through to adjacent modules.
The module can also be used as:
a dedicated incremental encoder or as a switch and power controller (PWM).
Number of digital inputs: 3
Number of outputs: 1 (A+; A-; H-bridge output)
Encoder connection: A, B, zero low-side switching; 5 … 24 VDC / open collector

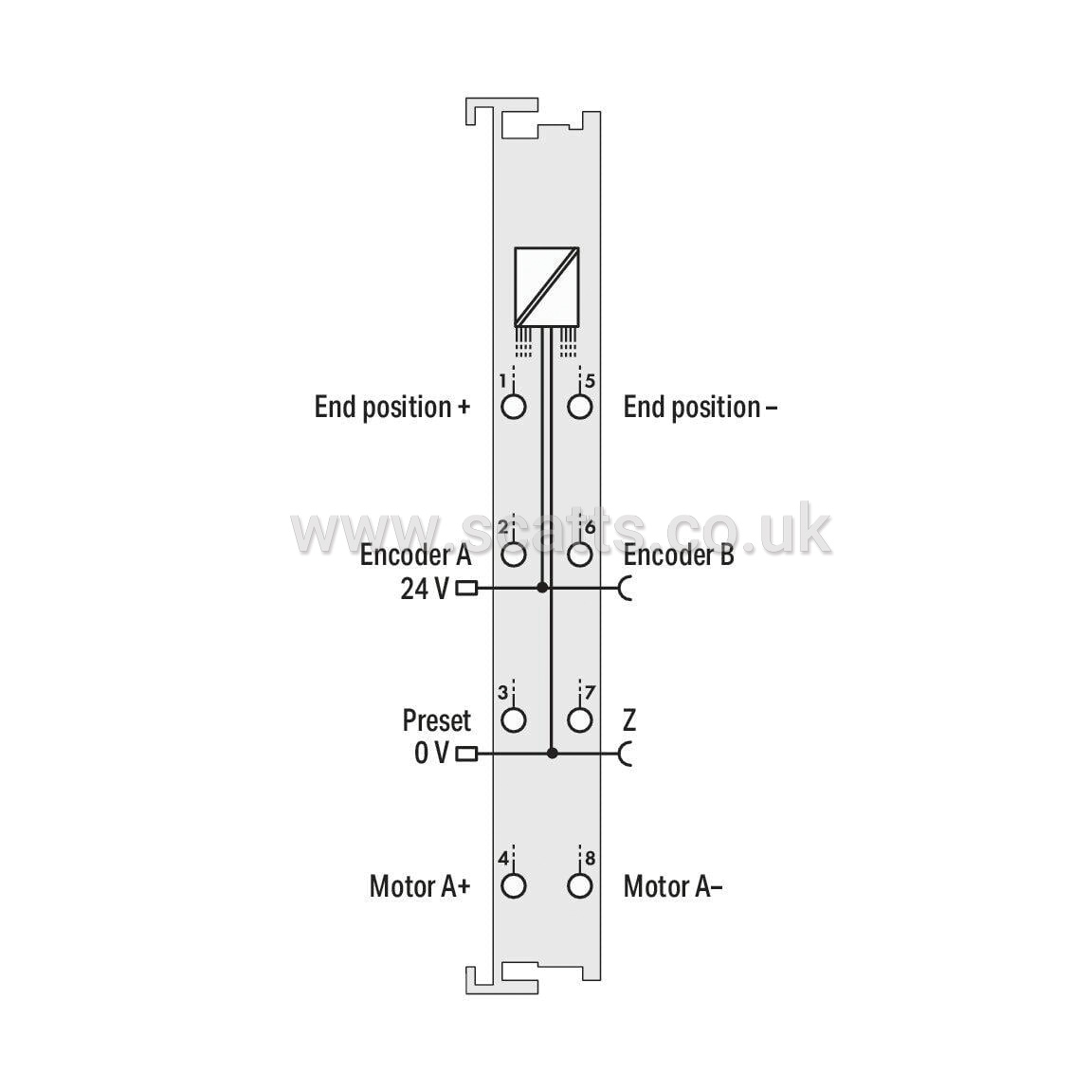

Motor connection: A+, A-, H-bridge output; short-circuit-protected
Quadrature decoder: 1x, 2x, 4x evaluation
Input characteristic: high-side switching
Input characteristic: Type 1
Input current at specific input voltage: -3.2 mA at 0.3 V
Input current at specific input voltage (2): 0 mA bei 5 V
Input current (typ.): 2.7 mA at 24 V
Output current (max.) (motor): 5 A (15 A / 500 ms), short-circuit-protected
Voltage range for signal (0): −3 … +1.5 VDC
Voltage range for signal (1): 2.4 … 30 VDC
PWM frequency (typ.): 20kHz
Data width: 32-bit set/actual value; 16-bit control or status
Limit frequency: 50kHz
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 55mA
Supply voltage (field): 24 VDC (-15 … +20 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
Current consumption, field supply (module with no external load): 12mA
Isolation: 500 V system/field

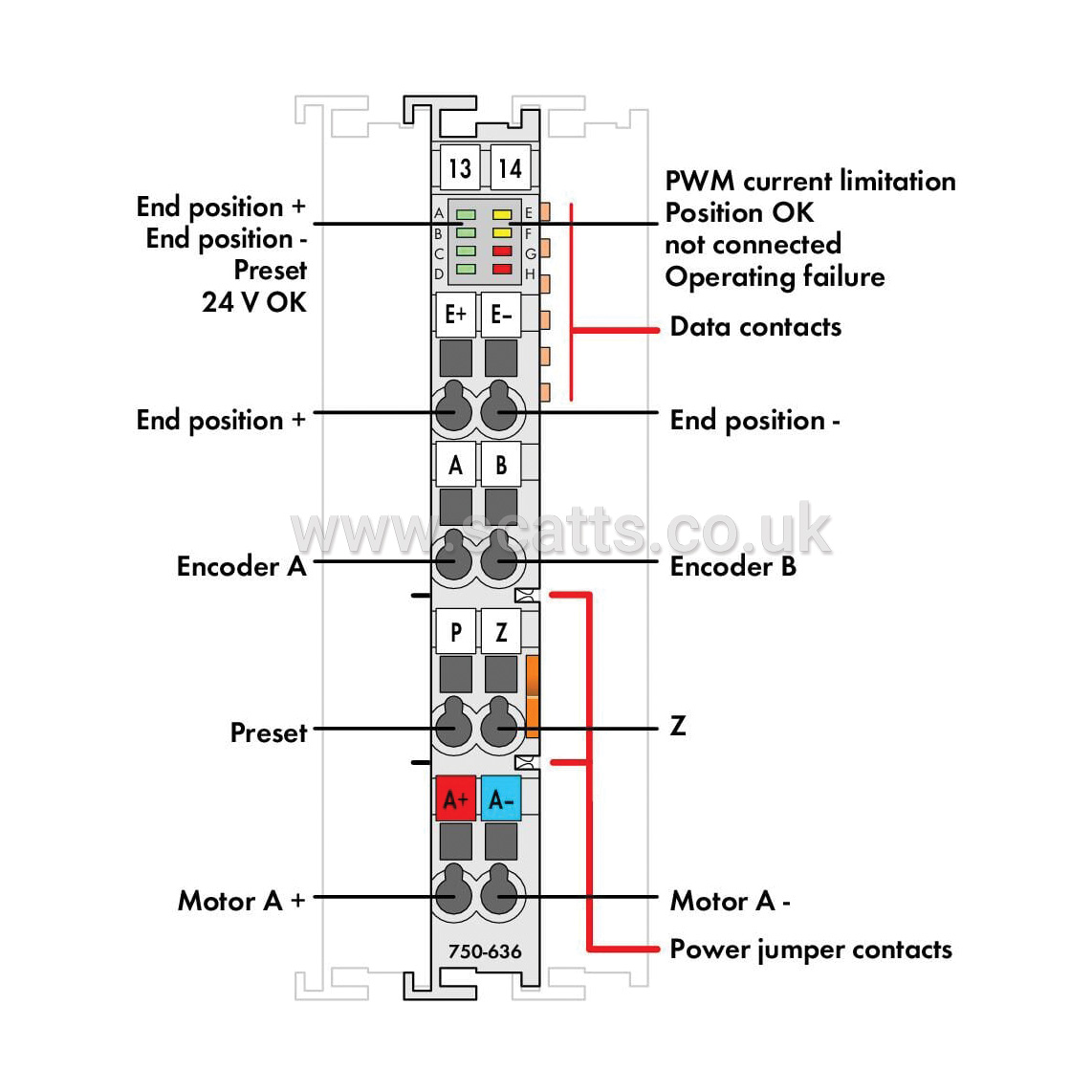

Indicators: LED (A-D) green: End Position +, End Position -, Preset, 24 V OK; LED (E, F) yellow: PWM Current Limitation, Position OK; LED (G, H) red: Reserved, Operating Fault
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
Brand |
WAGO |
|
£221.75
per 1 (ex. VAT)£266.10
per 1 (inc. VAT)
