My Part Number:
Part Number: 750-650
Manufacturer Code: 750-650
Multiples of: 1 | Minimum Order: 1
RS-232 C Serial Interface - 9600 baud, None, 8/1 bits
The module's built-in interface connects to any device equipped with an RS-232-C serial interface. The interface operates in accordance with the TIA/EIA-F, CCITT V.28/DIN 66259-1 standards.
The connected device communicates directly with the control unit via the fieldbus coupler. The active communication channel works independently of the higher-level fieldbus system and allows full duplex operation up to 9600 baud.

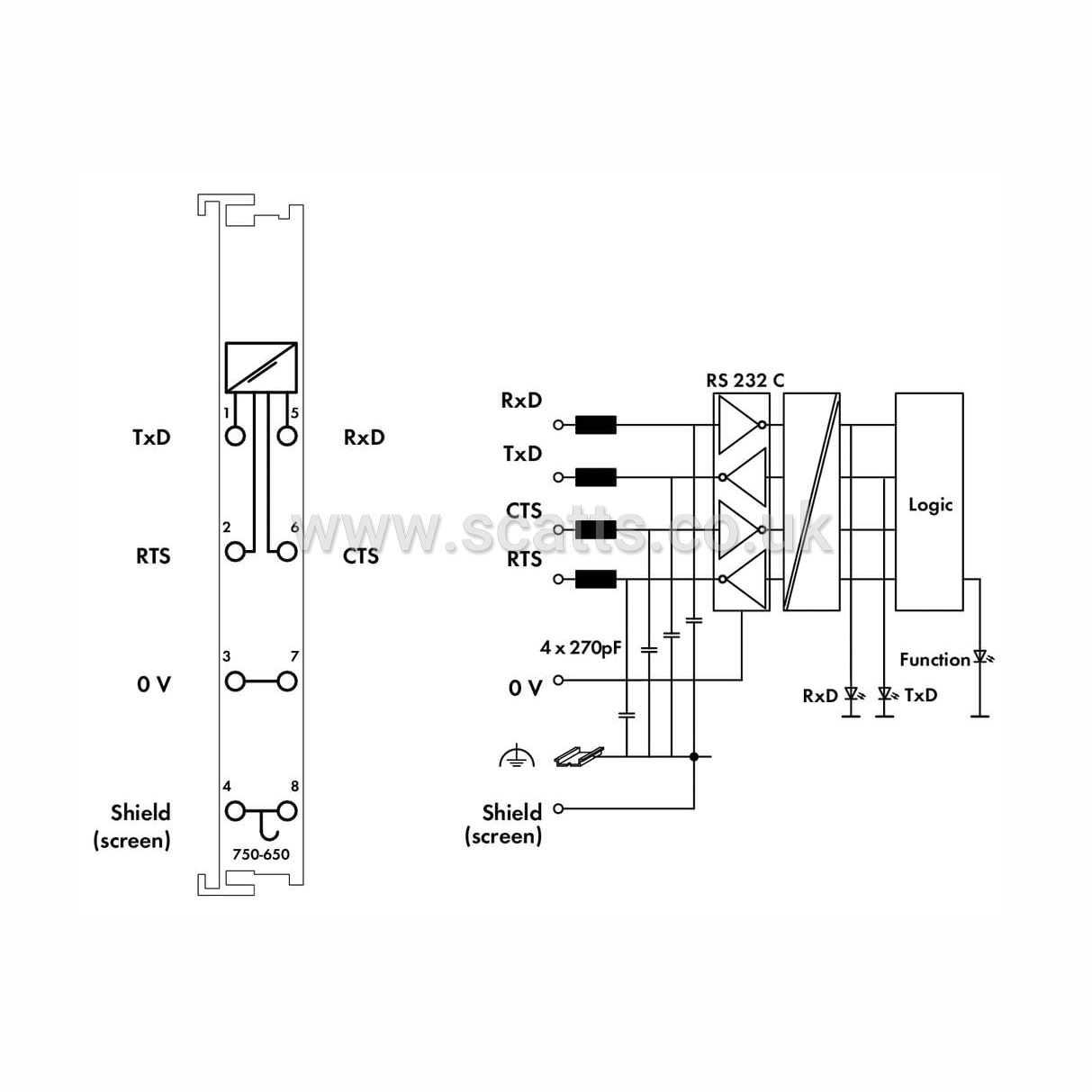

The RS-232 C interface guarantees high interference immunity via electrically isolated signals.

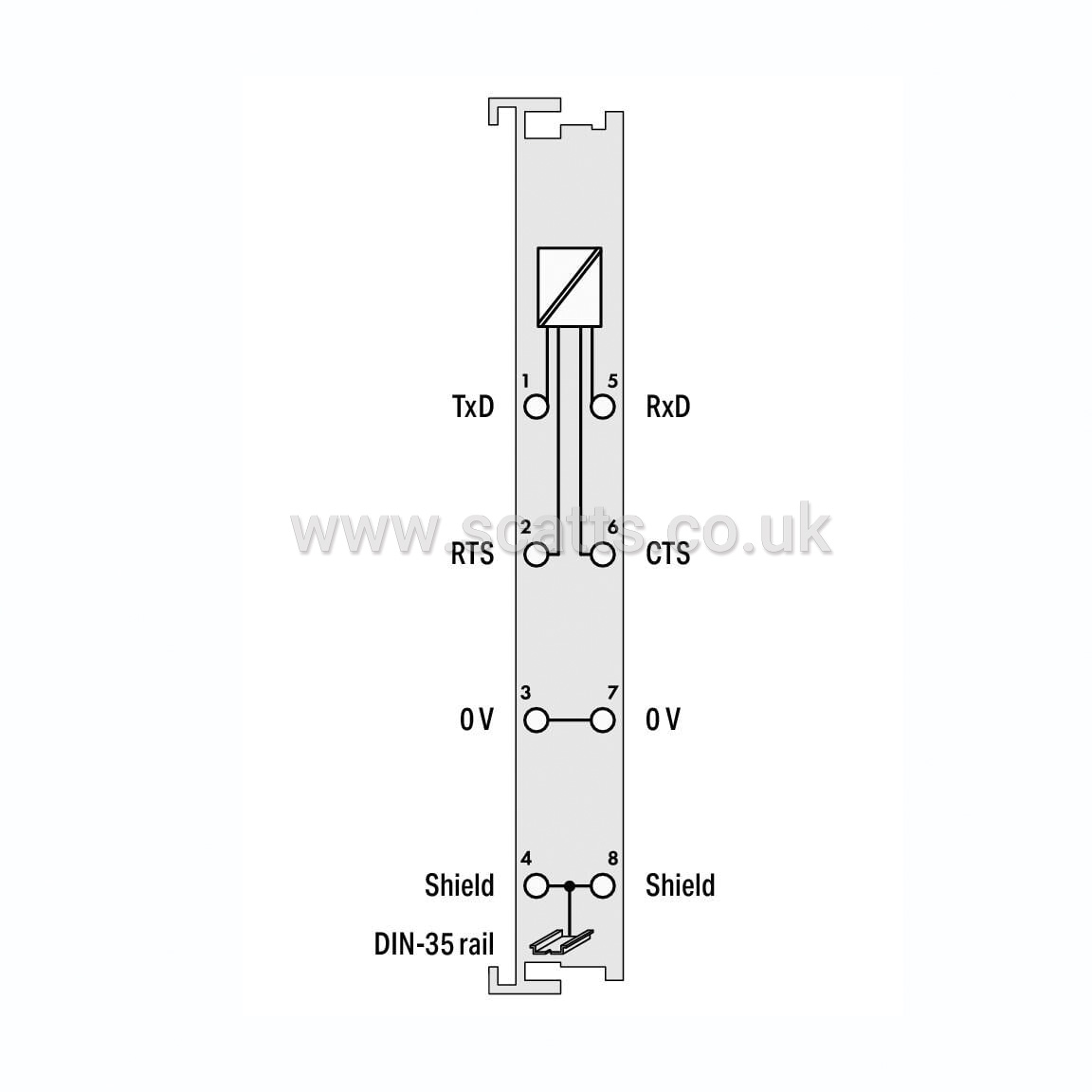

The shield directly connects to the DIN-rail.
Device-specific: Bit skew: < 3 %; RS-232-C line length (max.): 15 m
Signal type: RS-232
Baud rate: 9.6 kBd
Transmission channels: 1 TxD / 1 RxD, full-duplex
Data width: 1 x 24-bit input/output (3-byte user data); 1 x 8-bit control/status
Parity: None
Number of data bits: 8
Number of stop bits: 1
Buffer: 120-byte input / 16-byte output
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 55mA
Isolation: 500 V system/field

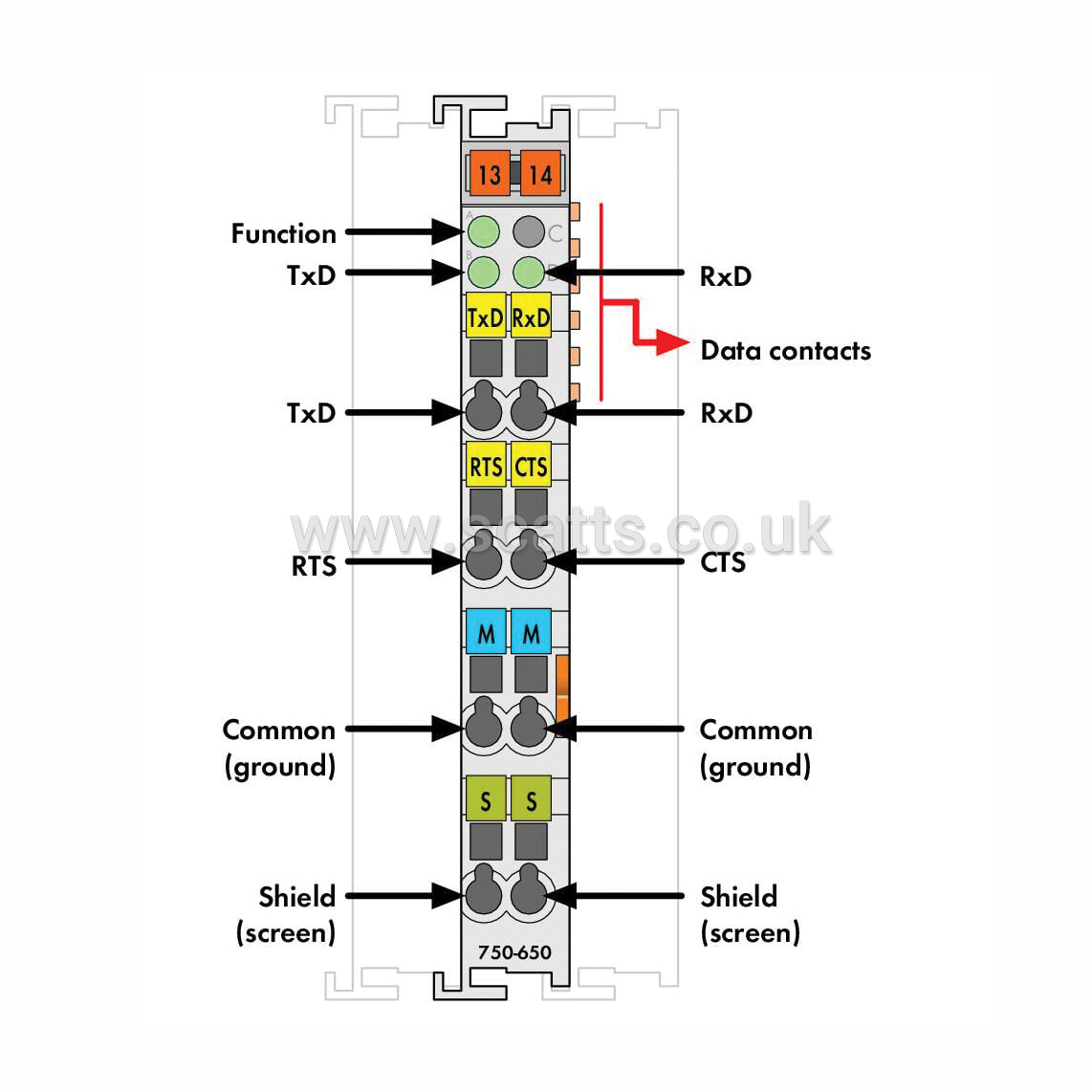

Indicators: LED (A, B, D) green: Function, TxD, RxD
Brand |
WAGO |
|
£331.03
per 1 (ex. VAT)£397.24
per 1 (inc. VAT)
