Part Number: 750-653/003-000
Manufacturer Code: 750-653/003-000
Multiples of: 1 | Minimum Order: 1
RS-485 Serial Interface - Adjustable, light gray
The module's built-in interface connects to any device equipped with an RS-485 serial interface. The interface operates in accordance with both TIA/EIA-485-A and DIN 66259 standards.
The connected device communicates directly with the control unit via the fieldbus coupler. The active communication channel works independently of the higher-level fieldbus system and allows full duplex operation up to 19200 baud.

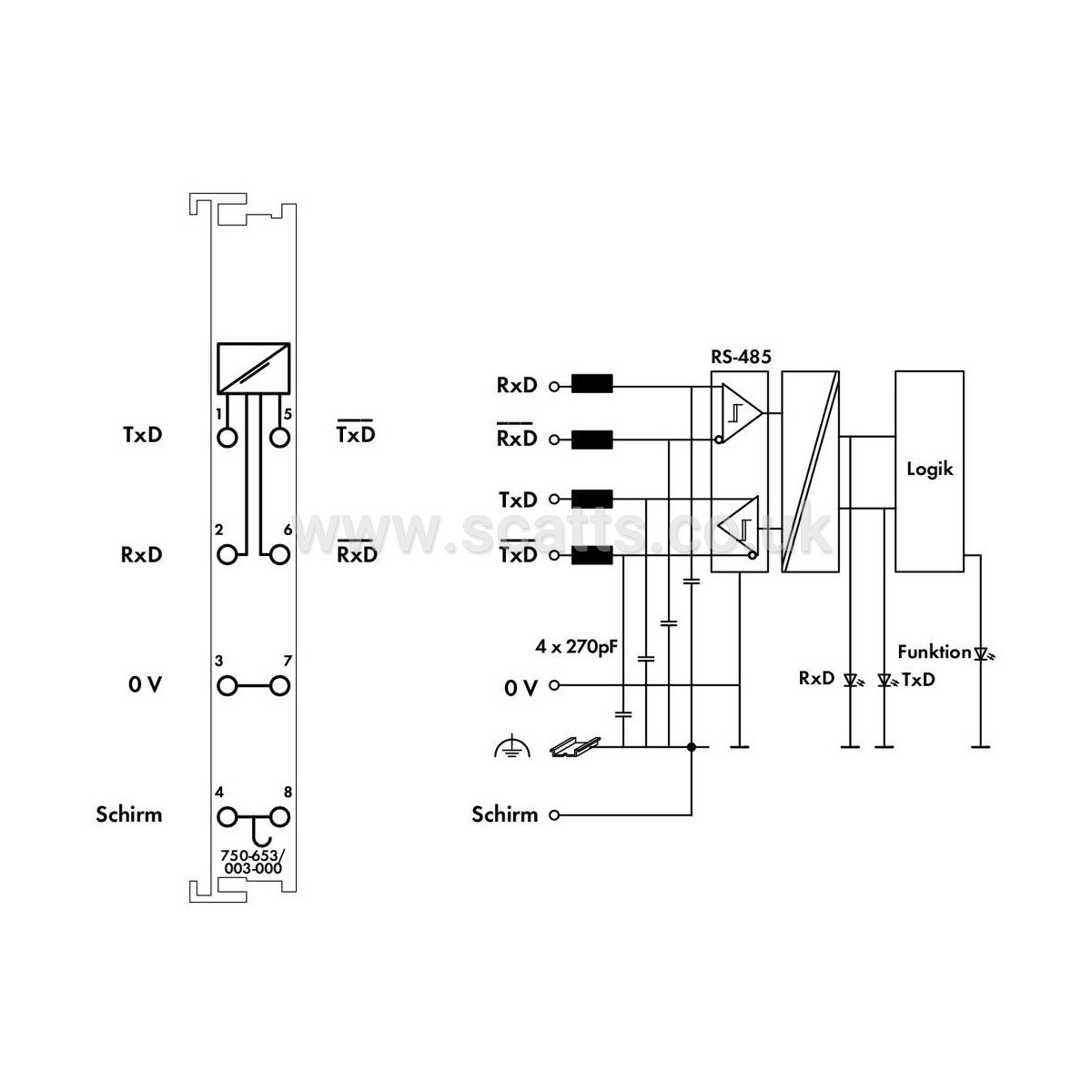

The RS-485 interface guarantees high interference immunity via electrically isolated signals.
The shield directly connects to the DIN-rail.

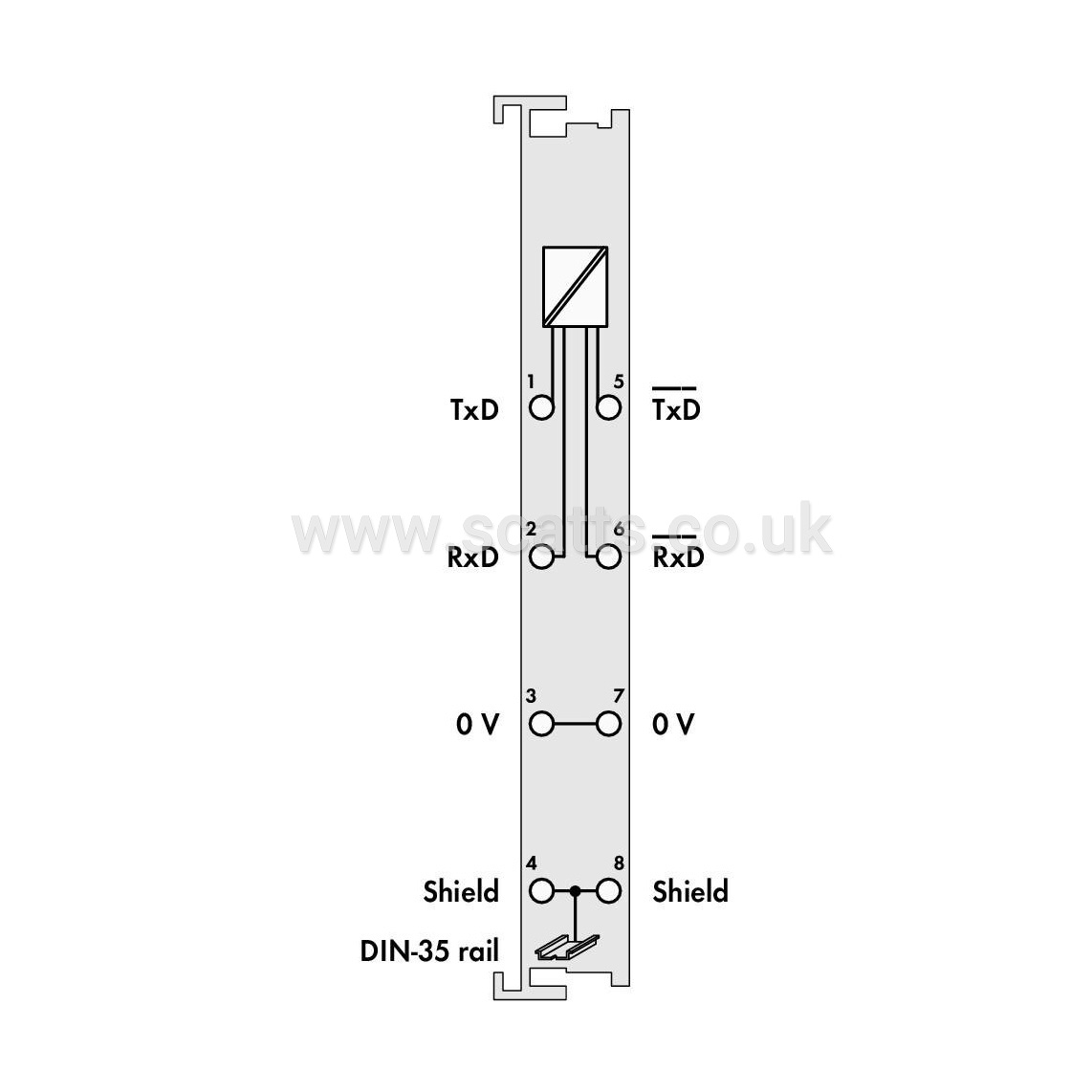

Signal type: RS-422 / RS-485
Baud rate: 1.2 kBd … 19.2 kBd (9600 baud (default setting))
Bit transfer: ISO 8482 / DIN 66259 - 4
Transmission channels: 1 TxD / 1 RxD, full-duplex
Line length: approx. 1000 m twisted pair
Data width: 1 x 24-bit input/output (3-byte user data); 1 x 8-bit control/status
Parity: None/Even, adjustable
Number of data bits: 7/8, adjustable
Number of stop bits: 1/2, adjustable
Buffer: 120-byte input / 16-byte output
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 65mA
Isolation: 500 V system/field

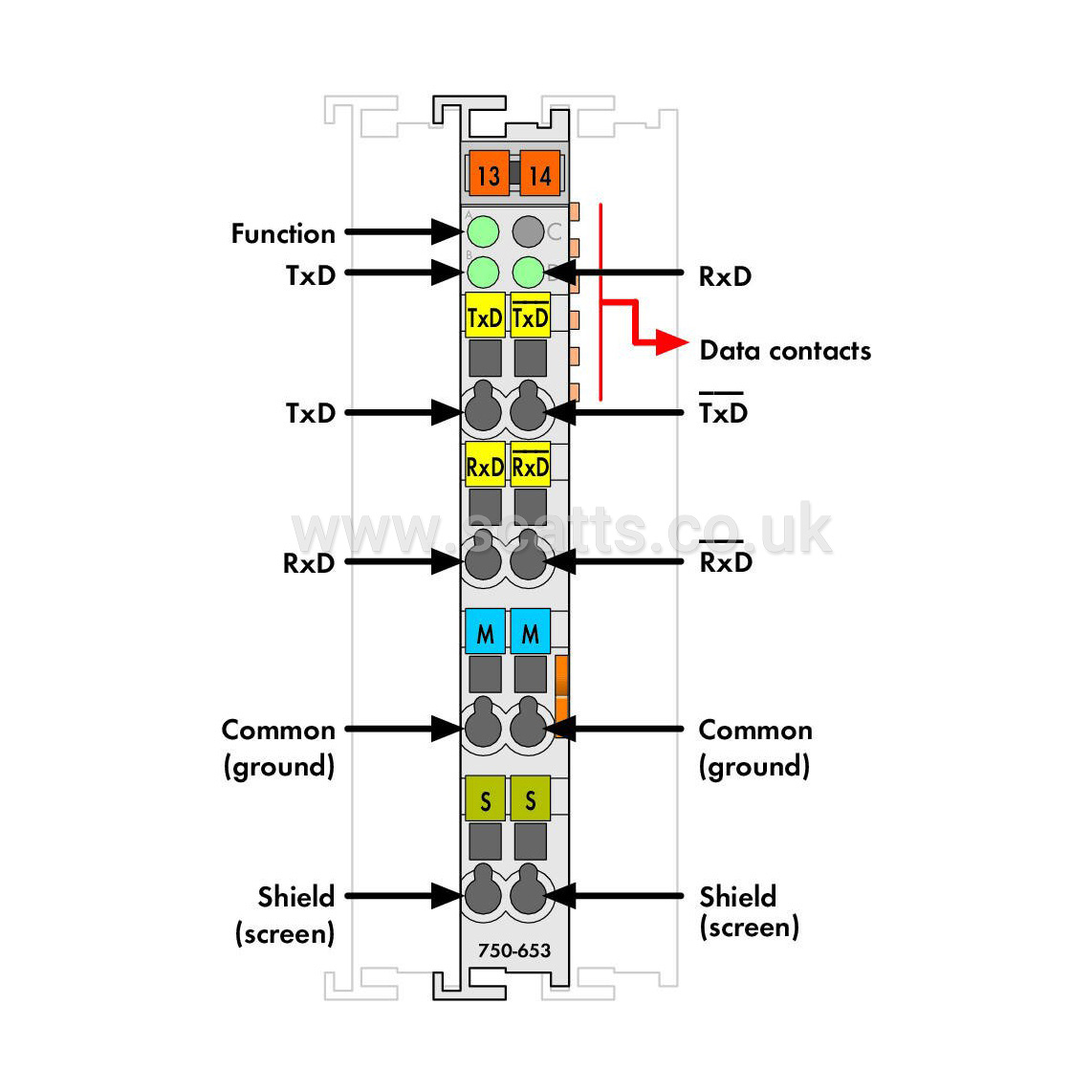

Indicators: LED (A, B, D) green: Function, TxD, RxD
Brand |
WAGO |
|
£349.05
per 1 (ex. VAT)£418.86
per 1 (inc. VAT)
