Part Number: 750-662/000-003
Manufacturer Code: 750-662/000-003
Multiples of: 1 | Minimum Order: 1
Fail-safe 8-channel digital input - 24 VDC, PROFIsafe V2.0 iPar
This PROFIsafe Module (75x-662/000-003) connects to potential-free emergency stop buttons with contacts, safety interlock switches, operating mode switches, safety sensors and semiconductor outputs.

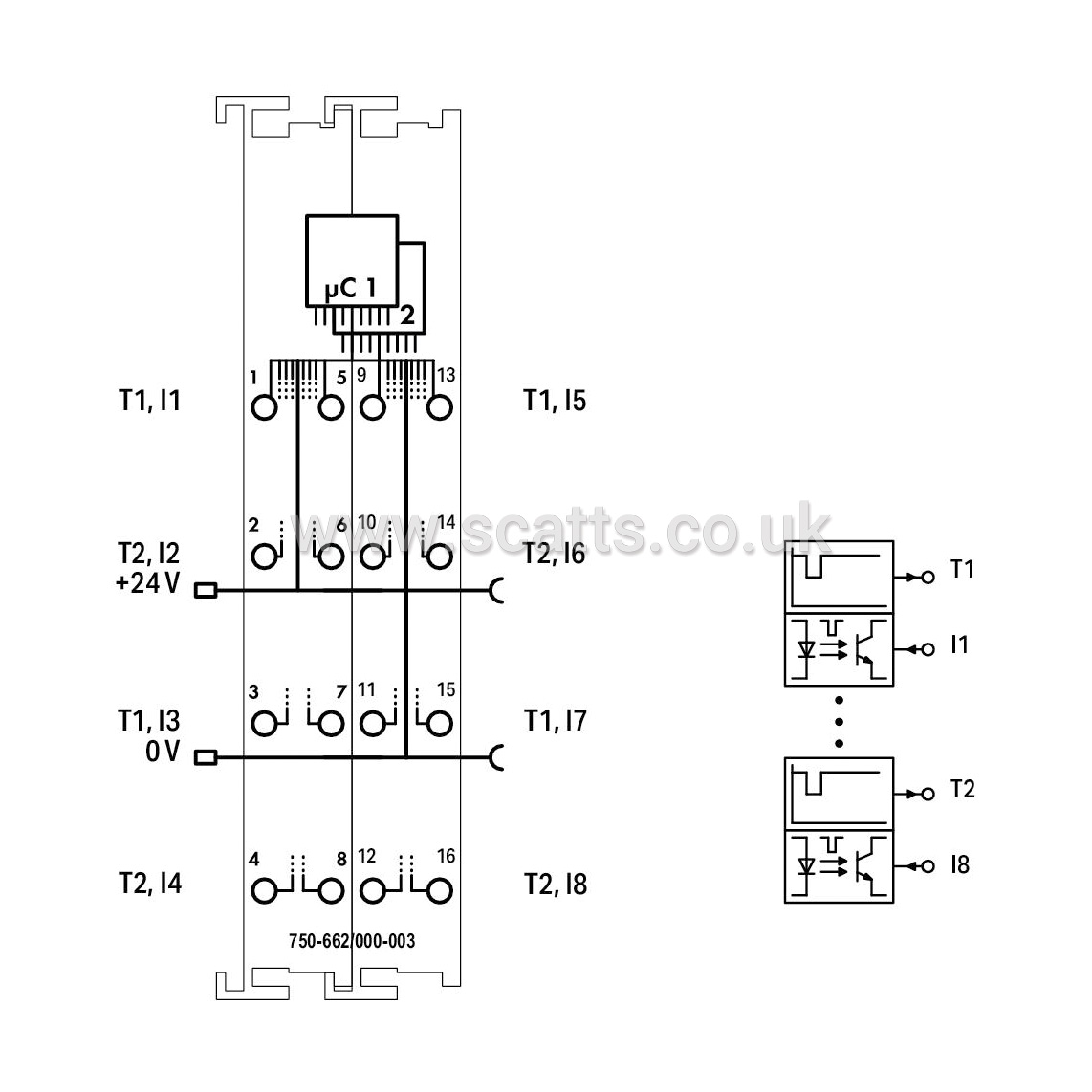

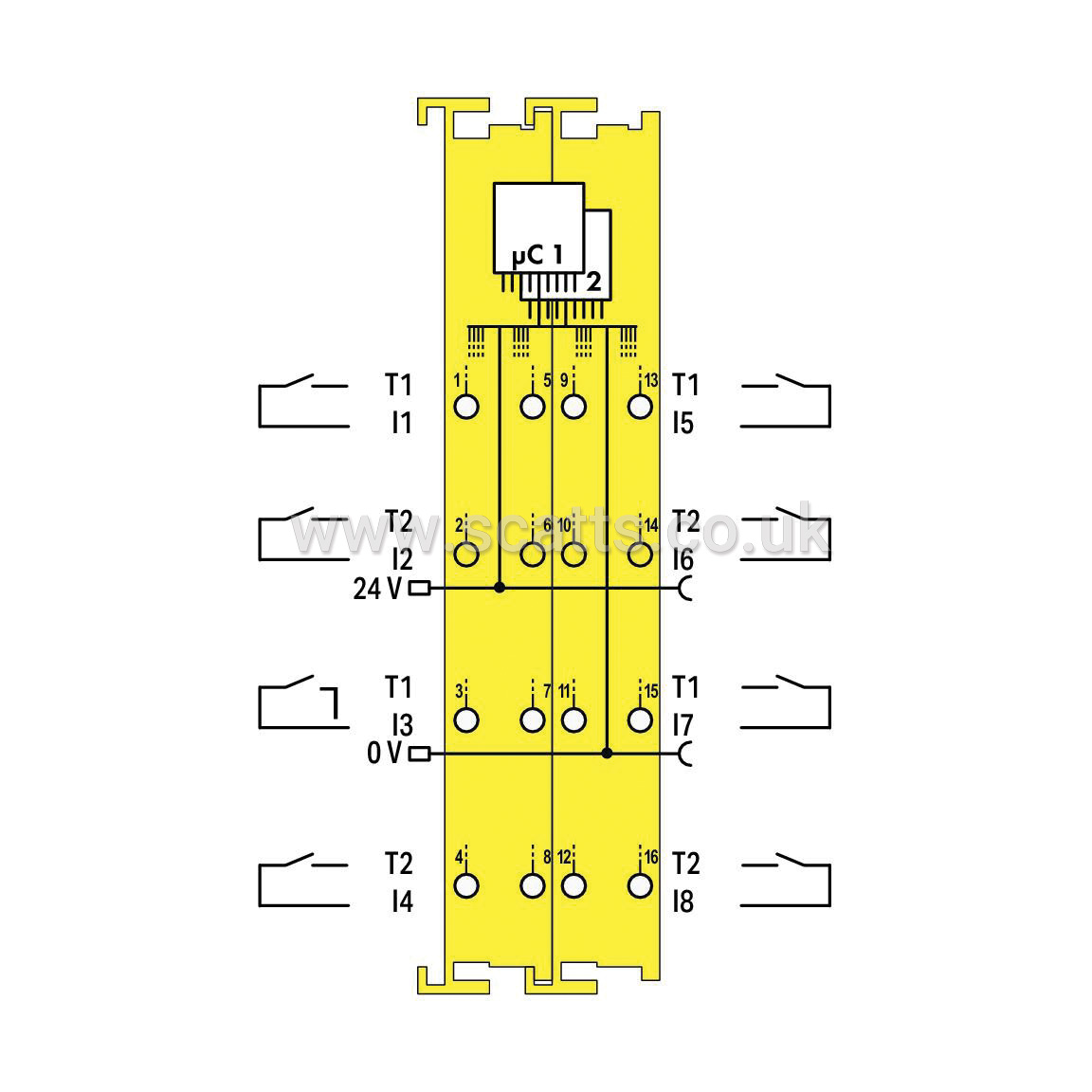

The module features eight clock-sensitive inputs (I1 … I8) that are fed via two differently clocked outputs (T1 … T2).
Clock outputs are short-circuit-protected. Inputs are continually monitored for cross circuits and power supply from separate sources. Additional safety-relevant parameters (e.g., operating modes, switching off test pulses, discrepancy or filter times) can be configured via WAGO-I/O-CHECK.
The configuration tool can be conveniently integrated into engineering systems supporting both CC2 and CC3 tool calling interfaces (TCI).
When exchanging modules, parameters are automatically downloaded into the control unit via PROFIsafe-compatible iPar server – depending on settings. The PROFIsafe address can be set using the DIP switch located on the side of the module, or via WAGO-I/O-CHECK.
The module supports both PROFIsafe V1 (PROFIBUS) and V2 (PROFIBUS, PROFINET) protocols.
Field and system levels are electrically isolated.
Safety modules can be arranged in any combination when configuring the fieldbus node.
To protect the module against impulse voltages (over-voltage protection per IEC 61000-4-5), a WAGO Filter Module or an external surge filter must be used for the 24V supply voltage.
Number of digital inputs: 8
Total number of channels (module): 8
Signal type: Digital, Voltage
Signal type: 24 VDC
Sensor connection: 8 x (Fail-safe input with test pulse)
Input characteristic: clock sensitive
Input characteristic: Type 1 per IEC 61131
Input current per channel for signal (1) typ.: 2.2mA
Signal frequency (max.): 50Hz
Configuration options: PROFIsafe address adjustable via DIP switch or engineering software
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 148mA
Supply voltage (field): 24 VSELV/PELV DC (-15 … +20 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
Current consumption, field supply (module with no external load): 20mA
Isolation: 500 V system/field
Indicators: LED (A-D) green/red: Status/Error I1 … I8; LED (E) red: Group error; LED (F-H) green/red: Diagnostics
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
Current carrying capacity (power jumper contacts): 10A
Brand |
WAGO |
|
£351.25
per 1 (ex. VAT)£421.50
per 1 (inc. VAT)
