My Part Number:
Part Number: 750-666/000-104
Manufacturer Code: 750-666/000-104
Multiples of: 1 | Minimum Order: 1

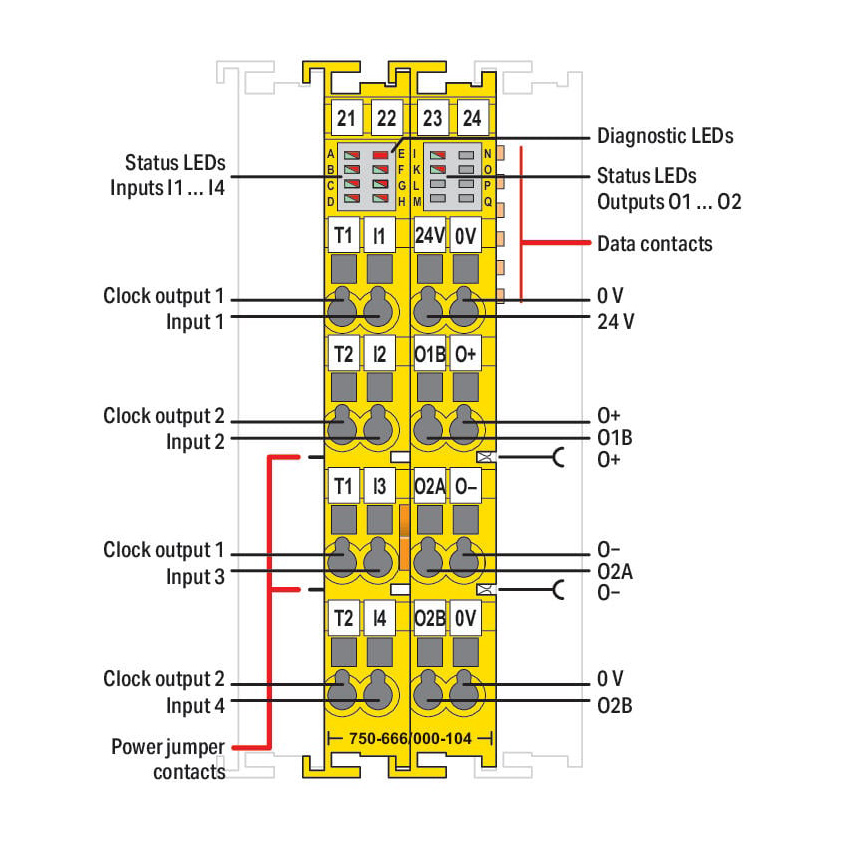

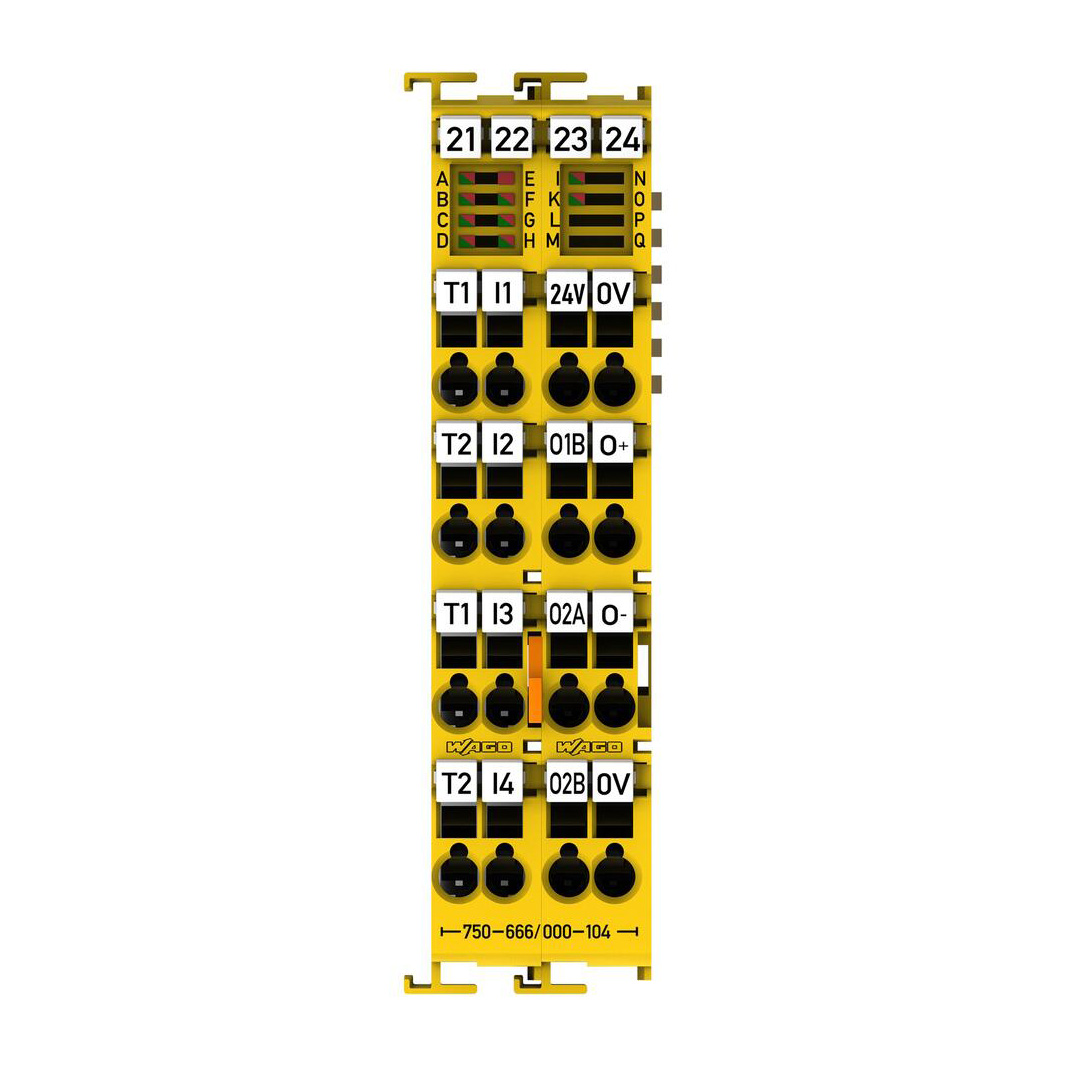

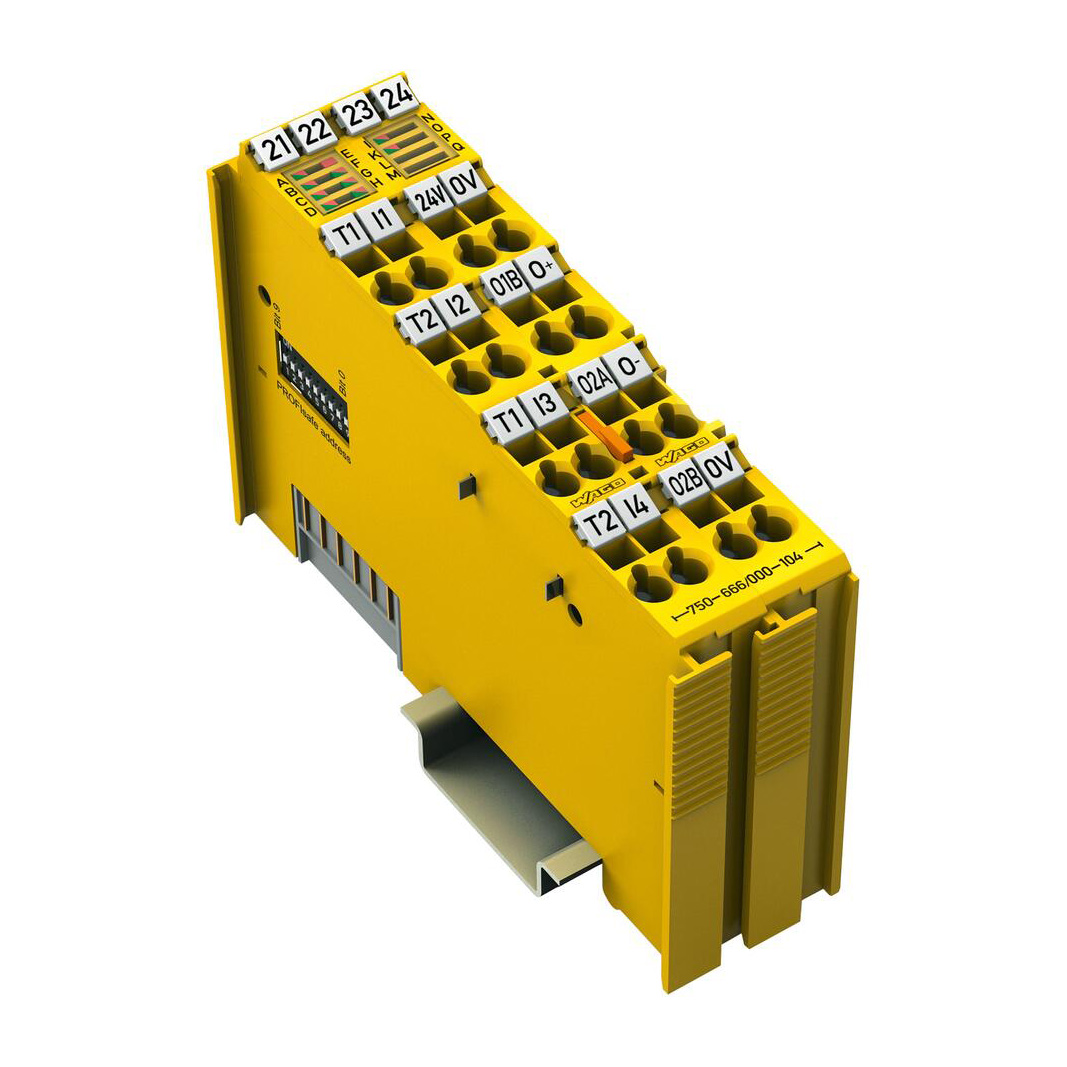

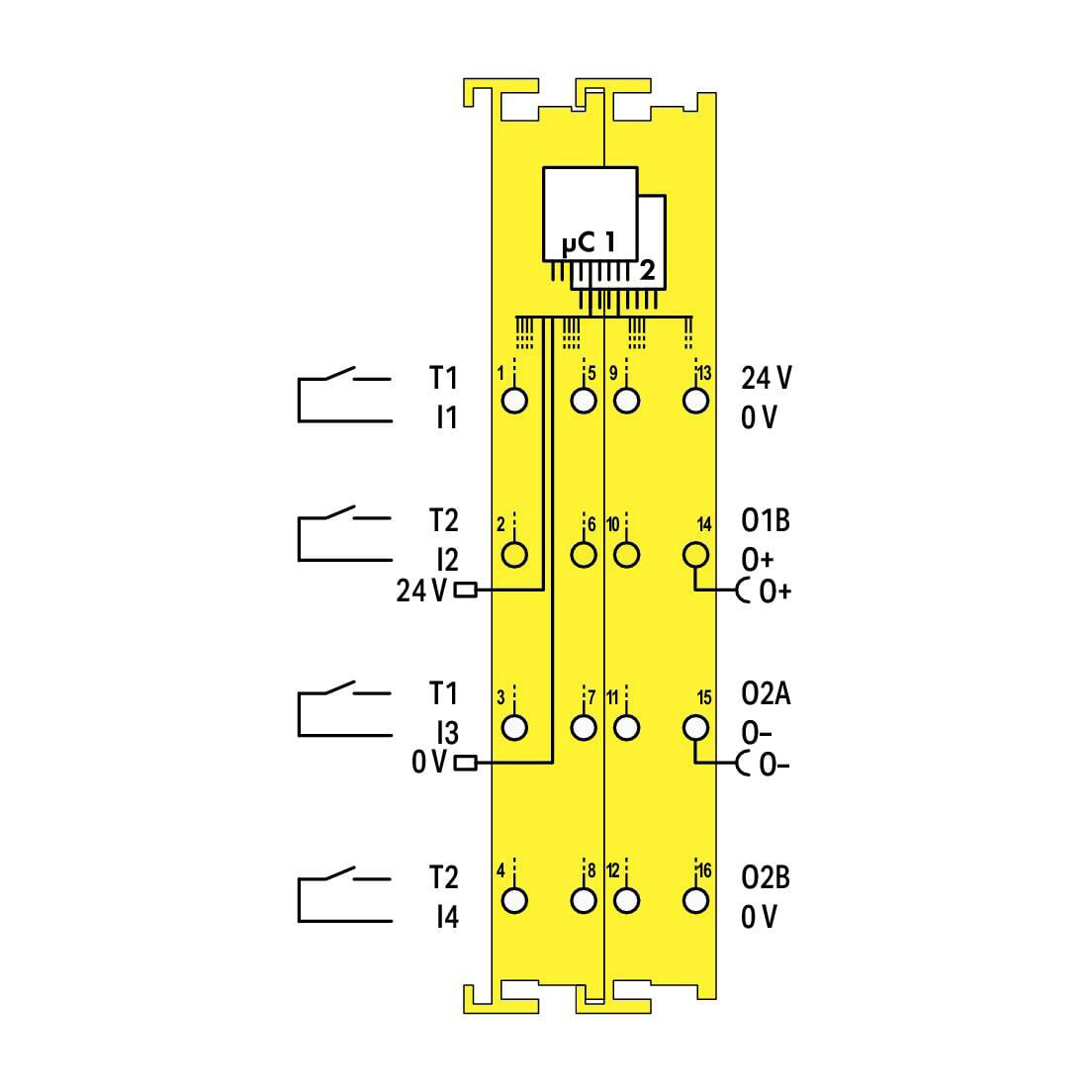

Fail-safe 4/2 channel digital input/output - 24 VDC, 10 A, Logic, PROFIsafe
Digital inputs
Number of digital inputs: 4
Signal type: Digital
Signal type (voltage): 24 VDC
Sensor connection: 4 x (Fail-safe input with test pulse)
Input characteristic: clock sensitive
Input characteristic: Type 1 per IEC 61131
Voltage range for signal (0): −3 … +5 VDC
Voltage range for signal (1): 15 … 30 VDC
Input current per channel for signal (1) typ.: 3mA
Signal frequency (max.): 50Hz
Input filter: 0 … 200 ms (parameterizable in steps)
Response times: See product manual
Minimum signal duration: = input filter time + test pulse duration + 2 ms
Digital clock outputs
Clock outputs: 2
Signal type: Digital
Signal type (voltage): 24 VDC
Output current per channel: 0.1A
Test pulse duration (clock outputs): 1 … 500 ms (parameterizable in steps)
Connection requirement (permissible cable length): 200m
Connection requirement (permissible cable type): shielded or unshielded
Output protection (clock outputs): Short circuit and overload protection
Digital outputs
Number of digital outputs: 2
Signal type: Digital
Signal type (voltage): 24 VDC
Output characteristic: Parameterizable test pulses
Output characteristics: 10 ADC
Output current (per channel): Resistive loads and general use: 10 ADC; Pilot Duty and DC13: 2 ADC, Derating1) per IEC 61010-1: 10 A ≤ 40 °C, linearly decreasing to 6 A at 55 °C, Derating 1 ) per UL 61010-1: 10 A ≤ 40 °C, 6 A ≤ 55 °C
Output current (module): 10A
Output residual current at signal “0”: < 1.0 mA
Output protection: Protected and short-circuit-protected per IEC 61131-2; Breaking capacity of output protection: 1000 ADC, If the network supplying the power provides short circuit current greater than the breaking capacity, then a short circuit at the output can lead to the destruction of the F I/O Module. Limitation of the inductive transient voltage: See product manual
Response threshold (output protection) min.: 10,8 ADC
Response threshold (output protection) max.: 15,6 ADC
Parallel connection of outputs: not possible
Controlling an IEC 61131‑2-compatible input: Possible; see product manual
Response times (max.) (outputs): See product manual
Switching frequency (max.): 0.1 Hz; Capacitive load (when active discharge is switched on)
Switching frequency (max.) (2): 0.1 Hz; Inductive load DC 13 (50 W) per IEC 60947-5-1, see product manual
Switching frequency (max.) (3): 50 Hz; Resistive load
Capacitive load for each channel: 10000 μF
Connection requirement (permissible cable length) (2): 200m
Connection requirement (permissible cable type) (2): shielded or unshielded
Read-back time: 1 … 500 ms parameterizable in steps
Test pulse duration (digital outputs): 0 … 500 ms; test pulse duration is adaptively adjusted to the actuator and corresponds to the read-back time at most.
Response threshold (output monitoring)min.: Differential voltage between O2A and O2B connections: 4.0 … 6.0 V
Response threshold (output monitoring) max.: 16,0 VDC (O1)
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 120mA
Overvoltage category: II
Supply voltage (field): 24 VDC, SELV/PELV (-25 … +30 %); for digital inputs; Power outputs: SELV/PELV 24 VDC (-25 … +20 %) for inductive loads (“Pilot Duty” / DC13); SELV/PELV 24 VDC (-25 … +30 %) other applications; Current consumption from power outputs: 3 mA + load current
Current consumption, field supply (module with no external load): 30mA
Isolation (peak value): 500 V output channel – output channel, system voltage, input channel
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
Current carrying capacity (power jumper contacts): 10A
Connection technology: inputs/outputs: 16 x CAGE CLAMP®
Connectable conductor materials: Copper
Connection type 1: Inputs/outputs
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Strip length: 8 … 9 mm / 0.31 … 0.35 inches
Width: 24 mm / 0.945 inches
Height: 100 mm / 3.937 inches
Depth: 67.8 mm / 2.669 inches
Depth from upper-edge of DIN-rail: 60.6 mm / 2.386 inches
Mounting type: DIN-35 rail
Pluggable connector: fixed
Housing material: Polycarbonate; polyamide 6.6
Fire load: 1.985 MJ
Weight: 97.3g
Conformity marking: EC; UKCA
Brand |
WAGO |
|
£310.00
per 1 (ex. VAT)£372.00
per 1 (inc. VAT)
