My Part Number:
Part Number: 750-670
Manufacturer Code: 750-670
Multiples of: 1 | Minimum Order: 1
Stepper Controller - RS-422/24 VDC, 20 mA, light gray
The 750-670 Module is an intelligent stepper controller used to control different drive power sections with pulse/direction interface or incremental encoder input.
Both RS-422 and 24 V or 20 mA interfaces are available.
Due to the high output frequency, stepper output stages with smooth microstepping resolution can be used.
In addition, this module can also be used as a high-precision frequency or pulse width modulator.
Two configurable inputs for start/stop, limit switches, reference cams, jog/tip, etc., are directly processed by the internal software without delay.
Versatile functions, such as positioning with different acceleration slopes, command tables, camshaft controller, auto referencing and other event-dependent properties provide this controller with a wide spectrum of possible uses.
The programmer's interface is the same for all WAGO Stepper Controllers.
Additional operating modes:
• Pulse width modulation
• Frequency generator
• Single-shot mode
Device-specific: Operating modes: Individual positioning, reference run, jog, tip, command tables, PWM
Number of digital inputs: 2

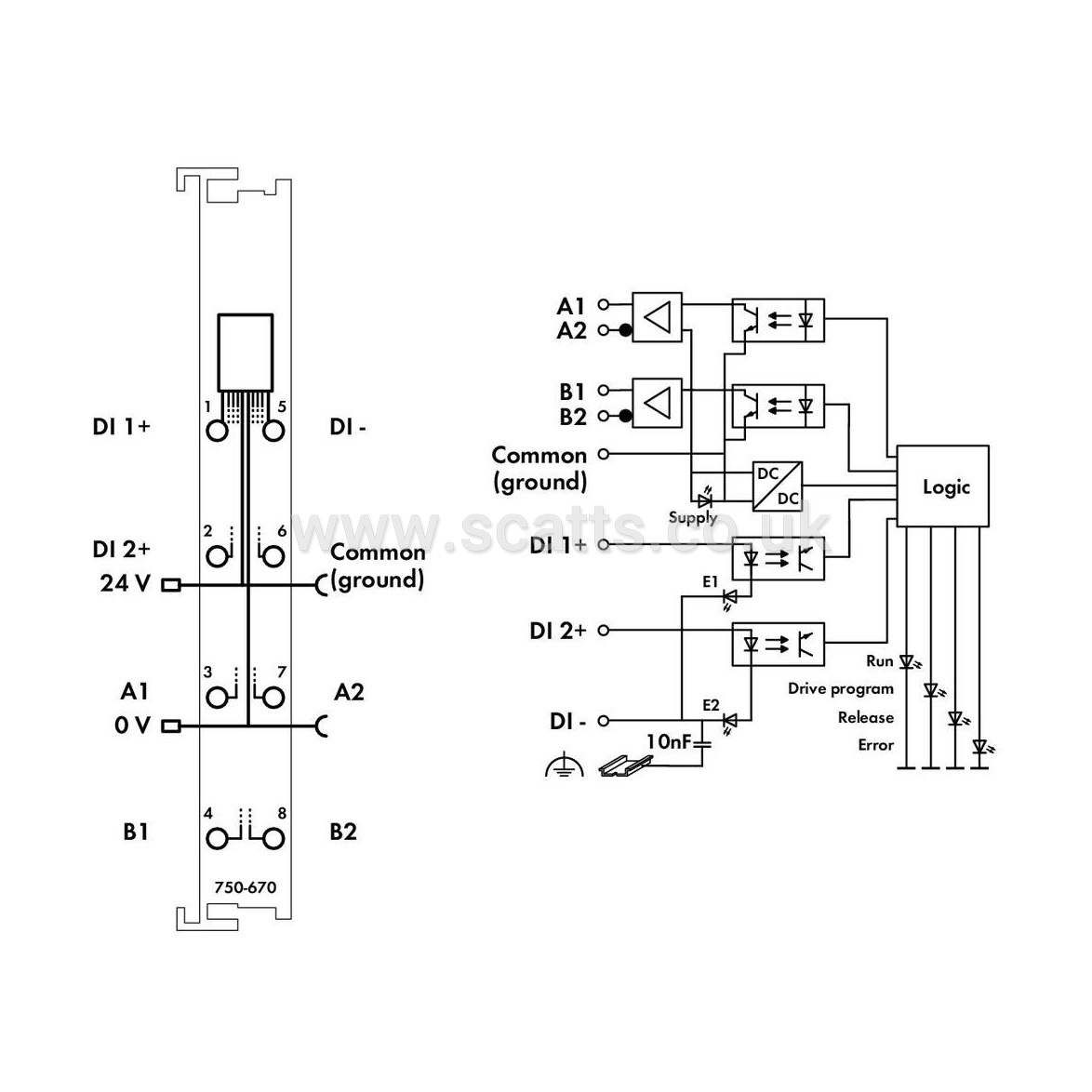

Number of outputs: 1 channel (2 differential outputs A1, A2, B1, B2)
Input filter: 100 µs, software filter can be connected
Input current (typ.): 2.8 mA
Output current per channel: 0.03A
Output current: short-circuit-protected
Load type: RS-422, TTL, optocoupler
Voltage range for signal (0): −3 … +5 VDC
Voltage range for signal (1): 15 … 30 VDC
Signal voltage: 5 VDC (internal), 5 … 24 VDC (external)
Signal frequency (min.): 0Hz
Signal frequency (max.): 500000Hz
Resolution: 15 bits + 16 bit prescaler
Resolution: 23 bits + sign bit
Duty cycle: 50 % (in stepper motor mode)
Data width: 12-byte input/output
Functions: Absolute/relative positioning, setpoint change on the fly, rotary axis, etc.
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 98mA
Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
Isolation: 500 V system/field

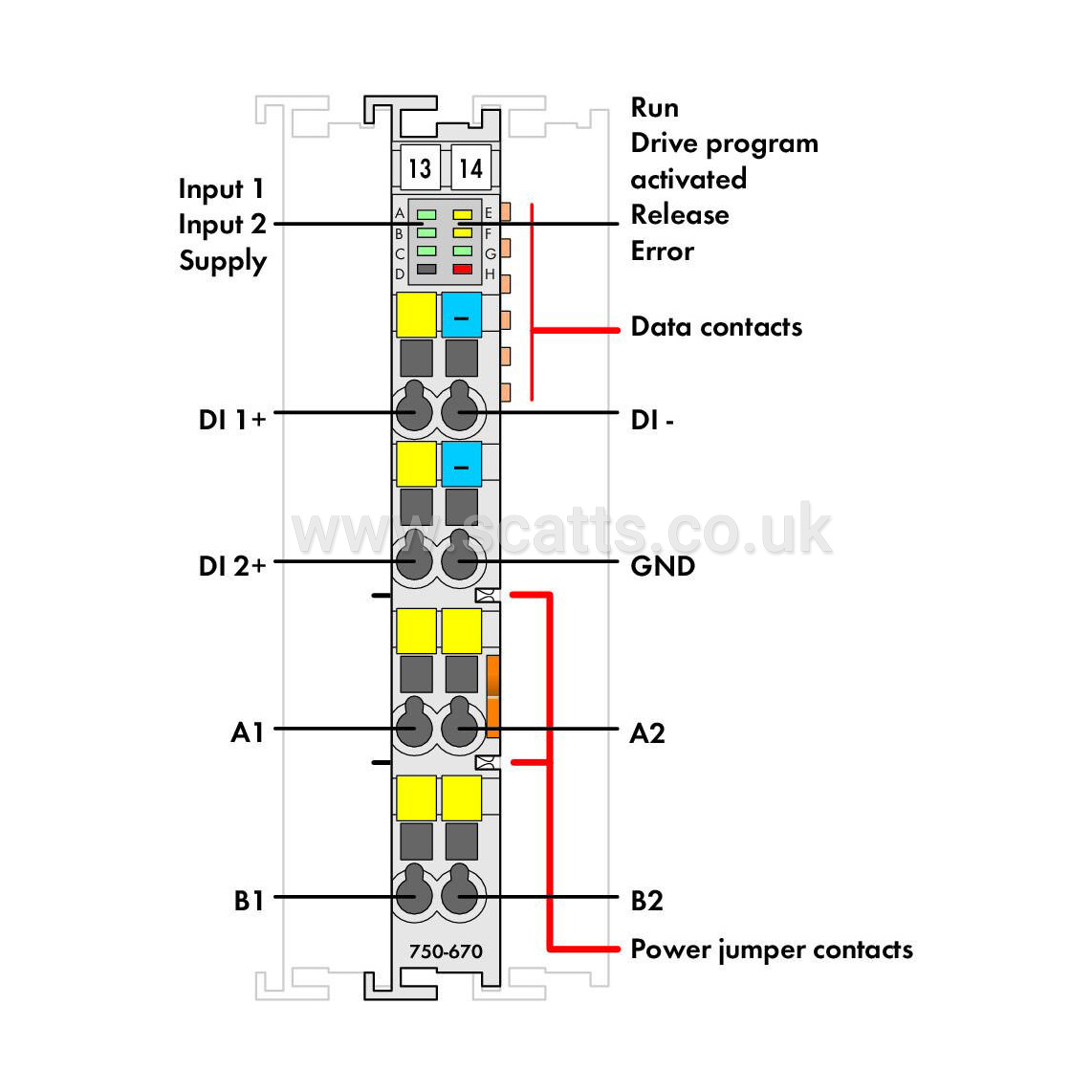

Indicators: LED (A-C, G) green: Input 1, Input 2, Power Supply, Enable; LED (E, F) yellow: Run, Run Program Active; LED (H) red: Error
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
Brand |
WAGO |
|
£257.12
per 1 (ex. VAT)£308.54
per 1 (inc. VAT)
