My Part Number:
Part Number: 750-671
Manufacturer Code: 750-671
Multiples of: 1 | Minimum Order: 1

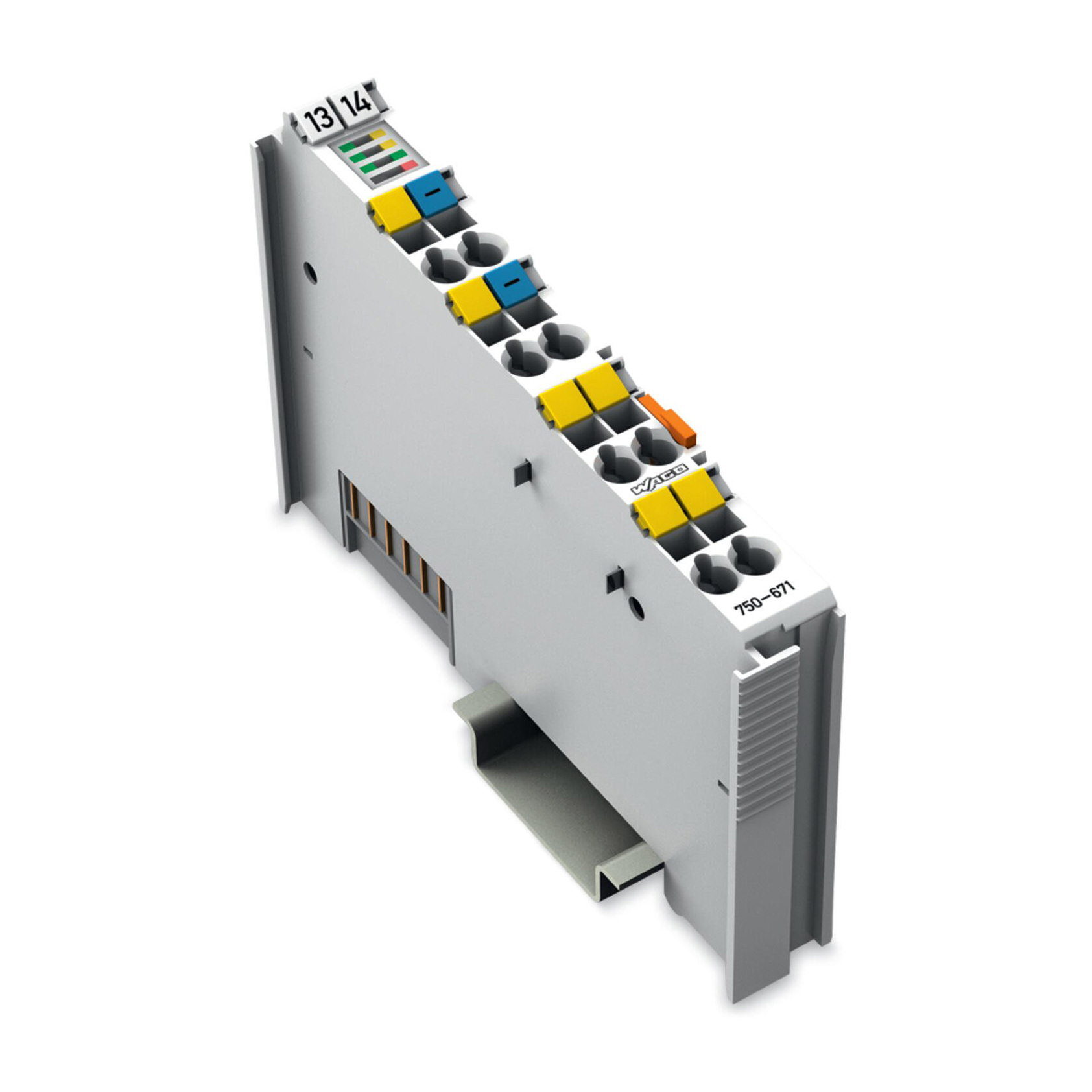

Stepper Controller - 24 VDC, 1.5 A
Device-specific: Operating modes: Individual positioning, reference run, jog, tip, command tables
Number of digital inputs: 2
Number of outputs: 1 stepper motor (2 phases/bipolar)
Input filter: 100 µs, software filter can be connected
Input current (typ.): 2.8 mA
Output current (max.) (motor); Up to 2 x 1.5 A peak value; 1 A rms
Voltage range for signal (0): −3 … +5 VDC
Voltage range for signal (1): 15 … 30 VDC
Resolution: 15 bits + 16 bit prescaler
Stepper resolution: 23 bits + sign bit
Stepper frequency (full-step) max.: 7,812Hz
Microstepping: 64 steps
Data width: 12-byte input/output
Functions: Absolute/relative positioning, setpoint change on the fly, rotary axis, etc.
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 85mA
Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)
Isolation: 500 V system/field

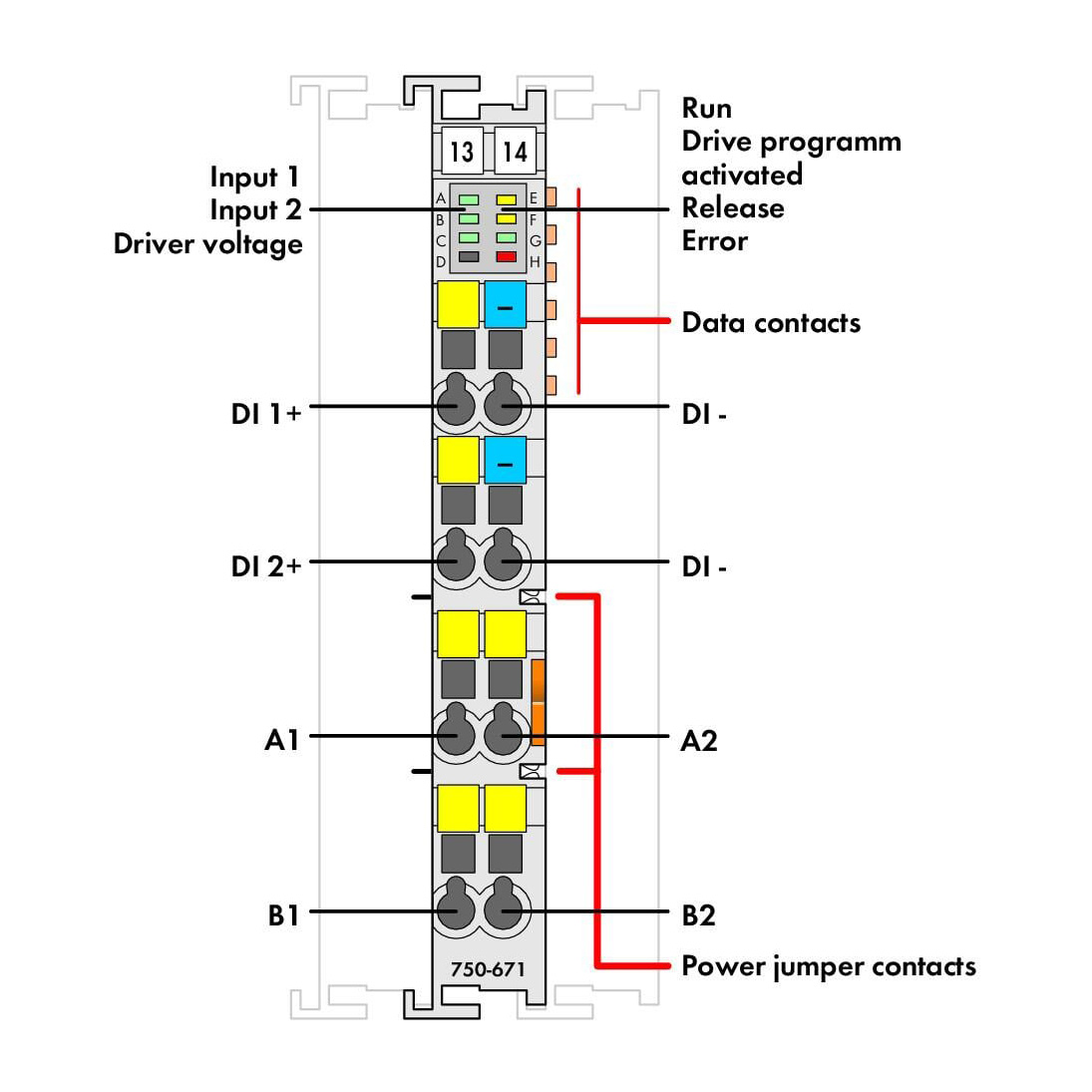

Indicators: LED (A-C, G) green: Input 1, Input 2, Power Supply, Enable; LED (E, F) yellow: Run, Run Program Active; LED (H) red: Error
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2

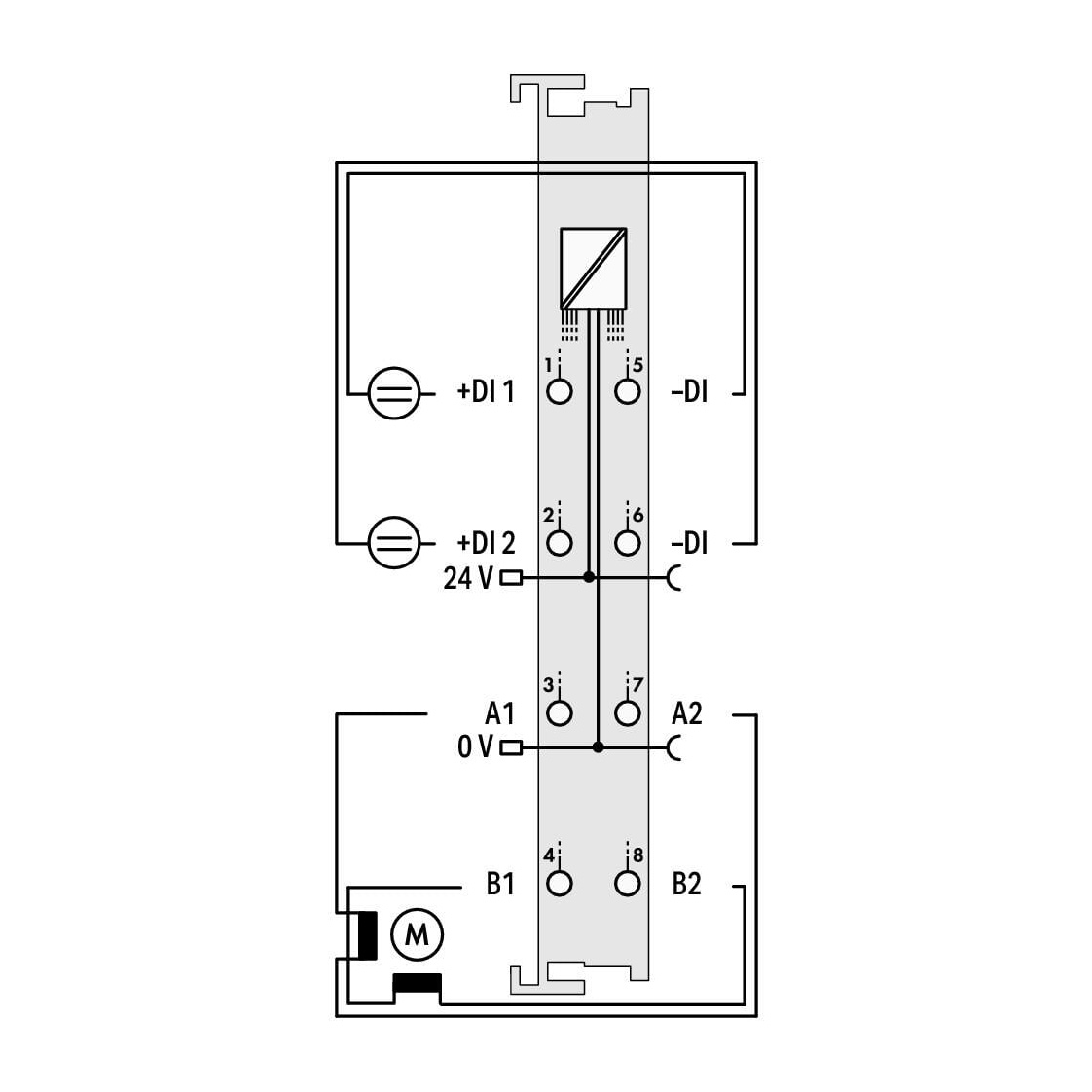

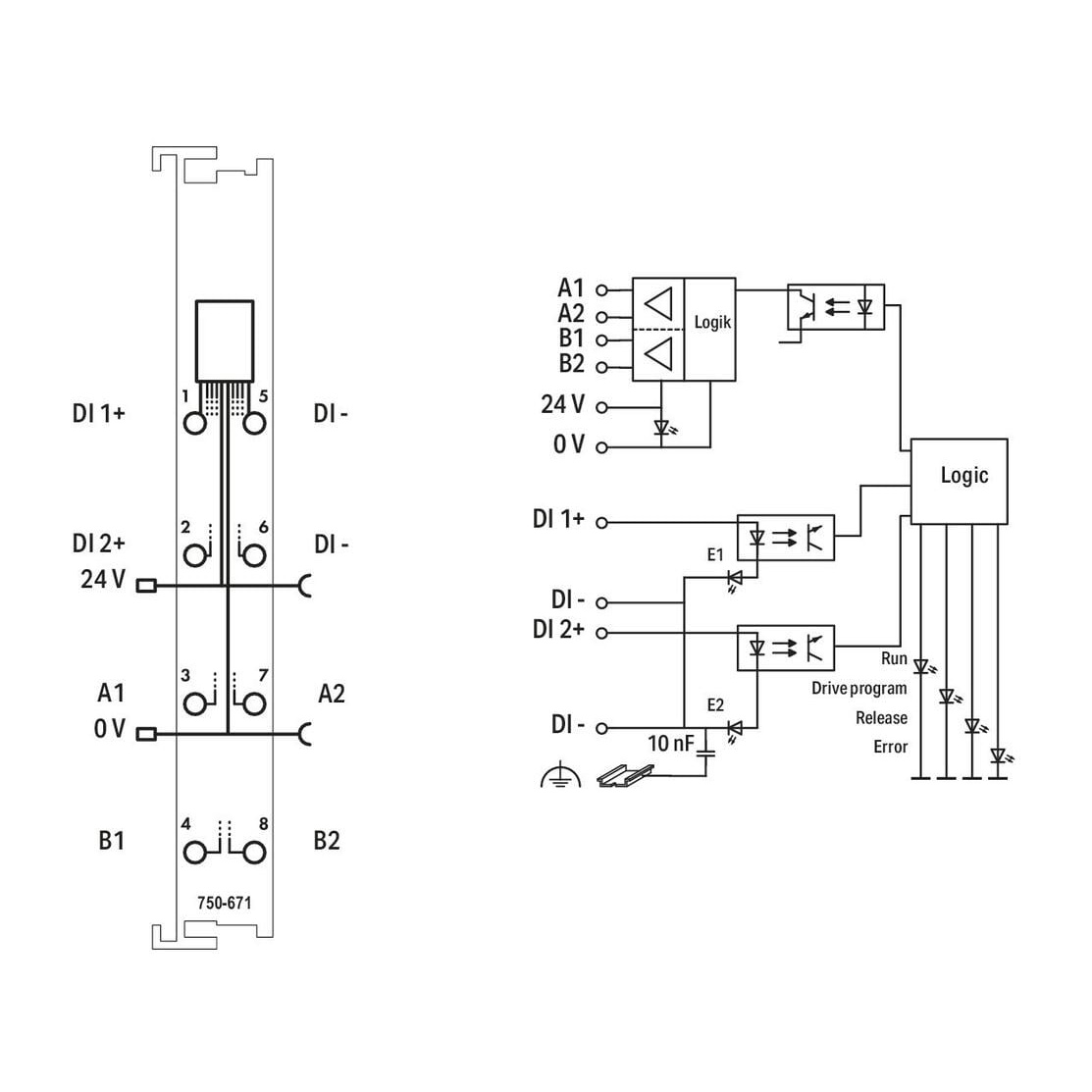

Connection technology: inputs/outputs: 8 x CAGE CLAMP®
Connectable conductor materials: Copper
Connection type 1: Inputs/Outputs
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Strip length: 8 … 9 mm / 0.31 … 0.35 inches
Width: 12 mm / 0.472 inches
Height: 100 mm / 3.937 inches
Depth: 67.8 mm / 2.669 inches
Depth from upper-edge of DIN-rail: 60.6 mm / 2.386 inches
Mounting type: DIN-35 rail
Colour: light gray
Housing material: Polycarbonate; polyamide 6.6
Fire load: 0.965MJ
Weight: 51.8g
Conformity marking: CE
Brand |
WAGO |
|
£257.12
per 1 (ex. VAT)£308.54
per 1 (inc. VAT)
