My Part Number:
Part Number: 750-677
Manufacturer Code: 750-677
Multiples of: 1 | Minimum Order: 1

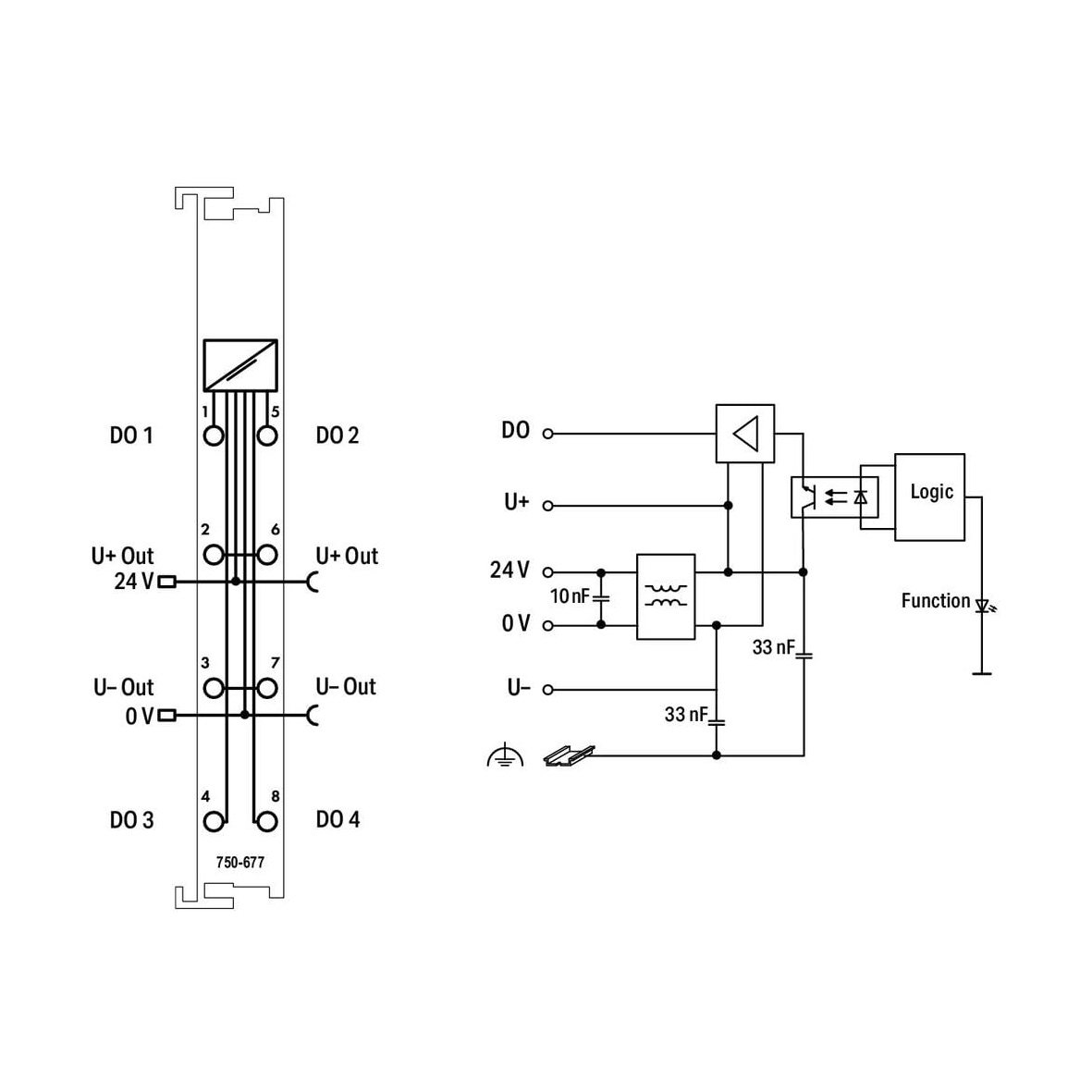

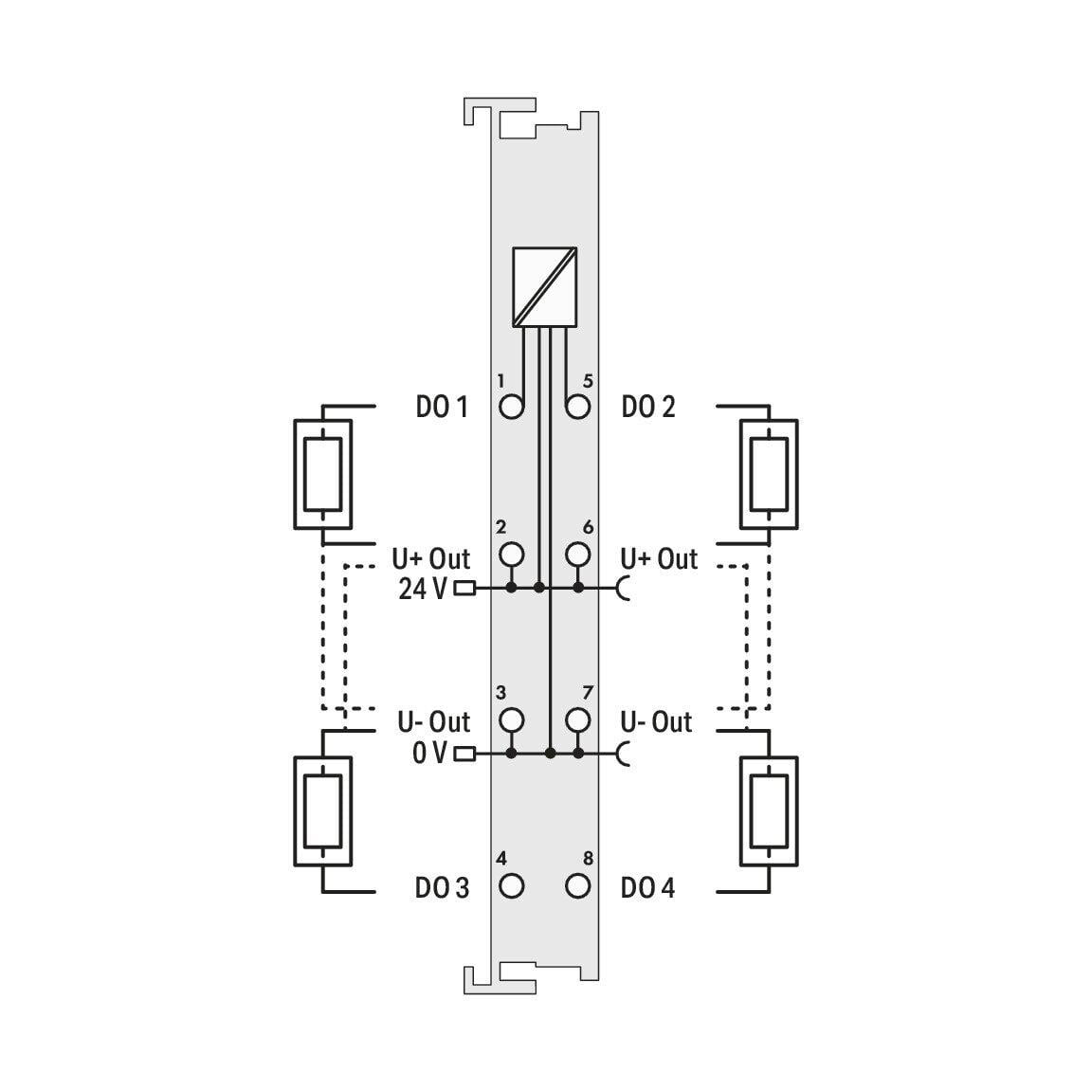

4 pulse width outputs; 24 VDC; 0.2 A; 20 kHz; Adjustable
Number of digital outputs: 4
Output current per channel: 0.2A
Output current: short-circuit-protected; 0.4 A, short-circuit-protected in bridge mode
Switching frequency (max.): 20 kHz
Diagnostics: per modul: undervoltage; per channel pair of a bridge: short circuit after Uout+ or Uout–
Pulse frequency: 0 … 20,000 Hz; integer
Duty cycle: 0 … 100 %; 11-bit resolution
Operating mode: 1: PWM DC (variable duty cycle); 2: PWM Frq (variable frequency); 3: PWM Frq - Cnt; 4: Pulse Frq - Cnt; 5: PWM Pulse - Dir
Data width: 4 x 16-bit data; 4 x 8-bit control/status
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 85mA
Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (supply voltage field side only) via spring contact)
Current consumption, field supply (module with no external load): 20mA
Isolation: 500 V system/field
Indicators: LED (A, C, G) green: Function Module, Channel 1 + 2, Channel 3 + 4; LED (E) red: Error
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
Current carrying capacity (power jumper contacts): 10A
Brand |
WAGO |
|
£220.85
per 1 (ex. VAT)£265.02
per 1 (inc. VAT)
