PLC 100 2 XETHERNET MODBUS

Basic Controller 100 - 2 x ETHERNET


This controller can be used as a programmable controller within ETHERNET networks along with the WAGO I/O System. The controller supports all digital, analog and specialty modules within the 750/753 Series, and is suitable for data rates of 10/100 Mbit/s.

Two ETHERNET interfaces and an integrated switch allow the fieldbus to be wired in a line topology, eliminating additional network devices, such as switches or hubs. Both interfaces support autonegotiation and Auto-MDI(X). The DIP switch configures the last byte of the IP address and may be used for IP address assignment. This controller supports Modbus TCP for use in industrial environments. It also supports a wide variety of standard ETHERNET protocols for easy integration into IT environments (e.g., HTTP(S), BootP, DHCP, DNS, SNTP, SNMP, SFTP). An integrated Webserver provides user configuration options, while displaying PLC status information. The controller has a role-based user management and supports Syslog according to RFC 5424. The IEC 61131-3 programmable controller is multitasking-capable and features a capacitor-backed RTC.

The controller is equipped with a removable memory card slot. A memory card can be used to transfer device parameters or files (e.g., boot files) from one controller to another. The card is available for FTP access as an additional drive.

Communication: Modbus (TCP, UDP)
ETHERNET protocols: HTTP(S), BootP, DHCP, DNS, SNTP, SFTP, SNMP (V2 & V3), TLS1.3 Syslog
Visualization: Webserver with integrated RBAC (Role-Based Access Control)
CPU: 32 bits
Programming languages per IEC 61131-3: Instruction List (IL), Ladder Diagram (LD), Function Block Diagram (FBD), Continuous Function Chart (CFC), Structured Text (ST), Sequential Function Chart (SFC),
Programming environment: CODESYS V3.5
Configuration options: WAGO-I/O-CHECK, Web-Based Management, CODESYS Library
Baud rate (communication/fieldbus 1): 10/100 Mbit/s
Baud rate: 10/100 Mbit/s
Transmission medium (communication/fieldbus): Twisted pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length
Transmission performance: Class D per EN 50173
Program memory: 16 MB
Data memory: 32 MB
Non-volatile software memory: 128kbyte
Type of memory card: SD and SDHC up to 32 GB (all guaranteed properties only valid with WAGO's memory card)
Memory card slot: Push-push mechanism; cover lid (sealable)
Number of modules per node (max.): 250
Number of modules without a bus extension (max.): 64
Input and output process image (fieldbus) max.: 1020 words/1020 words
Indicators: LED (LINK/ACT) green: Network connection via ports 1 … 2; LED (MS, NS) red/green: Status of node, network; LED (I/O, USR) red/green/orange: Local data bus status, status programmable by user; LED (A, B) green: System power supply status, field supply

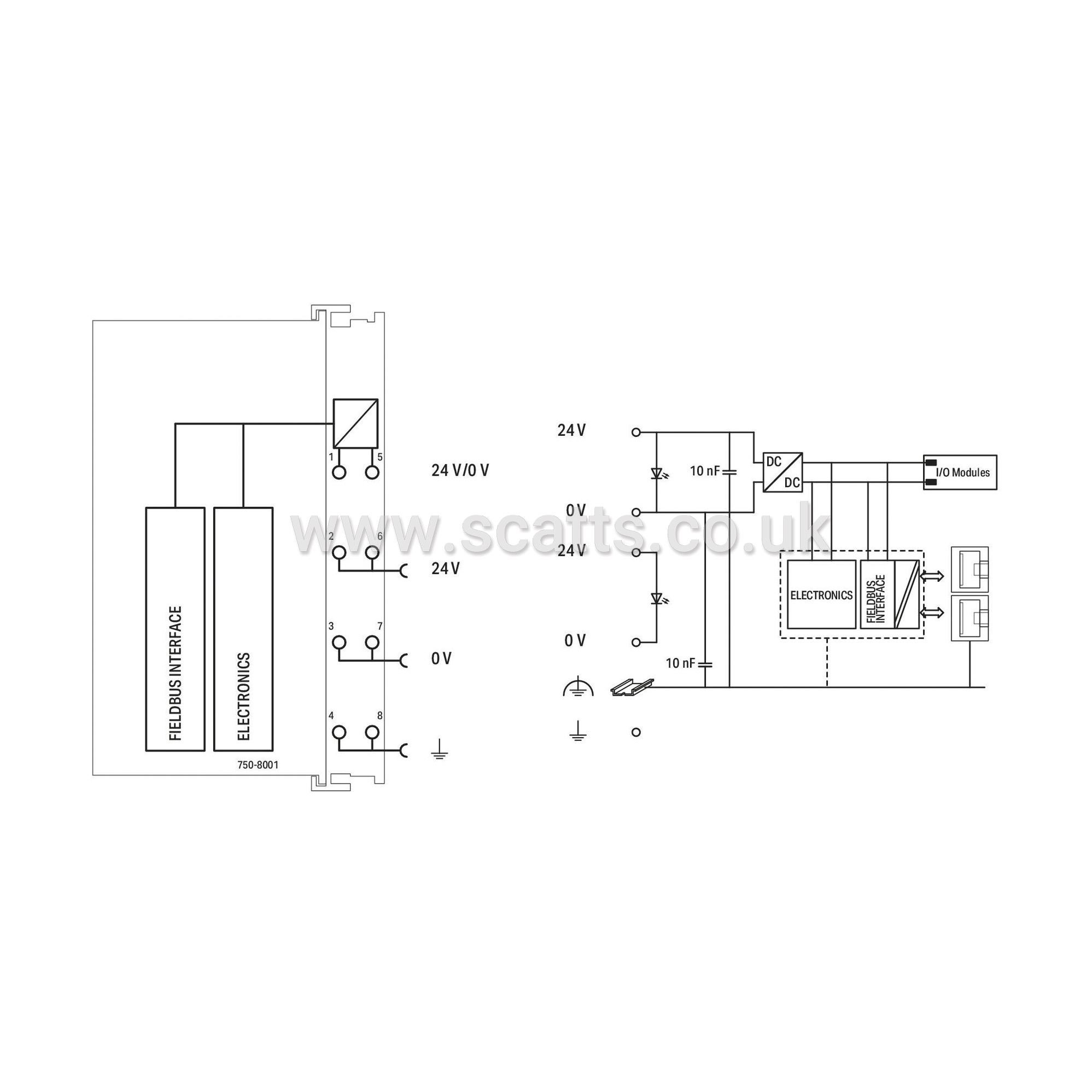

Supply voltage (system): 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP® connection)
Input current (typ.) at nominal load (24 V): 500mA
Power supply efficiency (typ.) at nominal load (24 V): 90%
Current consumption (5 V system supply): 440mA
Total current (system supply): 1,700mA
Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts
Current carrying capacity (power jumper contacts): 10A
Number of outgoing power jumper contacts: 3
Isolation: 500 VAC system/field
