Part Number: 750-8100
Multiples of: 1 | Minimum Order: 1

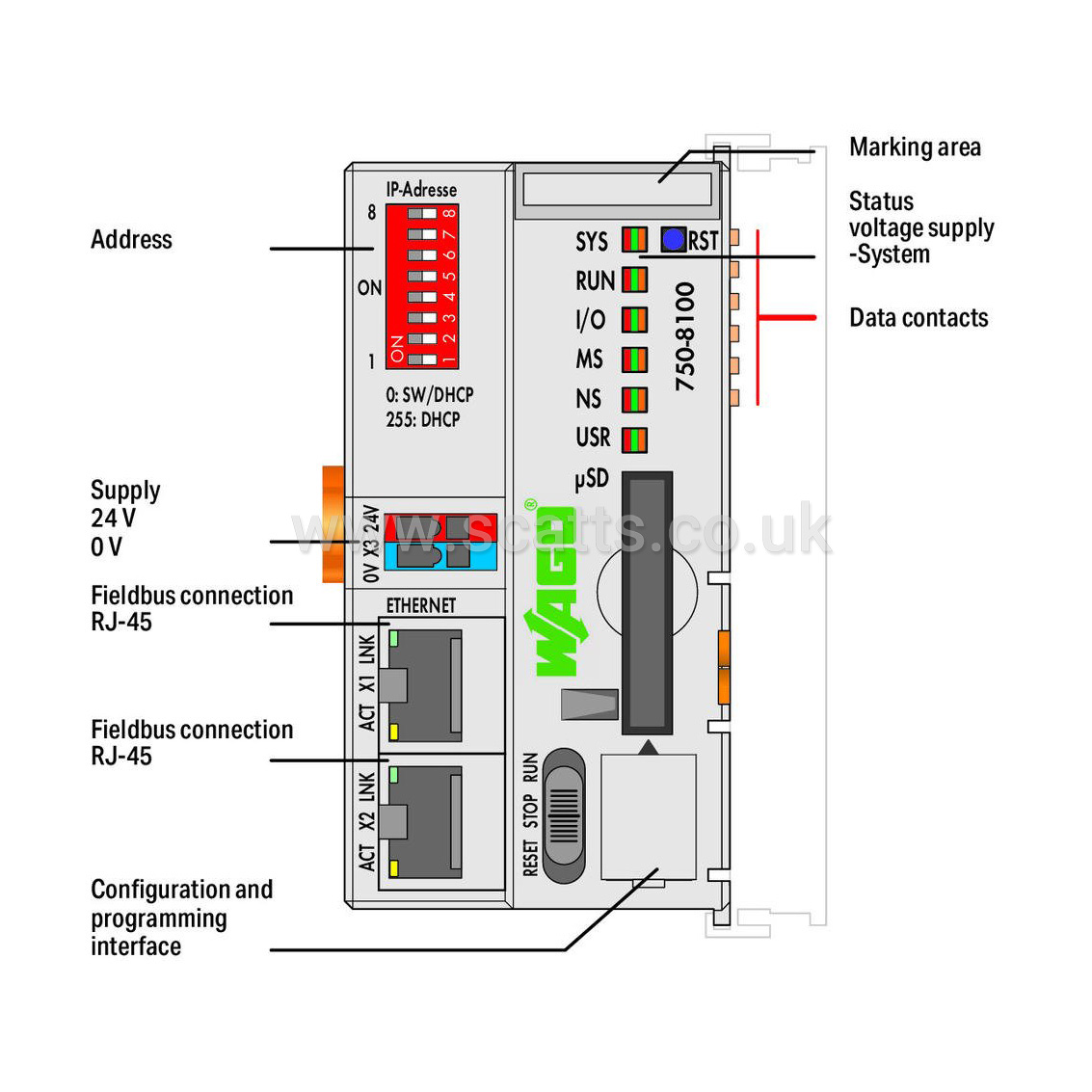

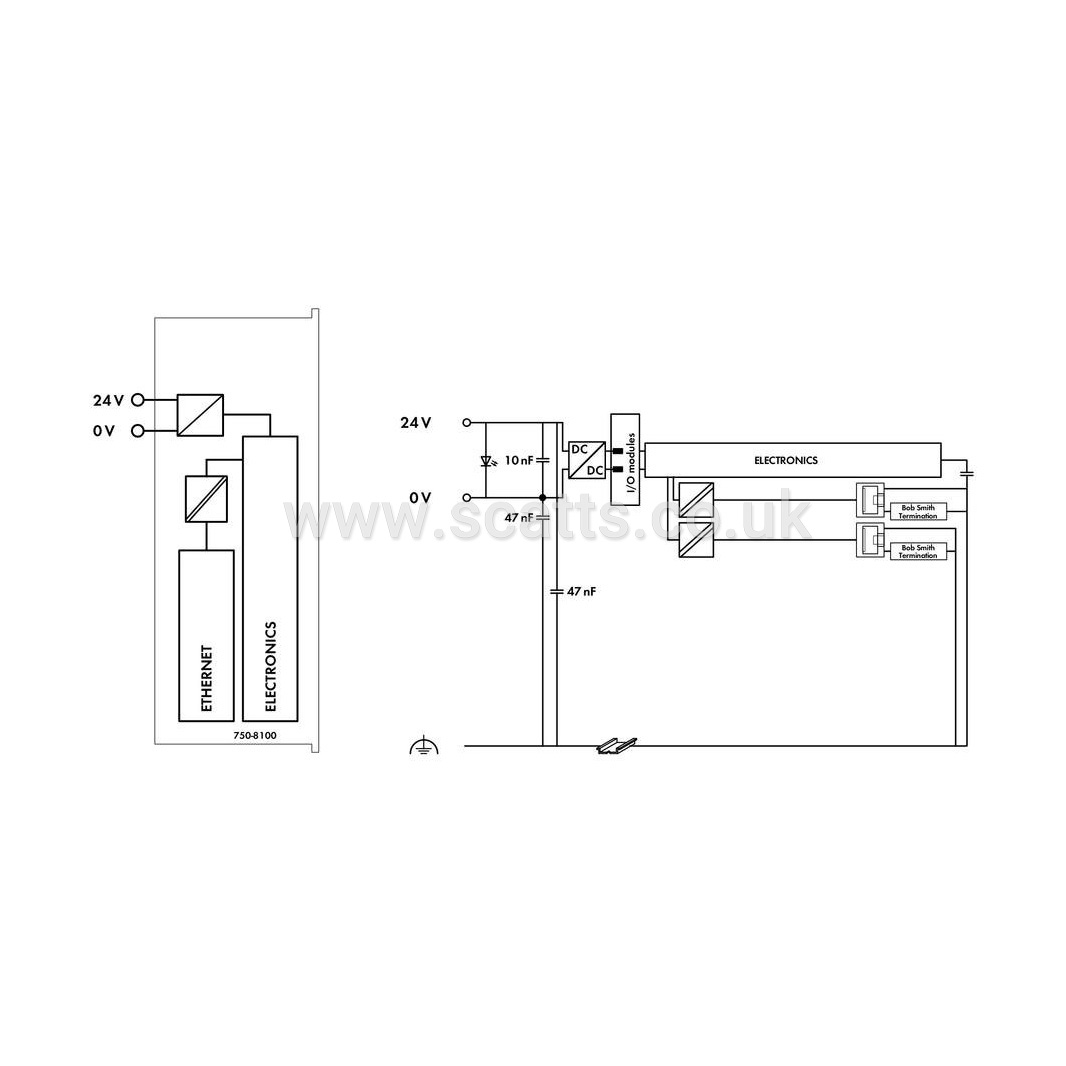

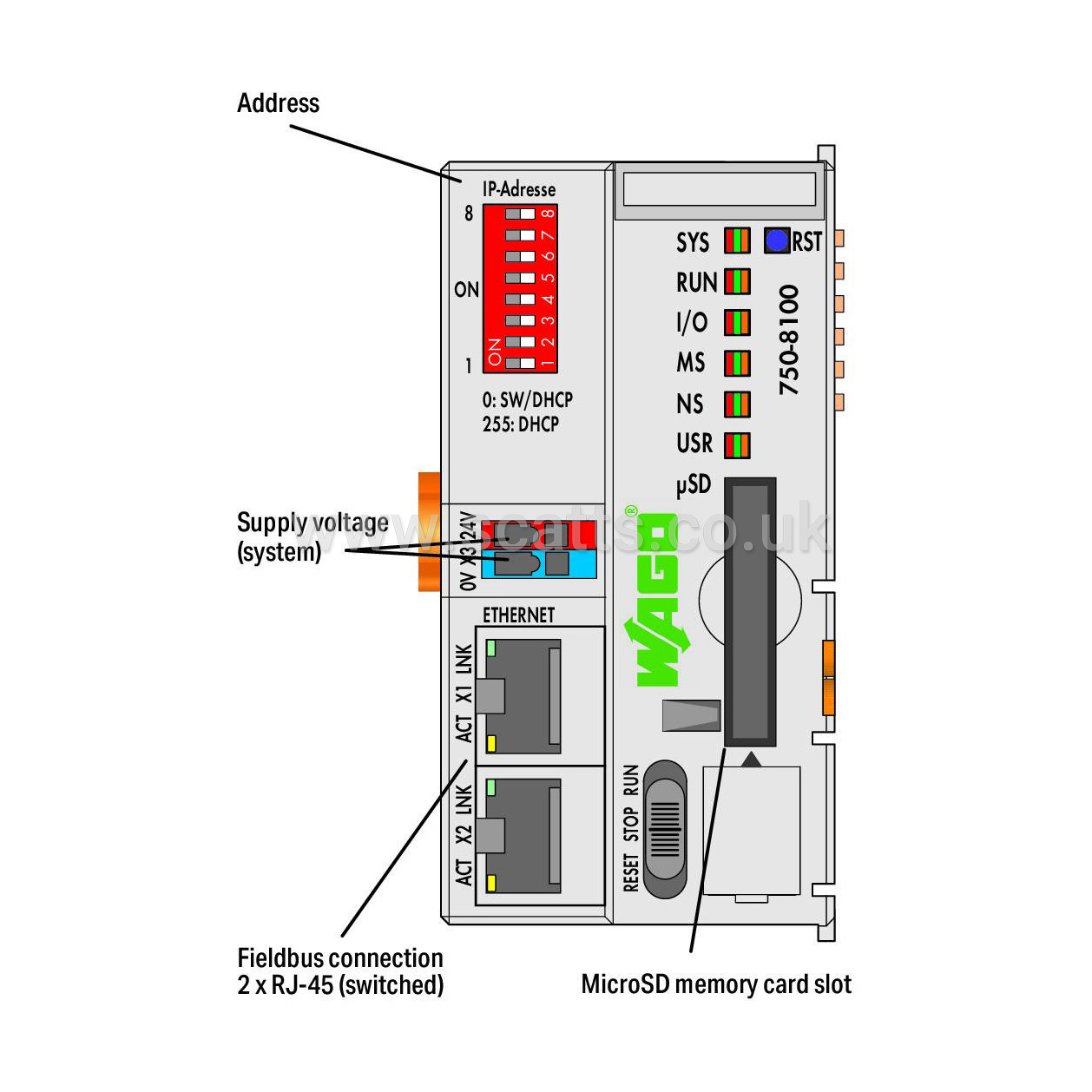

Controller PFC100 - 2 x ETHERNET, ECO, light gray
The PFC100 Controller is a compact PLC for the modular WAGO I/O System. Besides network and fieldbus interfaces, the controller supports all digital, analog and specialty I/O modules found within the 750/753 Series.
Two ETHERNET interfaces and an integrated switch enable line topology wiring.
An integrated Webserver provides user configuration options, while displaying PFC100 status information.
Besides the processing industry and building automation, typical applications for the PFC100 include standard machinery and equipment control (e.g., packaging, bottling and manufacturing systems, as well as textile, metal and wood processing machines).
The DIP switch configures the last byte of the IP address and may be used for IP address assignment.
Programming per IEC 61131-3
• Programmable via e!COCKPIT
• Direct connection of WAGO's I/O modules
• 2 x ETHERNET (configurable)
• Linux 3.18 operating system with RT‐Preempt patch
• Configuration via e!COCKPIT or Web-Based Management interface
• Maintenance-free
Communication: Modbus (TCP, UDP), ETHERNET, EtherNet/IPTM Adapter (slave), library for e!RUNTIME, MQTT
ETHERNET protocols: DHCP, DNS, NTP, FTP, FTPS, SNMP, HTTP, HTTPS, SSH
Visualization: Web-Visu
Operating system: Real-time Linux 3.18 (with RT-Preempt patch)
CPU: Cortex A8; 600 MHz
Programming languages per IEC 61131-3: Instruction List (IL), Ladder Diagram (LD), Function Block Diagram (FBD), Continuous Function Chart (CFC), Structured Text (ST), Sequential Function Chart (SFC)
Programming environment: e!COCKPIT (based on CODESYS V3)
Configuration options: e!COCKPIT, WAGO-I/O-CHECK, Web-Based Management
Baud rate (communication/fieldbus 1): 10/100 Mbit/s
Baud rate: ETHERNET: 10/100 Mbit/s
Transmission medium (communication/fieldbus): ETHERNET: Twisted Pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length
Main memory (RAM): 256MB
Internal memory (flash): 256MB
Non-volatile hardware memory: 64kbyte
Program memory: 10 MB (Program and data memory (dynamically distributed))
Data memory: 10 MB Program and data memory (dynamically distributed)
Non-volatile software memory: 64.kbyte
Type of memory card: microSD up to 32 GB (all guaranteed properties only valid with WAGO's memory card)
Memory card slot: Push-push mechanism; Cover lid (sealable)
Number of modules per node (max.): 250
Number of modules without a bus extension (max.): 64
Input and output process image (internal) max.: 1000 words/1000 words
Input and output process image (fieldbus) max.: CODESYS V3: 32000 words/32000 words
Indicators: LED (SYS, RUN, I/O, USR) red/green/orange: Status system, program, local data bus, status programmable by user (can be used via CODESYS library)
Supply voltage (system): 24 VDC (-25 … +30 %); via pluggable connector
Input current (typ.) at nominal load (24 V): 300mA
Total current (system supply): 700mA
Isolation: 500 V system/field
