My Part Number:
Part Number: 750-8110
Manufacturer Code: 750-8110
Multiples of: 1 | Minimum Order: 1
Controller PFC100; 2nd Generation; 2 x ETHERNET; ECO
Communications: Modbus TCP master/slave, Modbus (UDP), WagoAppPlcModbus Library, Modbus (RTU), WagoAppPlcModbus Library, ETHERNET, EtherNet/IPTM Adapter (slave), EtherNet/IPTM Scanner, EtherCAT® Master, OPC UA Server/Client, OPC UA Pub/Sub (can be installed later), MQTT, BACnet/IP, requires an additional license, Telecontrol protocols, requires an additional license
ETHERNET protocols: DHCP, DNS, NTP, FTP, FTPS, SNMP, HTTP, HTTPS, SSH
Visualization: Web-Visu
Operating system: Real-time Linux (with PREEMPT_RT patch)
CPU: Cortex A8; 600 MHz
Programming languages per IEC 61131-3: Instruction List (IL), Ladder Diagram (LD), Function Block Diagram (FBD), Continuous Function Chart (CFC), Structured Text (ST), Sequential Function Chart (SFC)
Programming environment: CODESYS V3.5
Configuration options: CODESYS V3, CODESYS Library, Ethernet Settings, WAGO-I/O-CHECK, Web-Based Management
Transmission rate: ETHERNET: 10/100 Mbit/s
Transmission medium (communication/fieldbus): ETHERNET: Twisted pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length
Main memory (RAM): 512MB
Internal memory (flash): 4096MB
Non-volatile hardware memory: 128kbyte
Program memory: 32 MB (Program and data memory (dynamically distributed))
Data memory: 128 MB Program and data memory (dynamically distributed)
Non-volatile software memory: 128.kbyte
Type of memory card: microSD up to 32 GB (all guaranteed properties only valid with WAGO's memory card)
Memory card slot: Push-push mechanism; cover lid (sealable)
Number of modules per node (max.): 250
Number of modules without a bus extension (max.): 64
Input and output process image (internal) max.: 1000 words/1000 words
Input and output process image (Modbus®) max.: CODESYS V3: 32000 words/32000 words

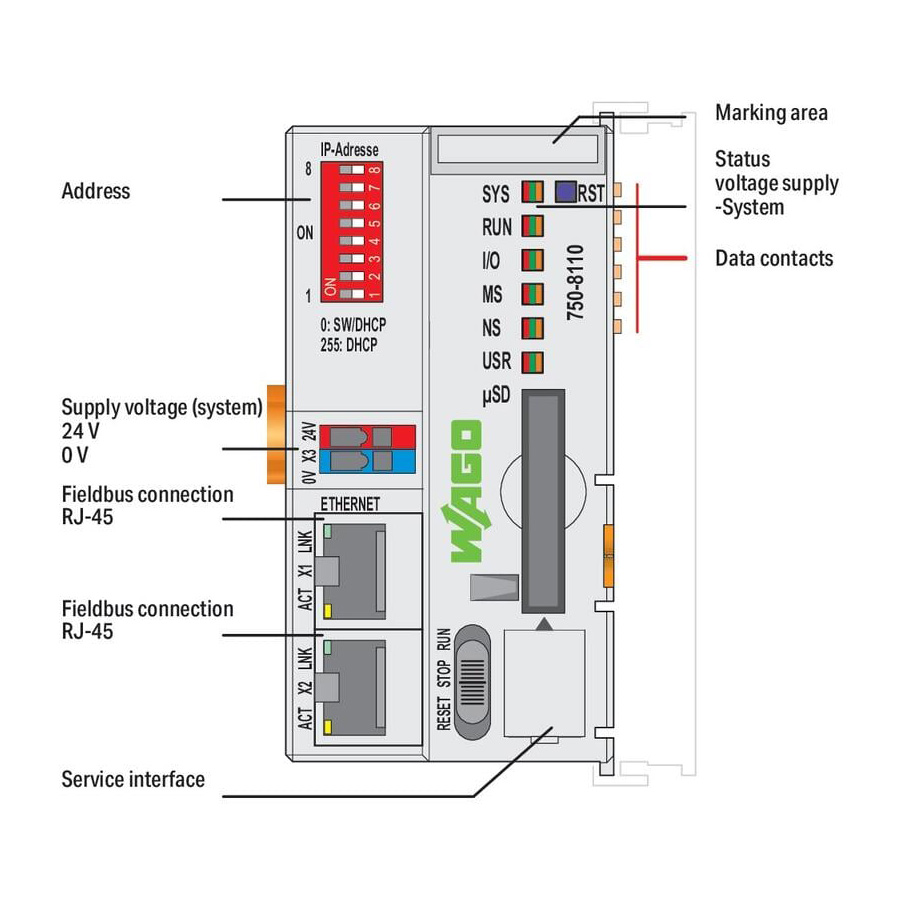

Indicators: LED (SYS, RUN, I/O, USR) red/green/orange: Status system, program, local data bus, status programmable by user (can be used via CODESYS library)

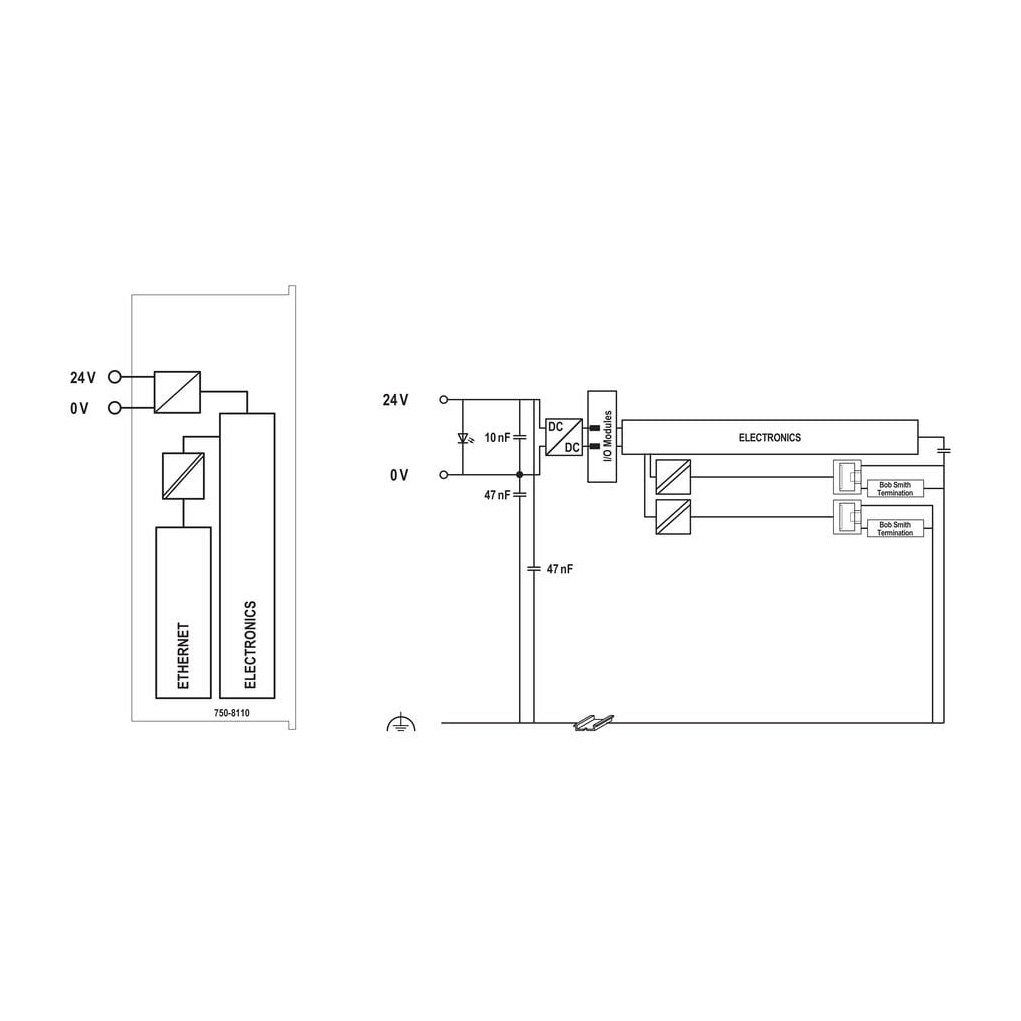

Supply voltage (system): 24 VDC (-25 … +30 %); via pluggable connector
Input current (typ.) at nominal load (24 V): 300mA
Total current (system supply): 700mA
Isolation: 500 V system/field
Connection technology: communication/fieldbus: 2 x RJ-45
Connection technology: system supply: 2 x CAGE CLAMP®
Connectable conductor materials: Copper
Connection type 1: System supply
Solid conductor: 0.08 … 1.5 mm² / 28 … 14 AWG
Fine-stranded conductor: 0.08 … 1.5 mm² / 28 … 14 AWG
Strip length: 5 … 6 mm / 0.2 … 0.24 inches
Connection technology: device configuration: 1 x Male connector; 4-pole
Width: 49.5 mm / 1.949 inches
Height: 96.8 mm / 3.811 inches
Depth: 71.9 mm / 2.831 inches
Depth from upper-edge of DIN-rail: 64.7 mm / 2.547 inches
Weight: 111.9g
Housing material: Polycarbonate; polyamide 6.6
Conformity marking: CE
Brand |
WAGO |
|
£300.31
per 1 (ex. VAT)£360.37
per 1 (inc. VAT)
