PFC200 PLC 2ETH + 2X PROFINET

Controller PFC200 - 2nd Generation, 4 x ETHERNET, CAN, CANopen, USB-A, light gray


The PFC200 Controller is a compact PLC for the modular WAGO I/O System. Besides network and fieldbus interfaces, this controller supports all digital and analog input/output modules, as well as specialty modules found within the 750/753 Series.

Four ETHERNET interfaces and an integrated switch enable line topology wiring.

An integrated Webserver provides user configuration options, while displaying PFC200 status information.

Besides the processing industry and building automation, typical applications for the PFC200 include standard machinery and equipment control (e.g., packaging, bottling and manufacturing systems, as well as textile, metal and wood processing machines).

Advantages:

• Programming per IEC 61131-3
• Programmable with CODESYS V3.5 from Firmware Release 23 or e!COCKPIT up to Firmware Release 22
• Direct connection of WAGO's I/O modules
• 4 x ETHERNET (configurable), CAN, CANopen, PROFINET I-Device
• Linux® operating system with RT‐Preempt patch
• Configuration via e!COCKPIT or Web-Based-Management user interface
• Maintenance-free

Communication: PROFINET RT, CANopen, Modbus TCP master/slave, Modbus (UDP), WagoAppPlcModbus Library, ETHERNET, EtherNet/IPTM Adapter (slave), EtherNet/IPTM Scanner, EtherCAT® Master, OPC UA Server/Client, OPC UA Pub/Sub (can be installed later), MQTT, Telecontrol protocols, requires an additional license,
ETHERNET protocols: DHCP, DNS, NTP, FTP, FTPS, SNMP, HTTP, HTTPS, SSH
Telecontrol protocols: IEC 60870 (additional license as slave or master), IEC 61850 (additional license as Client or Server), DNP3 (additional license as Slave or Master)
Visualization: Web-Visu
Operating system: Real-time Linux (with RT-Preempt patch)
CPU: Cortex A8; 1 GHz
Programming languages per IEC 61131-3: Instruction List (IL), Ladder Diagram (LD), Function Block Diagram (FBD), Continuous Function Chart (CFC), Structured Text (ST), Sequential Function Chart (SFC)
Programming environment: CODESYS V3.5, Firmware Release 23 or higher, e!COCKPIT (based on CODESYS V3) up to Firmware Release 22
Configuration options: CODESYS V3, e!COCKPIT, WAGO-I/O-CHECK, Web-Based Management, e!RUNTIME library, CODESYS Library
Baud rate (communication/fieldbus 1): 10/100 Mbit/s
Baud rate: ETHERNET: 10/100 Mbit/s
Transmission medium (communication/fieldbus): ETHERNET: Twisted Pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length
Main memory (RAM): 512MB
Internal memory (flash): 4096MB
Non-volatile hardware memory: 128kbyte
Program memory: 32 MB
Data memory: 128 MB
Non-volatile software memory: 128.kbyte
Type of memory card: SD and SDHC up to 32 GB (all guaranteed properties only valid with the WAGO 758-879/000-001 Memory Card)

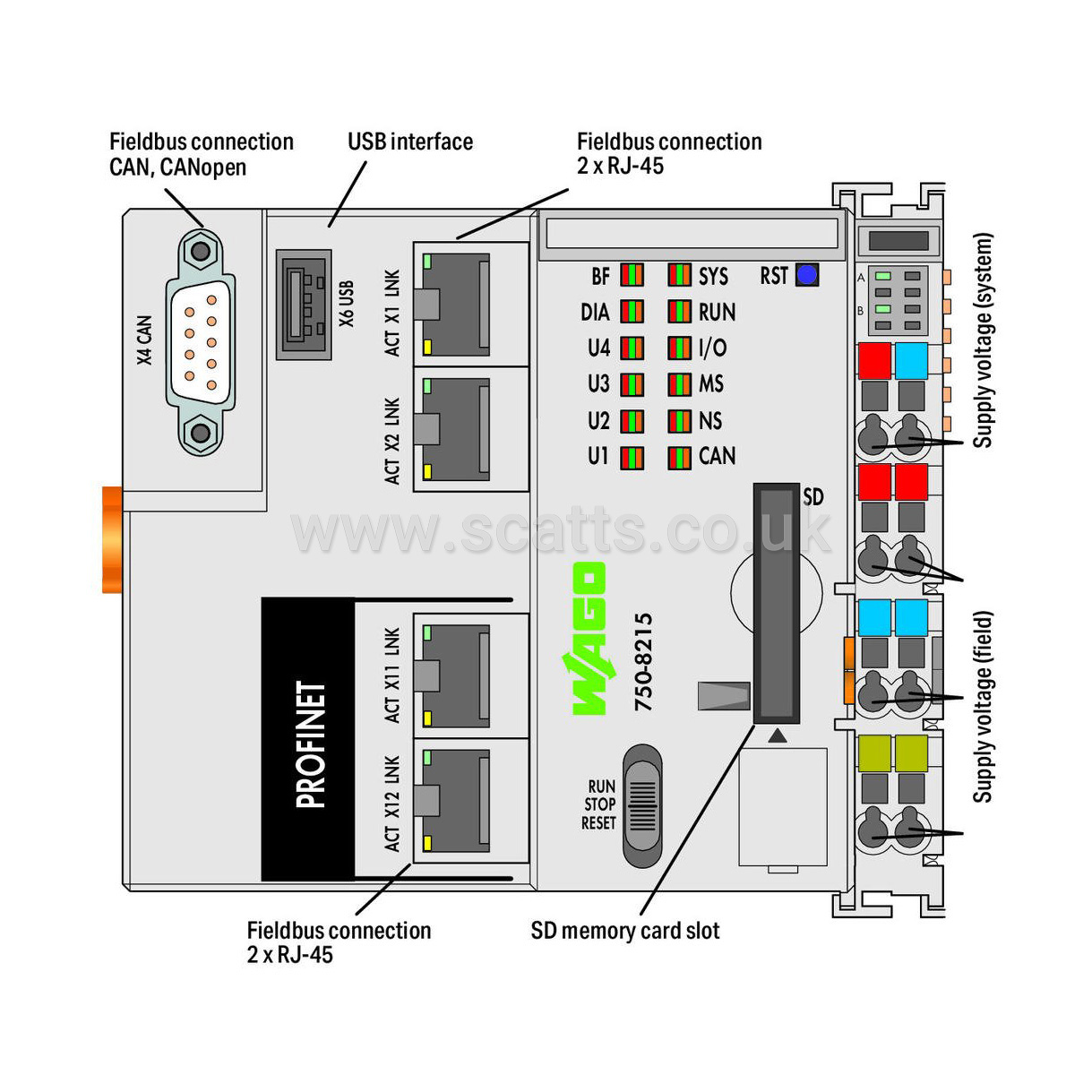

Memory card slot: Push-push mechanism; Cover lid (sealable)
Number of modules per node (max.): 250
Number of modules without a bus extension (max.): 64
Input and output process image (internal) max.: 1000 words/1000 words
Input and output process image (fieldbus) max.: CODESYS V3: 32000 words/32000 words
Input and output process image (fieldbus) max.: 2000 words/2000 words
Device-specific: PROFINET IO features: PROFINET IO V2.3; Media redundancy (MRP); Shared device

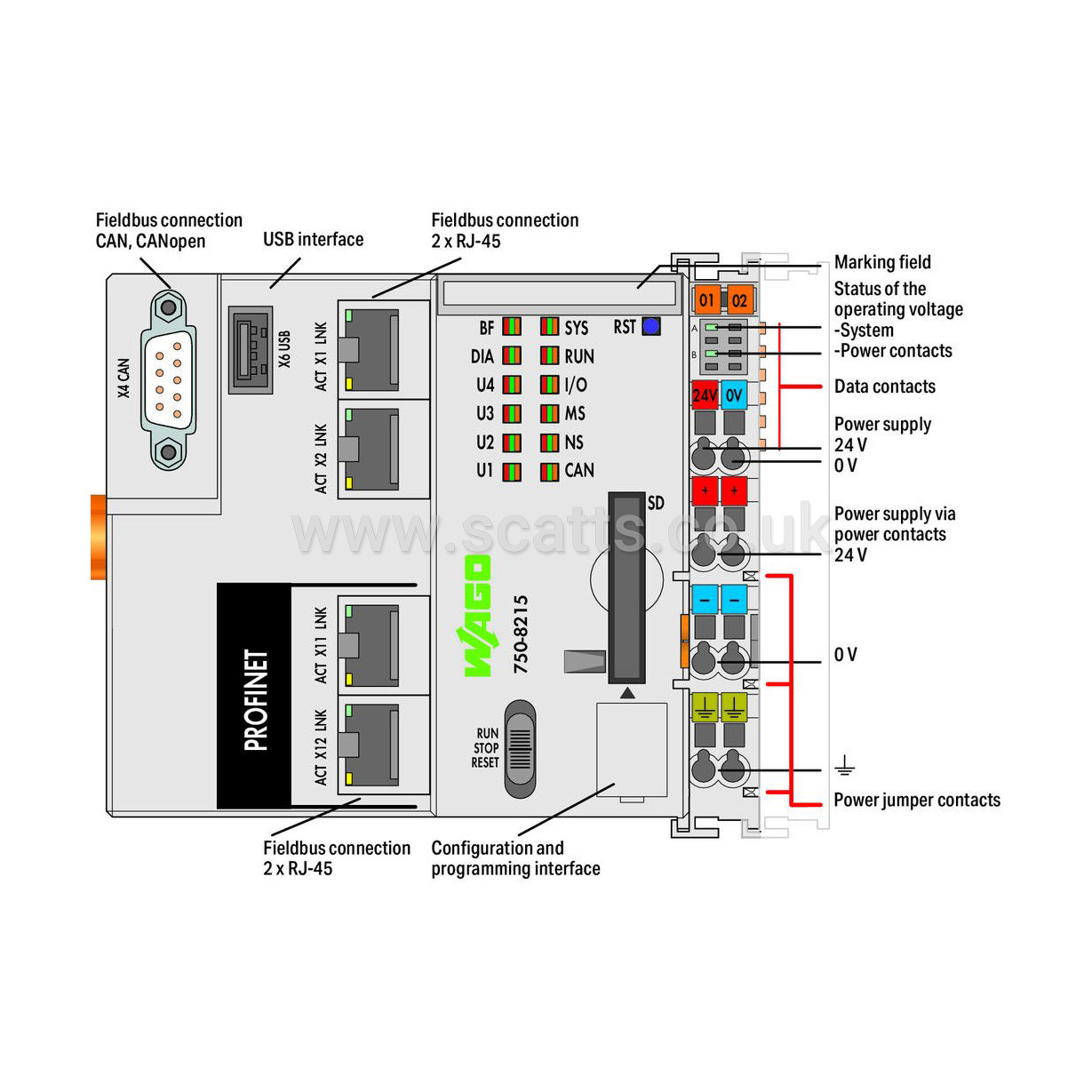

Indicators: LED (SYS; RUN; I/O; CAN; BF; DIA; U1 … U4) red/green/orange: status system; program; local bus; CANopen; PROFINET; PROFINET diagnostics; status programmable by user (can be used via CODESYS library); LED (A, B) green: system power supply status; field supply

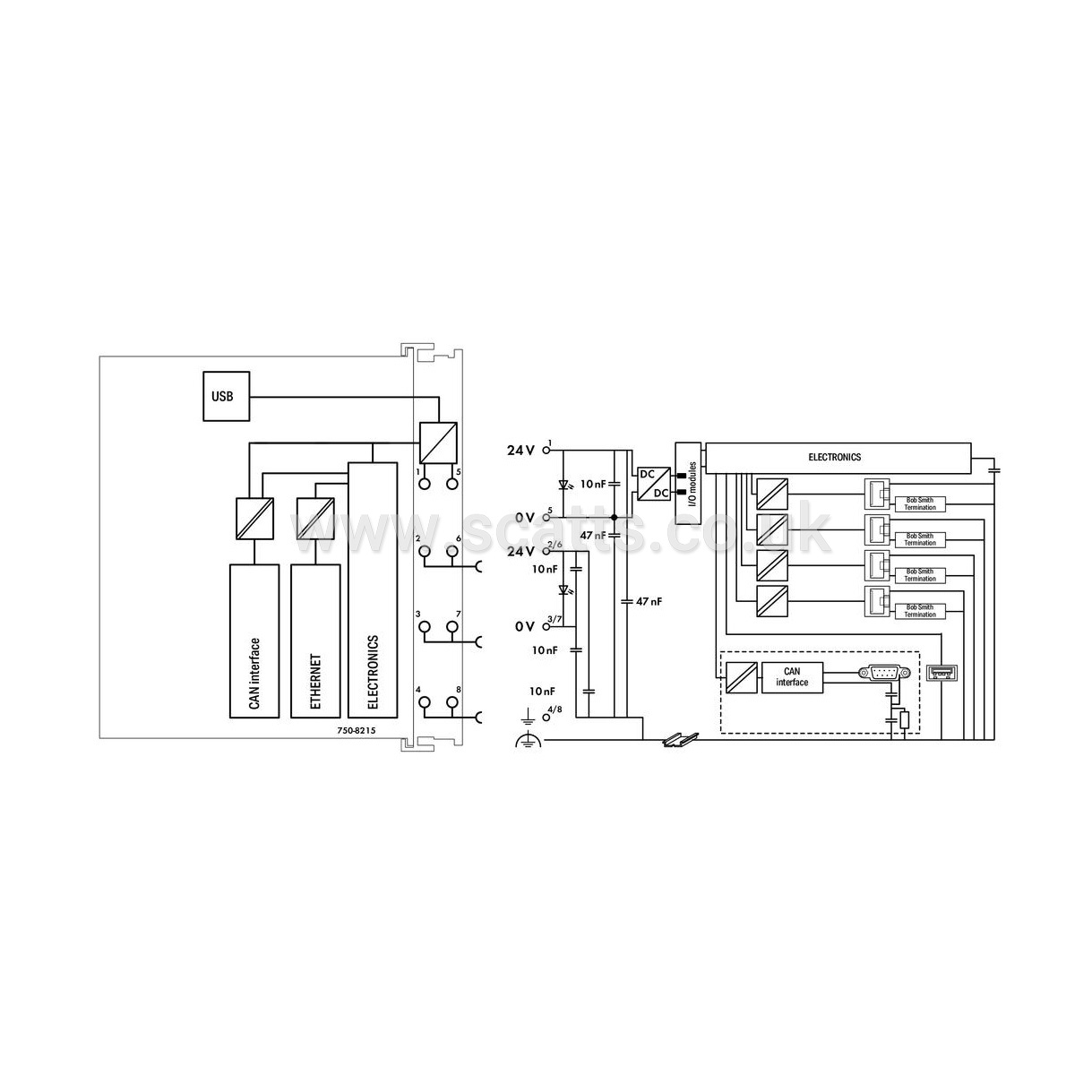

Supply voltage (system): 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP® connection)
Input current (typ.) at nominal load (24 V): 550mA
Total current (system supply): 1,700mA
Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts
Current carrying capacity (power jumper contacts): 10A
Number of outgoing power jumper contacts: 3
Isolation: 500 V system/field
