My Part Number:
Part Number: 750-8217
Manufacturer Code: 750-8217
Multiples of: 1 | Minimum Order: 1
Controller PFC200 - 2nd Generation, 2 x ETHERNET, RS-232/-485, Mobile Radio Module 4G, EU version

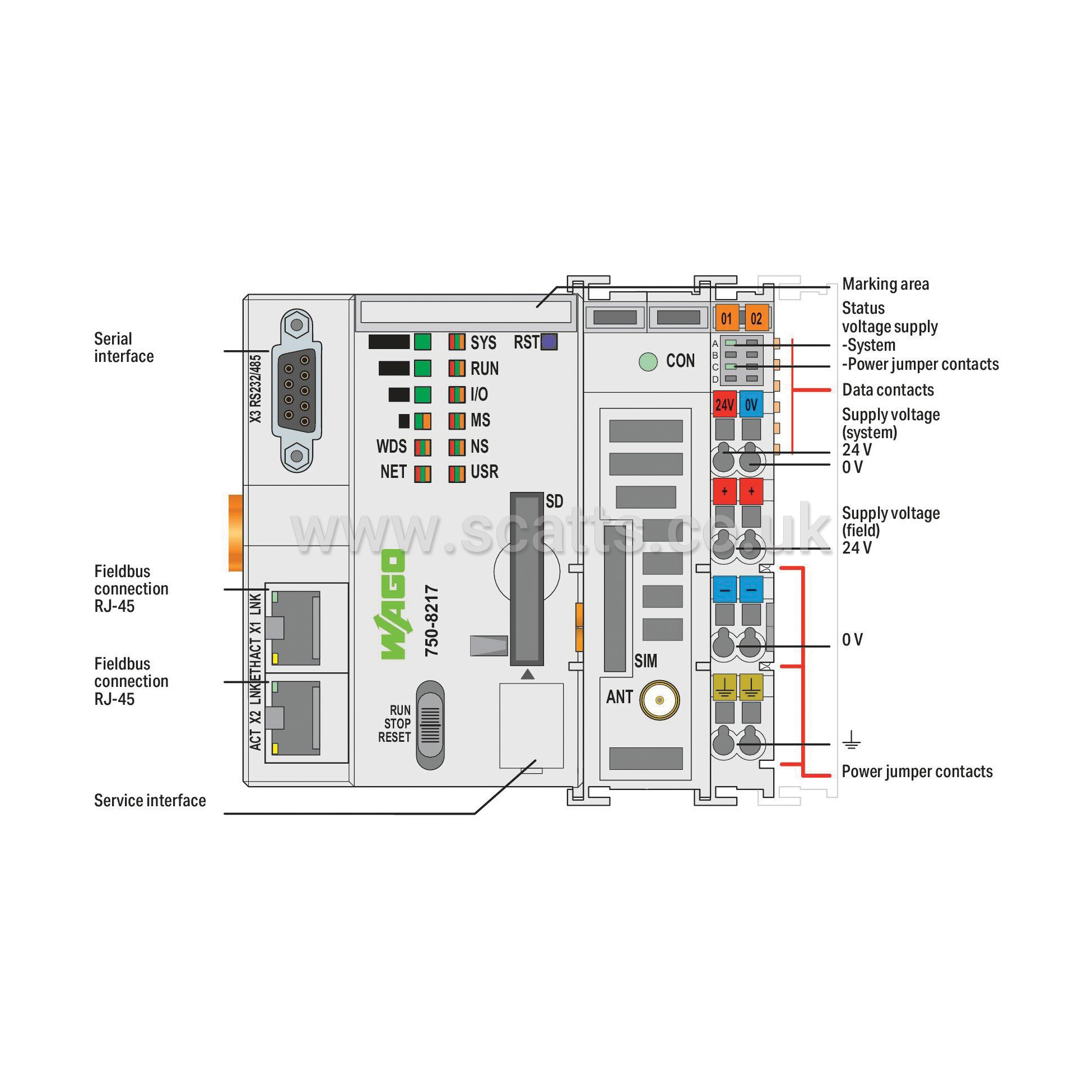

The PFC200 Controller is a compact PLC for the modular WAGO I/O System. Besides network and fieldbus interfaces, the controller supports all digital, analog and specialty I/O modules found within the 750/753 Series.
Two ETHERNET interfaces and an integrated switch enable line topology wiring.
The integrated cellular modem provides a wireless connection to the Internet and includes a radio license for EU countries. Other countries upon request.
An integrated Webserver provides user configuration options, while displaying PFC200 status information.
Besides standard machinery and equipment control, as well as building automation, typical applications for the PFC200 include decentralized data logging for the process industry.
Advantages:
• Programming per IEC 61131-3
• Programmable via e!COCKPIT
• Direct connection of WAGO's I/O modules
• 2 x ETHERNET (configurable), RS-232/485
• Linux operating system with RT‐Preempt patch
• Configuration via e!COCKPIT or Web-Based Management interface
• Maintenance-free
Communication: Modbus (TCP, UDP), ETHERNET, EtherNet/IPTM Adapter (slave), library for e!RUNTIME, Modbus RTU, RS-232 serial interface, RS-485 interface, MQTT, BACnet/IP, requires an additional license, EtherCAT® master (requires an additional license), Telecontrol protocols, requires an additional license
ETHERNET protocols: DHCP, DNS, NTP, FTP, FTPS, SNMP, HTTP, HTTPS, SSH
Telecontrol protocols: IEC 60870 (additional license as slave or master), IEC 61850 (additional license as Client or Server), DNP3 (additional license as Slave or Master), IEC 60870-5-101/-103/-104 (Zusatzlizenz als Slave oder Master), IEC-61850 (Zusatzlizenz als Client 300), DNP3 (Zusatzlizenz als Slave oder Master 300)
Visualization: Web-Visu
Operating system: Real-time Linux (with RT-Preempt patch)
CPU: Cortex A8; 1 GHz
Programming languages per IEC 61131-3: Instruction List (IL), Ladder Diagram (LD), Function Block Diagram (FBD), Continuous Function Chart (CFC), Structured Text (ST), Sequential Function Chart (SFC)
Programming environment: e!COCKPIT (based on CODESYS V3)
Configuration options: e!COCKPIT, WAGO-I/O-CHECK, Web-Based Management, e!RUNTIME library, CODESYS Library
Security encryption: OpenVPN, IPsec, firewall
Services: SMS (bidirectional), GPRS connection to Internet, GPRS connection to Internet
Radio technology: GSM/UMTS/LTE
Frequency band: GSM dual band (B3; B8); E-UTRA bands (B1; B3; B5; B7; B8; B20; B38; B40; B41)
Baud rate (communication/fieldbus 1): 10/100 Mbit/s
Baud rate: ETHERNET: 10/100 Mbit/s
Transmission medium (communication/fieldbus): ETHERNET: Twisted Pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length
Main memory (RAM): 512MB
Internal memory (flash): 4096MB
Non-volatile hardware memory: 128kbyte
Program memory: 32 MB
Data memory: 128 MB
Non-volatile software memory: 128.kbyte
Type of memory card: SD and SDHC up to 32 GB (all guaranteed properties only valid with WAGO's memory card)
Memory card slot: Push-push mechanism; Cover lid (sealable)
SIM card type: Mini-SIM; Temperature range: −20 … +85 °C
SIM card slot: Push-push mechanism
Number of modules per node (max.): 250
Number of modules without a bus extension (max.): 64
Input and output process image (internal) max.: 1000 words/1000 words
Input and output process image (fieldbus) max.: CODESYS V3: 32000 words/32000 words
Indicators: LED (SYS, RUN, I/O, MS, NS, USR, S1 … S4, WDS, NET) red/green/orange: system status, program, local data bus, status programmable by user (can be used via CODESYS library), signal strength S1 … S4, data service status; LED (CON, A, B) green: mobile network status, system power supply status, field supply status

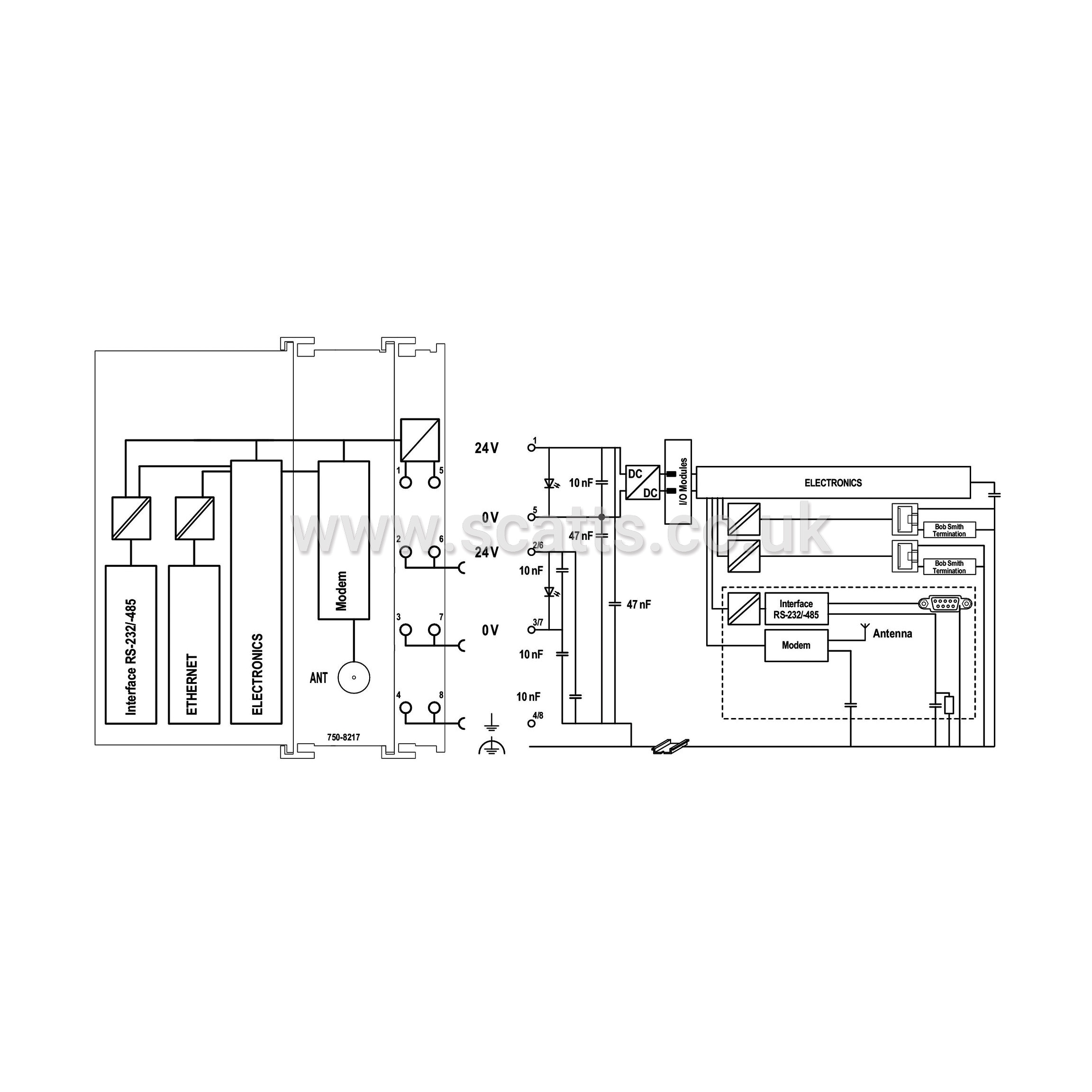

Supply voltage (system): 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP® connection)
Input current (typ.) at nominal load (24 V): 550mA
Total current (system supply): 700mA
Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts
Current carrying capacity (power jumper contacts): 10A
Number of outgoing power jumper contacts: 3
Isolation: 500 V system/field
Brand |
WAGO |
|
£1,024.11
per 1 (ex. VAT)£1,228.93
per 1 (inc. VAT)
