My Part Number:
Part Number: 750-8302
Manufacturer Code: 750-8302
Multiples of: 1 | Minimum Order: 1

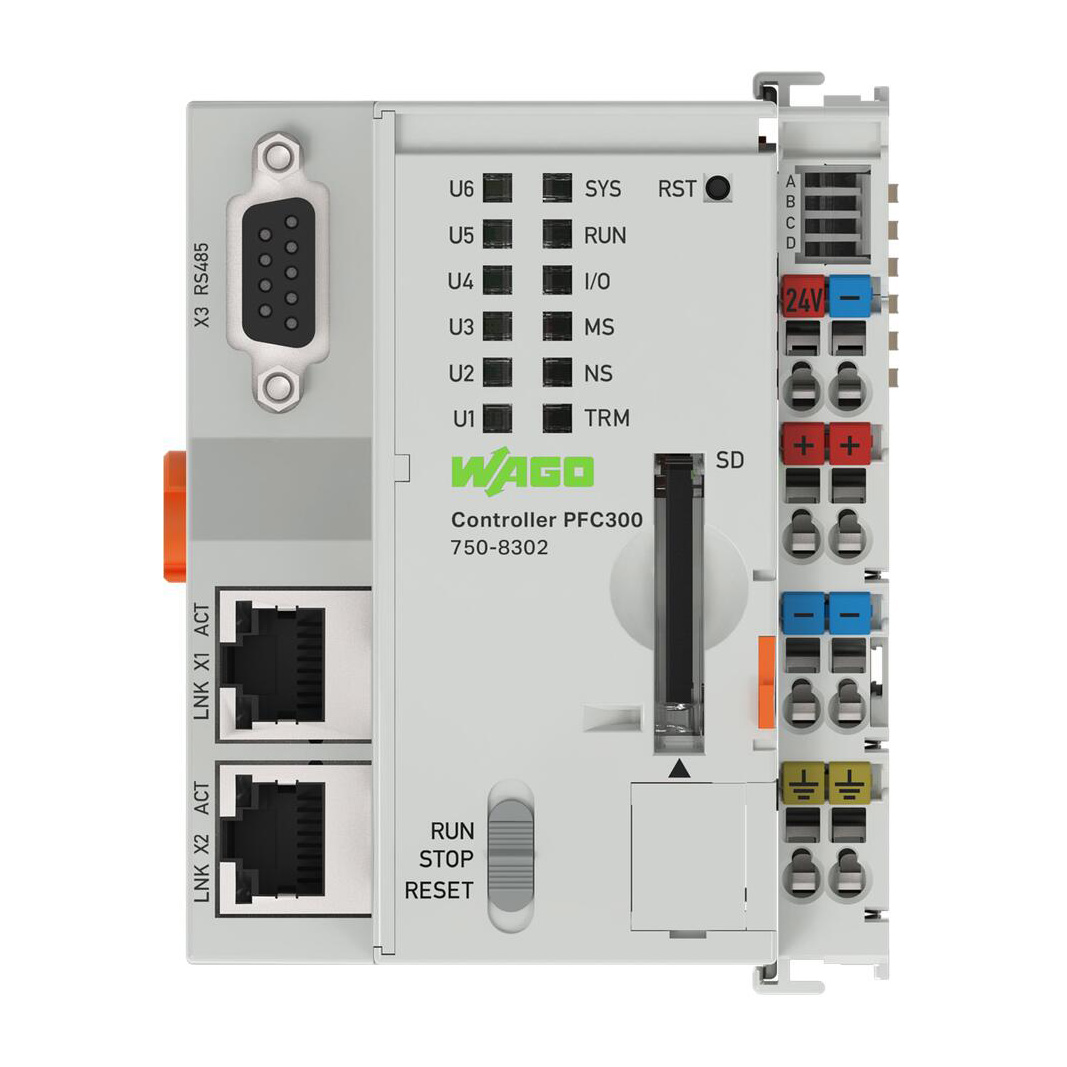

Controller PFC300 - 2 x ETHERNET, RS-485
Communications: Telecontrol protocols, requires an additional license, Fieldbuses integrated into CODESYS:, Modbus TCP master/slave, Modbus (UDP), WagoAppPlcModbus Library, Modbus (RTU), WagoAppPlcModbus Library, EtherNet/IPTM Adapter (slave), EtherNet/IPTM Scanner, EtherCAT® Master, PROFINET Controller (limited), OPC UA Server/Client, OPC UA Pub/Sub (can be installed later), ETHERNET, RS-485 interface, MQTT, Fieldbuses integrated into CODESYS:, Modbus TCP master/slave, Modbus (UDP), WagoAppPlcModbus Library, Modbus (RTU), WagoAppPlcModbus Library, EtherNet/IPTM Adapter (slave), EtherNet/IPTM Scanner, EtherCAT® Master, PROFINET Controller (limited), OPC UA Server/Client, OPC UA Pub/Sub (can be installed later)
ETHERNET protocols, DHCP, DNS, NTP, SFTP, FTP, FTPS, SNMP, HTTP, HTTPS, SSH
Telecontrol protocols: IEC 60870 (additional license as slave or master), IEC 61850 (additional license as Client or Server), DNP3 (additional license as Slave or Master)
Visualization: Web-Visu
Operating system: Real-time Linux (with PREEMPT_RT patch)
CPU: Dual Core Cortex A53 1.25 GHz
Programming languages per IEC 61131-3: Instruction List (IL), Ladder Diagram (LD), Function Block Diagram (FBD), Continuous Function Chart (CFC), Structured Text (ST), Sequential Function Chart (SFC)
Programming environment: CODESYS V3.5, Includes the following CODESYS features: MULTICORE, WebVisu, License for IIoT Libraries, License for OPC UA PUB/SUB
Configuration options: CODESYS V3, WAGO-I/O-CHECK, Web-Based Management, CODESYS Library
Transmission rate: 100/1000 Mbit/s
Transmission medium (communication/fieldbus): Twisted pair S-UTP; 100 Ω; Cat. 5e; 100 m maximum cable length
Main memory (RAM): 2 GB, LPDDR4 RAM
Internal memory (flash): 32 GB, eMMC Flash
Non-volatile hardware memory: 128kbyte
Program memory: 32 MB
Data memory: 512 MB
Non-volatile software memory: 128.kbyte
Type of memory card: SD, SDHC and SDXC (all guaranteed properties only valid with the WAGO memory card)
Memory card slot: Push-push mechanism; cover lid (sealable)
Number of modules per node (max.): 250
Number of modules without a bus extension (max.): 64
Input and output process image (internal) max.: 1000 words/1000 words
Input and output process image (Modbus®) max.: CODESYS V3: 32000 words/32000 words

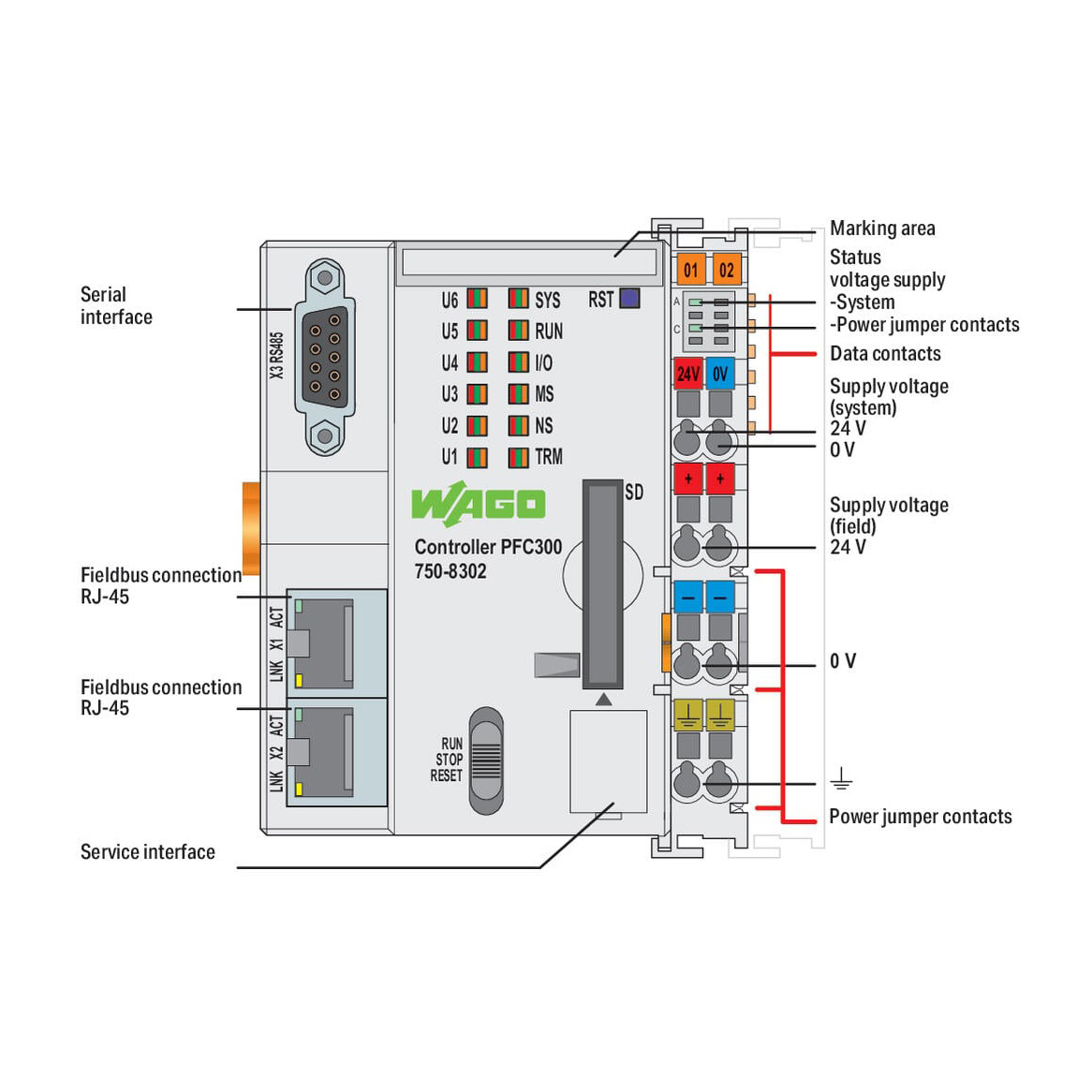

Indicators: LED (SYS, RUN, I/O, U1 … U7) red/green/orange: Status of system, program, local data bus, status programmable by user (can be used via CODESYS library); LED (A, B) green: Status of system power supply, field supply
Supply voltage (system): 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP® connection)
Input current (typ.) at nominal load (24 V): 550mA
Total current (system supply): 1,700mA
Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts
Current carrying capacity (power jumper contacts): 10A
Number of outgoing power jumper contacts: 3

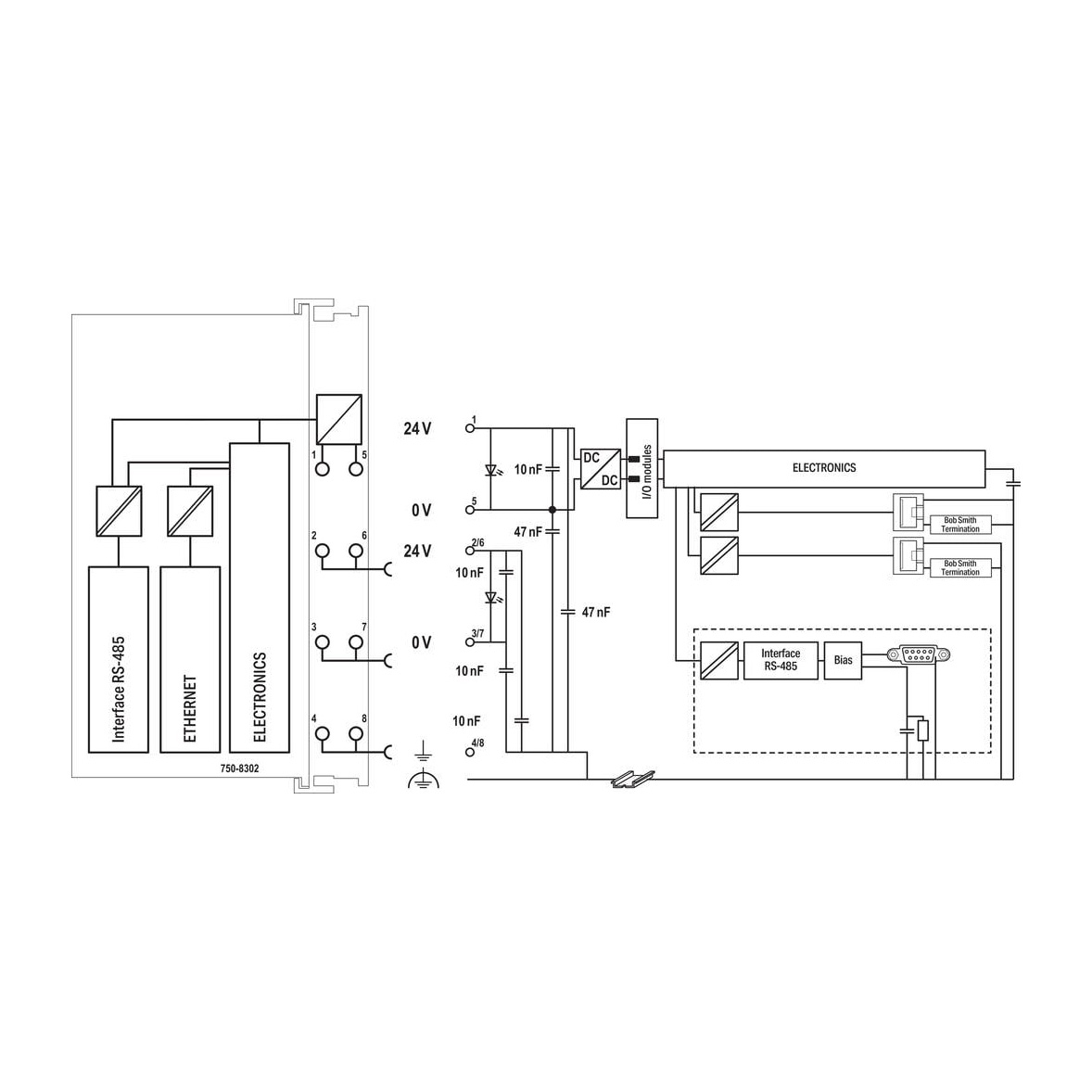

Isolation: 500 VDC system/field
Connection technology: communication/fieldbus: Modbus (TCP, UDP): 2 x RJ-45; Modbus RTU: 1 x D-sub 9 socket; RS-485 interface: 1 x D-sub 9 socket
Connection technology: system supply: 2 x CAGE CLAMP®
Connection technology: field supply: 6 x CAGE CLAMP®
Connectable conductor materials: Copper
Connection type 1: System/field supply
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Strip length: 8 … 9 mm / 0.31 … 0.35 inches
Connection technology: device configuration: 1 x USB-C 2.0
Width: 78.6 mm / 3.094 inches
Height: 100 mm / 3.937 inches
Depth: 71.9 mm / 2.831 inches
Depth from upper-edge of DIN-rail: 64.7 mm / 2.547 inches
Weight: 207.7g
Housing material: Polycarbonate; polyamide 6.6
Conformity marking: CE
Ambient temperature (operation): -25 … +60 °C
Ambient temperature (storage): -25 … +85 °C
Protection type: IP20
Pollution degree: 2 per IEC 61131-2
Operating altitude: without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
Relative humidity (without condensation): 95%
Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
Mounting type: DIN-35 rail
Vibration resistance: 4g per IEC 60068-2-6
Shock resistance: 15g per IEC 60068-2-27
EMC immunity to interference: per EN 61000-6-2, marine applications in preparation
EMC emission of interference: per EN 61000-6-3, marine applications in preparation
Exposure to pollutants: per IEC 60068-2-42 and IEC 60068-2-43
Fire load: 2.523MJ
Permissible H2S contaminant concentration at a relative humidity 75 %: 10ppm
Permissible SO2 contaminant concentration at a relative humidity 75 %: 25ppm
Brand |
WAGO |
|
£799.00
per 1 (ex. VAT)£958.80
per 1 (inc. VAT)
