Part Number: 750-862
Manufacturer Code: 750-862
Multiples of: 1 | Minimum Order: 1

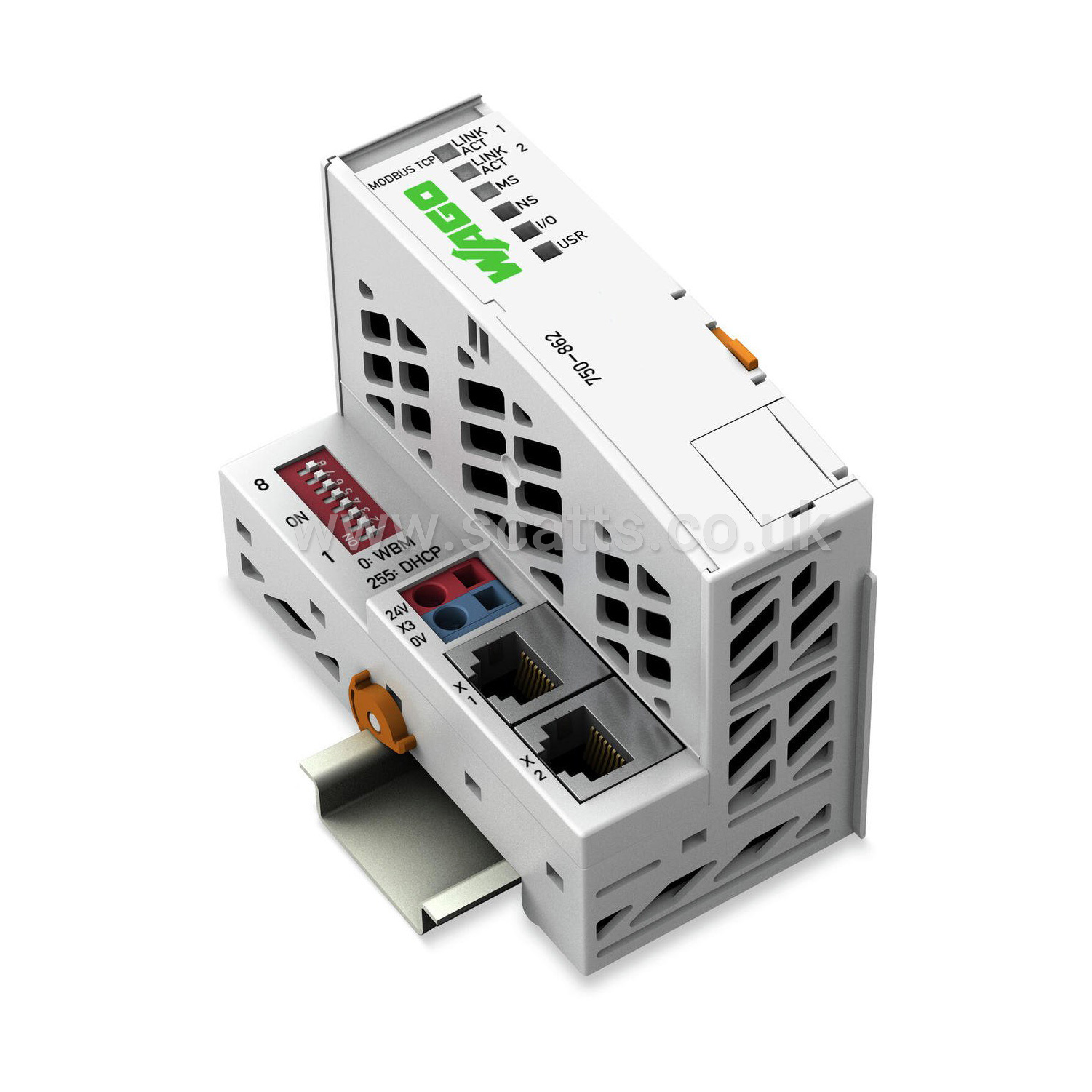

Controller Modbus TCP - 4th generation, 2 x ETHERNET, ECO
The Modbus TCP Controller can be used as a programmable controller within ETHERNET networks in conjunction with the WAGO I/O System.
The controller detects all connected I/O modules and creates a local process image. This process image may include a mixed arrangement of analog (word-by-word data transfer) and digital (bit-by-bit data transfer) modules.
Two ETHERNET interfaces and an integrated switch allow the fieldbus to be wired in a line topology, eliminating the need for additional network devices, such as switches or hubs. Both interfaces support autonegotiation and Auto-MDI(X).
The DIP switch configures the last byte of the IP address and may be used for IP address assignment.
The controller is designed for fieldbus communication in Modbus® networks. It also supports a wide variety of standard ETHERNET protocols (e.g., HTTP(S), BootP, DHCP, DNS, SNTP, (S)FTP, SNMP).
An integrated Webserver provides user configuration options, while displaying the controller's status information.
The IEC 61131-3 programmable controller is multitasking-capable.
Communication: Modbus (TCP, UDP)
ETHERNET protocols: HTTP(S), BootP, DHCP, DNS, SNTP, FTP(S), SNMP
Visualization: Web server
CPU: 32 bits
Programming languages per IEC 61131-3: Instruction List (IL), Ladder Diagram (LD), Function Block Diagram (FBD), Continuous Function Chart (CFC), Structured Text (ST), Sequential Function Chart (SFC)
Programming environment: WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)
Configuration options: WAGO-I/O-CHECK, Web-Based Management, CODESYS Library
Baud rate (communication/fieldbus 1): 10/100 Mbit/s
Baud rate: 10/100 Mbit/s
Transmission medium (communication/fieldbus): Twisted Pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length
Transmission performance: Class D per EN 50173
Program memory: 2 MB
Data memory: 2 MB
Non-volatile software memory: 16kbyte
Number of modules per node (max.): 250
Number of modules without a bus extension (max.): 64
Input and output process image (fieldbus) max.: 1020 words/1020 words
Indicators: LED (LINK/ACT) green: Network connection via ports 1 … 2; LED (MS, NS) red/green: Status of node, network; LED (I/O, USR) red/green/orange: Local data bus status, status programmable by user

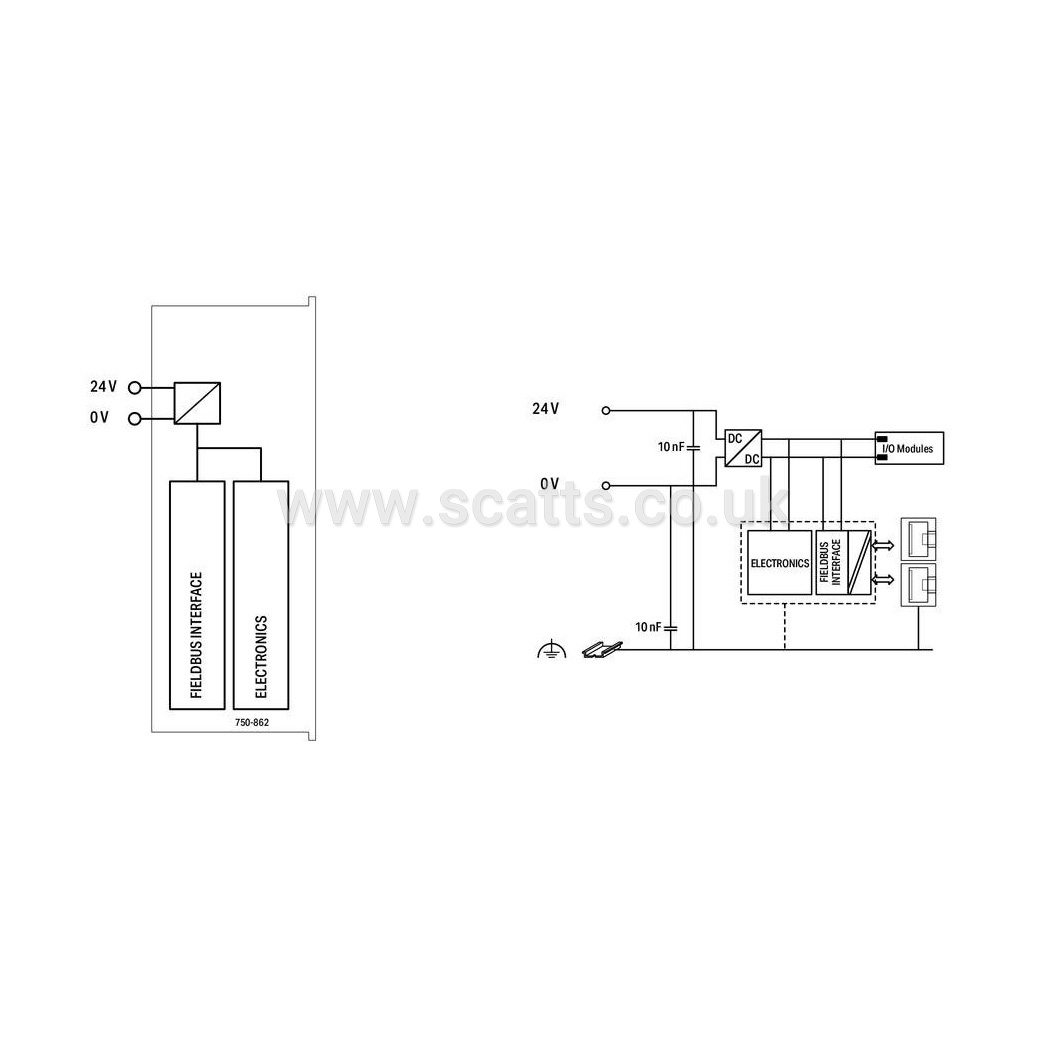

Supply voltage (system): 24 VDC (-25 … +30 %); via pluggable connector
Input current (typ.) at nominal load (24 V): 300mA
Power supply efficiency (typ.) at nominal load (24 V): 90%
Current consumption (5 V system supply): 390mA
Total current (system supply): 700mA
Isolation: 500 V system/field
