My Part Number:
Part Number: 750-960
Manufacturer Code: 750-960
Multiples of: 1 | Minimum Order: 1

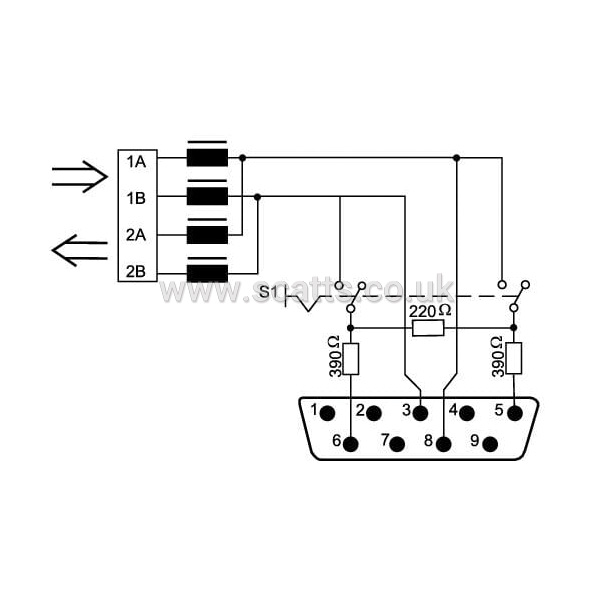

Fieldbus Connector PROFIBUS; with D-sub male connector; 9-pole
Connection type: D-sub 9 plug
Pole number: 9
Communication/fieldbus: PROFIBUS
Baud rate: 12 Mbit/s (per PROFIBUS specification)
Supply voltage: 4.75 … 5.25 VDC
Input current: 5mA
Connection type 1: CAGE CLAMP® terminal strip with locking slide (218 Series)
Solid conductor: 0.08 … 0.5 mm² / 28 … 20 AWG
Strip length: 5 … 6 mm / 0.2 … 0.24 inches

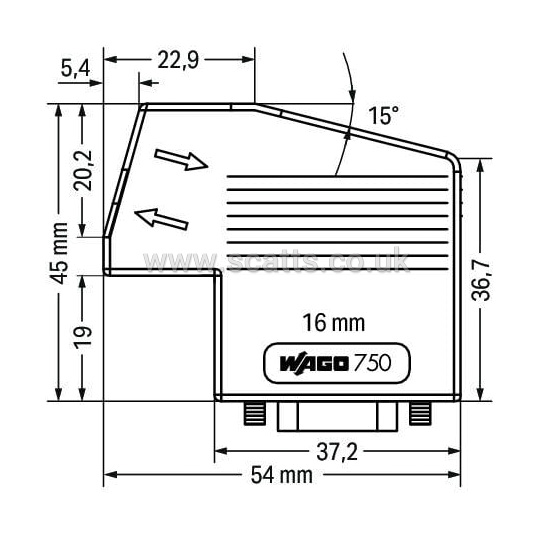

Width: 54 mm / 2.126 inches
Height: 16 mm / 0.63 inches
Depth: 45 mm / 1.772 inches
Connectable sheathed cable diameter: 4.5 … 9.5 mm
Cable glands (number): 2
Housing material: PA66-105-V2
Weight: 33.4g
Colour: light gray
Brand |
WAGO |
|
£33.34
per 1 (ex. VAT)£40.01
per 1 (inc. VAT)
Fieldbus Connector PROFIBUS; with D-sub male connector; 9-pole
Connection type: D-sub 9 plug
Pole number: 9
Communication/fieldbus: PROFIBUS
Baud rate: 12 Mbit/s (per PROFIBUS specification)
Supply voltage: 4.75 … 5.25 VDC
Input current: 5mA
Connection type 1: CAGE CLAMP® terminal strip with locking slide (218 Series)
Solid conductor: 0.08 … 0.5 mm² / 28 … 20 AWG
Strip length: 5 … 6 mm / 0.2 … 0.24 inches
Width: 54 mm / 2.126 inches
Height: 16 mm / 0.63 inches
Depth: 45 mm / 1.772 inches
Connectable sheathed cable diameter: 4.5 … 9.5 mm
Cable glands (number): 2
Housing material: PA66-105-V2
Weight: 33.4g
Colour: light gray
Brand |
WAGO |
|
