My Part Number:
Part Number: 750-972
Manufacturer Code: 750-972
Multiples of: 1 | Minimum Order: 1
This fieldbus connector links a PROFIBUS device to a PROFIBUS line.
The fieldbus connector has the following features:
• Compact design Perfectly connects to an S7 PLC
• No losable parts
• Programming interface
• Two horizontal cable entries for both input and output.
• Fast and maintenance-free CAGE CLAMP® connection – a locking slide keeps the clampling unit in its open position

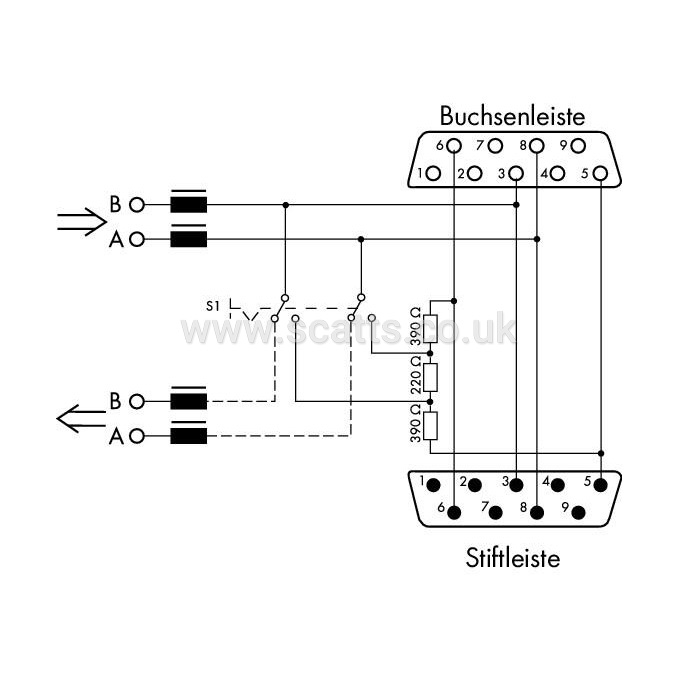

• Externally operable switch to activate or deactivate the network terminating resistor
For the first and last station on the bus, the switch must be set to “ON” (Terminating resistor activated, outgoing bus line disconnected) Switch setting to “OFF” for downstream bus stations (Terminating resistor deactivated)
Connection type: D-sub 9 plug
Pole number: 9
Communication/fieldbus: PROFIBUS
Baud rate: 12 Mbit/s (per PROFIBUS specification)
Supply voltage: 4.75 … 5.25 VDC
Input current: 5mA
Brand |
WAGO |
|
£39.90
per 1 (ex. VAT)£47.88
per 1 (inc. VAT)
