My Part Number:
Part Number: 879-3000
Manufacturer Code: 879-3000
Multiples of: 1 | Minimum Order: 1

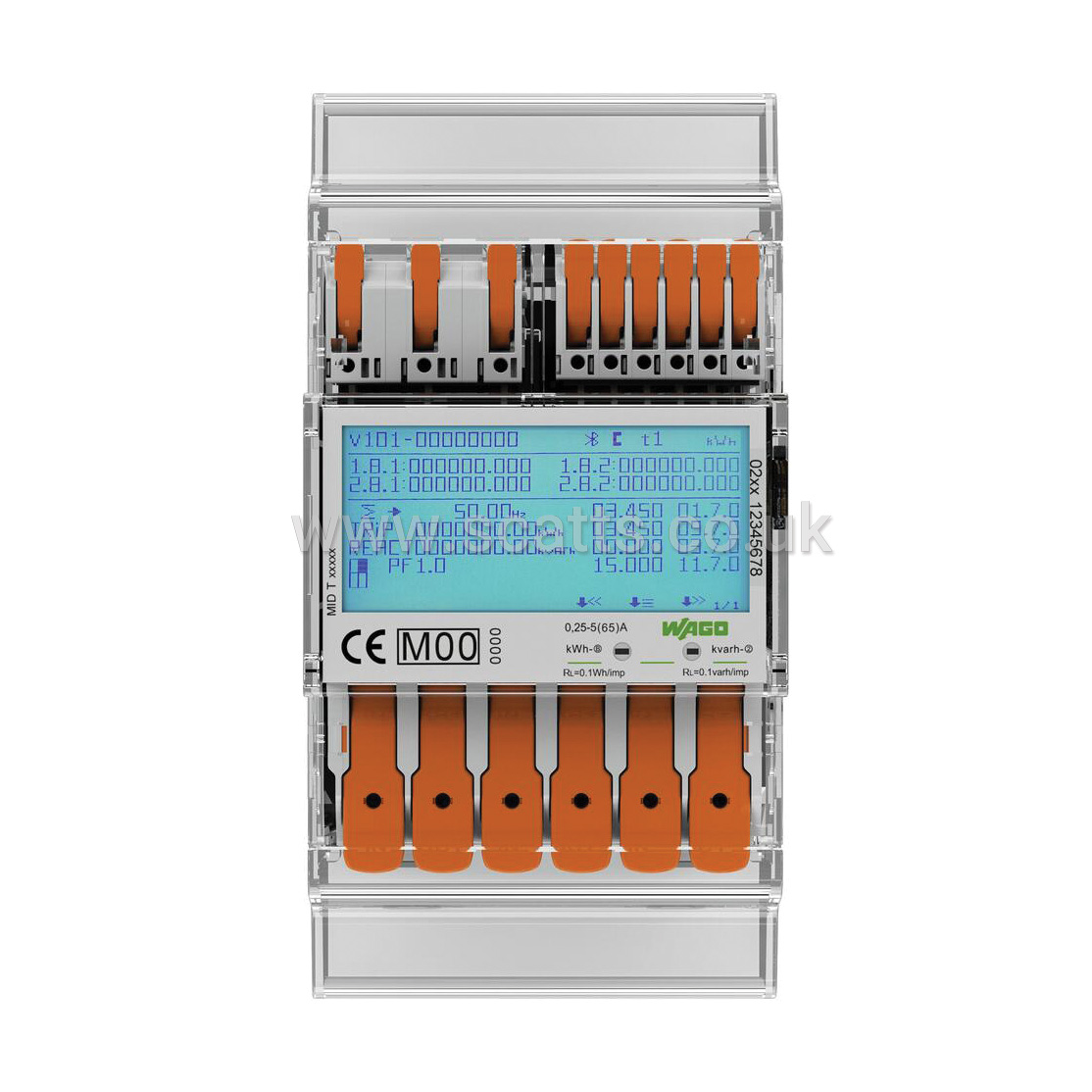

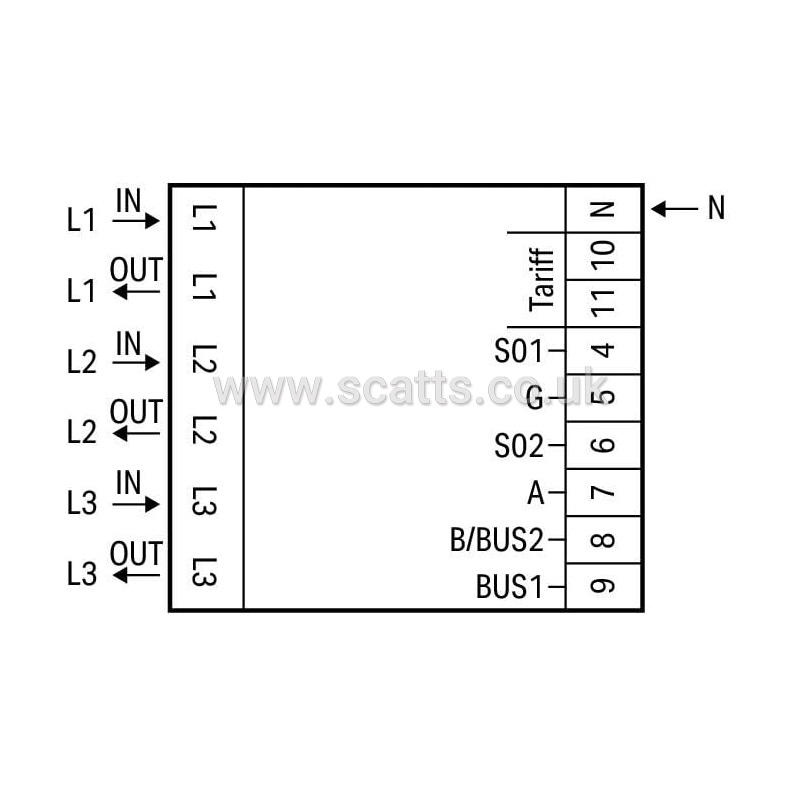

Energy meter (MID24); for direct connection; 65A; 3x230/400V; 50Hz; Modbus® and M-Bus; 2 x S0 interface; 4PU
Dielectric strength: 4°kV; 1°min
Impulse withstand voltage (1.2/50 μs): 6kV
Pollution degree: 2
Protection class: II
Protection type: IP51 / IP20; IP51 (front side); IP20 (connection)

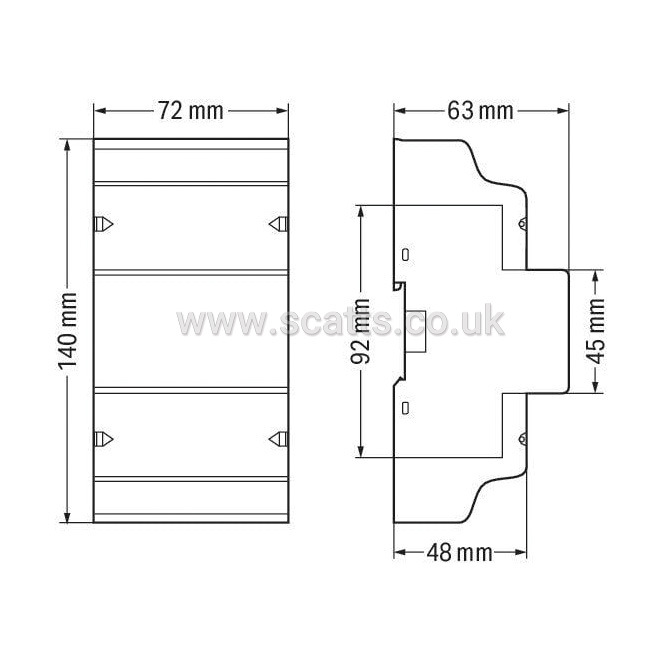

Width: 72 mm / 2.835 inches
Height: 140 mm / 5.512 inches
Depth: 63 mm / 2.48 inches
Note (dimensions): Height without cover: 92 mm
Ambient temperature (operation): -40 … +70 °C
Relative humidity: ≤ 75% (during storage ≤ 95 %)
Mounting type: DIN-35 rail
Housing design: DIN-rail-mount enclosure
Housing material: PC 940A
Weight: 280g
Brand |
WAGO |
|
£208.25
per 1 (ex. VAT)£249.90
per 1 (inc. VAT)
Energy meter (MID24); for direct connection; 65A; 3x230/400V; 50Hz; Modbus® and M-Bus; 2 x S0 interface; 4PU
Dielectric strength: 4°kV; 1°min
Impulse withstand voltage (1.2/50 μs): 6kV
Pollution degree: 2
Protection class: II
Protection type: IP51 / IP20; IP51 (front side); IP20 (connection)
Width: 72 mm / 2.835 inches
Height: 140 mm / 5.512 inches
Depth: 63 mm / 2.48 inches
Note (dimensions): Height without cover: 92 mm
Ambient temperature (operation): -40 … +70 °C
Relative humidity: ≤ 75% (during storage ≤ 95 %)
Mounting type: DIN-35 rail
Housing design: DIN-rail-mount enclosure
Housing material: PC 940A
Weight: 280g
Brand |
WAGO |
|
