My Part Number:
Part Number: 0363660000
Manufacturer Code: DK 4QV/35
Multiples of: 1 | Minimum Order: 1

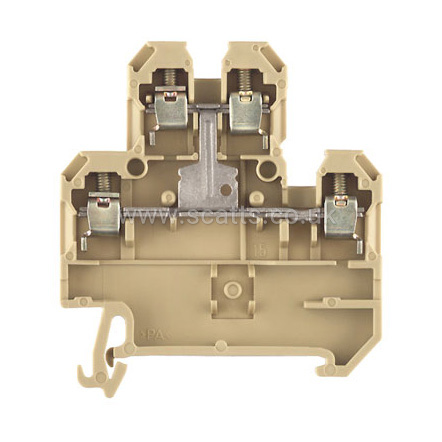

DK 4QV/35 - SAK Series, Feed-through terminal, Double-tier terminal, Rated cross-section: 4 mm², Screw connection -
Depth: 59.9 mm/2.358 inch
Height: 54 mm/2.126 inch
Width: 6 mm/0.236 inch
Material: PA 66
Colour: beige / yellow
UL 94 flammability rating: V-2
Explosion-tested version: Yes
Number of similar terminals: 1
Open sides: right
Type of mounting: Clamped
Rail: TS 35
Standards: IEC 60947-7-1
Wire connection cross section AWG, max.: AWG 12
Wire connection cross section AWG, min.: AWG 26
Brand |
WEIDMULLER KLIPPON |
|
£655.02
per 100 (ex. VAT)£786.02
per 100 (inc. VAT)
