My Part Number:
Part Number: 1020100000
Manufacturer Code: WDU 4
Multiples of: 1 | Minimum Order: 1

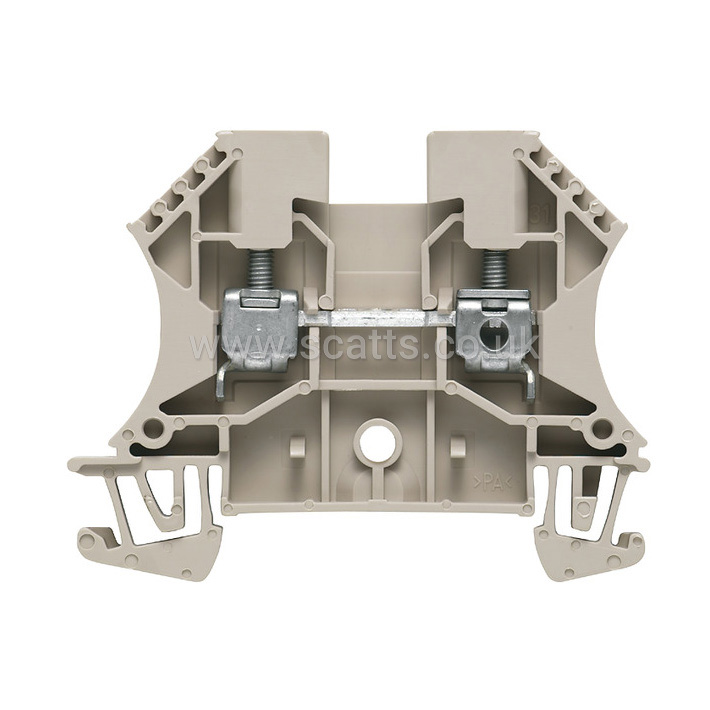

WDU 4, Feed-through terminal, Screw connection, 4 mm², 800 V, 32 A, dark beige
Depth: 46.5 mm/1.831 inch
Depth including DIN rail: 47 mm
Height: 60 mm/2.362 inch
Width: 6.1 mm/0.24 inch
Material: Wemid
Colour: dark beige
UL 94 flammability rating: V-0
Explosion-tested version: Yes
Number of similar terminals: 1
Open sides: right
Type of mounting: Snap-on
Rail: TS 35
Standards: IEC 60947-7-1
Wire connection cross section AWG, max.: AWG 10
Wire connection cross section AWG, min.: AWG 26
Brand |
WEIDMULLER KLIPPON |
|
£76.02
per 100 (ex. VAT)£91.22
per 100 (inc. VAT)
