My Part Number:
Part Number: COMBI206/BK/3XWAGO
Manufacturer Code: 10109900
Multiples of: 1 | Minimum Order: 1
Material: Polypropylene
Material sealing gasket: TPE
Temp. range min: -30 °C
Temp. range max: 100 °C
Temperatures during install.: -5 °C - 60 °C
Protection class: IP66 / IP67
Glow wire test: 750 °C
Voltage: 400 V
Rated cross section: 1,5 mm²
Terminals/poles: 4 mm²
Fixing: 4 internal openings
Ø cable diameter min: 3 mm
Ø cable diameter max: 12 mm

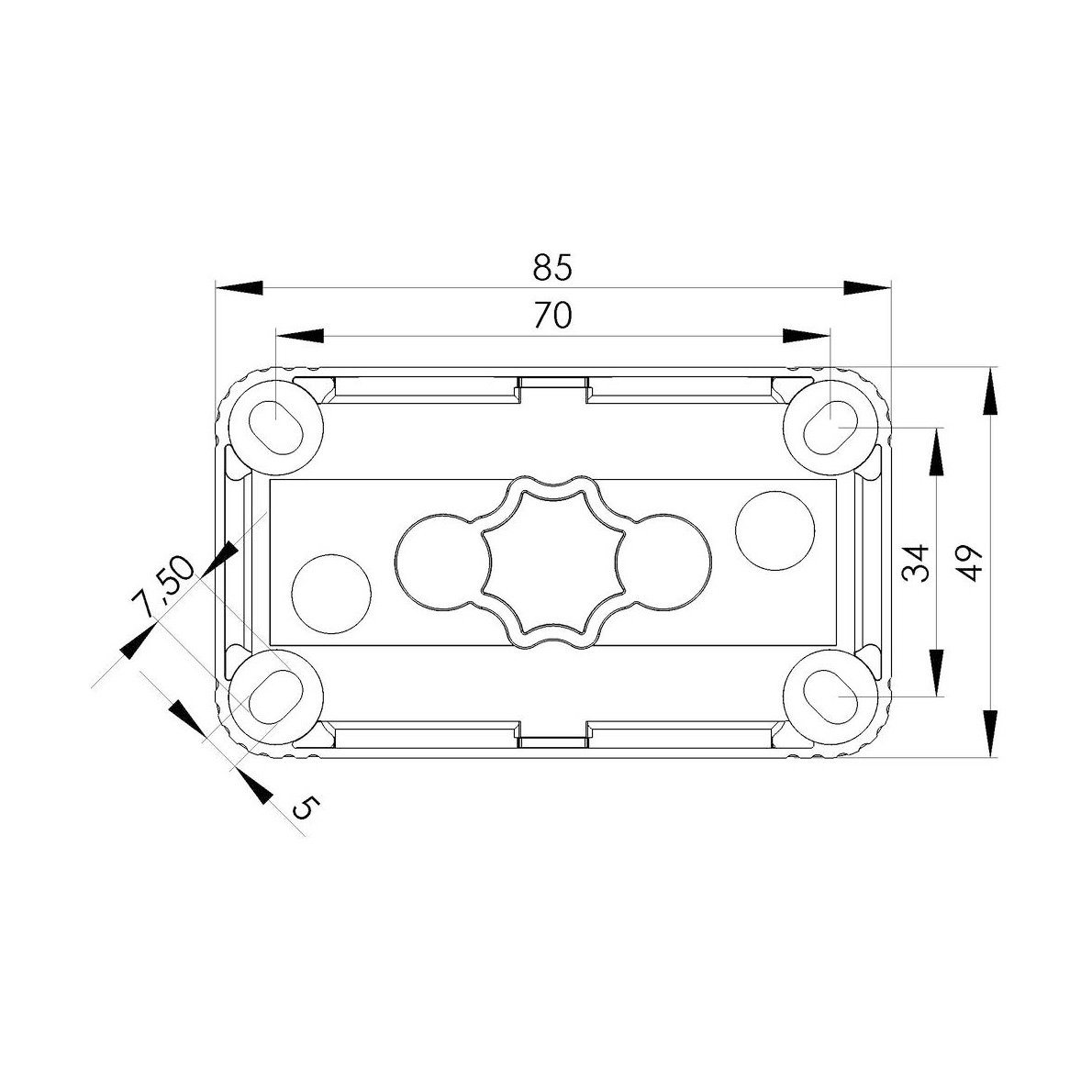

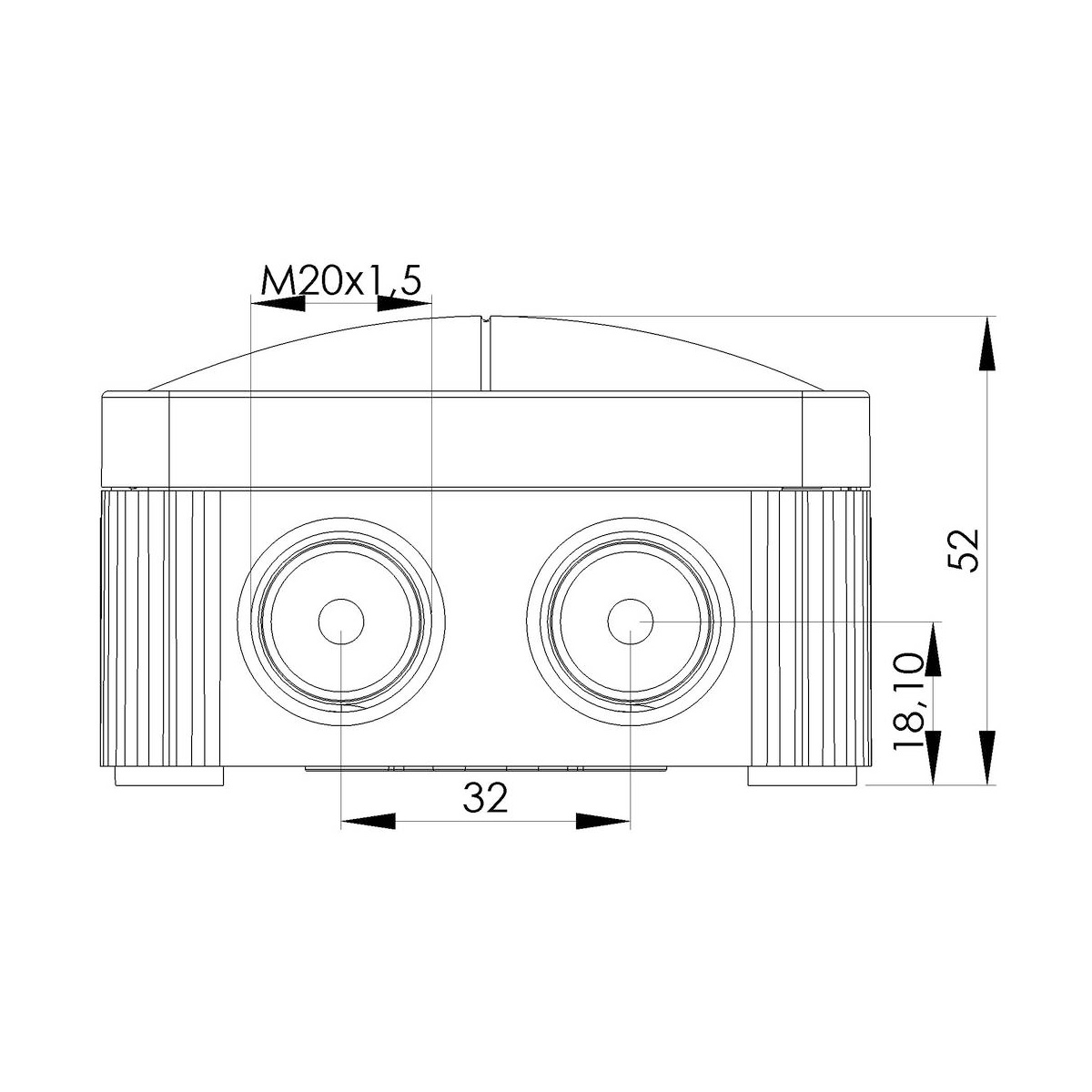

External dimensions LxWxH: 85 x 49 x 51mm
Brand |
WISKA |
|
£7.10
per 1 (ex. VAT)£8.52
per 1 (inc. VAT)
Material: Polypropylene
Material sealing gasket: TPE
Temp. range min: -30 °C
Temp. range max: 100 °C
Temperatures during install.: -5 °C - 60 °C
Protection class: IP66 / IP67
Glow wire test: 750 °C
Voltage: 400 V
Rated cross section: 1,5 mm²
Terminals/poles: 4 mm²
Fixing: 4 internal openings
Ø cable diameter min: 3 mm
Ø cable diameter max: 12 mm
External dimensions LxWxH: 85 x 49 x 51mm
Brand |
WISKA |
|
