My Part Number:
Part Number: BA390BLUE
Manufacturer Code: BA390-B
Multiples of: 1 | Minimum Order: 1

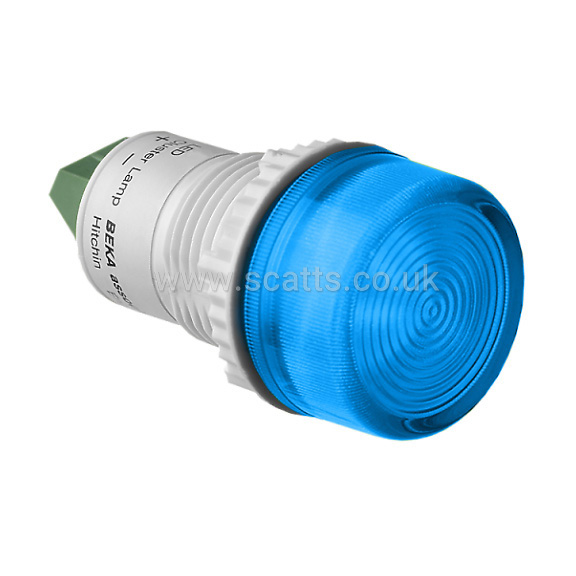

SERIES BA, EX EXIA LED PANEL LAMP - BLUE FOR ZONES 1, 2, 21 & 22
Brand |
BEKA |
|
Mounting Style |
Panel Mount |
|
Height |
30 mm |
|
Width |
30 mm |
|
Depth |
57 mm |
|
Weight |
0.018 kg |
|
IP Rating |
IP20, IP66 |
|
Minimum Operating Temperature |
-20 °C |
|
Maximum Operating Temperature |
60 °C |
ATEX Approval - Dust |
Ex ia IIIC T135°C Da |
|
ATEX Approval - Gas |
Ex ia IIC T4 Ga |
|
Hazadrous Area Certification |
1, 2, 21, 22 |
|
Approvals |
ATEX, IECEx |
Additional Information |
Exia Parameter I: 159 mA, Exia Parameter P: 0.683 W, Exia Parameter U: 30 V DC |
|
ATEX Certificate Number |
IECEx ITS 08.0030X, ITS13ATEX27822X |
|
Control Function |
Signal Lamp |
|
Control Operation |
LED |
|
Lens Colour |
Blue |
|
Maximum Conductor Size |
1.5 mm² |
|
£41.00
per 1 (ex. VAT)£49.20
per 1 (inc. VAT)SERIES BA, EX EXIA LED PANEL LAMP - BLUE FOR ZONES 1, 2, 21 & 22
